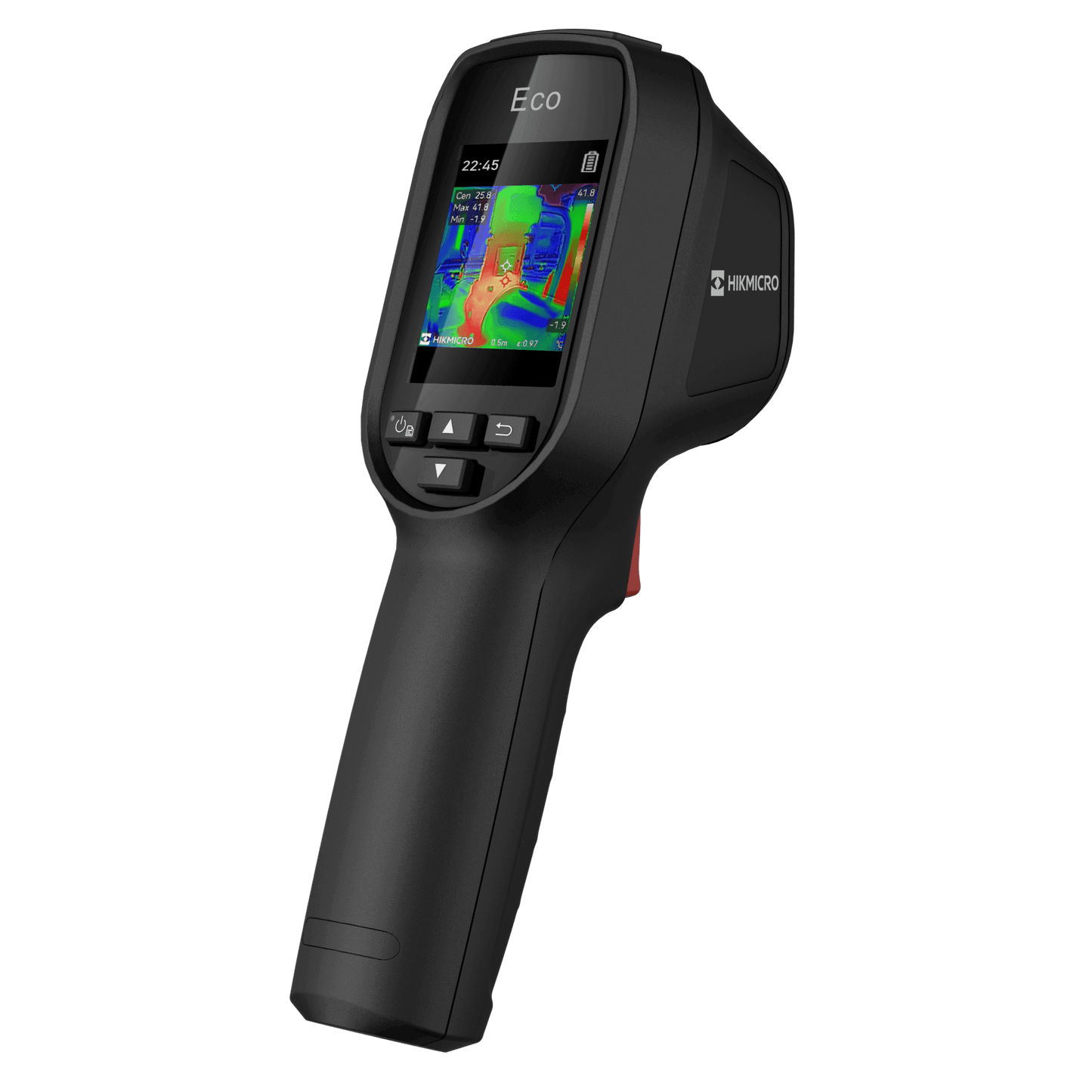

• Screen and Button View of the HikMicro Eco Handheld Thermal Imaging Camera

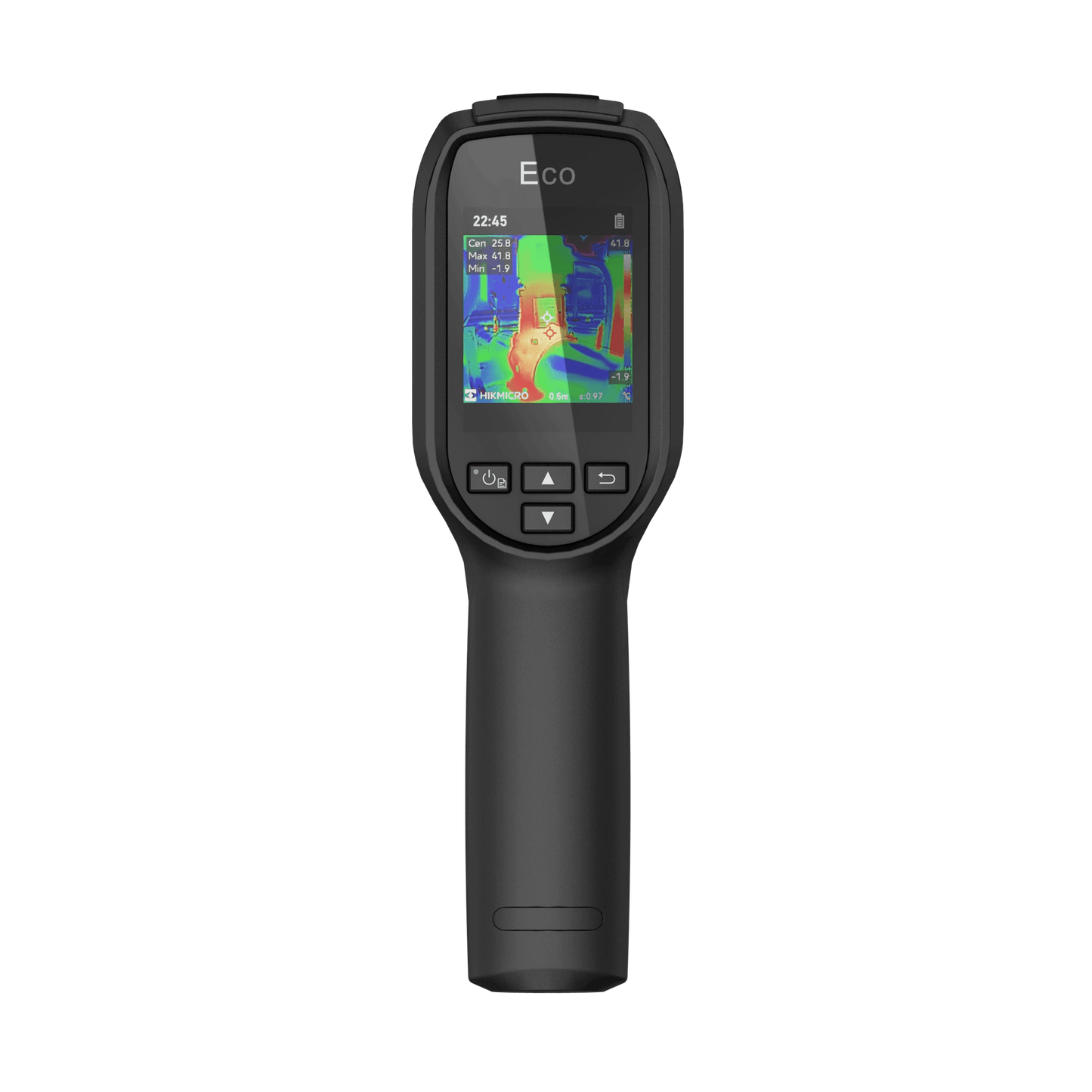

  • HikMicro Eco Handheld Thermal Imaging Camera Rear View

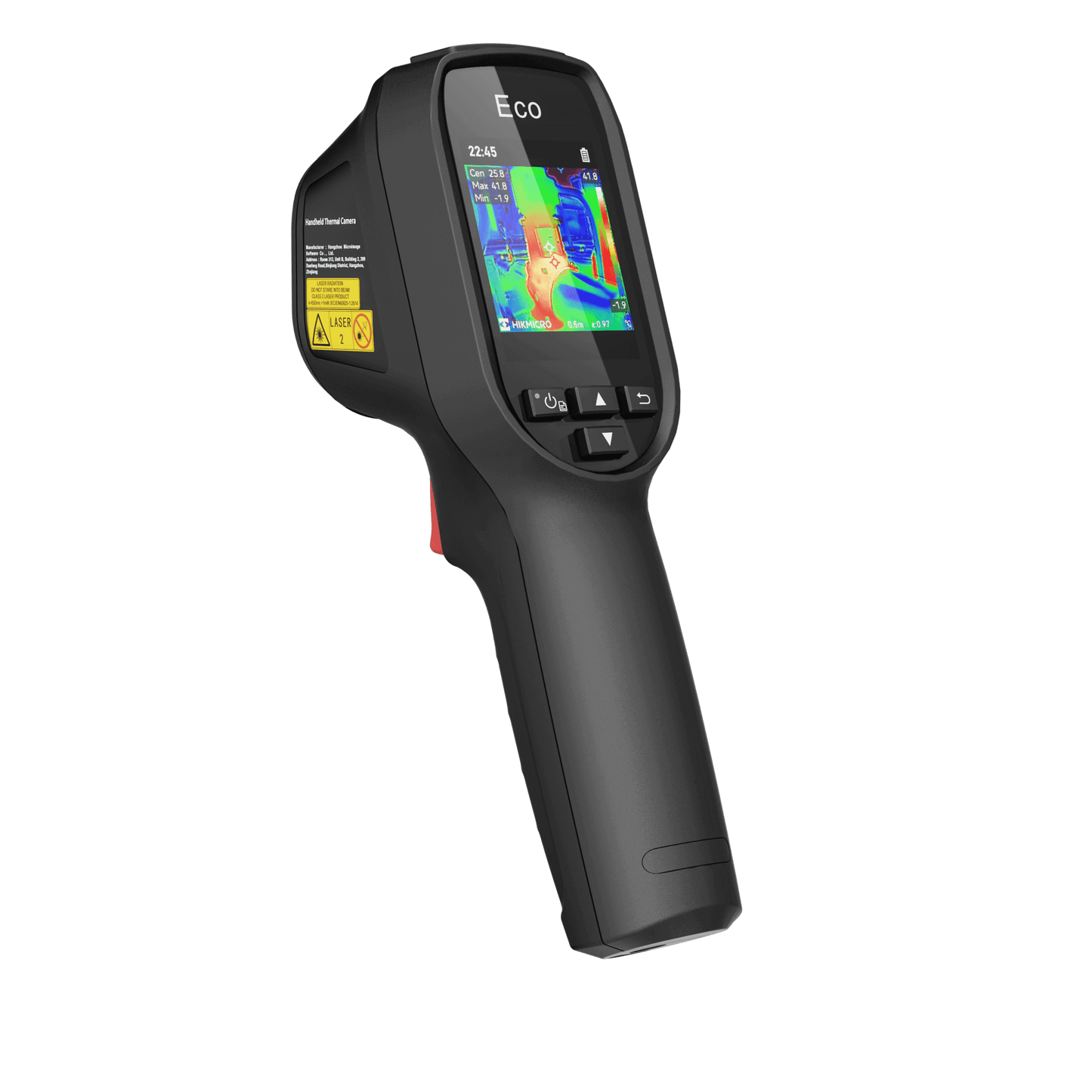

  • HikMicro Eco Handheld Thermal Imaging Camera Rear Left View

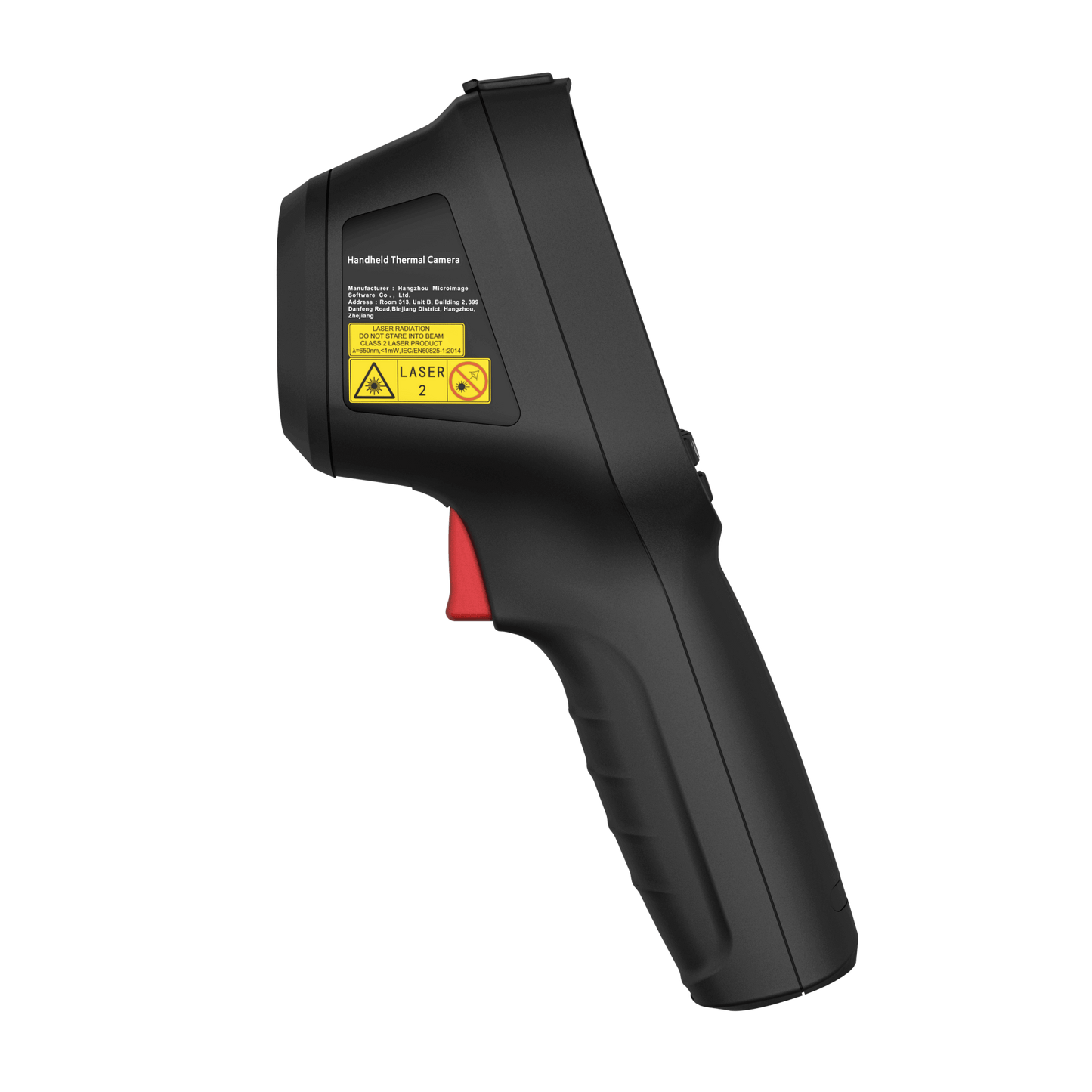

  • HikMicro Eco Handheld Thermal Imaging Camera Left Side Profile View

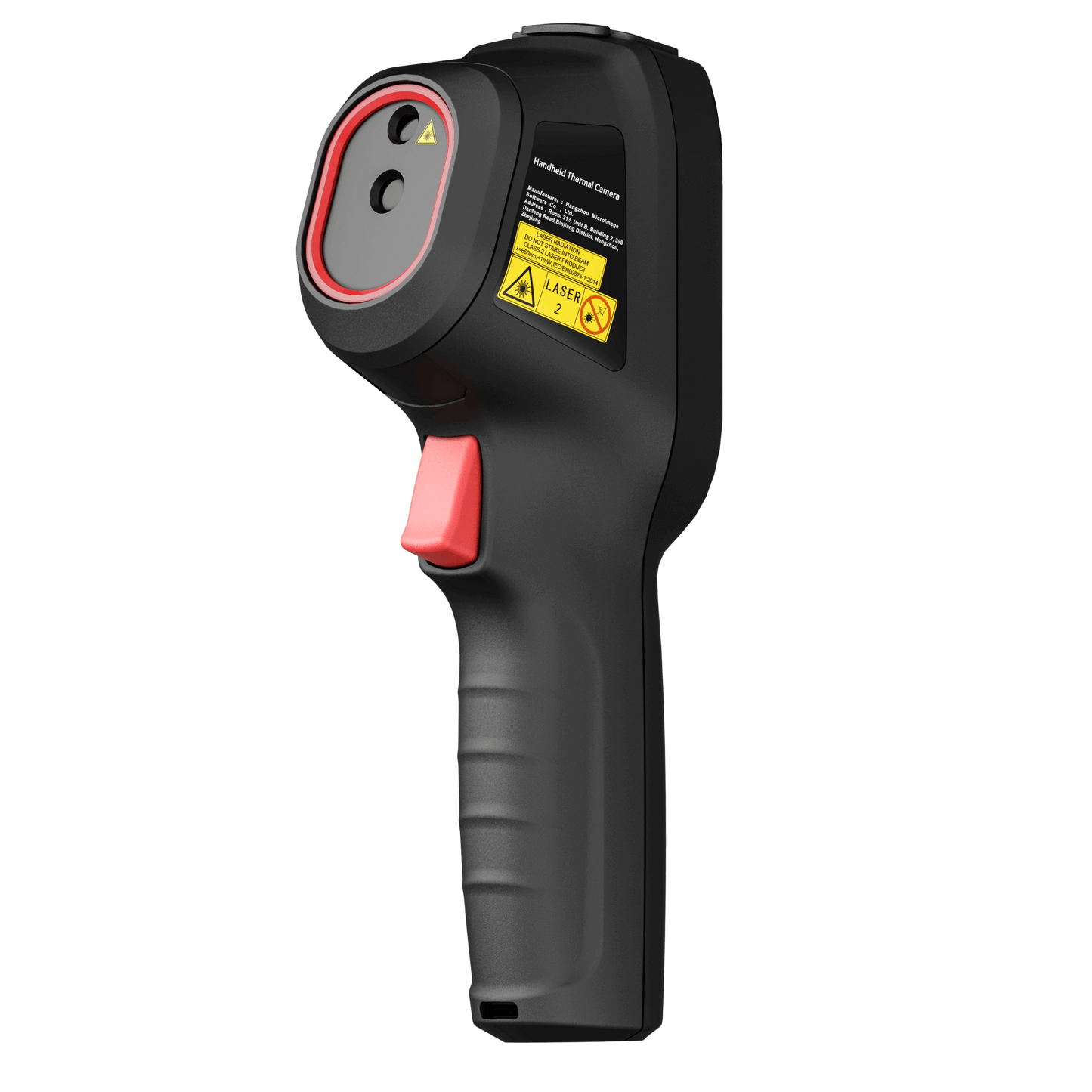

  • HikMicro Eco Handheld Thermal Imaging Camera View of Front
  • HikMicro Eco Handheld Thermal Imager Full screen precise temperature measurement
  • HikMicro Eco Handheld Thermal Imager Wide angle lens
  • HikMicro Eco Handheld Thermal Imager Digitally upscale thermal images with SuperIR
  • HikMicro Eco Handheld Thermal Imager Rugged Device IP54 2m Drop Test
  • HikMicro Eco Handheld Thermal Imager Has up to 8 Hours of battery life with continuous operation
1 10

HikMicro Eco-handheld termiese beeldkamera (1,35 mm) (96x96)

  • Thermal Resolution: 96x96
  • Thermal Lens: 1.35mm
  • Pixel Interval: 12µm
  • NETD: < 50mK
  • Thermal FOV: 50 × 50°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 5,599.00
Special Order
Including VAT • Includes Shipping

Request a Quote

Please provide your details below and our team will contact you shortly with a customized quote for HikMicro Eco-handheld termiese beeldkamera (1,35 mm) (96x96) .

SKU: HM-TP30-1AQF-Eco
Key Features & Highlights

HikMicro Eco Handheld Thermal Imaging Camera Key Features:

  • Superior Thermal Imaging Quality with SuperIR: The HikMicro Eco stands out with its 96x96 IR resolution, bolstered by the advanced SuperIR function. This feature enhances image clarity and detail, even in challenging conditions, making it easier to identify issues and conduct thorough diagnostics.
  • Enhanced Sensitivity: A NETD of <50mK ensures detection of subtle temperature differences, vital for precise diagnostics in industrial and technical settings.
  • Wide Field of View: Offering a 50° x 50° field of view and a 1.35mm focal length, the camera allows for extensive area scanning.
  • User-Friendly Operation: Designed for simplicity, with a focus-free lens and intuitive controls, suitable for both experts and novices.
  • Effortless Media Capture and Storage: The HikMicro Eco features substantial internal storage, allowing for the capture and one-click storage of IR images. This function makes it simple to document and review thermal data for analysis and reporting.
  • Durable and Portable: Robust design with an IP54 rating and 2-meter drop test durability ensures reliability in tough working conditions.
  • Long Battery Life: Up to 8 hours of continuous operation, ideal for prolonged field use.
Product Overview

Die HikMicro Eco Handheld Thermal Imaging Camera is 'n paradigma van uitnemendheid in termiese beeldingstegnologie. Dit is aangepas vir professionele persone in verskeie industrieë en bied 'n kompakte dog kragtige oplossing vir presiese termiese analise en diagnostiek.

Hierdie toestel is opvallend vir sy 96x96 termiese resolusie en 'n NETD van <50mK, wat die vaslegging van fyn temperatuurverskille met hoë akkuraatheid moontlik maak. Die HikMicro Eco is perfek vir toepassings, insluitend instandhouding van toerusting, elektriese inspeksies en HVAC-foutsporing, wat gedetailleerde en insiggewende termiese beelde verseker.

HikMicro Eco-handheld termiese beeldkamera Sleutelkenmerke:

  • Uitstekende termiese beeldkwaliteit met SuperIR : Die HikMicro Eco staan ​​uit met sy 96x96 IR-resolusie, versterk deur die gevorderde SuperIR-funksie. Hierdie kenmerk verbeter beeldhelderheid en detail, selfs in uitdagende toestande, wat dit makliker maak om probleme te identifiseer en deeglike diagnostiek uit te voer.
  • Verbeterde Sensitiwiteit : 'n NETD van <50mK verseker opsporing van subtiele temperatuurverskille, noodsaaklik vir presiese diagnostiek in industriële en tegniese instellings.
  • Wye sigveld : Die kamera bied 'n 50° x 50°-sigveld en 'n 1,35 mm-brandpuntsafstand, en maak voorsiening vir uitgebreide area-skandering.
  • Gebruikersvriendelike bediening : Ontwerp vir eenvoud, met 'n fokusvrye lens en intuïtiewe kontroles, geskik vir beide kundiges en beginners.
  • Moeitelose mediavaslegging en berging : Die HikMicro Eco beskik oor aansienlike interne berging, wat die vaslegging en een-klik-berging van IR-beelde moontlik maak. Hierdie funksie maak dit maklik om termiese data te dokumenteer en te hersien vir ontleding en verslagdoening.
  • Duursaam en draagbaar : Robuuste ontwerp met 'n IP54-gradering en 2-meter valtoetsduursaamheid verseker betroubaarheid in moeilike werksomstandighede.
  • Lang batterylewe : Tot 8 uur se aaneenlopende werking, ideaal vir langdurige veldgebruik.

Meer inligting oor die HikMicro Eco Handheld Thermal Imager:

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Thermal Resolution96x96
Pixel Pitch12 µm
NETD< 50 mK
Thermal Lens1.35 mm
Field of View50° × 50°
Frame Rate25 Hz
Thermography & Measurement
Measurement Range-20°C to 550°C
Temperature AccuracyMax. (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)
System & Display
Display Info240 × 320 Resolution, 2.4”LCD Screen
Storage Capacity4
Battery Life8
Physical & Environmental
Protection Level (IP Rating)IP54
Operating Temperature-00°C to 50°C
Dimensions & Weight196mm × 117mm × 59mm; <290g
