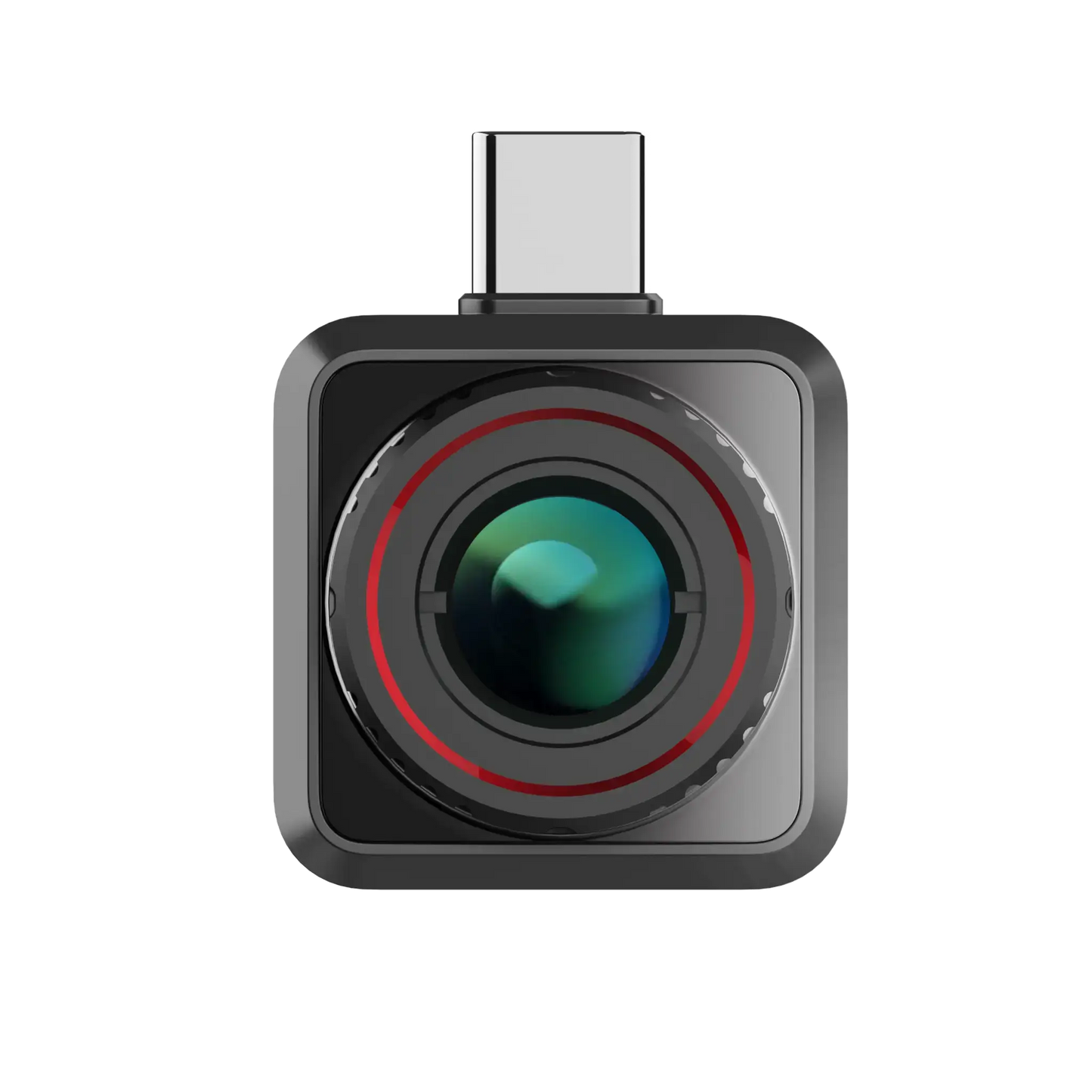

• A black Hikmicro Explorer E20 Plus thermal camera with a red ring around the lens and a USB-C connector. Facing to the front

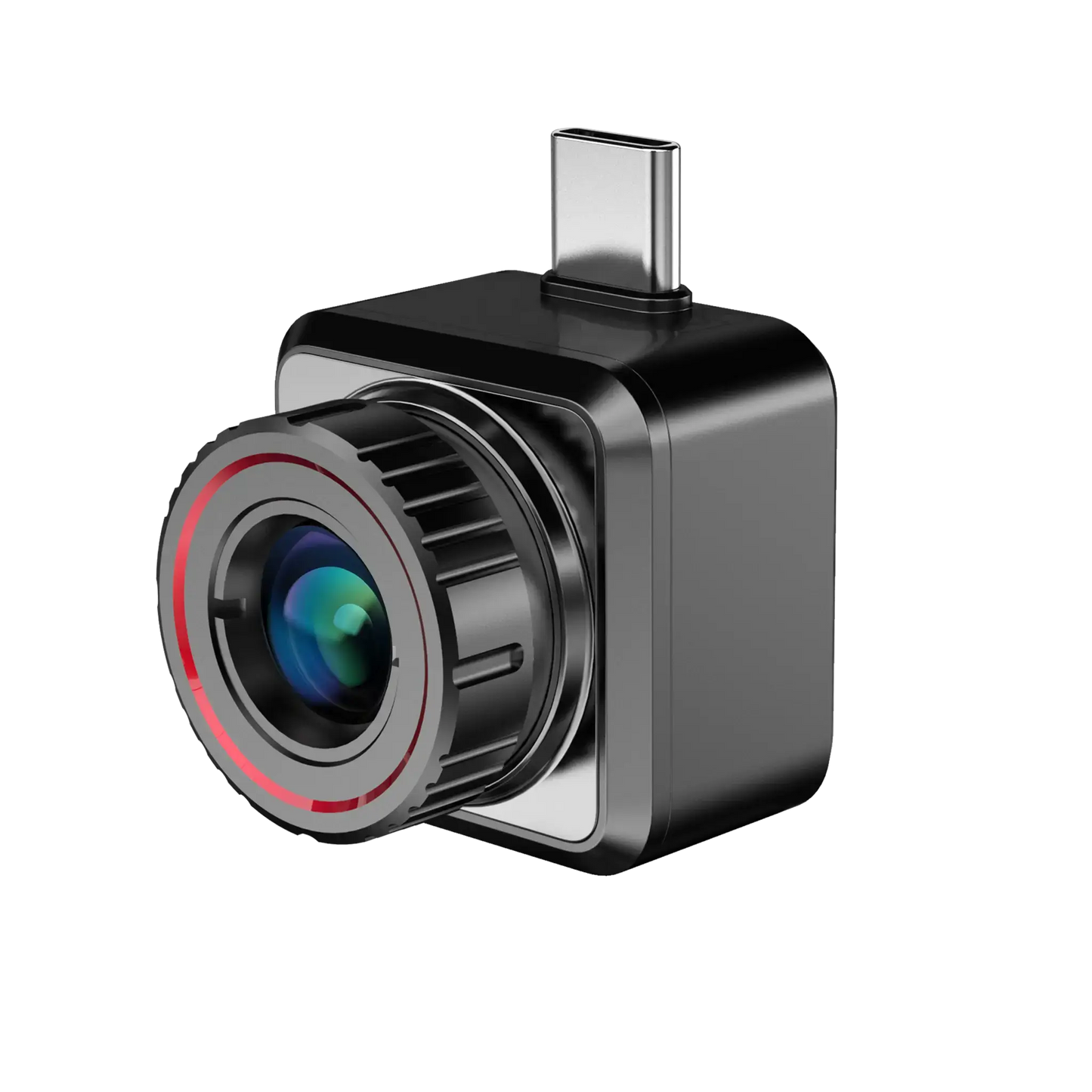

  • A black Hikmicro Explorer E20 Plus thermal camera with a red ring around the lens and a USB-C connector.

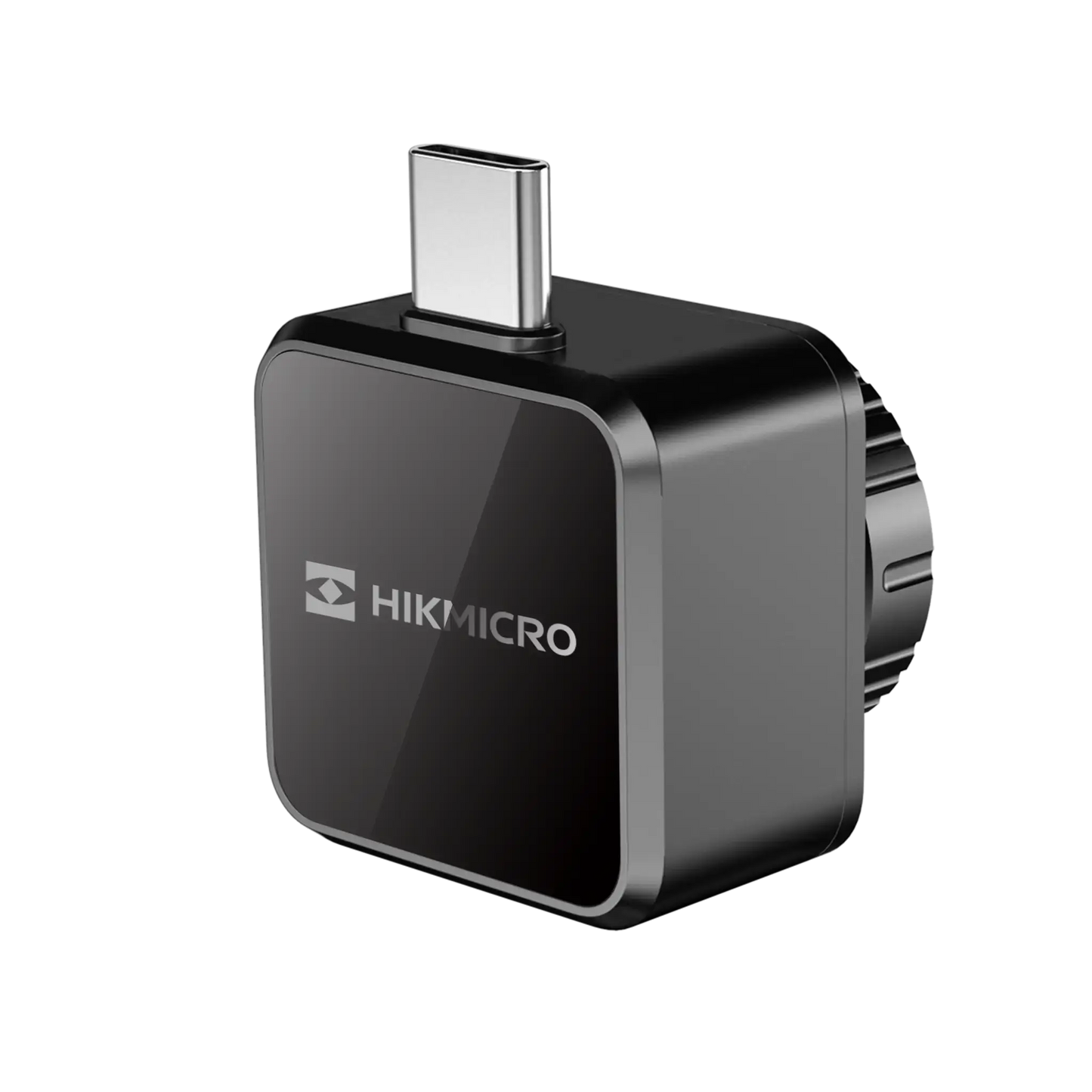

  • The back view of a black Hikmicro Explorer E20 Plus thermal camera with a red ring around the lens and a USB-C connector.
1 3

Hikmicro Explorer E20Plus - Sakgrootte termiese kamera

  • Thermal Resolution: 256x192
  • Thermal Lens: 9.7mm
  • Pixel Interval: 12µm
  • NETD: < 50mK
  • Thermal FOV: 18.1x13.6 (31.8mx23.8m @100m)°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 8,799.00
Including VAT • Includes Shipping

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay
Split your purchase with interest-free payments from R 1,466.50/m

Make your first payment today, then monthly over 2–6 months.

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Hikmicro Explorer E20Plus - Sakgrootte termiese kamera.

SKU: HM-TM42-10RG/T-E20Plus

Detection Range

Pig
Kudu
Elephant
571mDetection
135mRecognition
67mIdentification
856mDetection
202mRecognition
101mIdentification
1712mDetection
404mRecognition
202mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Key Features:

  • Thermal Imaging Excellence: 256x192 high-resolution thermal sensor with 12µm pixel pitch captures detailed thermal images, revealing heat signatures even in complete darkness.
  • Wide Field of View: 9.7mm lens with a 18.1°x13.6° field of view (31.8m x 23.8m at 100m) allows you to easily scan and identify targets in complex environments.
  • Compact and Portable: Lightweight and pocket-sized design makes it ideal for carrying on hikes, camping trips, and outdoor excursions.
  • Smartphone Connectivity: Easily attach the E30Plus to your smartphone via USB-C (Android compatible) to view and record thermal images and videos.
  • Versatile Applications: Ideal for wildlife observation, search and rescue, home inspections, and a wide range of outdoor activities.
Product Overview

Die Hikmicro Explorer E20Plus, 'n kompakte termiese kamera wat ontwerp is om jou slimfoon in 'n kragtige termiese beeldinstrument te omskep. Perfek vir buitelug-entoesiaste, natuurliefhebbers en avonturiers, die E20Plus is jou sakpasmaat vir dag en nag verkenning.

Sleutel kenmerke:

  • Uitnemende termiese beeldvorming: 256x192 hoë-resolusie termiese sensor met 12µm pixel toonhoogte neem gedetailleerde termiese beelde vas, wat hitte-kentekens openbaar selfs in volledige duisternis.
  • Wye Gesigveld: 9. 7mm-lens met 'n 18. 1°x13. 6° gesigsveld (31. 8m x 23. 8m op 100m) stel jou in staat om maklik teikens in komplekse omgewings te skandeer en te identifiseer.
  • Kompak en draagbaar: liggewig en sakgrootte ontwerp maak dit ideaal vir staptogte, kampeeruitstappies en buiteluguitstappies.
  • Slimfoonverbinding: Heg die E30Plus maklik aan jou slimfoon via USB-C (Android-versoenbaar) om termiese beelde en video's te bekyk en op te neem.
  • Veelsydige toepassings: Ideaal vir wildwaarneming, soek en redding, huisinspeksies en 'n wye verskeidenheid buitemuurse aktiwiteite.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled Focal Plane Arrays
Thermal Resolution256x192
Pixel Pitch12 µm
NETD< 50 mK
Thermal Lens9.7 mm
Focal Ratio (Aperture)F1.0
Field of View18.1°x13.6° (31.8mx23.8m @100m)
Magnification1-2x
Focus ModeManual Focus
Frame Rate50 Hz
Detection Range (1.7m Subject)970 m
System & Display
Screen BrightnessYes
Screen ContrastYes
Digital Zoom2x
Color PalettesBirdwatching, Red Hot, White Hot, Black Hot, Rainbow, Iron Hot
Image ModesBirdwatching, Red Hot, White Hot, Black Hot, Rainbow, Ironbow
Connectivity & Software
USB ConnectivityType-C
Digital CompassYes
Multilingual SupportYes
Physical & Environmental
Protection Level (IP Rating)IP40
Operating Temperature-10 °C to 50 °C
Dimensions & Weight26.6mmx26.6mmx27.2mm; 26g
What's in the Box
Box ContentsHikmicro E20 Plus Thermal imaging camera
Type-C Cable
Bag
QSG
