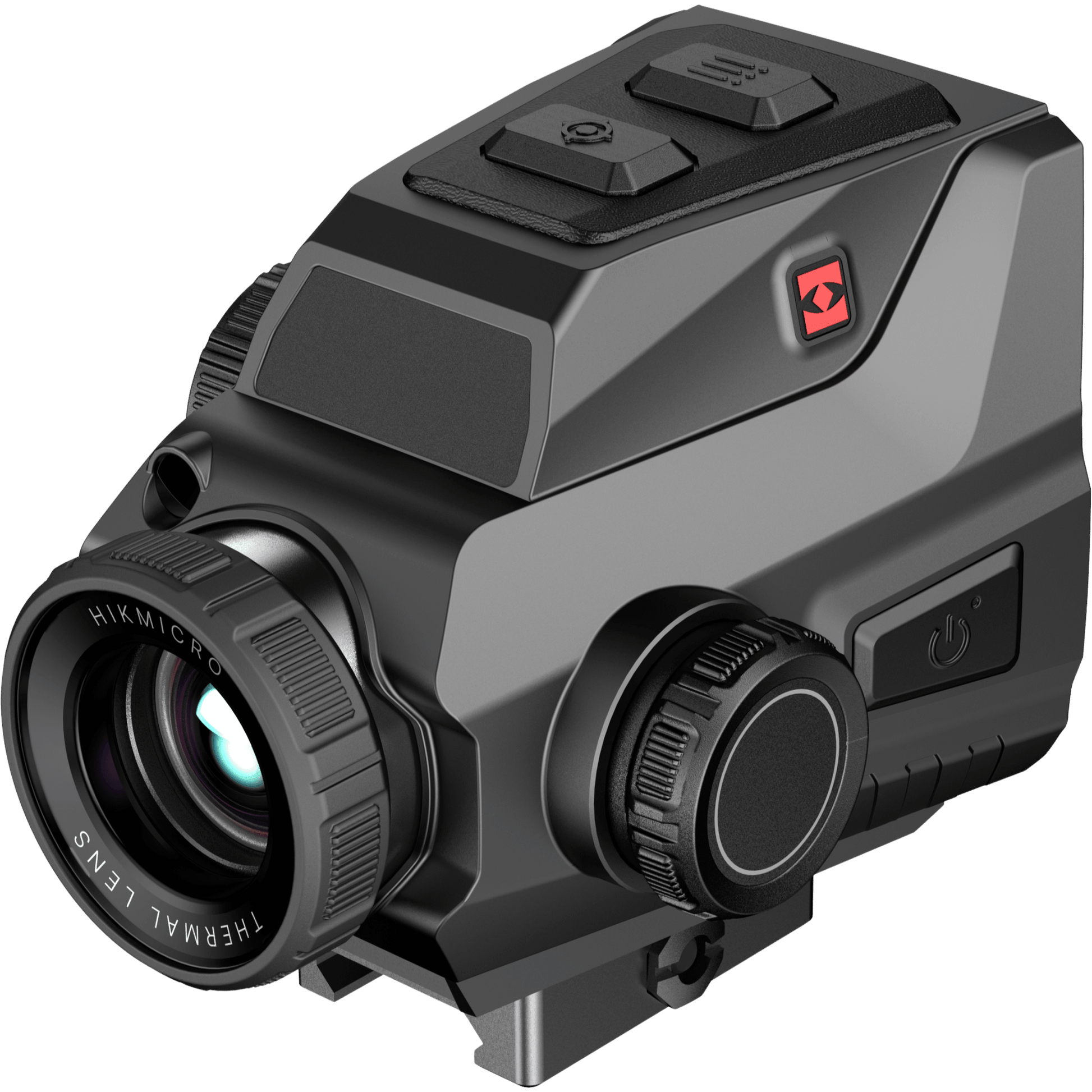

• Facing front perspective view: Hikmicro HIKTac TC19 thermal sight with integrated Picatinny mounting base, manual front lens focus ring, and top control button interface

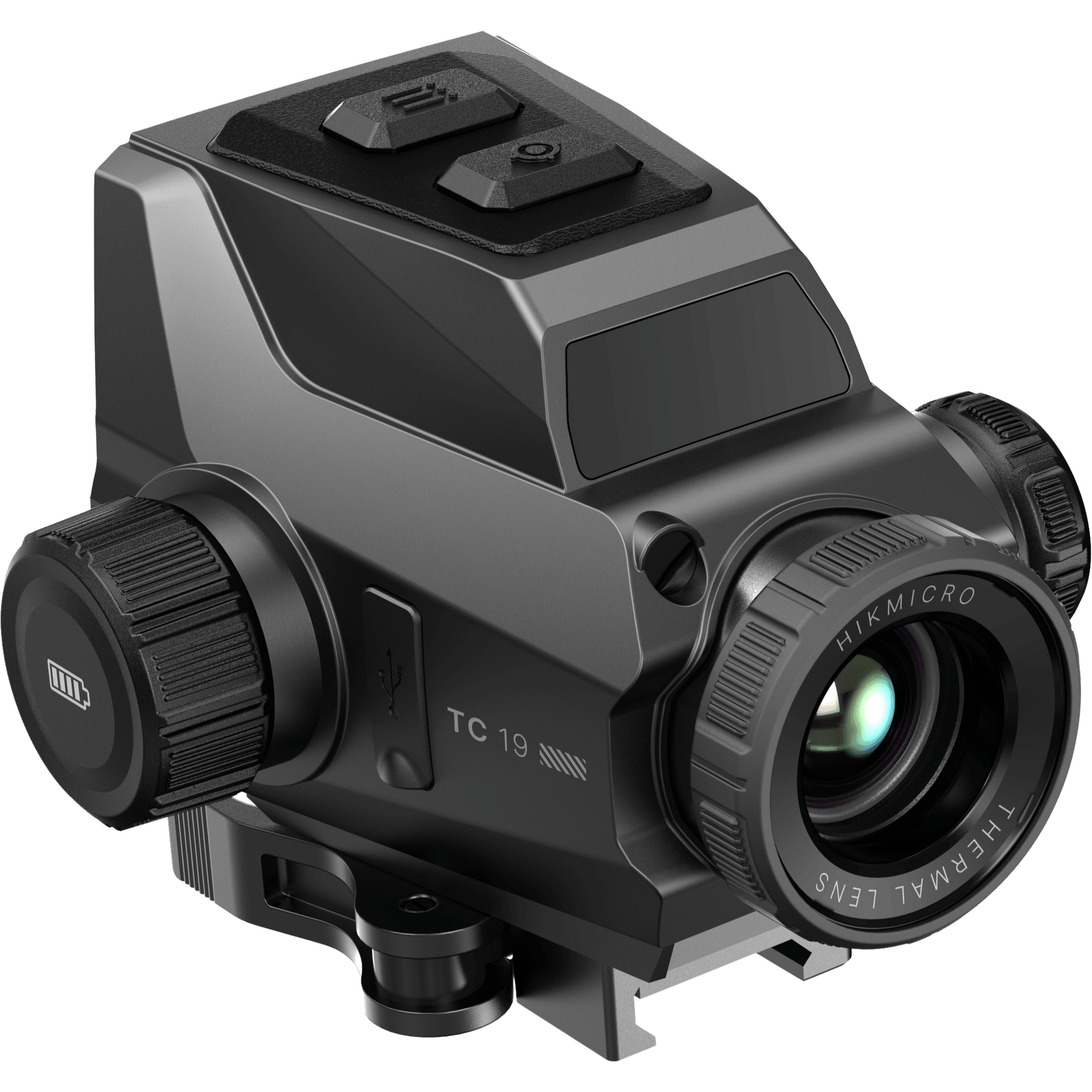

  • Hikmicro Hiktac TC19 Facing left side: Low-profile 106.9mm chassis breakdown of the Hikmicro HIKTac TC19 tactical thermal scope showing objective lens placement and compact height dimension

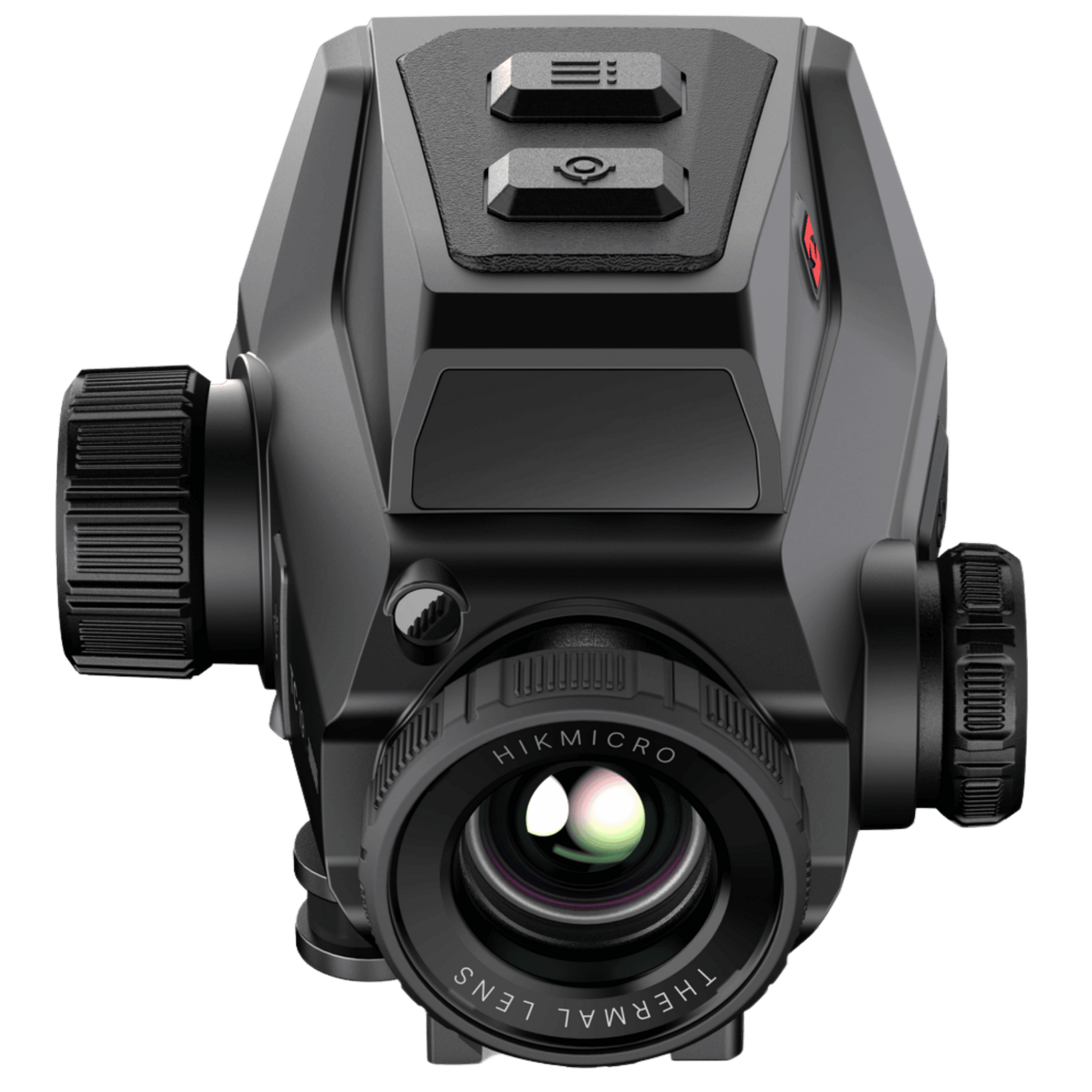

  • Facing front: HIKMICRO HIKTac TC19 highlighting the wide 19mm F1.0 infrared lens assembly, side battery cap housing, and clean 86.7mm narrow width profile

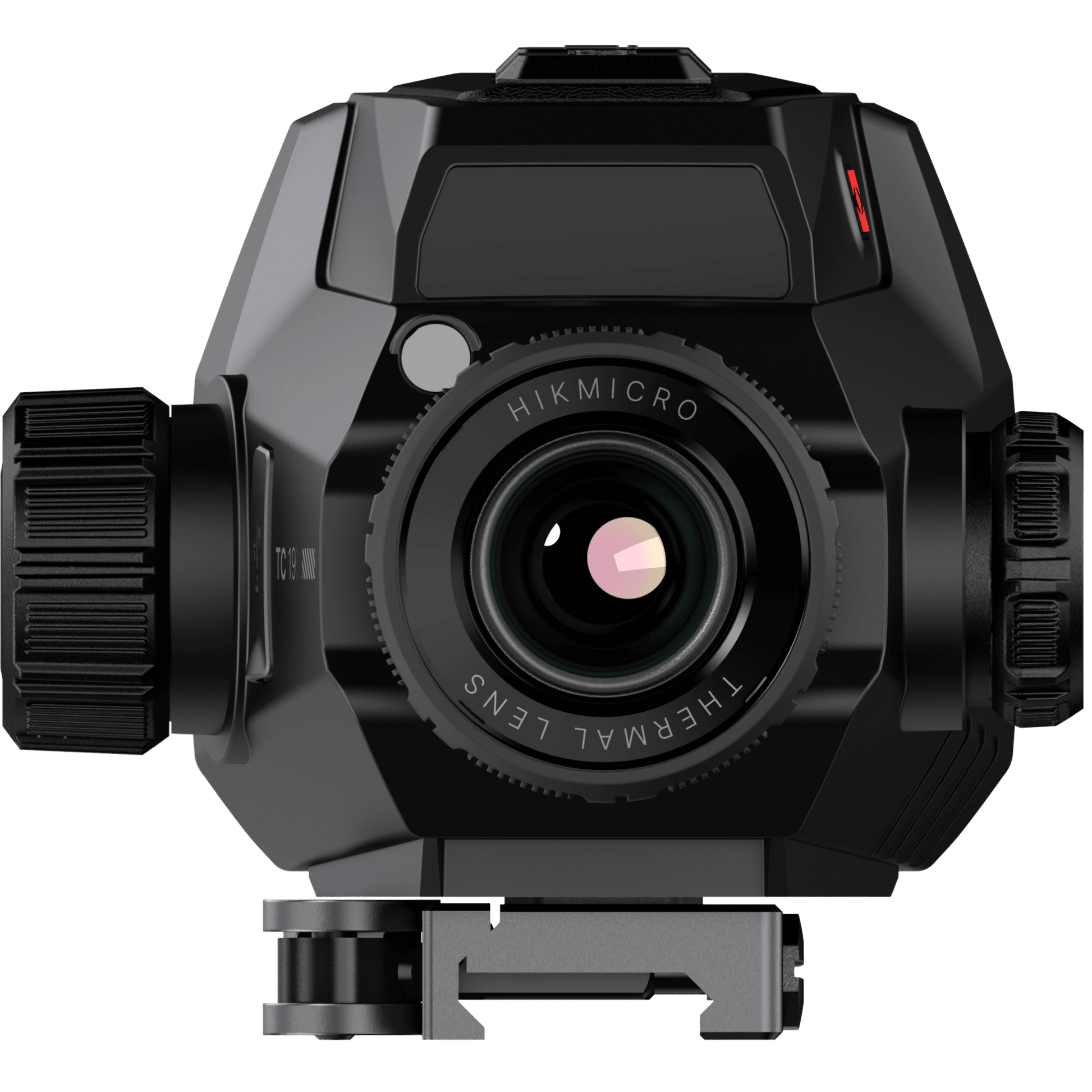

  • Facing front: Direct view of the Hikmicro HIKTac TC19 tactical thermal scope highlighting the integrated honeycomb structure Killflash objective lens protector and compact rugged housing

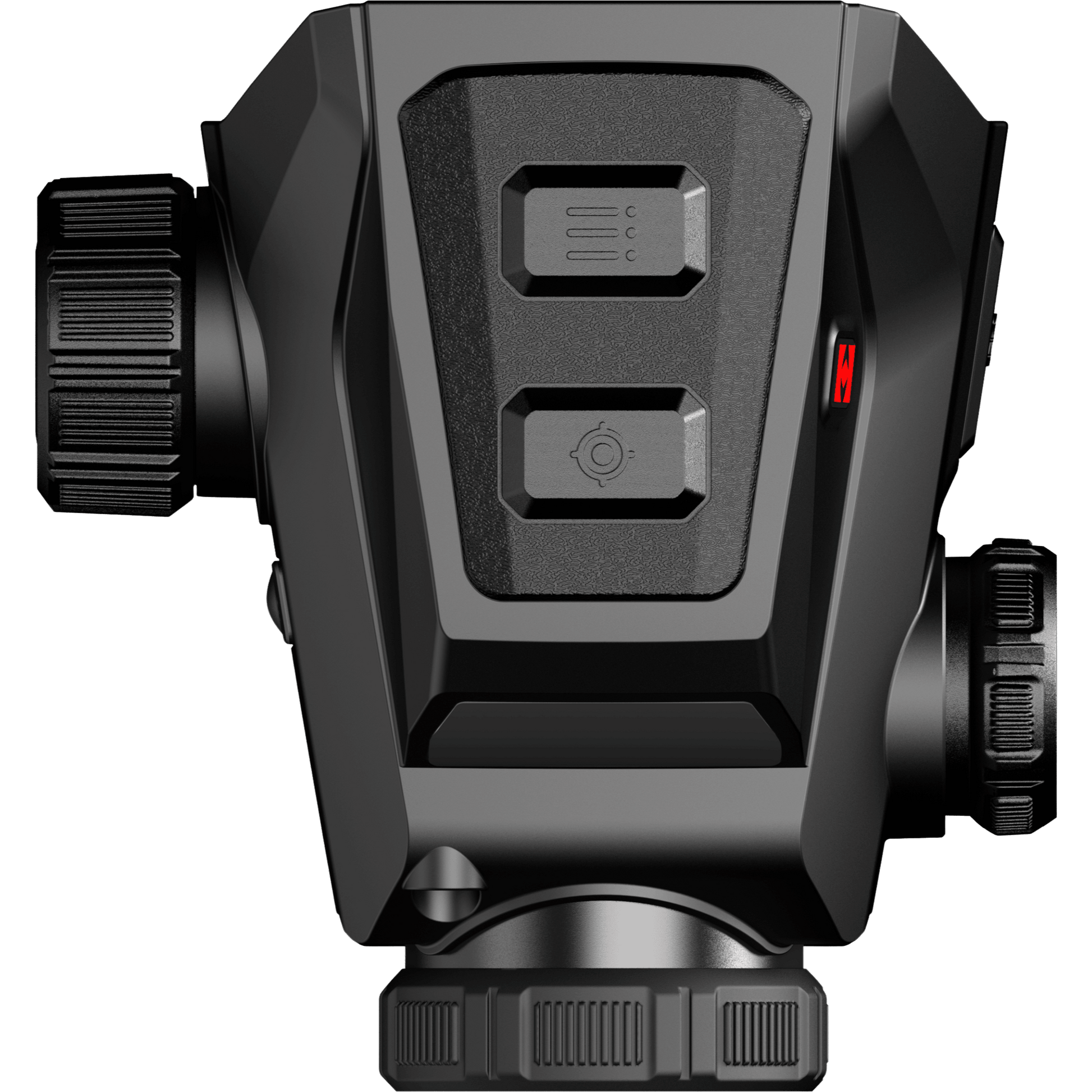

  • acing top down: Overview of the Hikmicro HIKTac TC19 thermal sight showcasing the ergonomic top rubber control button array and slim length dimension of the compact weapon mount housing

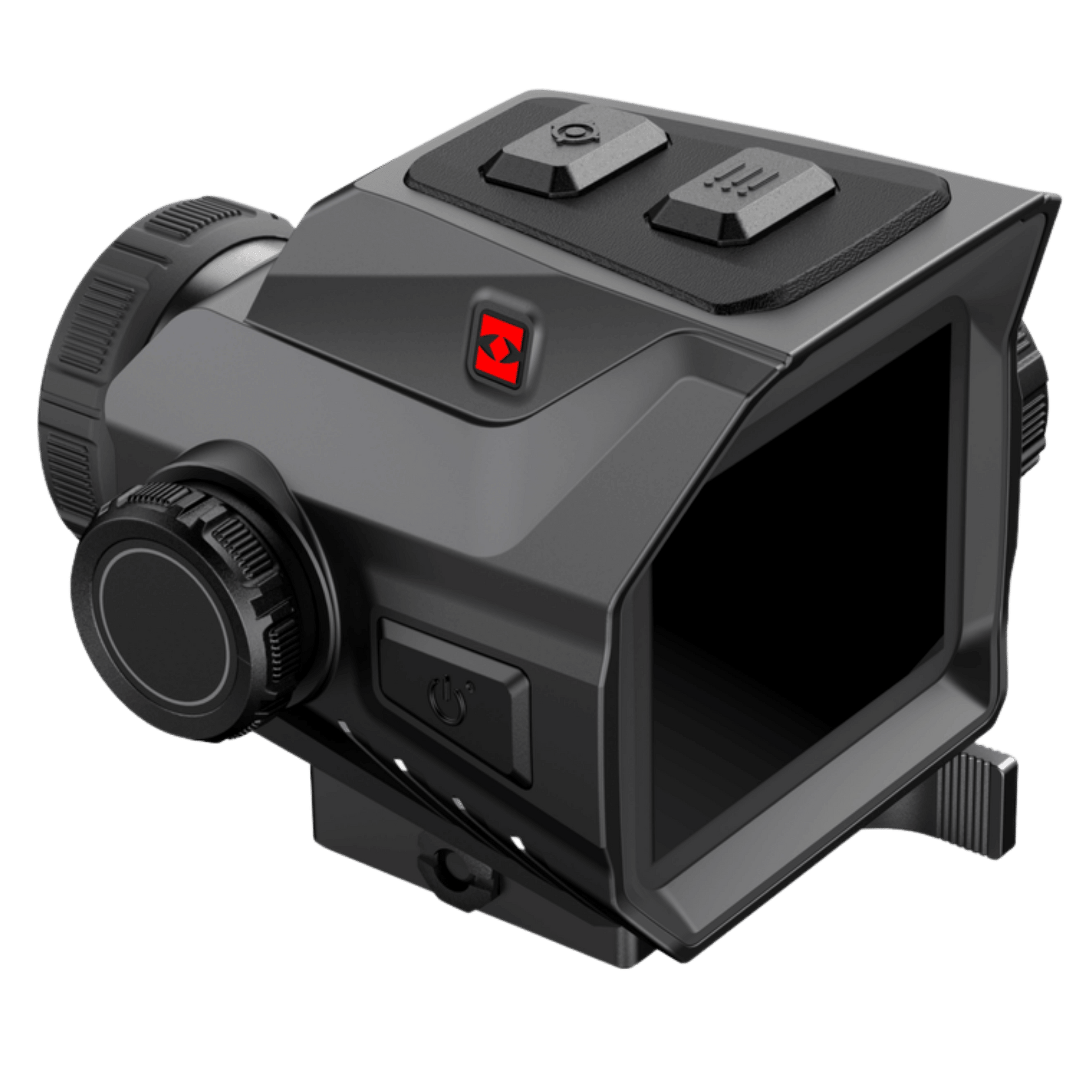

  • Facing rear-left: Rear layout of the Hikmicro HIKTac TC19 tactical thermal sight showcasing the massive 3.1-inch immersive square AMOLED display window and surrounding modular chassis structure
1 6

HIKMICRO HIKTac TC19 Thermal Sight

  • Thermal Resolution: 256 x 192
  • Thermal Lens: 19mmmm
  • Pixel Interval: 12µm
  • NETD: < 18mK
  • Thermal FOV: 9.2 x 6.9°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 15,699.00
New Arrival
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for HIKMICRO HIKTac TC19 Thermal Sight.

SKU: HM-TR02-19S2G/W-TC19

Detection Range

Pig
Kudu
Elephant
529mDetection
264mRecognition
132mIdentification
794mDetection
396mRecognition
198mIdentification
1588mDetection
792mRecognition
396mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Hikmicro Hiktac TC19 Key Features:

  • Ultra-Sensitive Core: 256×192 thermal resolution with a 12µm pixel interval and a smooth 50 Hz frame rate.
  • Sub-18mK Thermal Sensitivity: Industry-leading NETD provides elite thermal contrast and high-definition detail in harsh environments.
  • HSIS Shutterless Design: Silent, digital calibration ensures an entirely uninterrupted, flicker-free visual stream.
  • 3.1-Inch Large AMOLED Display: Immersive, high-resolution square view for rapid target acquisition and reduced eye strain.
  • Killflash Lens Protector: Factory-fitted honeycomb objective shield protects glass and eliminates external reflections.
  • Featherweight Ergonomics: Just 260g (without battery) in an ultra-compact 106.9mm × 94.8mm × 86.7mm footprint.
  • Replaceable 18650 Power: Quick-change power architecture delivers 4 hours of field life, rechargeable via USB Type-C.
Product Overview

The HIKMICRO HIKTac TC19 represents a massive leap forward in lightweight, close-range tactical thermography. While engineered to deliver an immediate unfair advantage in dynamic tactical engagements such as Airsoft, the HIKTac TC19 is an exceptional, highly versatile solution for nocturnal hunters, farmers, and property owners seeking a featherweight thermal sight for close-range pest control and rapid situational awareness. Weighing a mere 260g, this incredibly compact unit balances perfectly on any platform without altering its natural handling dynamics.

Extreme Thermal Sensitivity and Seamless Tracking

At the core of the HIKTac TC19 is an ultra-sensitive 256x192 thermal detector operating at a rapid 50 Hz frame rate. Boasting an industry-leading sub-18mK NETD thermal sensitivity, this sight completely bypasses the limitations of standard entry-level imagers. It cuts through dense fog, thick bush, or absolute darkness to clearly isolate heat signatures by capturing the most minute temperature variances.

To ensure you never lose lock on a moving target, the TC19 integrates two of HIKMICRO's most advanced processing technologies.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled Focal Plane Arrays
Thermal Resolution256 x 192
Pixel Pitch12 µm
NETD< 18 mK
Thermal Lens19mm mm
Focal Ratio (Aperture)F1.0
Field of View9.2 x 6.9
Magnification1.2x - 9.6x
Min. Focusing Distance1m
Focus ModeManual Focus Ring
Frame Rate50 Hz
Detection Range (1.7m Subject)900 m
Precision, Optics & Lasers
Calibration Profiles5
Thermography & Measurement
Measurement RangeHot Track
System & Display
Display Info3.1 inch AMOLED
Screen BrightnessYes (1-10)
Screen ContrastYes (1-10)
Digital Zoom1x to 8x
Color PalettesBlack Hot, White Hot, Red Hot, IronBow
Image EnhancementImage Pro 3.0, Sync Pro, Zoom Pro
Image ModesThermal
Eye PupilUnlimted
Eye ReliefUnlimted
Display FunctionsTime, WI-FI, Magnification, Battery Status
Defective Pixel CorrectionYes
Storage CapacityBuilt-in EMMC (4 GB)
Media Capacity4GB
Media FormatJPEG, MP4
Recording CapabilitiesVideo Recording
Battery TypeOne replaceable and rechargeable 18650 Battery
Power Supply5 V DC/2 A, USB Type-C interface
Battery Indicator HUDYes
Connectivity & Software
Wi-Fi HotspotSupported
BluetoothNot Supported
Video StreamingSupported
Video CompressionH.264
Supported OSiOS, Android
Software & AnalysisHIKMICRO SIGHT
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Operating Temperature- 30℃ to 45 °C
Relative Humidity90 Degrees
Dimensions & Weight106.9mm*94.8mm*86.7mm
What's in the Box
Box ContentsHikmicro Hiktac Sight TC19
Killflash Protector
Type-C Cable
Lint-free Cloth
O-ring
QSG
