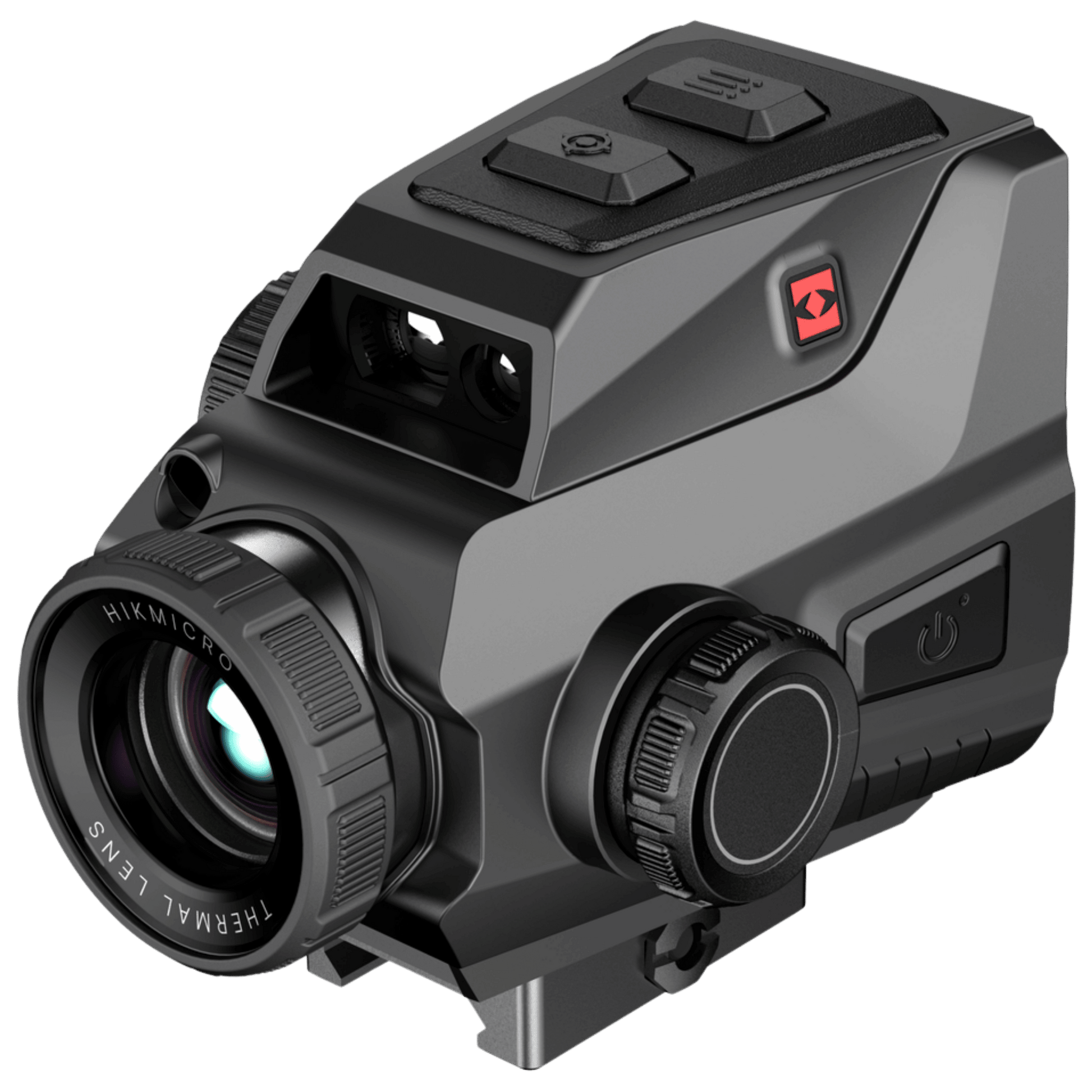

• Facing front right: Hikmicro HIKTac TC19L thermal sight featuring prominent Hikmicro logo, tactile objective focus wheel, and built-in QD Picatinny mount

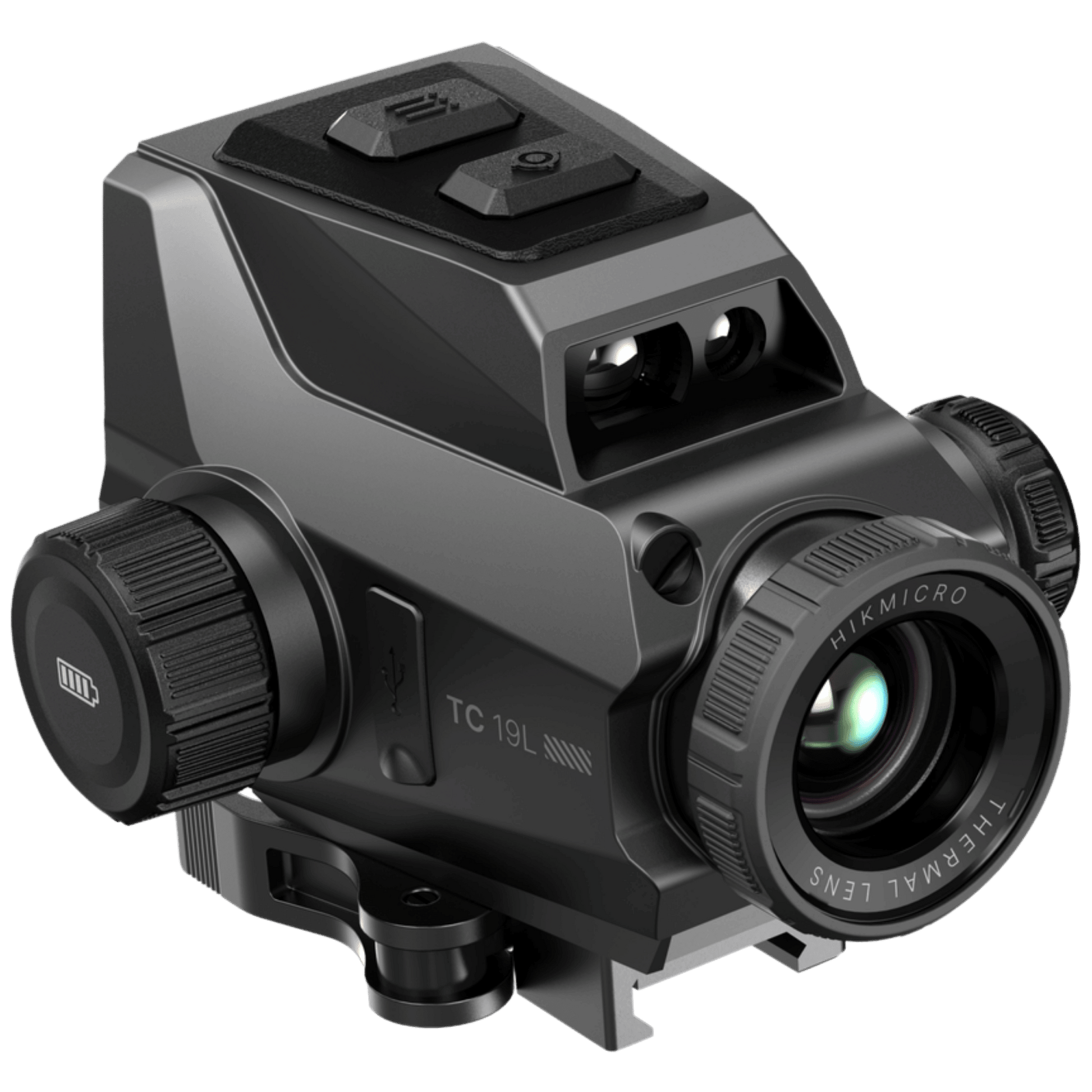

  • Facing front left: Hikmicro HIKTac TC19L thermal sight showing integrated laser rangefinder, Killflash objective protector, and built-in quick detach picatinny mount

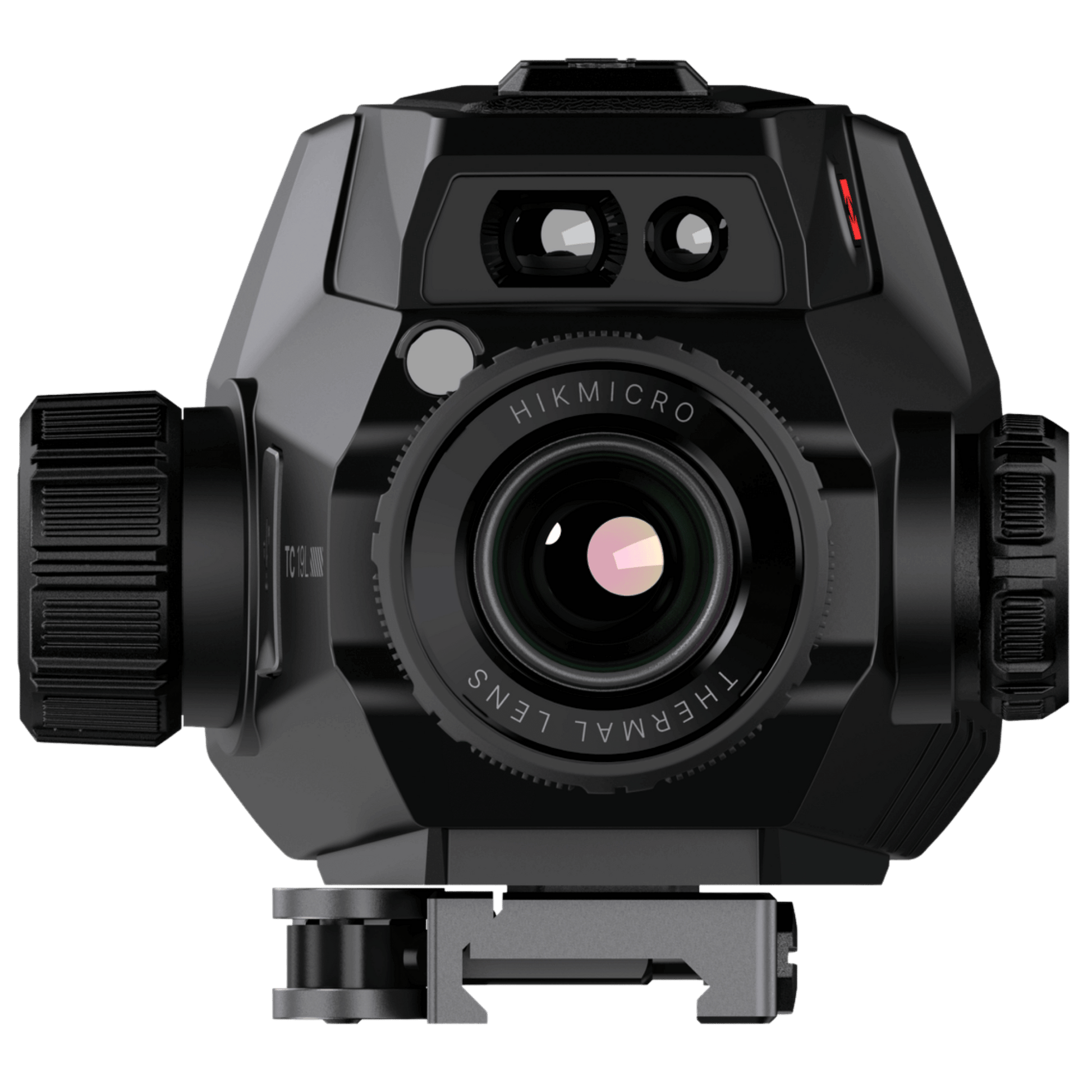

  • Facing front: Direct view of the Hikmicro HIKTac TC19L thermal sight featuring 19mm F1.0 lens with honeycomb Killflash cover and 1000m LRF aperture

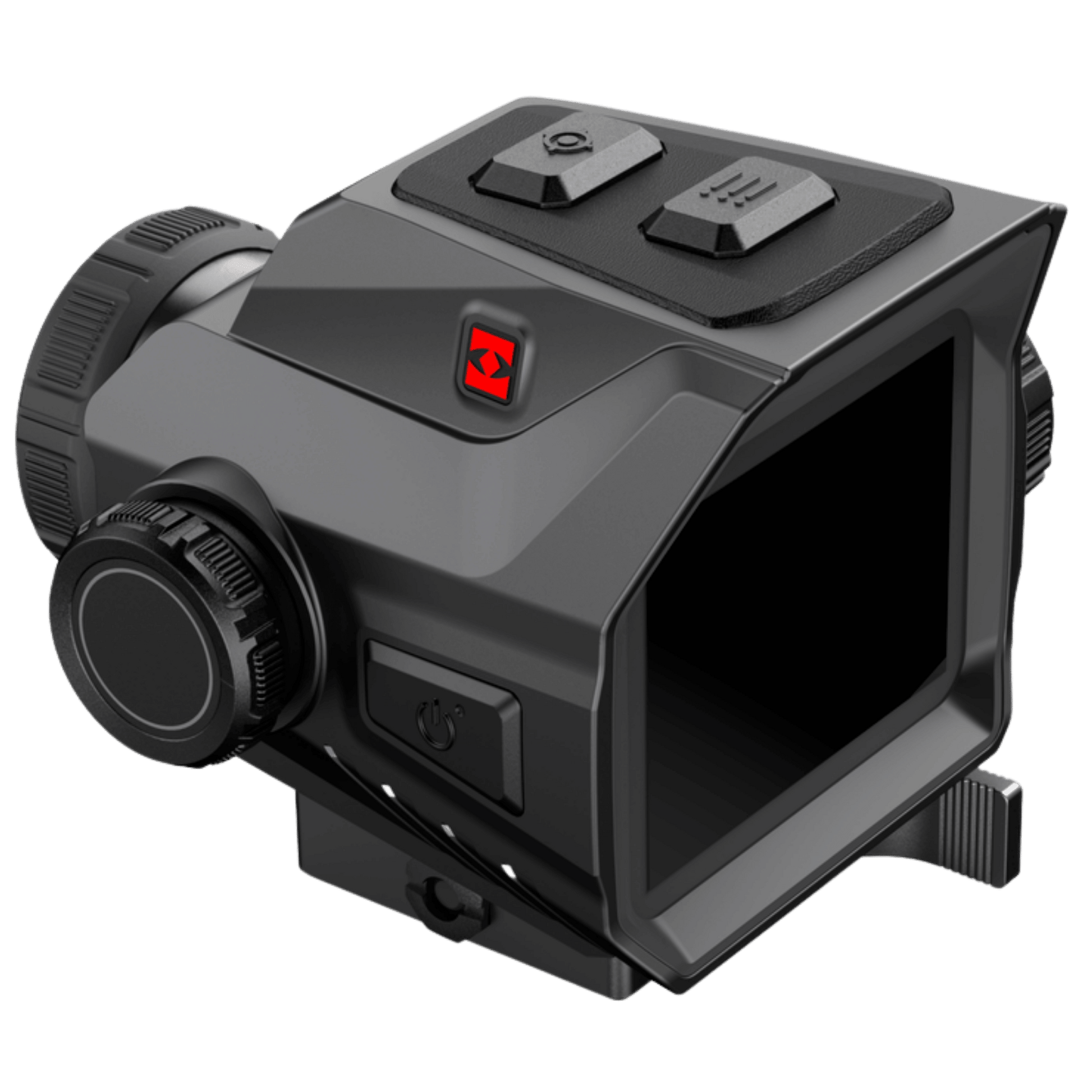

  • Facing rear: Back view of the Hikmicro HIKTac TC19L thermal optic displaying large 3.1-inch square AMOLED screen and side control dial

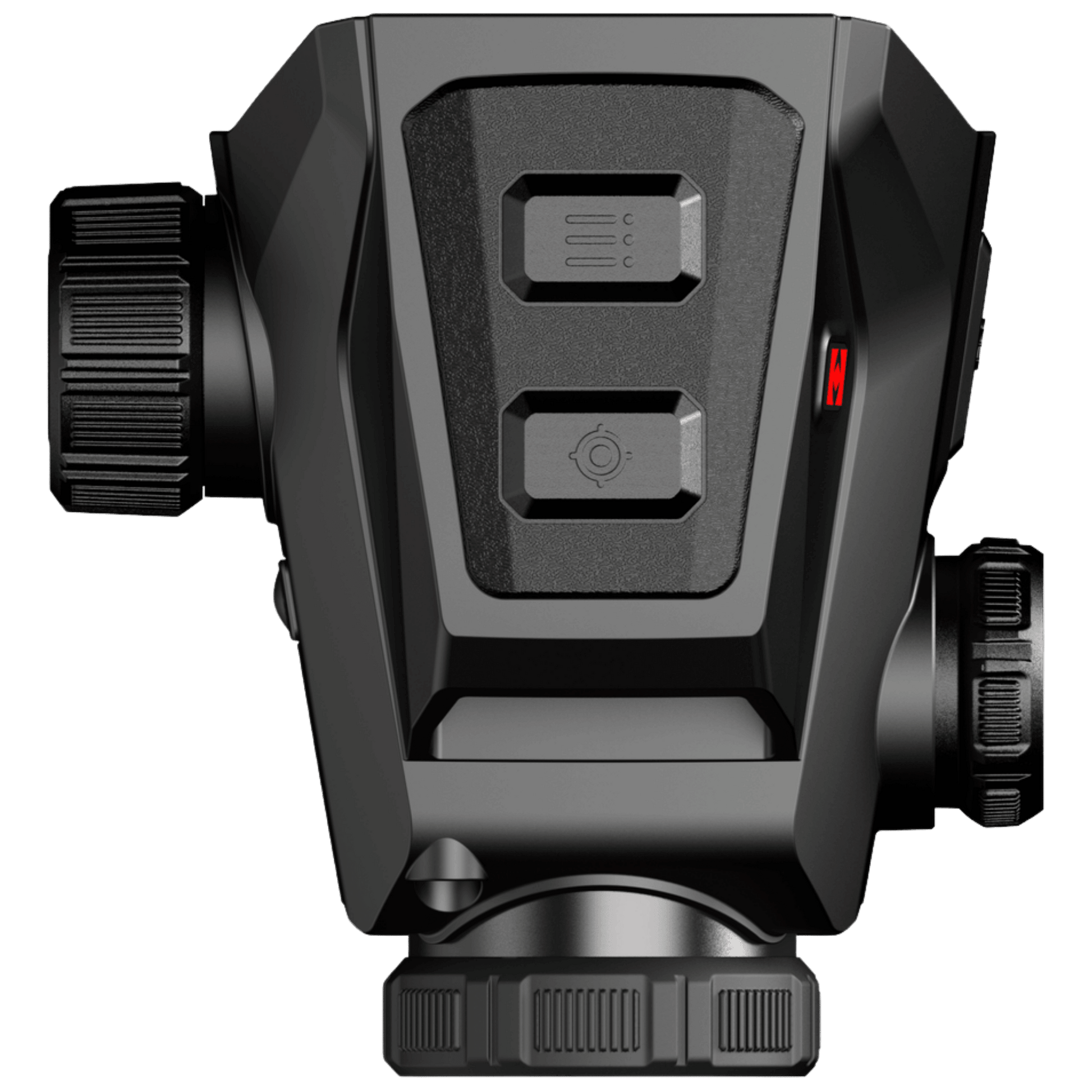

  • Top-down view: Overhead perspective of the Hikmicro HIKTac TC19L thermal sight detailing the laser rangefinder module, top control layout, and compact chassis footprint

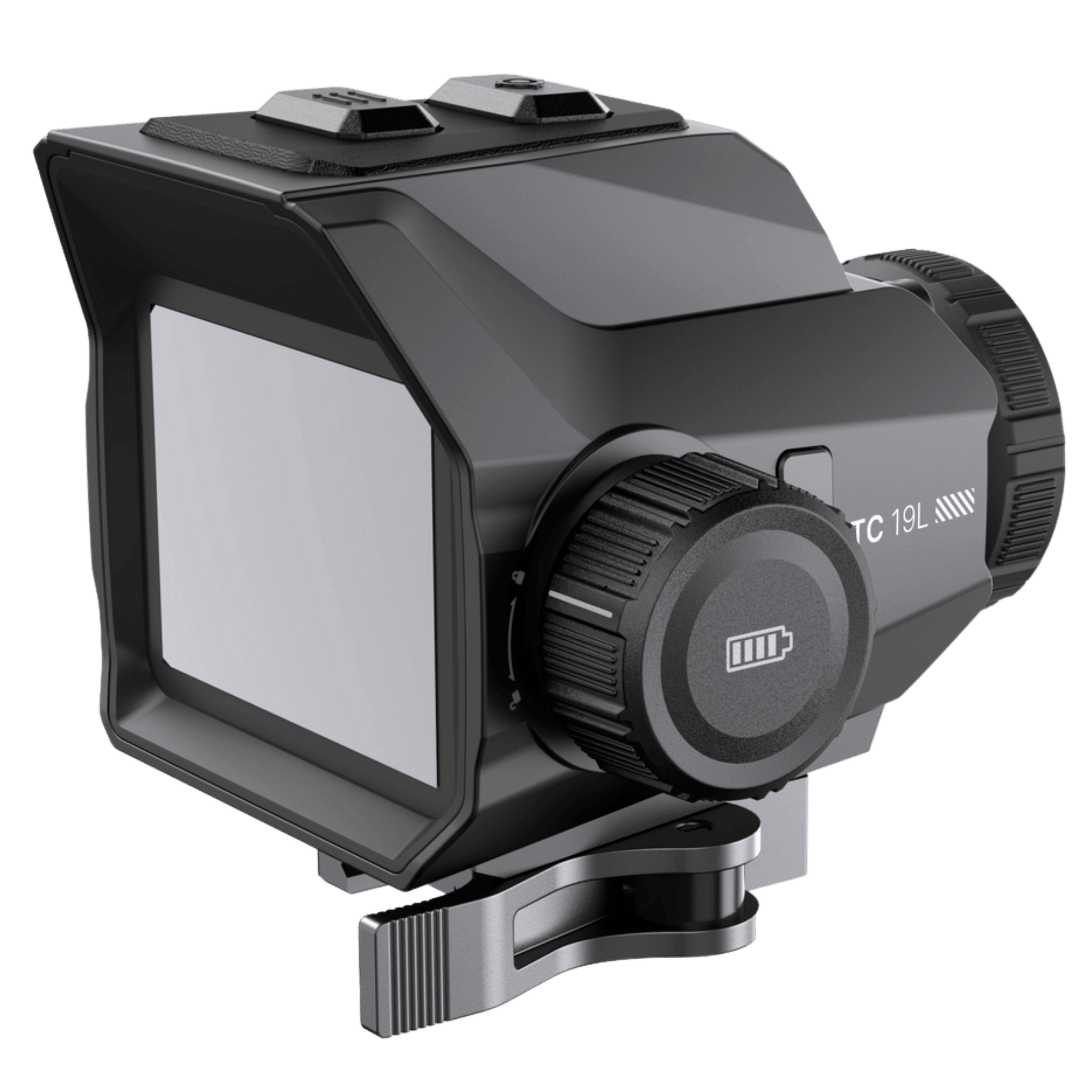

  • Facing rear right: View of the Hikmicro HIKTac TC19L thermal scope showing the massive 3.1-inch AMOLED display, side rotary control dial, and eye-level screen housing.

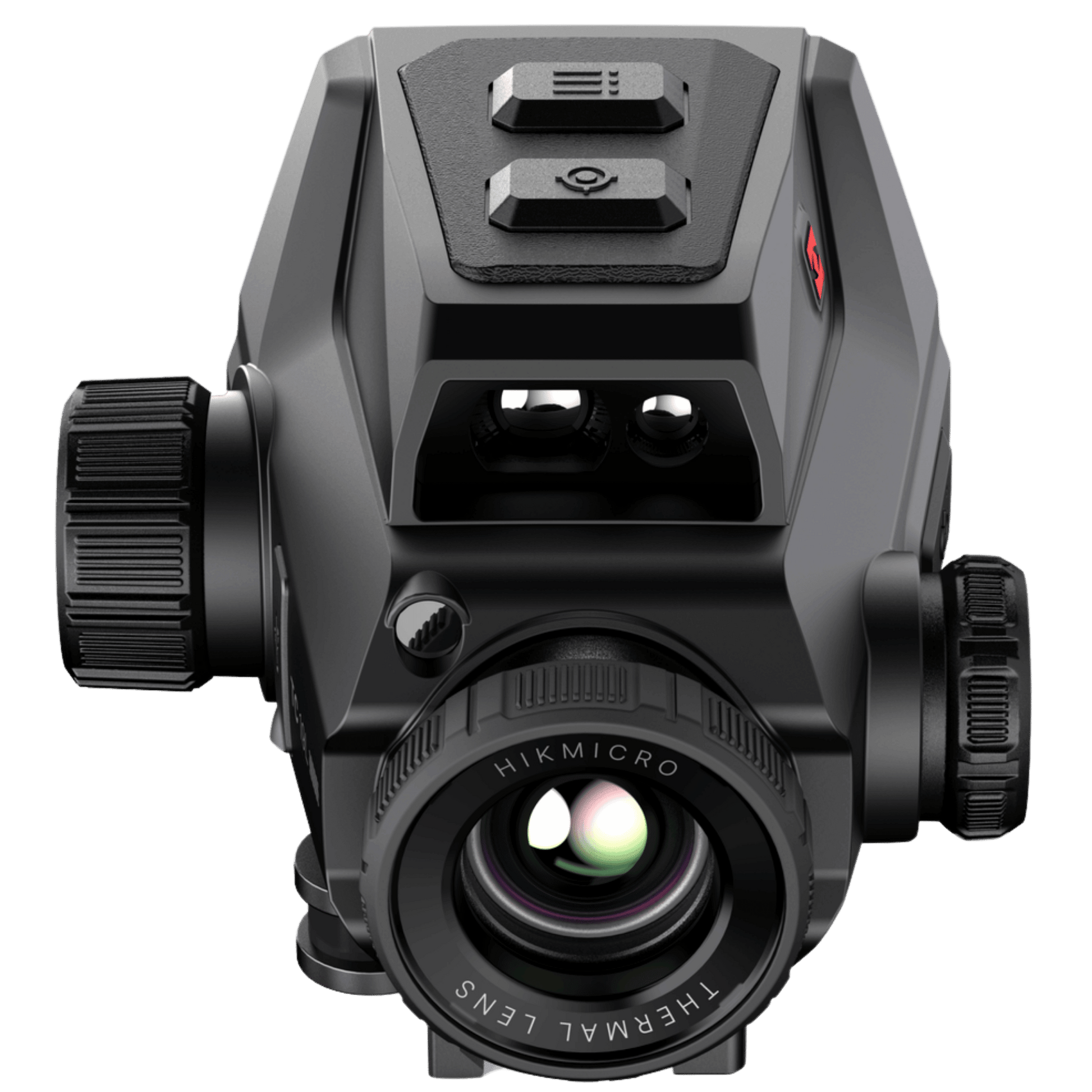

  • Facing front angled down: Elevated front perspective of the Hikmicro HIKTac TC19L displaying the Killflash honeycomb lens cover, LRF lens, and QD Picatinny locking mechanism
1 7

HIKMICRO HIKTac TC19L Thermal Sight with LRF

  • Thermal Resolution: 256 x 192
  • Thermal Lens: 19mmmm
  • Pixel Interval: 12µm
  • NETD: < 18mK
  • Thermal FOV: 9.2×6.9°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 20,190.00
New Arrival
Including VAT • Includes Shipping

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay
Split your purchase with interest-free payments from R 3,365.00/m

Make your first payment today, then monthly over 2–6 months.

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for HIKMICRO HIKTac TC19L Thermal Sight with LRF.

SKU: HM-TR02-19S2G/WL-TC19L

Detection Range

Pig
Kudu
Elephant
529mDetection
264mRecognition
132mIdentification
794mDetection
396mRecognition
198mIdentification
1588mDetection
792mRecognition
396mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Hikmicro Hiktac TC19L Key Features:

  • Ultra-Sensitive Sensor: 256 x 192 resolution at 12 micron pixel interval and 50 Hz frame rate.
  • Sub-18mK Sensitivity: Elite thermal contrast for crisp detail in demanding weather.
  • Integrated 1000m LRF & Ballistics: Instant range measurement and automated reticle holdover correction.
  • Built-In Quick Detach Picatinny Mount: Fast, tool-free mounting and seamless rail attachment.
  • HSIS Shutterless Design: Silent, digital calibration prevents image lockups during active tracking.
  • 3.1-Inch Large AMOLED Screen: Large-format display for fast target acquisition and reduced visual fatigue.
  • Killflash Objective Cover: Protects front optic from impacts and eliminates lens glare.
  • Featherweight Ergonomics: Ultra-compact 260g chassis (106.9 mm x 94.8 mm x 86.7 mm).
  • Replaceable 18650 Power: Quick-swap battery architecture providing up to 4 hours runtime.
Product Overview

The Hikmicro HIKTac TC19L represents an exceptional leap forward in lightweight, close-to-medium-range thermal sight technology. Designed with a built-in 1000m Laser Rangefinder (LRF), an integrated Ballistic Calculator, and a built-in Quick Detach (QD) Picatinny mount, the TC19L automatically calculates exact holdovers for surgical shot placement while providing rapid rail mounting.

Weighing just 260g, this ultra-compact unit maintains the rifle's natural balance while serving as an ideal thermal solution for nocturnal hunters, farmers, and property owners seeking rapid target acquisition and precision pest control.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Thermal Resolution256 x 192
Pixel Pitch12 µm
NETD< 18 mK
Thermal Lens19mm mm
Focal Ratio (Aperture)F1.0
Field of View9.2×6.9
Magnification1.2x –9.6x
Min. Focusing Distance1m
Focus ModeManual Focus Ring
Frame Rate50 Hz
Detection Range (1.7m Subject)900 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Wavelength904nm
LRF Min Range10 m
Freeze CalibrationYes
Shock Resistance1000g/0.4ms
System & Display
Screen BrightnessYes (1-10)
Screen ContrastYes (1-10)
Color PalettesBlack Hot, White Hot, Red Hot, Ironbow
Image EnhancementShutterless HSIS, Image Pro 3.0, Sync Pro, Zoom Pro
Image ModesThermal Only
Eye PupilUnlimited
Eye ReliefUnlimited
Display FunctionsTime, WI-FI, Magnification, Battery Status, LRF Distance
Defective Pixel CorrectionYes
Media Capacity4GB
Media FormatJPEG, MP4
Recording CapabilitiesVideo Recording, Audio Recording
Built-In MicrophoneYes
Battery Type18650 Lithium-Ion
Power Supply5 V DC / 2 A
Connectivity & Software
Wi-Fi HotspotSupported
BluetoothNot Supported
Video StreamingSupported
USB ConnectivityType-C
Supported OSiOS, Android
Software & AnalysisHIKMICRO SIGHT App
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Other Hardware FeaturesKillflash Lens Protector
