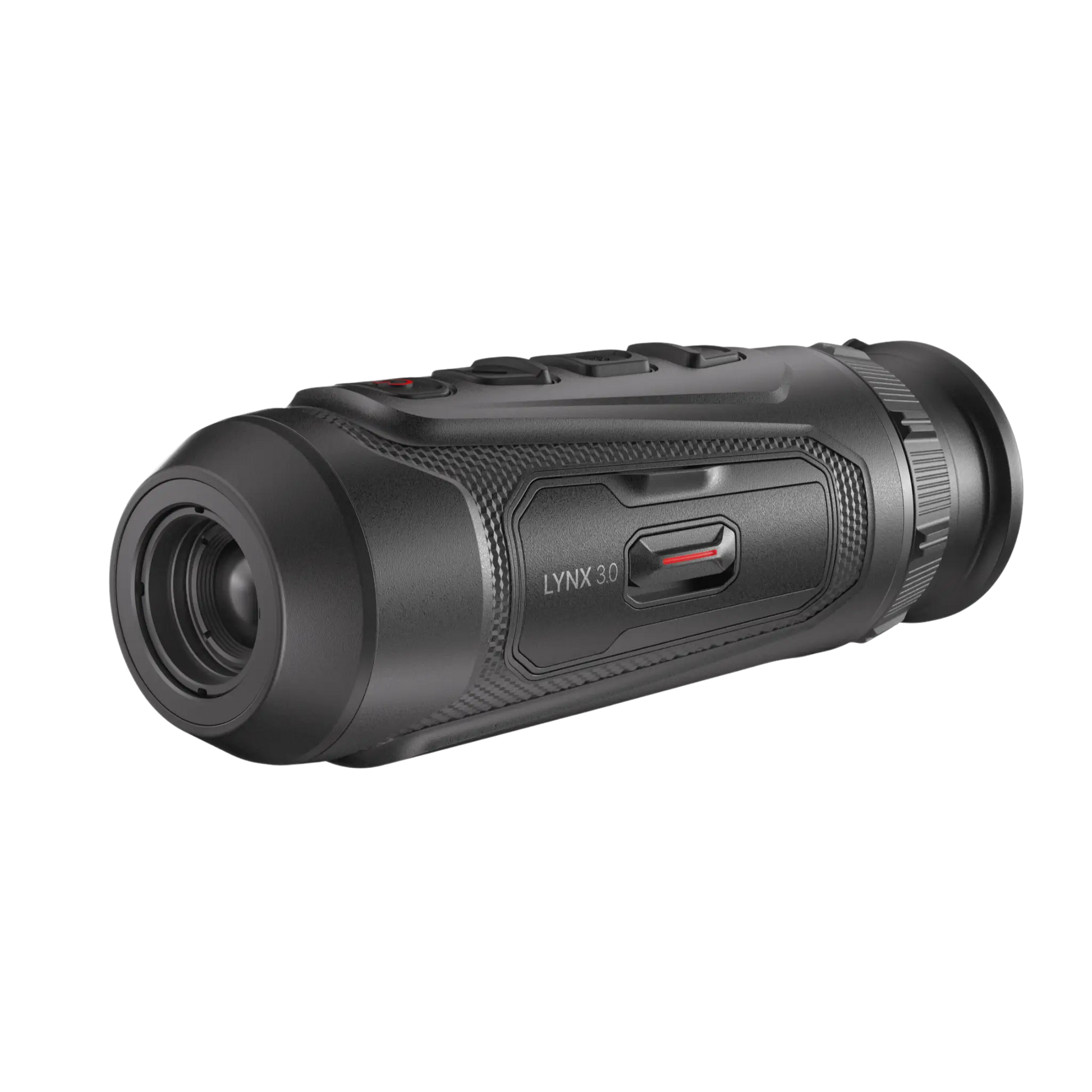

• Front-right view of the Hikmicro Lynx 3.0 LE15S thermal monocular, featuring the 15mm objective lens, top-mounted control buttons, and the diopter focus ring near the eyepiece."

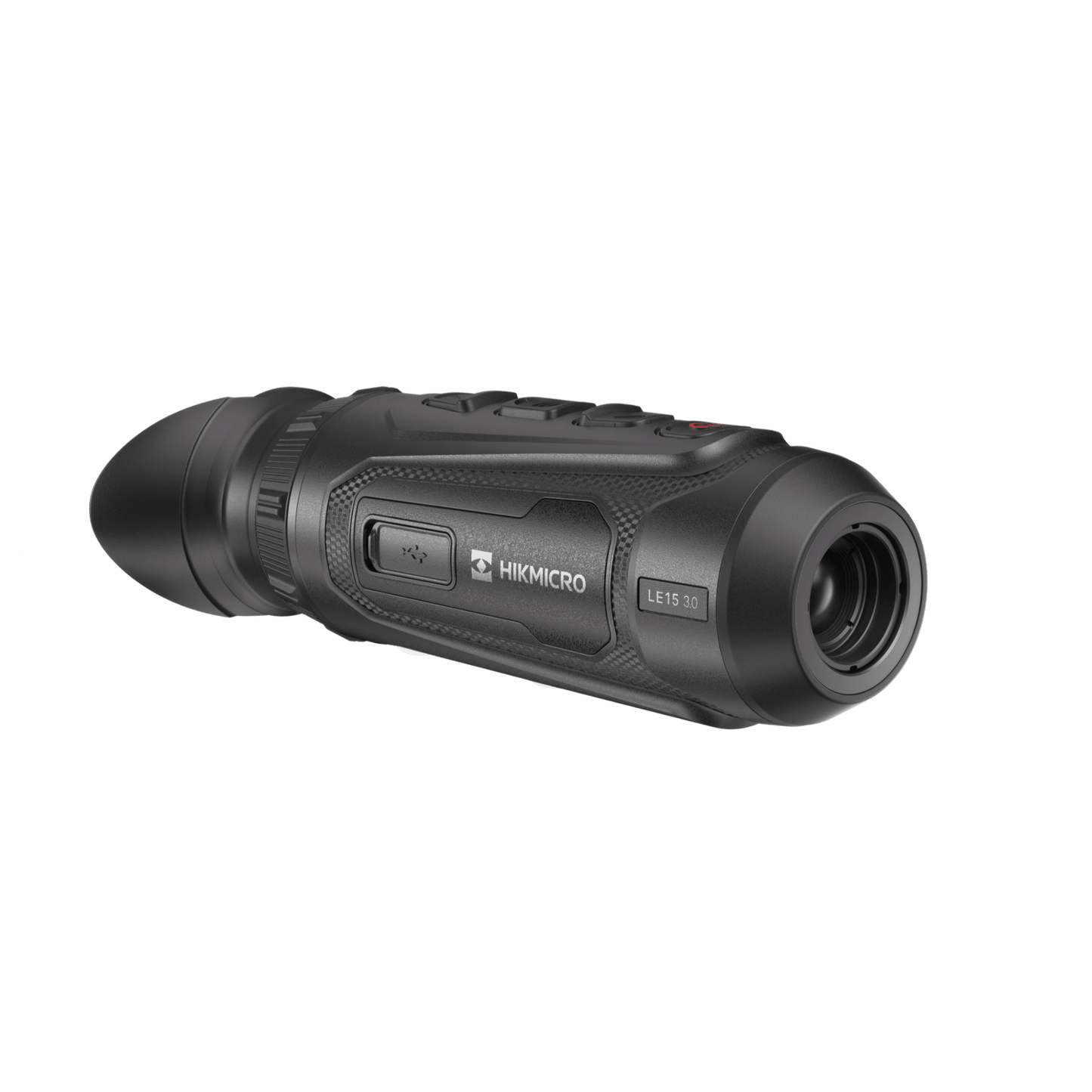

  • Left front view of the Hikmicro Lynx 3.0 LE15S thermal monocular displaying the Hikmicro logo, LE15 3.0 model name, front 15mm objective lens, and top-mounted control buttons.
1 4

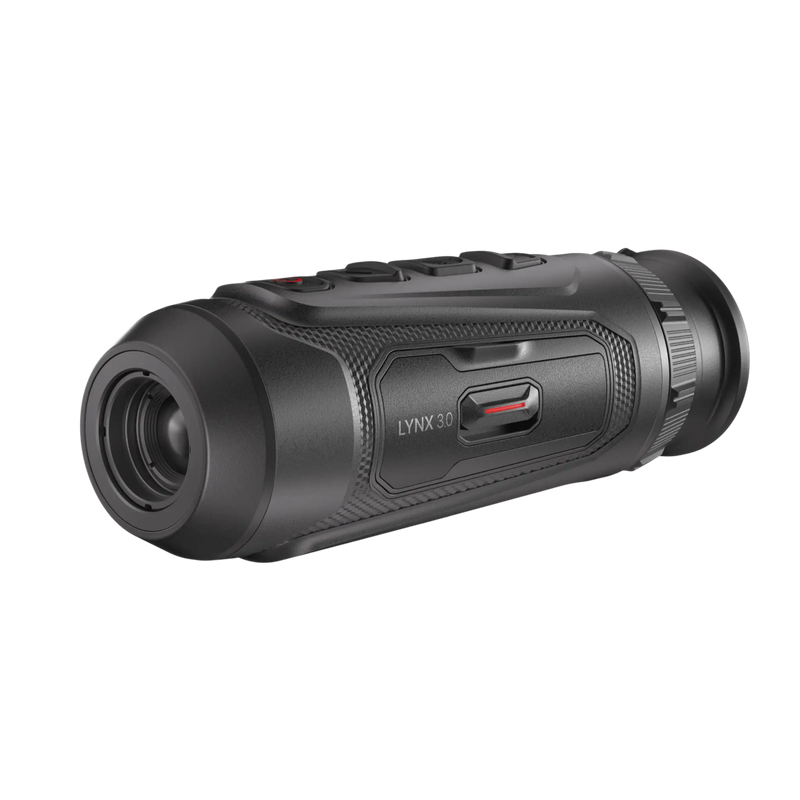

Hikmicro Lynx 3.0 LE15 Thermal Monocular

  • Thermal Resolution: 256 x 192
  • Thermal Lens: 15mm
  • Pixel Interval: 12µm
  • NETD: < 20mK
  • Thermal FOV: 11.7 × 8.8 / 20.5 × 15.4 m (HxV) @ 100m°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 16,589.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Hikmicro Lynx 3.0 LE15 Thermal Monocular.

SKU: HM-TSF2-15Y1G/W1-LE15 3.0

Detection Range

Pig
Kudu
Elephant
412mDetection
208mRecognition
104mIdentification
618mDetection
313mRecognition
156mIdentification
1235mDetection
625mRecognition
313mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights


Hikmicro Lynx 3.0 LE15 Key Features:

Focus-Free Operation: The 15mm F1.0 lens is fixed-focus, allowing for instant observation without the need for constant manual adjustments.

Shutterless Viewing: Features HSIS technology for uninterrupted, fluid imaging without the freezing lag of traditional calibration.

High Sensitivity: NETD < 20 mK ensures detection of subtle heat signatures even in difficult weather conditions.

Compact & Lightweight: Weighs only 296.5 g and fits easily into a pocket for superior portability.

Multimedia Capabilities: Includes audio recording, video recording, and snapshot capture stored on 64GB of built-in memory.

Replaceable Power: Uses a standard 18650 rechargeable battery, allowing users to swap batteries in the field for continuous runtime.

Clear Display: Features a large 0.39-inch AMOLED (1024x768) screen for a crisp, high-definition viewing experience.

Product Overview

The Hikmicro Lynx 3.0 LE15 is a compact Thermal Monocular built for portability and ease of use. It features a 256x192 VOx uncooled thermal sensor with a 12µm pixel pitch and a high sensitivity of NETD < 20 mK, allowing for the detection of temperature differences in various weather conditions. The device utilizes a 15mm F1.0 objective lens which offers a wide 11.7° × 8.8° field of view and a maximum detection range of 750 meters

Due to the 256x192 thermal resolution, this device is not designed for long-range identification. While it can detect a heat signature up to 750m, positively identifying that target (e.g., distinguishing species) requires you to be significantly closer (150- meters or less). It is best suited for close-range observation, tracking, or security tasks. Users accustomed to high-resolution (384 or 640) sensors may find the detail limiting at a distance; this is an entry-level unit optimized for accessibility and wide-field scanning rather than precision long-range hunting

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled Focal Plane Arrays
Thermal Resolution256 x 192
Pixel Pitch12 µm
NETD< 20 mK
Thermal Lens15 mm
Focal Ratio (Aperture)F1.0
Field of View11.7° × 8.8° / 20.5 × 15.4 m (HxV) @ 100m
Magnification2.2× - 17.6× (8×)
Min. Focusing Distance7m
Focus ModeFocus Free
Frame Rate50 Hz
Spectral Range8 μm to 14 μm
Detection Range (1.7m Subject)700 m
System & Display
Display Info1024 × 768, 0.39 inch, AMOLED
Screen BrightnessYes
Screen ContrastYes
Color PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Eye Pupil6mm
Eye Relief20mm
Display FunctionsHIKMICRO Shutterless Image System (HSIS), Image Pro 3.0, Hot Object Tracking, Picture-in-Picture (PIP), Distance Measurement
Storage Capacity64Gb
Recording CapabilitiesRecord Video, Capture Snapshot, Audio Recording
Built-In MicrophoneYes
Battery TypeReplaceable and Rechargeable Li-ion 18650 Battery
Battery Life6-hour continuous running with hotspot on (@25°C) / 5.5-hour continuous running with hotspot on (@-20°C)
Power Supply5V DC, 2 A Supports External Power Supply, Support Direct Charging
Power Saving FeaturesStandby Mode
Battery Indicator HUDYes
Connectivity & Software
Wi-Fi Hotspot2.4 GHz/5 GHz Wi-Fi Waveband
Video StreamingOver Wi-Fi on HikMicro Sight
USB ConnectivityUSB-C
Supported OSAndroid, iOS
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating TemperatureFrom -30°C to 45°C (-22°F to 113°F)
Relative Humidity90% or Less
Dimensions & Weight156.3 × 53.6 × 49.5 mm - 296.5 g with battery
What's in the Box
Box ContentsBattery Charger
Battery (x2)
Lint-free cloth
Type-C Cable
Quick Start Guide
