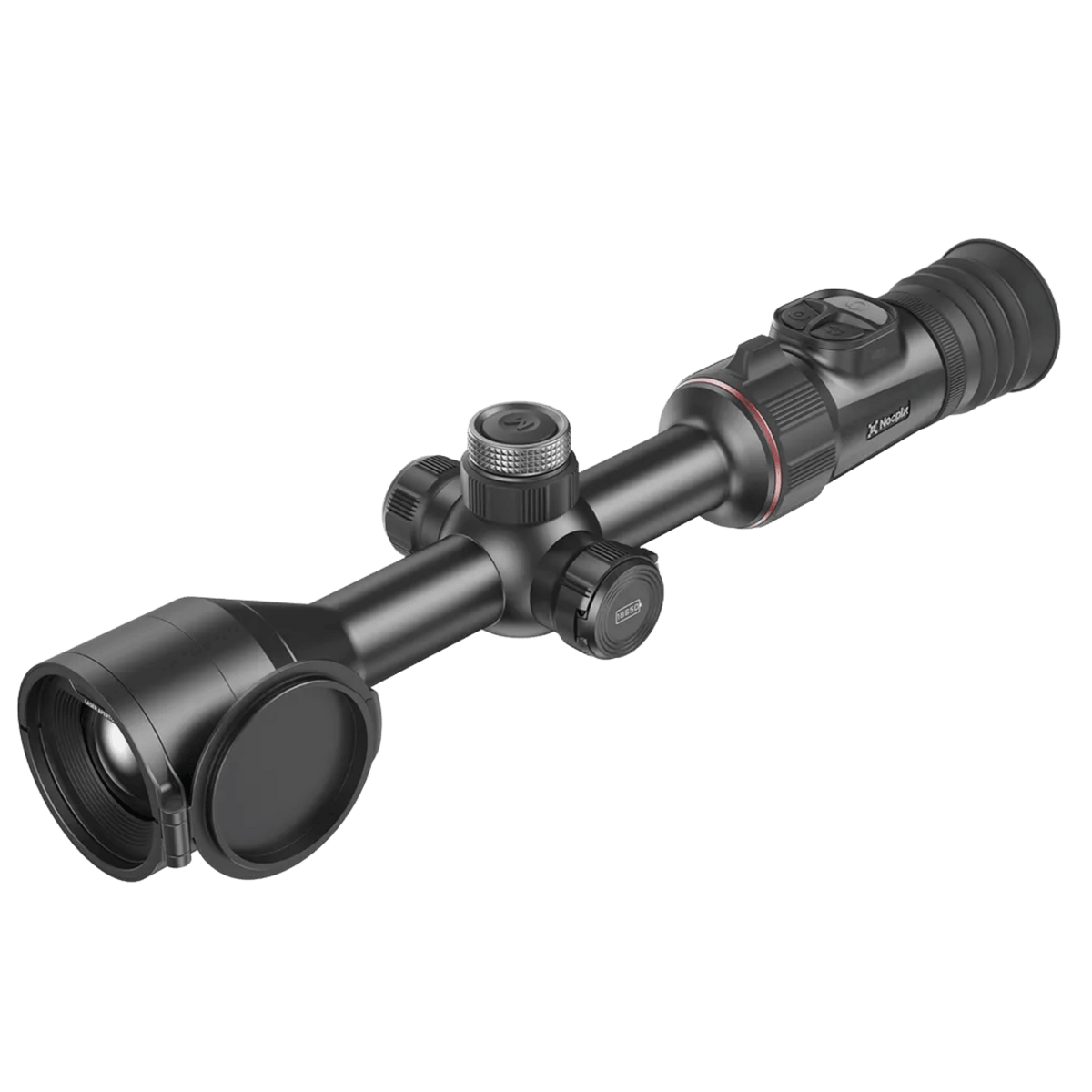

• Front right perspective view of the Nocpix ACE 2 H35R thermal riflescope featuring the 35mm F0.9 objective lens, flip-up lens cap, central turret focus wheel, and ergonomic control pad.

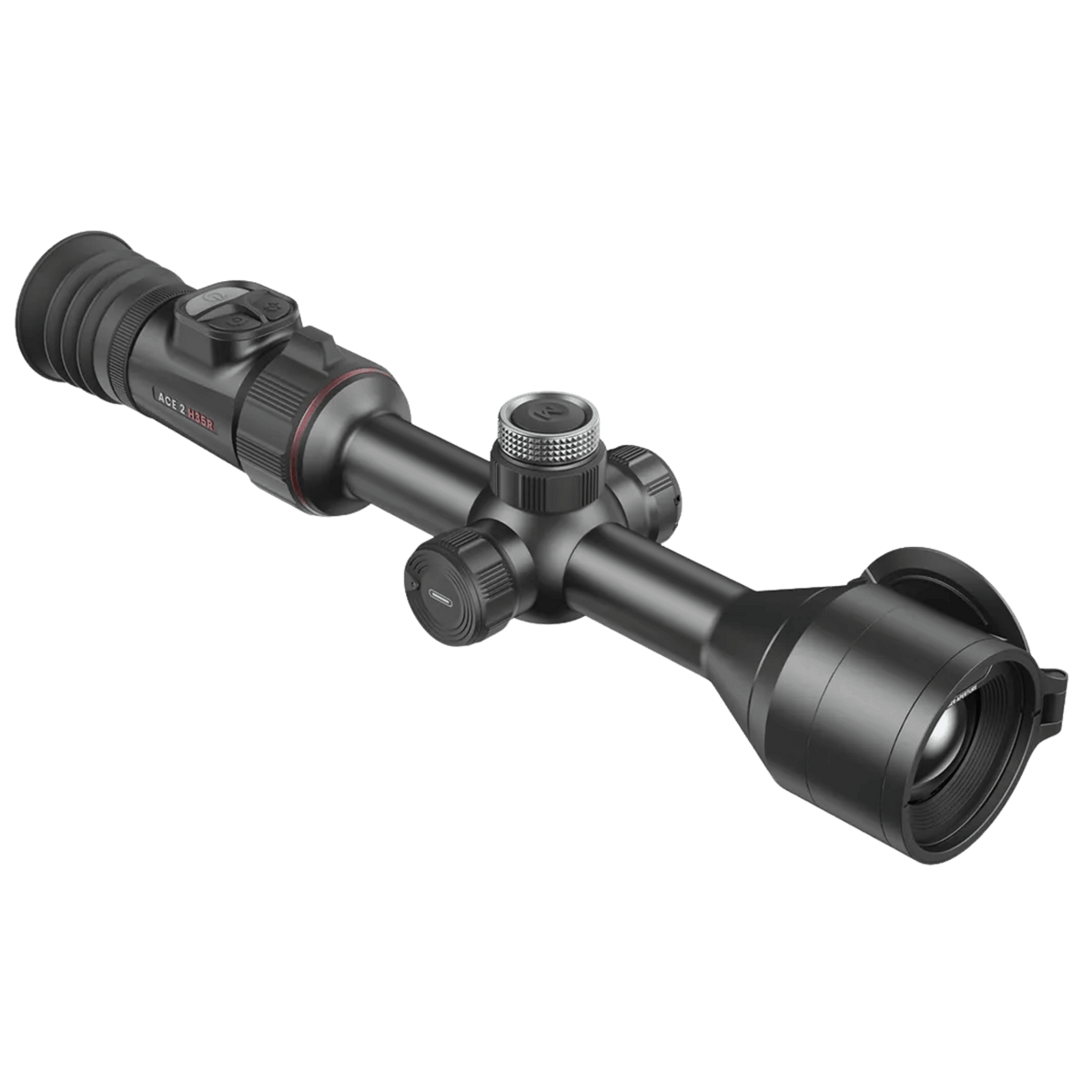

  • Front left view of the Nocpix ACE 2 H35R thermal riflescope showcasing the 35mm F0.9 objective lens, central turret focus wheel, and ergonomic top-mounted control pad.

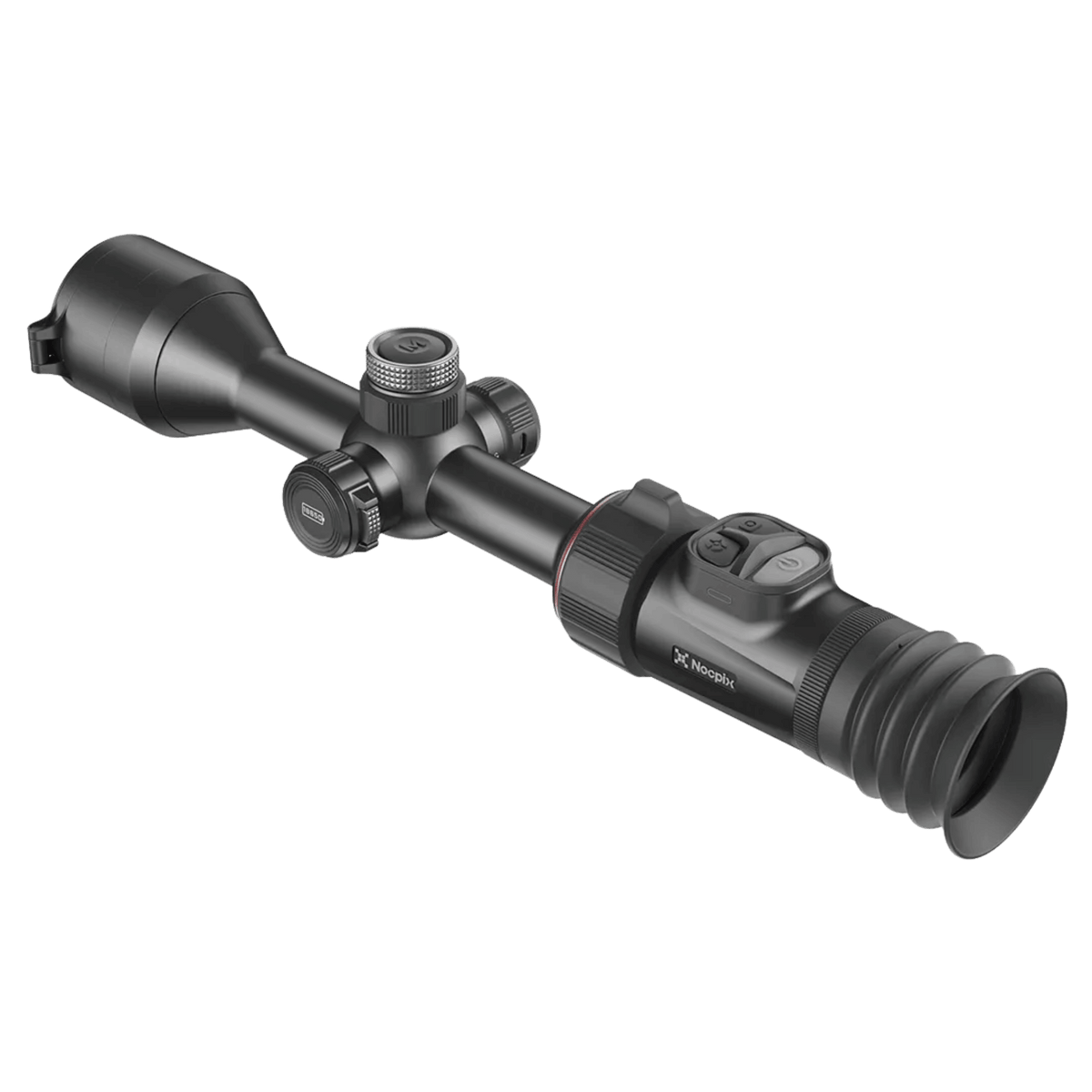

  • Front left perspective view of the Nocpix ACE 2 H35R thermal riflescope showcasing the model branding, battery cap assembly, and ocular diopter adjustment ring.

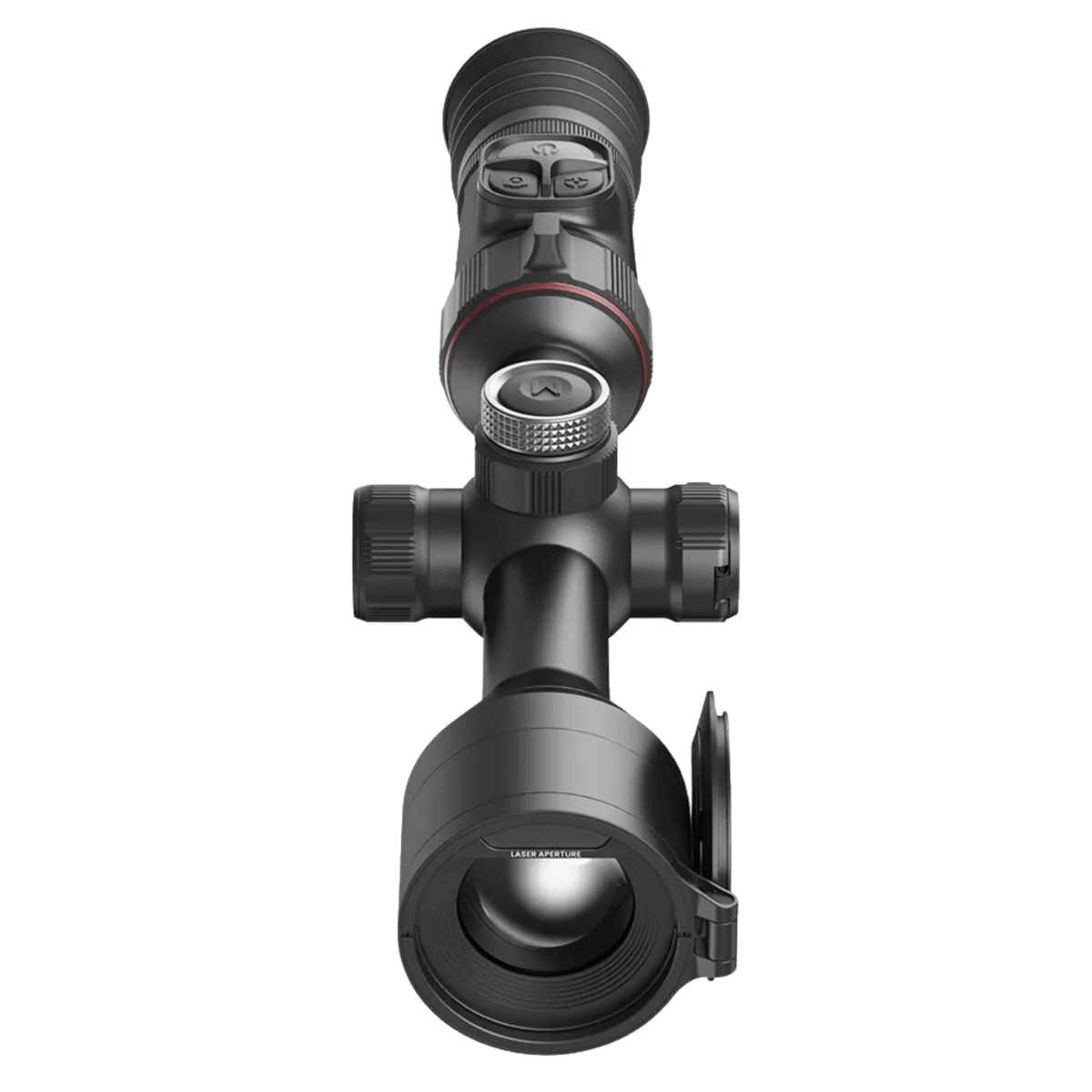

  • Front left view of the Nocpix ACE 2 H35R thermal riflescope showcasing the model branding, battery cap assembly, and ocular diopter adjustment ring.

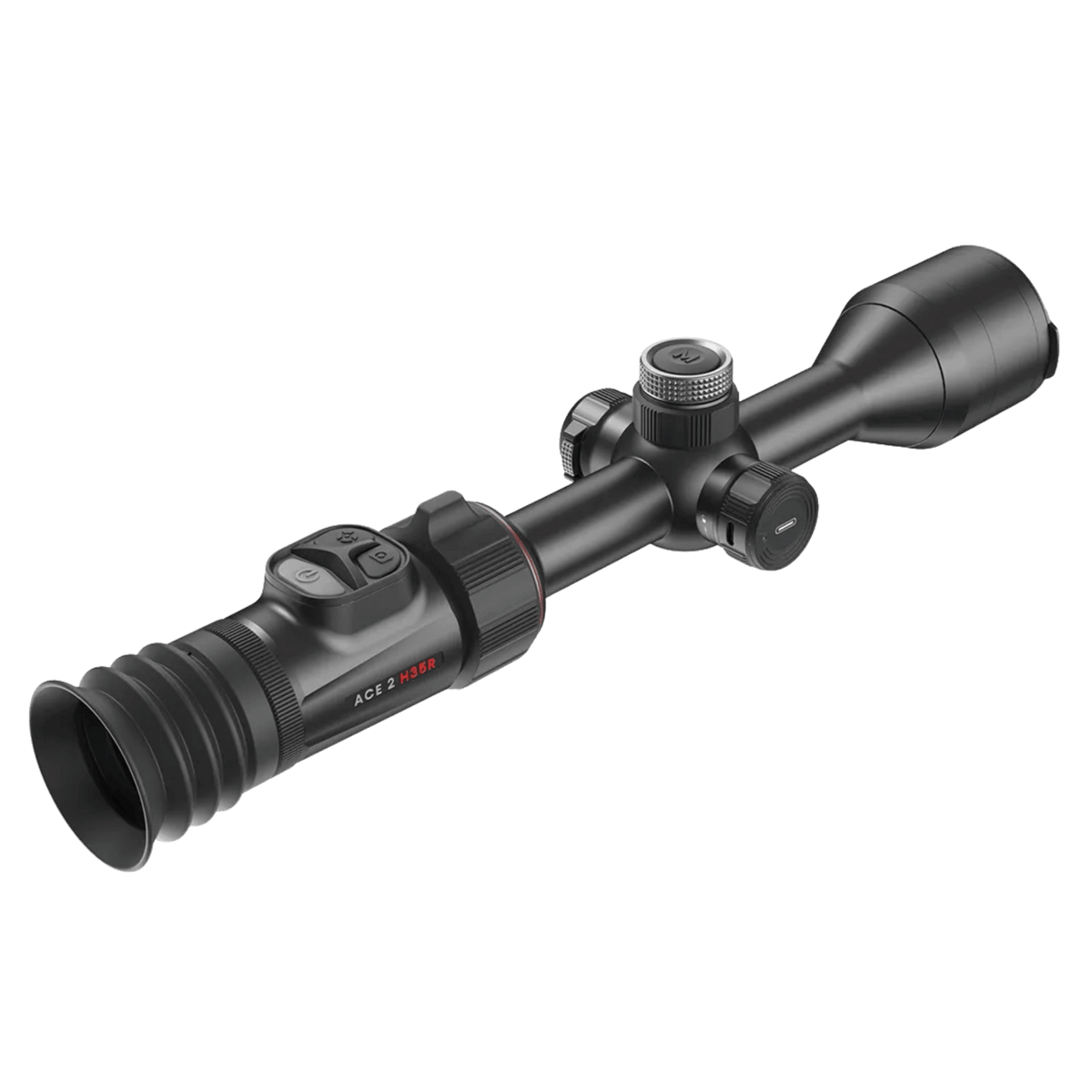

  • Rear right perspective view of the Nocpix ACE 2 H35R thermal riflescope showcasing the manufacturer branding, model designation, and the robust 30mm chassis.

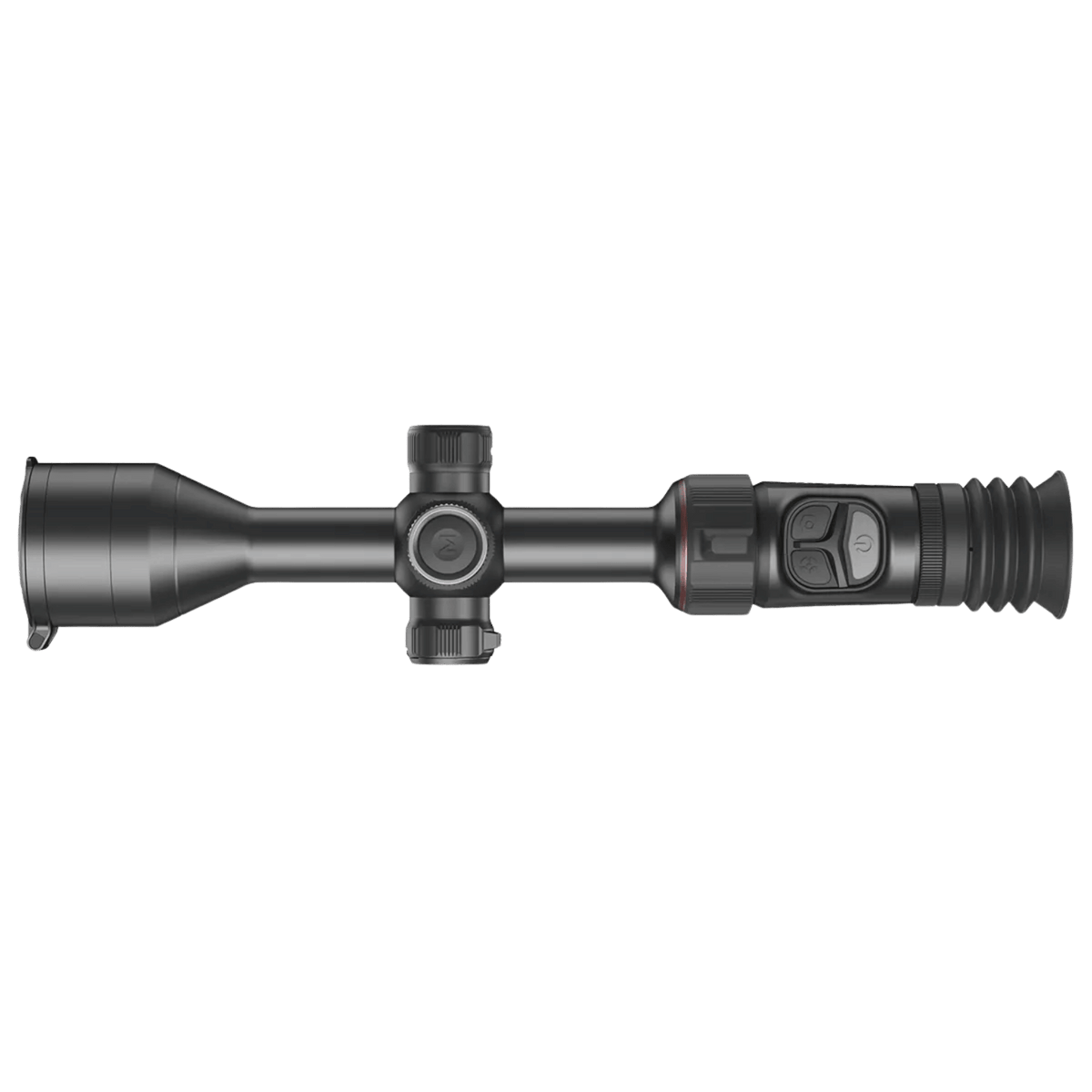

  • Top down left perspective view of the Nocpix ACE 2 H35R thermal riflescope showcasing the top-mounted digital turret controls, battery cap assembly, and sleek, low-profile bridge alignment
1 6

Nocpix ACE 2 H35R Thermal Riflescope

  • Thermal Resolution: 640 x 512
  • Thermal Lens: 35mm
  • Pixel Interval: 12µm
  • NETD: < 12mK
  • Thermal FOV: 12.6 x 10.1°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 79,990.00
New Arrival
Including VAT • Includes Shipping

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay
Split your purchase with interest-free payments from R 13,331.66/m

Make your first payment today, then monthly over 2–6 months.

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Nocpix ACE 2 H35R Thermal Riflescope.

SKU: 1A00600319

Detection Range

Pig
Kudu
Elephant
1059mDetection
486mRecognition
243mIdentification
1588mDetection
729mRecognition
365mIdentification
3176mDetection
1458mRecognition
729mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Nocpix ACE 2 H35R Key Features:

  • Sub-12mK Thermal Sensitivity: High-definition 640x512 @ 12µm sensor captures subtle thermal signatures in adverse weather .
  • Wide-Angle Germanium Optics: 35mm F0.9 objective lens provides a generous 12.6° x 10.1° field of view and 1800m detection range .
  • Central Turret Focus Control: Top-mounted wheel enables quick, ambidextrous image focusing in pitch darkness .
  • Integrated 1200m LRF & Ballistics: Built-in laser rangefinder pairs with onboard ballistic software for calculated holdovers .
  • Ocular Zoom 2.0: Delivers a 2x base optical magnification up to 20x maximum without severe pixel distortion .
  • Intelligent Game Tracking: Calculates and logs GPS target coordinates via the internal compass and LRF to assist recovery via the Nocpix App .
  • Recoil Activated Video (RAV): Automatically saves pre- and post-shot footage directly to the internal 64GB storage .
  • Dual Power Architecture: Internal 3650mAh battery plus a field-replaceable 18650 battery provides up to 8 hours of operating time .
  • High-Recoil Rating: Engineered to withstand up to 7000 Joules of recoil force on heavy calibres including .308 Win and .338 Lapua .
Product Overview

The Nocpix ACE 2 H35R is a dedicated thermal riflescope purpose-built for high-mobility predator management, agricultural boundary security, and bushveld hunting where wide situational awareness is paramount . By mounting directly to hunting and tactical platforms, this thermal scope provides rapid detection across dense scrub and broken terrain where standard optical scopes fail .

Nocpix ACE 2 H35R Thermal Sensor & Sub-12mK Core

At the foundation of the ACE 2 H35R is an uncooled 640x512 VOx thermal sensor operating with a 12-micron pixel pitch and a fluid 60Hz frame rate . Boasting an industry-leading sensitivity rating of NETD <= 12 mK, the sensor distinguishes minute surface temperature variations between quarry and background vegetation . When coupled with the fast F0.9 aperture and Nocpix R+ 2.0 AI image enhancement, this thermal scope maintains exceptional image contrast through high ambient humidity, dust storms, and coastal fog .

35mm F0.9 Wide Field-of-View Optics & Bushveld Detection

Equipped with a 35mm F0.9 germanium objective lens, the H35R produces an expansive 12.6° x 10.1° field of view (yielding 21.9m x 17.6m linear coverage at 100m) . This wider optical window makes it the ideal choice for scanning broad riverine corridors, tracking fast-moving jackal or bushpig, and clearing fence perimeters . With an optical detection range reaching 1800m on a standard standing target, hunters can spot heat signatures across farm pastures long before closing in for shot placement .

Ergonomic Turret Focus & Integrated 1200m Ballistic LRF

Field usability is anchored by a centrally positioned turret focus wheel, allowing operators to adjust focal clarity naturally without reaching forward to the objective bell or breaking cheek weld . The Ocular Zoom 2.0 system provides a base optical magnification of 2x scaling smoothly to 20x maximum digital zoom while preserving reticle proportions and target edge definition . For precision shooting, the built-in Class 1 Laser Rangefinder ranges targets out to 1200m (±1m accuracy) and feeds live distance and inclination data into the onboard ballistic calculation engine to project a compensated aiming mark on the 2560x2560 round AMOLED display . A dual-battery power system (internal 3650mAh pack + swappable 18650 cell) delivers up to 8 hours of runtime, housed inside a 7000-Joule recoil-rated, IP67 waterproof magnesium chassis

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeUncooled VOx (Vanadium Oxide)
Thermal Resolution640 x 512
Pixel Pitch12 µm
NETD< 12 mK
Thermal Lens35 mm
Focal Ratio (Aperture)F0.9
Dual FOV SystemOptical Zoom 2.0
Field of View12.6 x 10.1
Magnification20x
Focus ModeFocus Wheel on Turret
Frame Rate60 Hz
Detection Range (1.7m Subject)1800 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Max Range1200 m
LRF Min Range10 m
LRF Accuracy±1m
Trajectory CalculatorYes
Calibration Profiles8
Projectile Mass InputYes
Initial Velocity InputYes (Use Chronograph)
Aerodynamic CoefficientYes
Spindrift CalculationYes
Twist Rate InputSupported
Freeze CalibrationYes
System & Display
Display Info1.03-inch round AMOLED: 2560 x 2560
Screen BrightnessYes (1-10)
Screen ContrastYes (1-10)
Digital Zoom2x - 20x
Color PalettesWhite Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
Image EnhancementUltra-Clear mode, R+ 2.0 AI image enhancement algorithm, Image Hue adjustments (Cool/Warm)
Flat Field CorrectionAuto Calibration (A)Manual Calibration (M), and Background Calibration (B)
Eye Pupil10mm
Eye Relief60mm
Diopter Range-5~+4
Display FunctionsCurrent magnification, Ultraclear mode status, WIFI status, Image calibration status, Time, MIC Status, RAV Status, Dual Clarity, Zeroing Distance, Current Profile Selected, Battery Indicator
Defective Pixel CorrectionYes
Storage CapacityEMMC 64GB
Media Capacity64GB
Media Format.JPEG, .MP4
Recording CapabilitiesVideo Recording, Audio Recording
Shock-Activated RecordingYes
Built-In MicrophoneYes
Battery Type18650mAh
Battery LifeUp to 8 hours at 22°C
Power Supply5V (Type C)
Power Consumption5V / 2A (via Type-C external supply)
Battery Indicator HUDYes
Polarity ProtectionYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotSupported
GPS PositioningYes
Digital CompassYes
Inclination SensorYes
Supported OSAndroid, Apple iOS
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-20° C TO + 50° C
Storage Temperature-20°C - +50°C
Vibration ResistanceRated up to 7,000 Joules max recoil
Dimensions & Weight367 x 65 x 92m, 850 g (without batteries)
Safety CertificationsClass 1 Consumer Laser Product (IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021)
EMC CertificationsClass A
What's in the Box
Box ContentsACE 2 H35R Series Thermal Imaging Scope
Heated target for zeroing
Lens cloth, quick start guide
Type-C cable,
2x 18650 Batteries
2x Focus knob rubber
Battery charger
Portable bag
