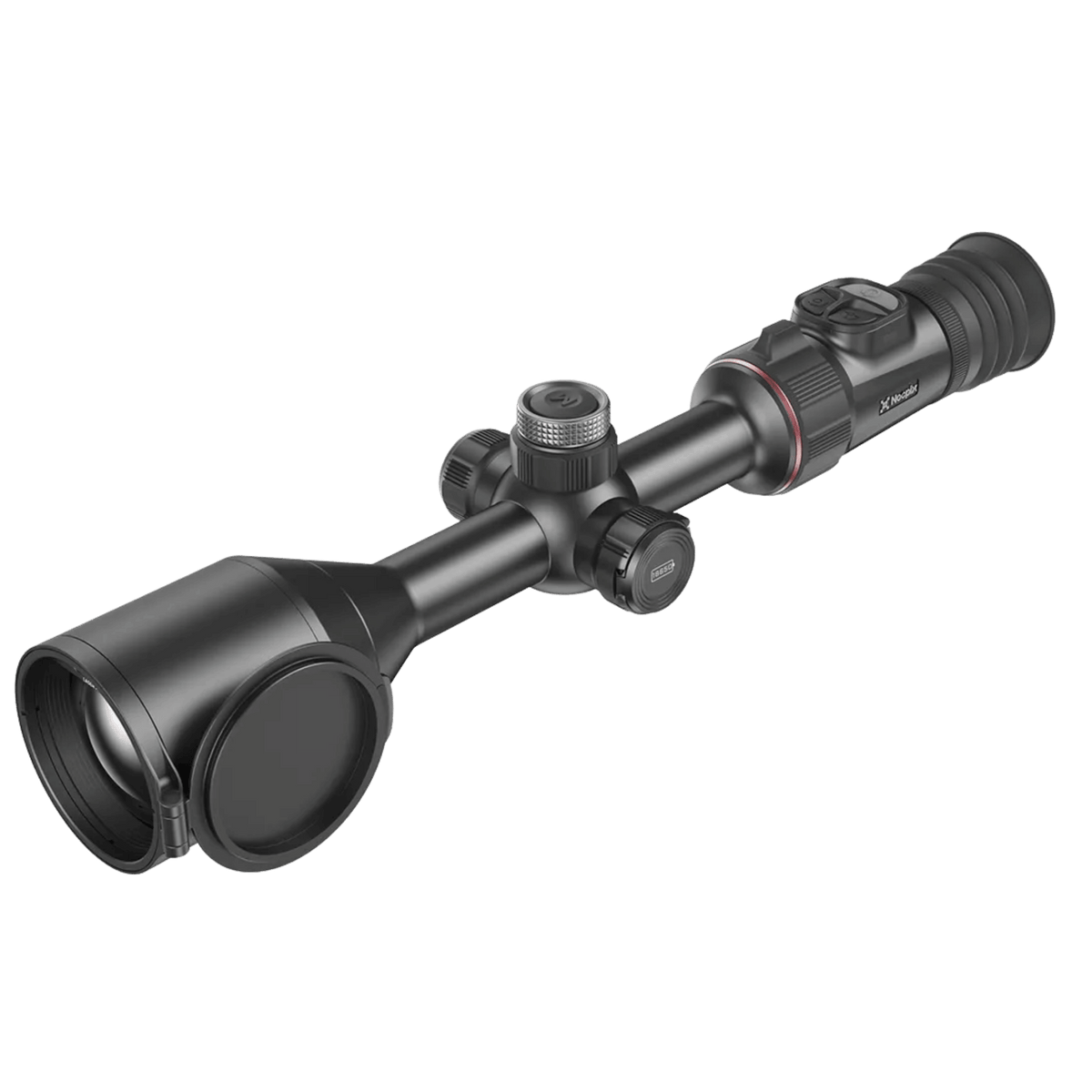

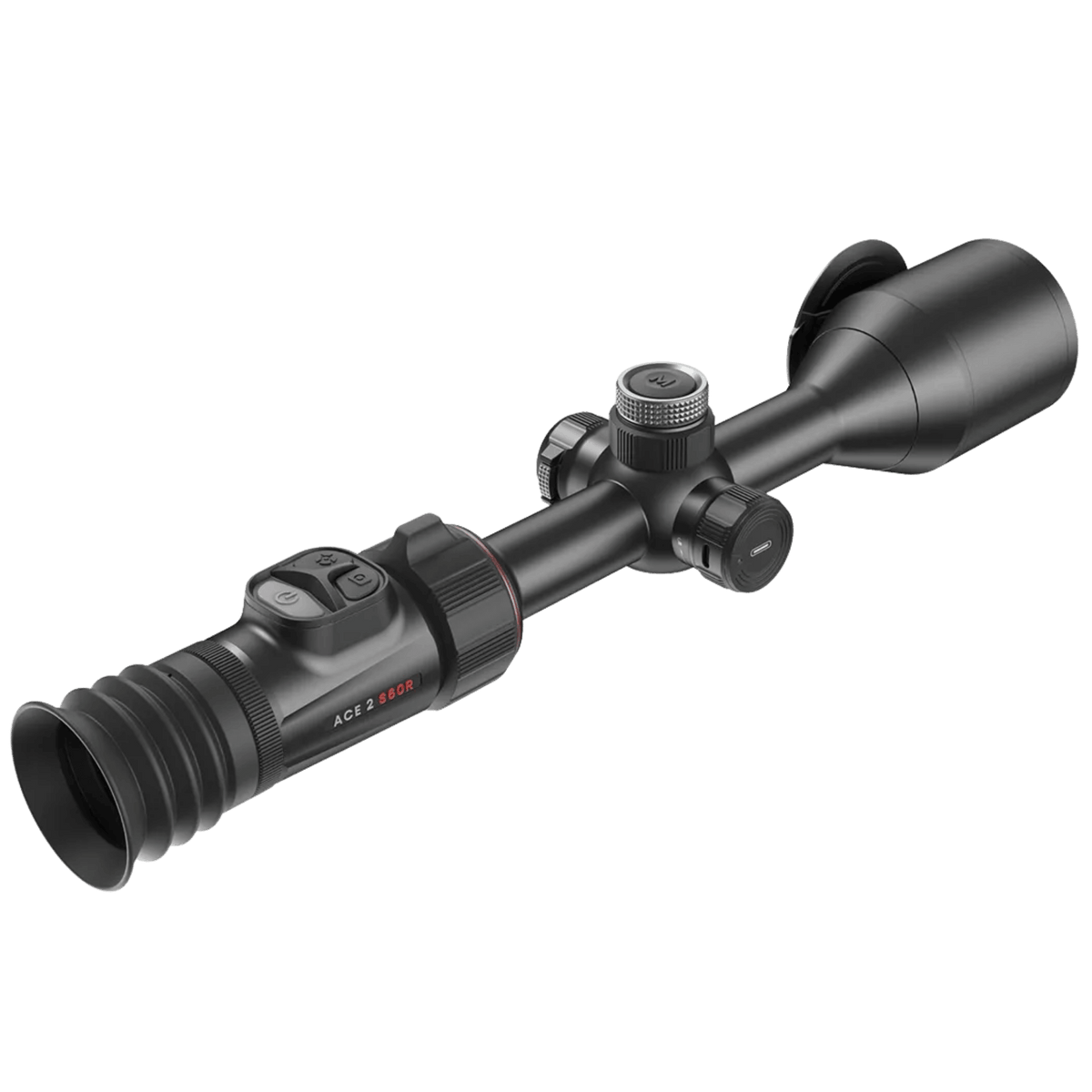

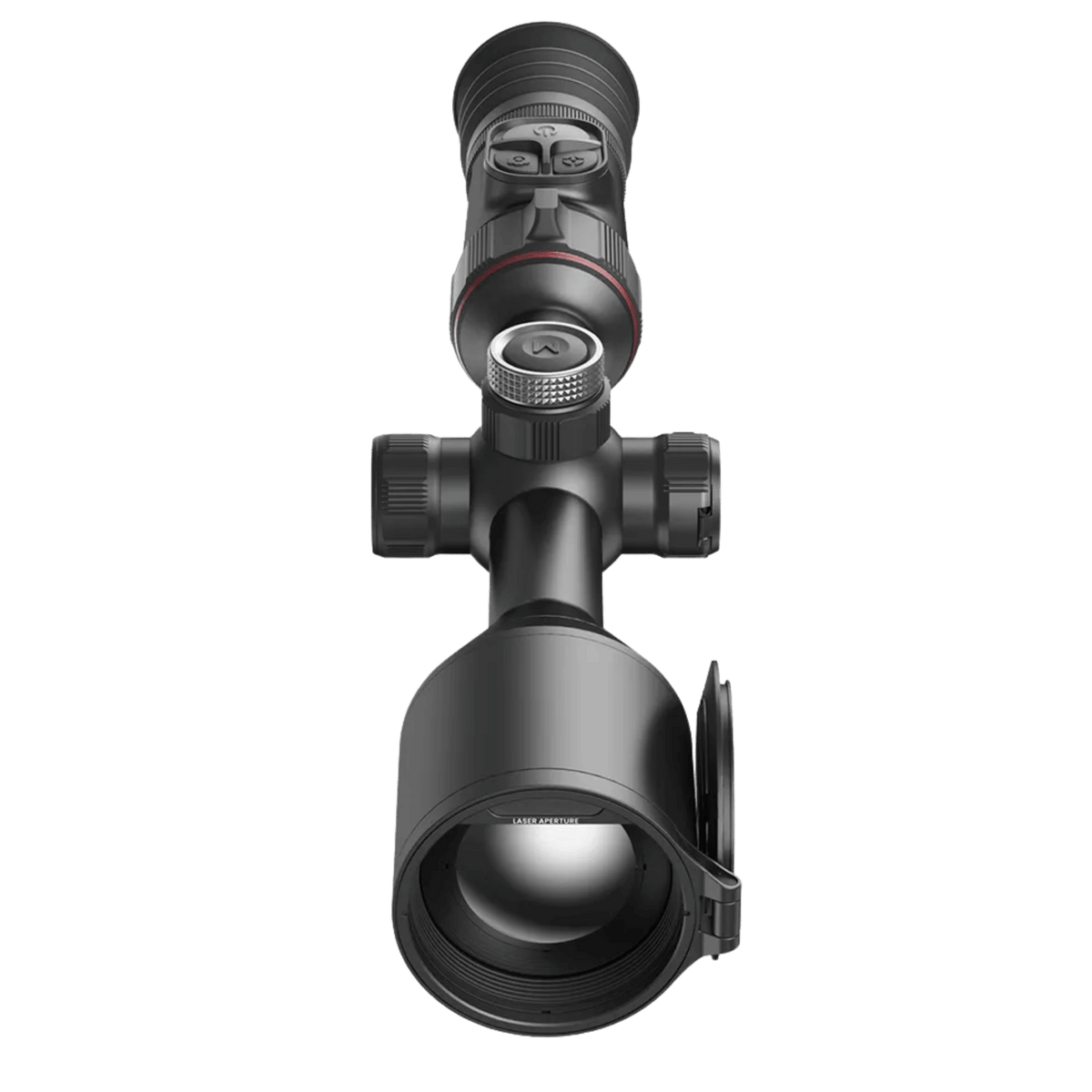

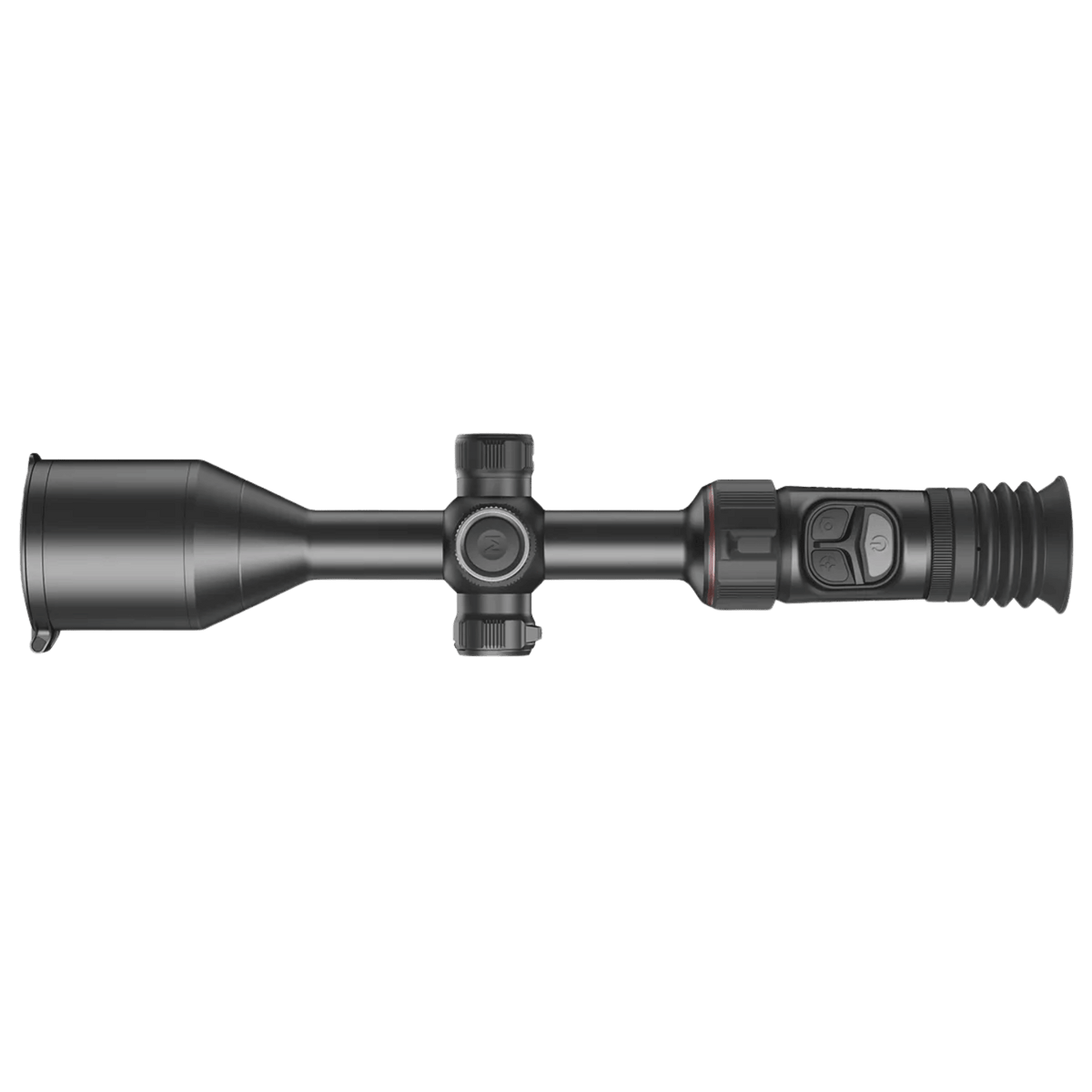

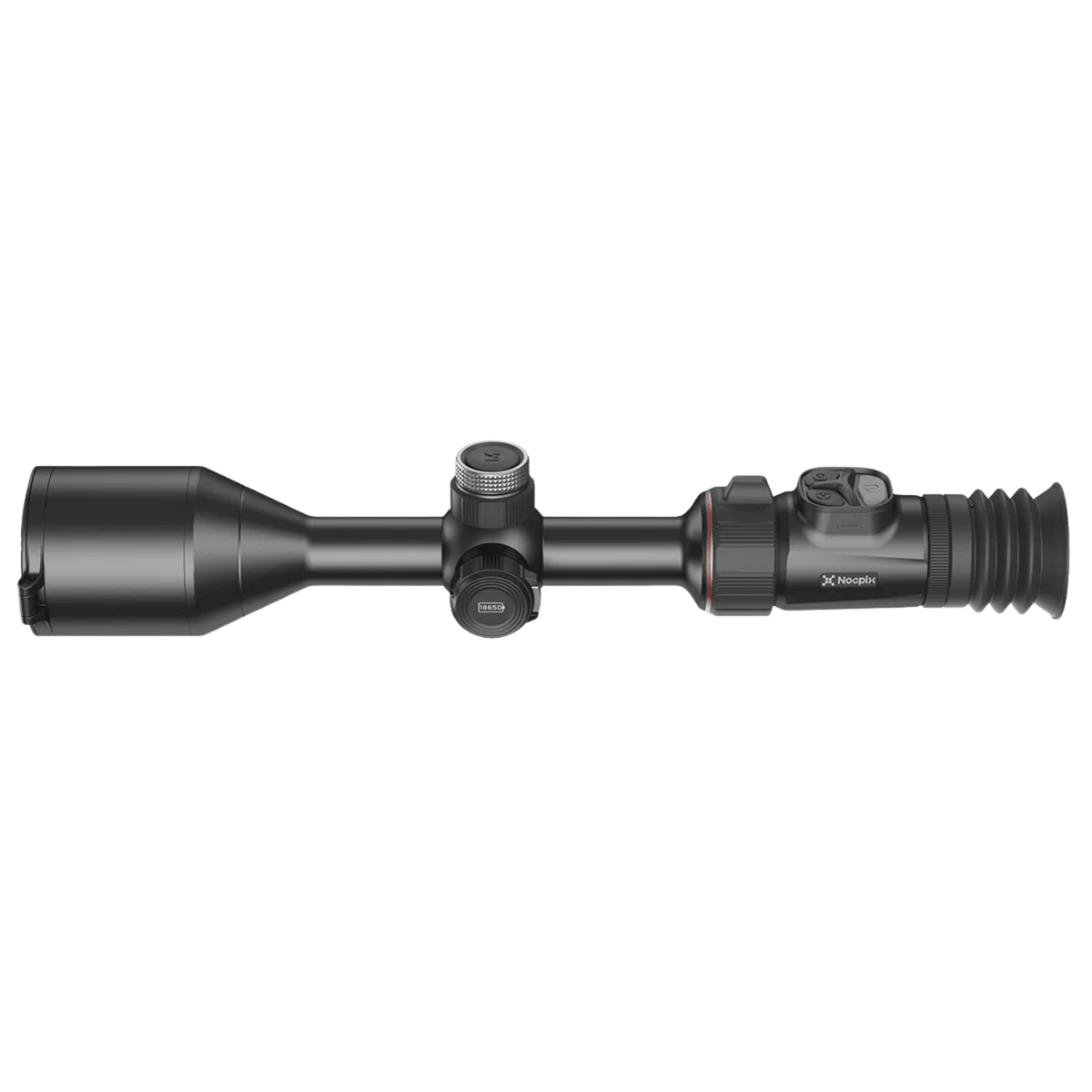

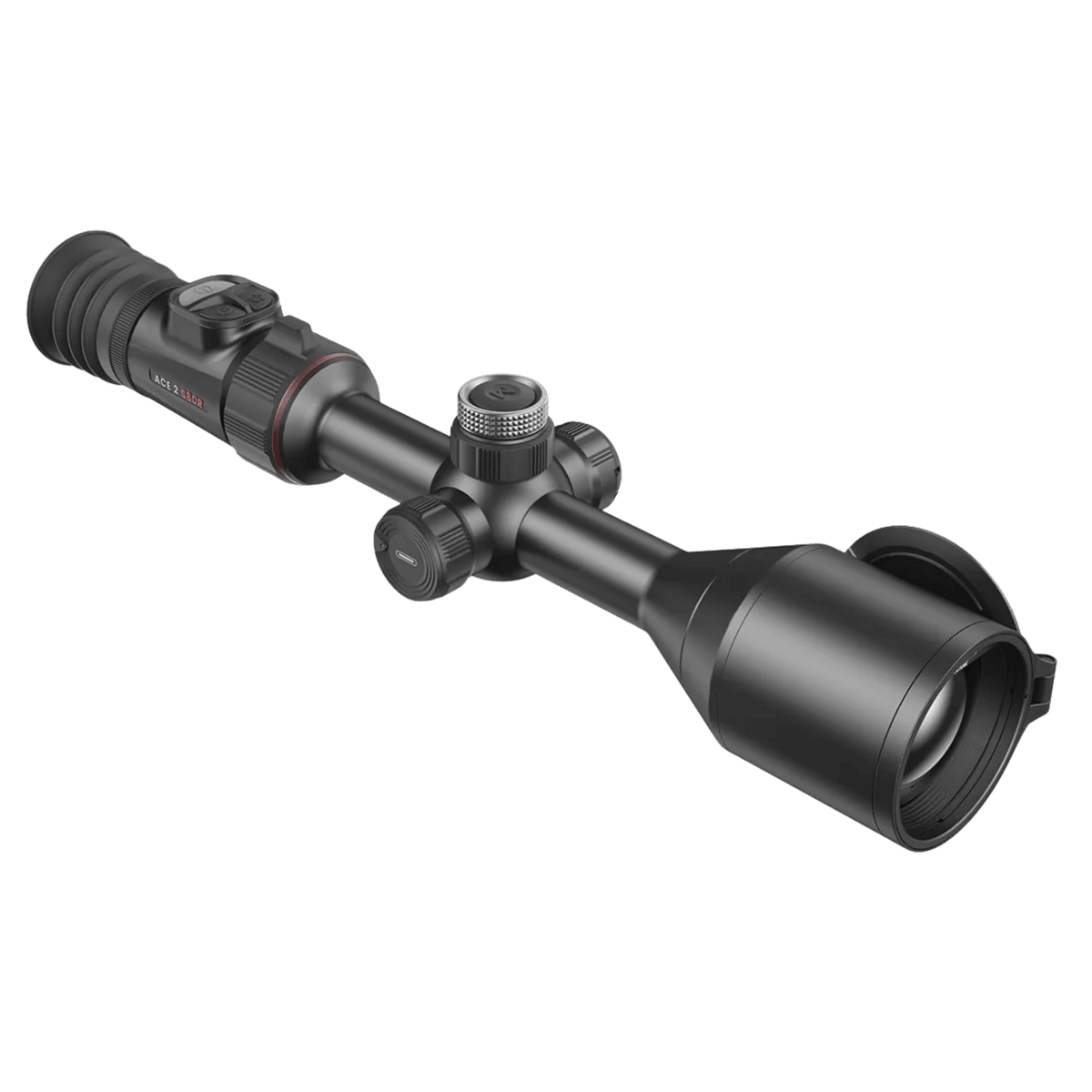

Nocpix ACE 2 S60R Thermal Riflescope
- Thermal Resolution: 1280 x 1024
- Thermal Lens: 60mm
- Pixel Interval: 12µm
- NETD: < 12mK
- Thermal FOV: 14.7 × 11.7°
We accept
Kon nie bakkie beskikbaarheid laai nie
Detection Range
Key Features & Highlights
Product Overview
Field Optics Redefined: The Ocular Zoom 2.0 Advantage
Looking through digital thermal glass often feels like staring into a small, backlit box, where dialing up magnification quickly degrades the image into jagged pixel blocks. The ACE 2 S60R solves this frustration with Ocular Zoom 2.0.
By incorporating physical optical adjustment inside the eyepiece rather than relying solely on aggressive digital scaling, target lines and anatomical details remain sharp and distinct across the zoom range. The expansive 60mm eye relief and large 10mm exit pupil eliminate the dark, restrictive vignetting typical of compact ocular systems, giving you a full, natural sight picture on the circular AMOLED display that reduces eye strain during extended observation.
From Trigger Pull to Recovery: Real-Time Shot Tracking
Taking a shot at distance in the dark is straightforward; locating downed game in tall grass or thick scrub afterward is where time is often lost. The ACE 2 S60R turns the integrated 1,200 m laser rangefinder into an indispensable recovery asset.
When you range an animal, the scope pairs the laser return with its internal digital compass to log the target's distance and bearing. This data syncs to the mobile app, providing clear directional guidance and range markers on your phone. Instead of walking into the black and guessing which bush was your mark, you follow a direct heading to the point of impact, saving battery life, eliminating guesswork, and making post-shot recovery fast and reliable
Free Shipping
Full Transit Insurance. Your investment is protected.
5 Star Google Rating
Experience the Cape Thermal Difference.
24/7 Support
Talk to us anytime via Whatsapp or phone.
Authorized Partner
Official brand partner for all top brands.
Proven in the Field by Africa’s Top Observers
We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.
Swipe to read more →"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."
"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."
"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."
Technical Specifications
While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.
Thermal Specifications
| Sensor Type | Uncooled VOx (Vanadium Oxide) |
| Thermal Resolution | 1280 x 1024 |
| Pixel Pitch | 12 µm |
| NETD | < 12 mK |
| Thermal Lens | 60 mm |
| Focal Ratio (Aperture) | F1.0 |
| Dual FOV System | Occuluar Zoom 2.0 |
| Field of View | 14.7 × 11.7 |
| Magnification | 2x to 4x base optical magnification; 2x to 28x total magnification |
| Focus Mode | Focus Wheel |
| Frame Rate | 60 Hz |
| Spectral Range | 8 to 14 µm |
| Detection Range (1.7m Subject) | 3100 m |
Precision, Optics & Lasers
| LRF Safety Class | Class 1 |
| LRF Wavelength | 905nm |
| LRF Max Range | 1200m m |
| LRF Min Range | 5 m |
| LRF Accuracy | ±1 m |
| Trajectory Calculator | Yes |
| Calibration Profiles | 8 |
| Projectile Mass Input | Bullet weight parameter input supported in ballistic configuration |
| Initial Velocity Input | Muzzle velocity parameter input supported in ballistic configuration. |
| Aerodynamic Coefficient | Ballistic Coefficient (G1 / G7 profiles) configurable via scope menu and Nocpix App |
| Spindrift Calculation | Yes |
| Twist Rate Input | Supported in Nocpix App Ballistic Profile settings |
| Environmental Calibration | Automatic (A), Manual (M), and Background (B) flat field calibration modes. |
| Freeze Calibration | Yes |
| Shock Resistance | Up to 7,000 Joules |
System & Display
| Display Info | 2560 × 2560 pixels, circular AMOLED display |
| Screen Brightness | 10 adjustable levels |
| Screen Contrast | 10 adjustable levels |
| Digital Zoom | 1x - 28x |
| Color Palettes | White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian |
| Image Enhancement | R+ 2.0 AI Algorithm, Ultra-Clear processing, Image Sharpness adjustment (10 levels), Image Contrast adjustment (10 levels) |
| Flat Field Correction | Automatic Calibration (A), Manual Calibration (M), Background Calibration (B) (Internal shutter / Shutterless support). |
| Image Modes | Motion Mode , Still Mode (Dual Clarity, Ultra-Clear Mode, Image-Hue (Cool / Warm) |
| Eye Pupil | 10 mm |
| Eye Relief | 60 mm |
| Diopter Range | -5 to +4 D |
| Defective Pixel Correction | Yes |
| Storage Capacity | 64GB EMMC |
| Media Capacity | 64GB |
| Media Format | JPEG, MP4 |
| Recording Capabilities | Video Recording, Audio Recording |
| Built-In Microphone | Yes |
| Battery Type | Dual power system: Built-in 3650 mAh internal lithium-ion pack + 1× Replaceable 18650 battery (3650 mAh) |
| Battery Life | Approximately 7 hours continuous runtime on internal battery plus external 18650 cell |
| Charge Time | Approximately 3 to 4 hours via compatible 5V / 2A external charging. |
| Power Supply | Dual power architecture (built-in battery + non-polarity swappable 18650 cell) with 5V Type-C external input |
| Power Saving Features | Auto-standby mode triggered by weapon inclination |
| Battery Indicator HUD | Yes |
| Polarity Protection | Yes |
| Overvoltage Protection | Yes |
Connectivity & Software
| Wi-Fi Hotspot | Supported (2.4G & 5G) |
| USB Connectivity | USB Type-C interface supporting charging and PC flash memory file transfer |
| GPS Positioning | Yes |
| Digital Compass | Yes |
| Accelerometer | Yes |
| Inclination Sensor | Yes |
| Multilingual Support | Yes |
| Android App | Download App |
| iOS App | Download App |
Physical & Environmental
| Protection Level (IP Rating) | IP67 |
| Drop Test Rating | Standard 1 m operational drop resistance with high-strength magnesium alloy chassis |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Storage Temperature | -20°C to + 50°C |
| Relative Humidity | 5% to 95% non-condensing; rated for operation in rain, snow, fog, and haze with IP67 ingress protection |
| Vibration Resistance | Recoil power up to 7,000 Joules |
| Dimensions & Weight | 397 × 73 × 92 mm; 980 g (Without Battery) |
| Safety Certifications | Class 1 Consumer Laser Product (IEC 60825-1: 2014, EN 60825-1: 2014+A11: 2021, EN 50689:2021), WEEE Directive (2012/19/EU), Battery Directive (2006/66/EC) |
| EMC Certifications | FCC Class A, CE (Directives 2014/53/EU and 2011/65/EU) |
| Other Hardware Features | Ocular Zoom 2.0 (lossless hybrid zoom), Dual Clarity Mode (Motion/Still), Intelligent Tracking recovery, N-Link mutual cross-device data transmission |
What's in the Box
| Box Contents | Nocpix ACE 2 S60R Thermal Riflescope 2× Rechargeable 18650 Batteries Dual-Slot External Battery Charger Heated Zeroing Target Pad 2× Focus Knob Ergonomic Rubber Grips USB Type-C Cable Lens Cleaning Cloth Protective Carry Bag Quick Start Guide |
