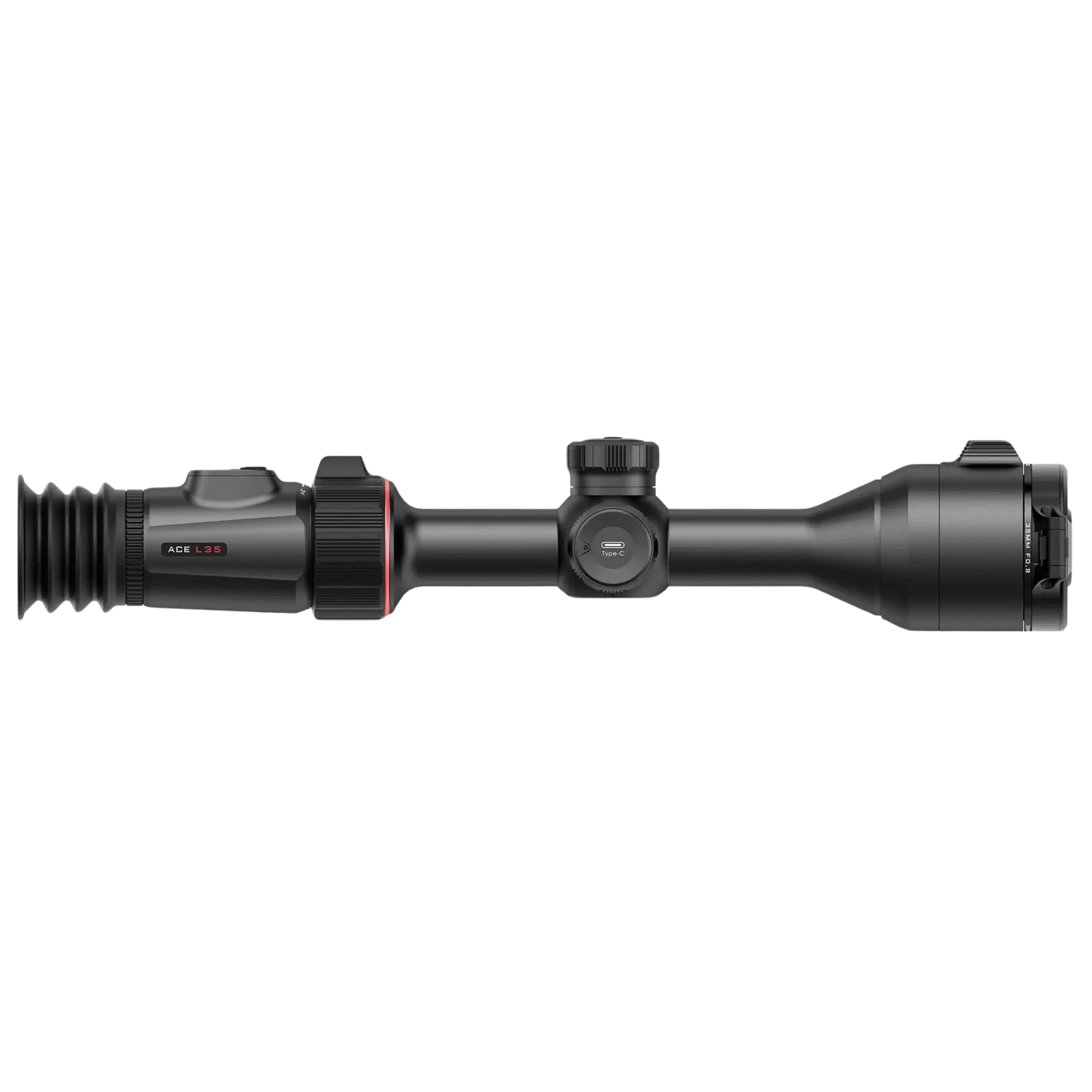

Nocpix ACE L35 - Thermal Tube Style Scope

Nocpix ACE L35 - Thermal Tube Style Scope

  • Termiese resolusie: 384x288p
  • Termiese lens: 35mm/F0.9
  • Bespeuringsafstand: 1800m

  • Gratis versekerde aflewering
  • Sluit produklewenslange ondersteuning in
Gereelde prys R 44,922.00 ZAR
Gereelde prys Verkoop prys R 44,922.00 ZAR
Uitverkoping Uitverkoop
Versending word by betaalpunt bereken.

Introducing the Nocpix ACE L35, the flagship thermal riflescope engineered for discerning hunters and professionals. This thermal tube style scope combines a high-resolution thermal sensor with an industry-leading display and true optical magnification, delivering unparalleled image quality and an immersive viewing experience in any hunting environment.

The Nocpix ACE L35 provides exceptional thermal performance, featuring a 384x288 @ 12μm thermal sensor with a rapid 60Hz refresh rate and an impressive ≤18mK NETD for superior thermal sensitivity. Its advanced Reality+ image processing algorithms enhance contrast and detail, while the revolutionary Vision+ system truly sets it apart. This system boasts a round 1.03-inch, 2560x2560 AMOLED display, complemented by a unique 1-3x ocular zoom that provides direct optical magnification, eliminating the distortion often seen with traditional digital zoom. With an integrated Laser Rangefinder and a formidable 1800-meter detection range, the ACE L35 ensures precise targeting. Its ergonomic design is powered by a robust dual-battery system, combining a 4000mAh built-in battery with an additional replaceable 18650 battery, ensuring extended operation during prolonged outdoor sessions.

Nocpix ACE L35 Key Features:

  • Flagship Thermal Riflescope: Designed for all hunting environments.
  • High-Resolution Thermal Sensor: 384x288 @ 12μm with ≤18mK NETD and 60Hz refresh rate.
  • Advanced Reality+ Imaging Enhancement: Proprietary algorithms for superior contrast and detail.
  • Revolutionary Vision+ System: Delivers high-resolution images and a broad field of view.
  • Precision Optics: 35mm F0.9 Objective Lens.
  • Magnification Range: 4-16x.
  • Wide Field of View: 7.5°x5.7° / 13x10 m@100m.
  • Integrated Laser Rangefinder (LRF): For accurate distance measurement.
  • Extended Detection Range: Up to 1800 meters (for 1.7m x 0.5m target, P(n)=99%).
  • Robust Dual-Battery System: 4000mAh built-in + replaceable 18650 for prolonged use.
  • User Comfort: 50mm exit relief, 8mm exit pupil diameter, -5~5 diopter adjustment.
  • True Tube Style Design: Mimics traditional daytime scopes for familiar mounting and handling.
Bekyk volledige besonderhede

Nocpix ACE L35 - Thermal Tube Style Scope Bespeuring, herkenning en identifikasiereekse

Opsporing, herkenning en identifikasie reekse is benaderd en gebaseer op ideale toestande.

  • Thermal image of a group of pigs, likely Kunekune pigs, taken with a HikMicro Condor CQ50L Thermal Monocular. Their heat signatures are visible in shades of orange and yellow against a cool purple background.

    Bosvark - 100 cm

    Bespeuring: 1800m

    Herkenning: 430m
    Identifikasie: 220m

  • Thermal image of a deer standing in a field, showcasing the detail and clarity of the Pulsar Axion 2 XQ35 Pro thermal monocular.

    Hert - 150 cm

    Bespeuring: 2800m

    Herkenning: 700m
    Identifikasie: 330m

  • HikMicro Condor CQ50L captures stunning thermal image of elephants drinking at a watering hole in the African savanna. The high-resolution thermal monocular reveals intricate details of their heat signatures, even in low-light conditions.

    Olifant - 300 cm

    Bespeuring: 5500m

    Herkenning: 1300m
    Identifikasie: 650m

1 van 3

Nocpix ACE L35 - Thermal Tube Style Scope Gedetailleerde spesifikasies

Termiese Module Spesifikasies

Resolusie: 384x288p

Lens: 35mm/F0.9

NETD: ≤ 18 mK

Pixel Interval: 12μm

Responsgolfband: N/A

Raamtempo: 60Hz

Zoom: 4~16x

Fokusmodus: Objective Focus Ring

Vertoon

Skerm: 1.03inch AMOLED, 2560x2560 pixels

Gesigveld: 7.5°x5.7° / 13x10 m@100m

Palette: Black Hot, White Hot, Red Hot, Rainbow, Violet, Viridian, Crimson

Laserafstandsmeter

Laserveiligheidsklas:

LRF Golflengte:

Maksimum meetbereik:

Minimum meetbereik:
Akkuraatheid:

Stelsel funksies

Berging: Built-in memory, 64GB

Opvallende kenmerke: Photo & Video & Audio recording, WIFI & APP, Thermal ZOOM Lock, One-shot Zeroing (from previous info on series), Wireless Updates (from previous info on series).

Battery en krag

Batterylewe: 7 hours (Max. operation time, @22℃)

Kragtoevoer: 5v (Type C USB)

Battery Tipe: Built-in 4000mAh & 18650 battery

Algemeen

Bedryfstemperatuur:

Ingangbeskerming: IP67

Afmetings: 350×90×62mm, 1050g (with battery)

SKU: ACEL35

Pakketinhoud

ACE Series Thermal Imaging Scope
 Heated target for zeroing
 Lens cloth
 2*18650 battery
 Type-C cable
 Quick start guide
 Battery charger
 Portable bag
