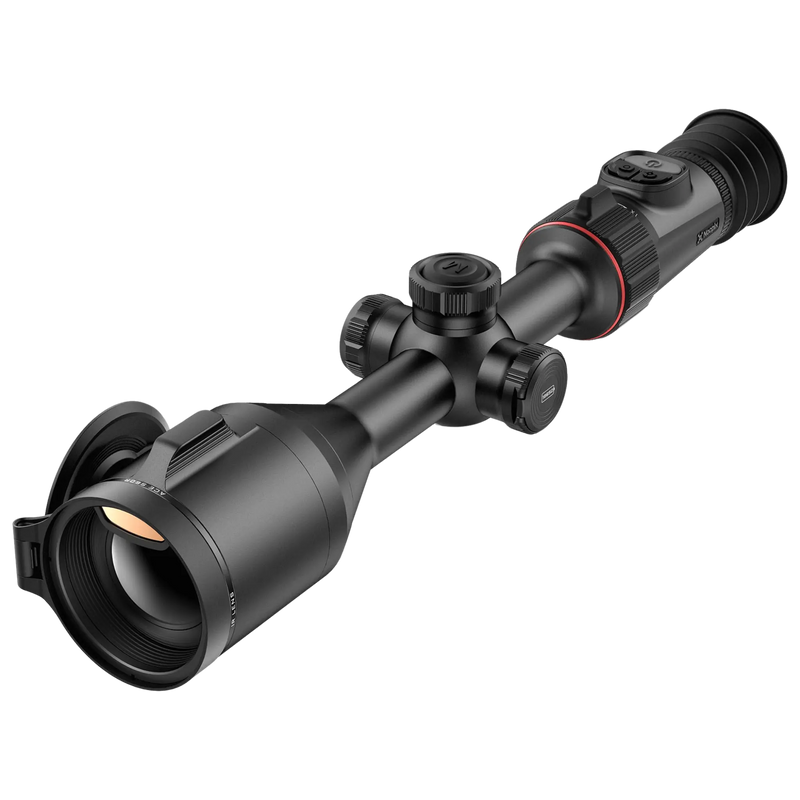

• the Nocpix ACE S60R, shown from a front-left, slightly elevated angle. The scope is black with a tube-style body, featuring a large objective lens with an open cap, several turrets for adjustments, and an eyepiece at the rear with a red ring accent. It appears robust and designed for precision.

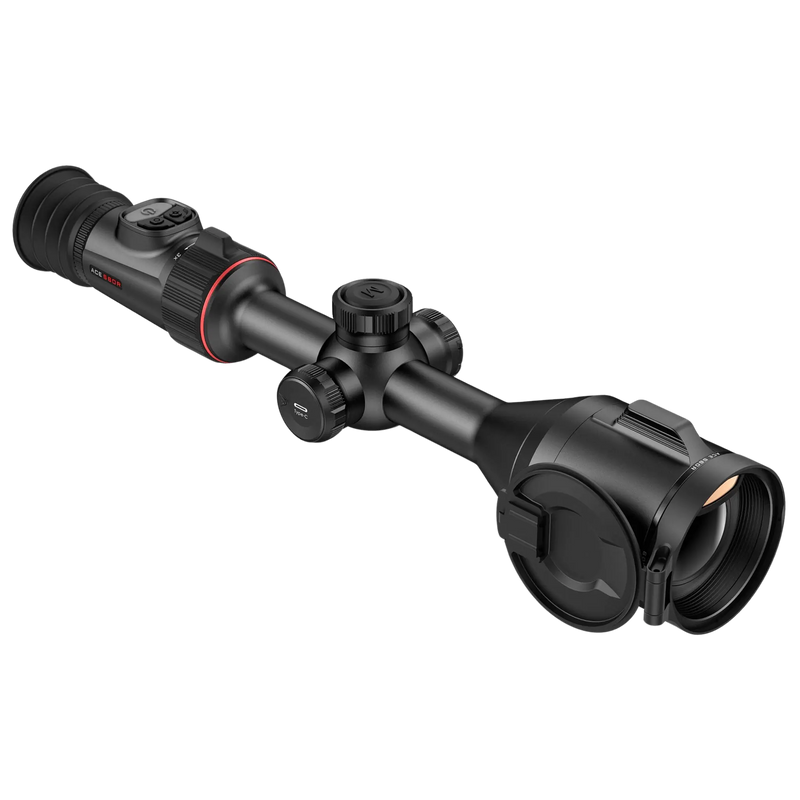

  • The Nocpix ACE S60R, shown from a front-right, slightly elevated perspective. The black tube-style body displays visible control turrets, the large objective lens with its cap closed, and the red ring accent near the eyepiece.
  • The Nocpix ACE S60R, viewed directly from the front, clearly showing its large 60mm objective lens with an orange tint, and the lens cap flipped open. The black tube-style body and control turrets are also visible.
  • The Nocpix ACE S60R, presented in a side right profile view. The black, tube-style scope features visible control turrets along its body, with a Type-C port also discernible. The objective lens and eyepiece are visible at either end.
1 4

Nocpix ACE S60R - Thermal Tube Style Scope With LRF

  • Thermal Resolution: 1280 x 1024
  • Thermal Lens: 60mm
  • Pixel Interval: 12µm
  • NETD: < 15mK
  • Thermal FOV: 14.7 × 11.7°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 139,990.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Nocpix ACE S60R - Thermal Tube Style Scope With LRF.

SKU: 1A00600136

Detection Range

Pig
Kudu
Elephant
1824mDetection
833mRecognition
417mIdentification
2735mDetection
1250mRecognition
625mIdentification
5471mDetection
2500mRecognition
1250mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Nocpix ACE S60R Key Features:

  • Ultra-High-Resolution Thermal Sensor: Features 1280x1024 @ 12μm for exceptional detail and clarity.
  • Extreme Thermal Sensitivity: Achieves ≤15mK NETD for superior image contrast.
  • Powerful 60mm F1.0 Objective Lens: Maximizes thermal radiation gathering for pristine images.
  • Smooth 50Hz Refresh Rate: Ensures fluid observation of dynamic scenes.
  • Wide Magnification Range: 2-24x magnification for versatile close-up and long-range viewing.
  • Advanced Ocular Zoom: Provides true optical magnification (1-3x) for clear, distortion-free views.
  • Integrated Laser Rangefinder (LRF): For precise distance measurement.
  • Ballistic Calculation: Provides accurate holdover solutions for confident shot placement.
  • Extended Detection Range: Exceptionally long detection capabilities thanks to the high-res sensor and 60mm lens.
  • All-Weather Performance: Operates day and night in rain, snow, fog, and haze.
  • Obstacle Penetration: Observes targets behind branches, grass, and shrubs.
  • Recoil Activated Video (RAV): Automatically records your critical moments.
  • Dual Power Supply System: Ensures long operating hours (up to 6 hours) with built-in and replaceable batteries.
  • Integrated Recording: Built-in memory supports photographing, video, and audio recording.
  • Smart Connectivity: Built-in Wi-Fi module supports APP connection.
  • Enhanced Situational Awareness: Features a built-in compass and motion sensor.
  • Picture-In-Picture (PIP) Function: Allows for simultaneous magnified and wide views.
  • Pixel Defect Correction: Ensures a clean and pristine display.
  • Convenient Operation Interface: Designed for user-friendly control.
  • Robust Build: Weighs 1300g, dimensions 365×90×68mm (same as H50R).
  • True Tube Style Design: Mimics traditional daytime scopes for familiar mounting and handling.
Product Overview

The Nocpix ACE S60R stands as the pinnacle of thermal riflescopes, designed for elite outdoor hunting and precision long-range observation. This advanced thermal tube style scope integrates a groundbreaking 1280x1024 ultra-high-resolution thermal sensor with a built-in laser rangefinder, delivering unparalleled image clarity and aiming capabilities within a familiar, robust design.

Operating on advanced infrared thermal imaging principles, the Nocpix ACE S60R requires no external light source, performing flawlessly day or night, and excelling even in challenging conditions like rain, snow, fog, or haze. It powerfully reveals targets unaffected by strong ambient light and can even detect those partially obscured by branches, grass, or shrubs. With its immense 1280x1024 @ 12μm thermal sensor and an impressive 50Hz refresh rate, it captures extraordinary detail and provides a smooth viewing experience. The powerful 60mm F1.0 lens maximizes thermal radiation gathering, ensuring pristine images. This model features ocular zoom for true optical magnification, a robust dual power supply system ensuring long operating hours (up to 6 hours), and comprehensive recording capabilities. The integrated Laser Rangefinder (LRF) provides precise distance measurements, making the ACE S60R an indispensable tool for extreme long-range hunting and observation.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Microbolometer
Thermal Resolution1280 x 1024
Pixel Pitch12 µm
NETD< 15 mK
Thermal Lens60 mm
Focal Ratio (Aperture)F1.0
Field of View14.7° × 11.7°
Magnification1.47x Base
Focus ModeObjective Focus
Frame Rate50 Hz
Spectral Rangeµm to 14µm
Detection Range (1.7m Subject)3100 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Wavelength905nm
LRF Max Range1200 m
LRF Min Range10 m
LRF Accuracy±1m
Projectile Mass InputYes
Initial Velocity InputYes
Aerodynamic CoefficientYes
Spindrift CalculationYes
Twist Rate InputYes
Freeze CalibrationYes
System & Display
Screen BrightnessYes
Screen ContrastYes
Digital Zoom1x to 8x
Color PalettesWhite Hot, Black Hot, Red Hot, Violet, Crimson, Viridian
Image EnhancementAI-Powered Clarity / Ultra Clear Mode
Flat Field CorrectionYes
Image Modes7 Modes
Eye Pupil8mm
Eye Relief50mm
Diopter Range-5 to +5 D
Display FunctionsPIP (Picture-in-Picture), Status Bar, Ballistic Overlay
Defective Pixel CorrectionYes
Sound Intensity DisplayNo
Storage Capacity64
Media Capacity64
Media Format.JPG / .MP4
Recording CapabilitiesPhoto, Video (with Audio), RAV
Shock-Activated RecordingYes
Built-In MicrophoneYes
Battery TypeInternal 4000mAh + 1x Replaceable 18650
Charge Time~3-4 hours (via 2A adapter)
Power SupplyDual Battery System
Power Saving FeaturesYes (Standby Mode)
Power Consumption5V Type-C
Battery Indicator HUDYes
Polarity ProtectionYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotYes (2.4G)
BluetoothNo
Video StreamingYes (Via Nocpix App)
Video CompressionH.264 / H.265
USB ConnectivityType-C
Digital CompassYes
AccelerometerYes
Inclination SensorYes
Supported OSiOS, Android, Windows
Software & AnalysisBallistic Calculator
Ultra Clear Mode
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Storage Temperature-20 to +50
Relative Humidity50%
Vibration Resistance6000 Joules
Dimensions & Weight~384x90x71mm / ~1.2kg
Tripod MountingNo
Safety CertificationsCE / FCC / RoHS
EMC CertificationsClass A
Other Hardware FeaturesOcular Zoom (1x-3x)
What's in the Box
Box ContentsACE S60R Thermal Scope
30mm Rings
18650 Battery
Type-C Cable
Lens Cloth
Bag
Manual
