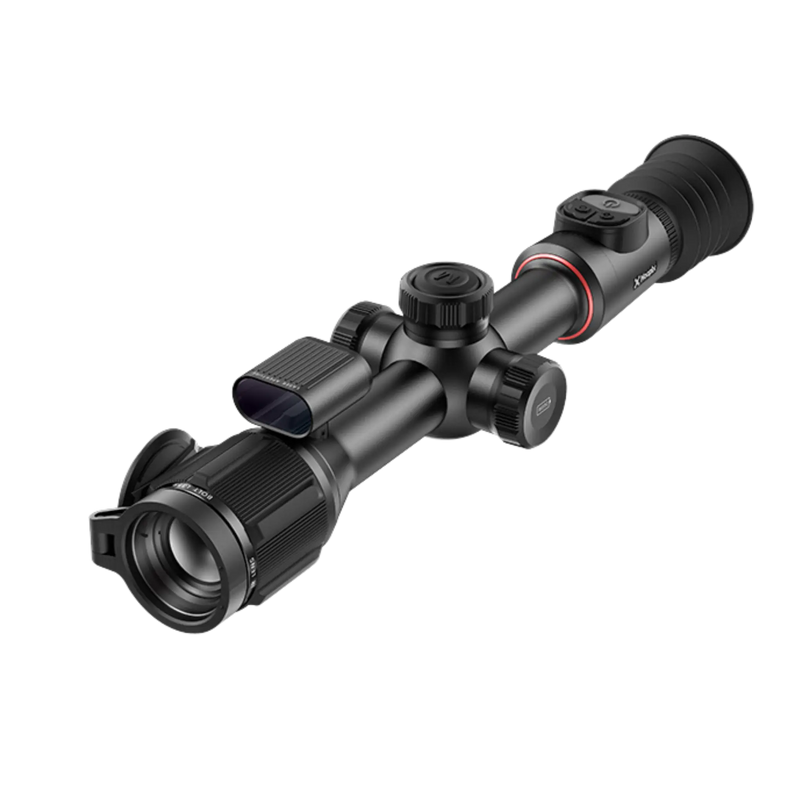

• A black Nocpix Bolt L35R thermal riflescope shown from a front-left angle, highlighting the objective lens with its lens cap, the integrated laser rangefinder module, and the turrets on the main tube.

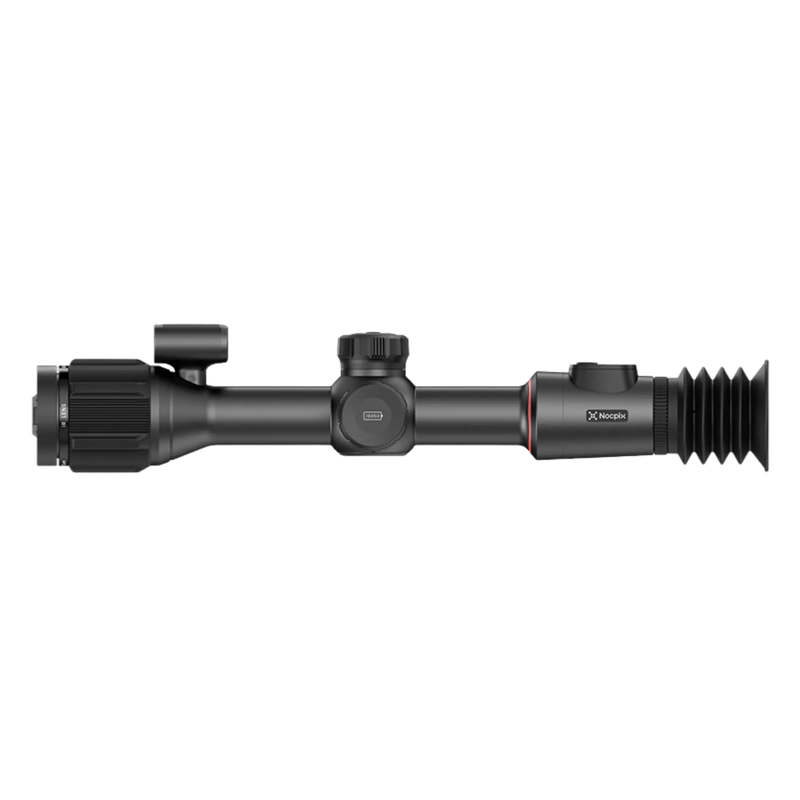

  • A side profile view of the Nocpix Bolt L35R thermal riflescope, with the objective lens on the left and the rubber eyepiece on the right. The image shows the scope's main body, turrets, and control panel.
  • A top-down view of the Nocpix Bolt L35R thermal riflescope, clearly showing the control panel with its buttons, the main turrets, and the brand name on the body.
  • Nocpix Bolt L35R - Thermal tube scope with a 35mm lens. and a 388x284 thermal sensor
1 4

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics

  • Thermal Resolution: 388 x 284
  • Thermal Lens: 35mm
  • Pixel Interval: 12µm
  • NETD: < 20mK
  • Thermal FOV: 7.5x5.7/13.2×9.9°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 33,990.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics.

SKU: 1A00600233

Detection Range

Pig
Kudu
Elephant
1059mDetection
486mRecognition
243mIdentification
1588mDetection
729mRecognition
365mIdentification
3176mDetection
1458mRecognition
729mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Nocpix Bolt L35R Key Features:

  • Superior Thermal Sensor: Features a 384x288/12μm sensor with a ≤20mK NETD, delivering exceptionally crisp, high-definition visuals.
  • Integrated Laser Rangefinder: A 1200m periscope-type LRF provides precise distance measurements for confident shots.
  • Onboard Ballistic Calculation: Smart ballistic tools offer instant aiming support, enhancing accuracy and confidence.
  • High-Speed Imaging: A 50Hz frame rate ensures smooth, real-time viewing with a 3.5x to 14x magnification range.
  • Compact & Lightweight: Weighing just 880g, the scope is easy to carry, mount, and handle.
  • Extended Battery Life: A dual battery system (built-in 5000mAh + 18650) provides up to 12 hours of continuous operation.
  • Durable Design: An IP67 rating and a tough, one-piece aluminum body make it resistant to dust, water, and heavy recoil.
Product Overview

The Nocpix Bolt L35R thermal riflescope is engineered for outdoor and night hunting, combining advanced thermal imaging with practical features tailored for new hunters. Its 384x288/12μm sensor with a NETD of ≤20mK delivers crisp, high-definition thermal visuals in fog, brush, and complete darkness.

The Nocpix Bolt L35R has a 50Hz refresh rate for smooth, real-time viewing, while the 35mm F1.0 objective lens and 3.5x to 14x magnification provide versatile target acquisition. With a 7.5x5.7° field of view, the Bolt L35R offers precise imaging and integrated ranging, enhancing accuracy and confidence during every hunt.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Microbolometer
Thermal Resolution388 x 284
Pixel Pitch12 µm
NETD< 20 mK
Thermal Lens35 mm
Focal Ratio (Aperture)F1.0
Field of View7.5x5.7/13.2×9.9
Magnification4x
Min. Focusing Distance10
Focus ModeManual Objective Focus
Frame Rate50 Hz
Detection Range (1.7m Subject)1800 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Wavelength905nm
LRF Max Range1200 m
LRF Min Range10 m
LRF Accuracy+/- 1m
Trajectory CalculatorYes
Calibration Profiles5
Projectile Mass InputYes
Initial Velocity InputYes
Aerodynamic CoefficientYes
Spindrift CalculationYes
Environmental CalibrationYes
Freeze CalibrationYes
System & Display
Display Info0.39 inch AMOLED; 1024 x 768
Screen BrightnessYes
Screen ContrastYes
Digital Zoom4x - 16x
Color PalettesWhite Hot, Black Hot, Red Hot, Violet, Crimson, Viridian
Image EnhancementUltra Clear Mode
Flat Field CorrectionYes
Image ModesUltra Clear Mode, Image Hue, Picture-in-Picture (PIP)
Eye Pupil30
Eye Relief50mm
Diopter Range-5 to +5 D
Display FunctionsHot Object Tracking, Ballistics SPOA, Picture-in-Picture (PIP), Status Bar Icons
Defective Pixel CorrectionYes
Storage Capacity32
Media Capacity32
Media Format.JPG / .MP4
Recording CapabilitiesPhoto, Video with Audio
Shock-Activated RecordingYes
Built-In MicrophoneYes
Battery TypeInternal 5000mAh + 1x Replaceable 18650
Battery Life12
Charge Time~4 Hours
Power SupplyUSB-C (5V/2A) Supports Direct Charging (Built-in battery charges via the Type-C port)
Power Saving FeaturesYes (Standby)
Battery Indicator HUDYes
Polarity ProtectionYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotYes
Video StreamingYes
Video CompressionH.264 / H.265
USB ConnectivityType-C
AccelerometerYes
Supported OSiOS, Android, Windows
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-20 to +50 C
Storage Temperature-20 to +50 C
Relative Humidity50%
Dimensions & Weight375.7 x 91.6 x 75mm / 870g
Tripod MountingNo
Safety CertificationsCE / FCC
EMC CertificationsClass A
Other Hardware FeaturesLRF
What's in the Box
Box ContentsNocpix Bolt L35R Scope
Heated target
Bag
2x 18650
Charger
Cable
Cloth
Guide
