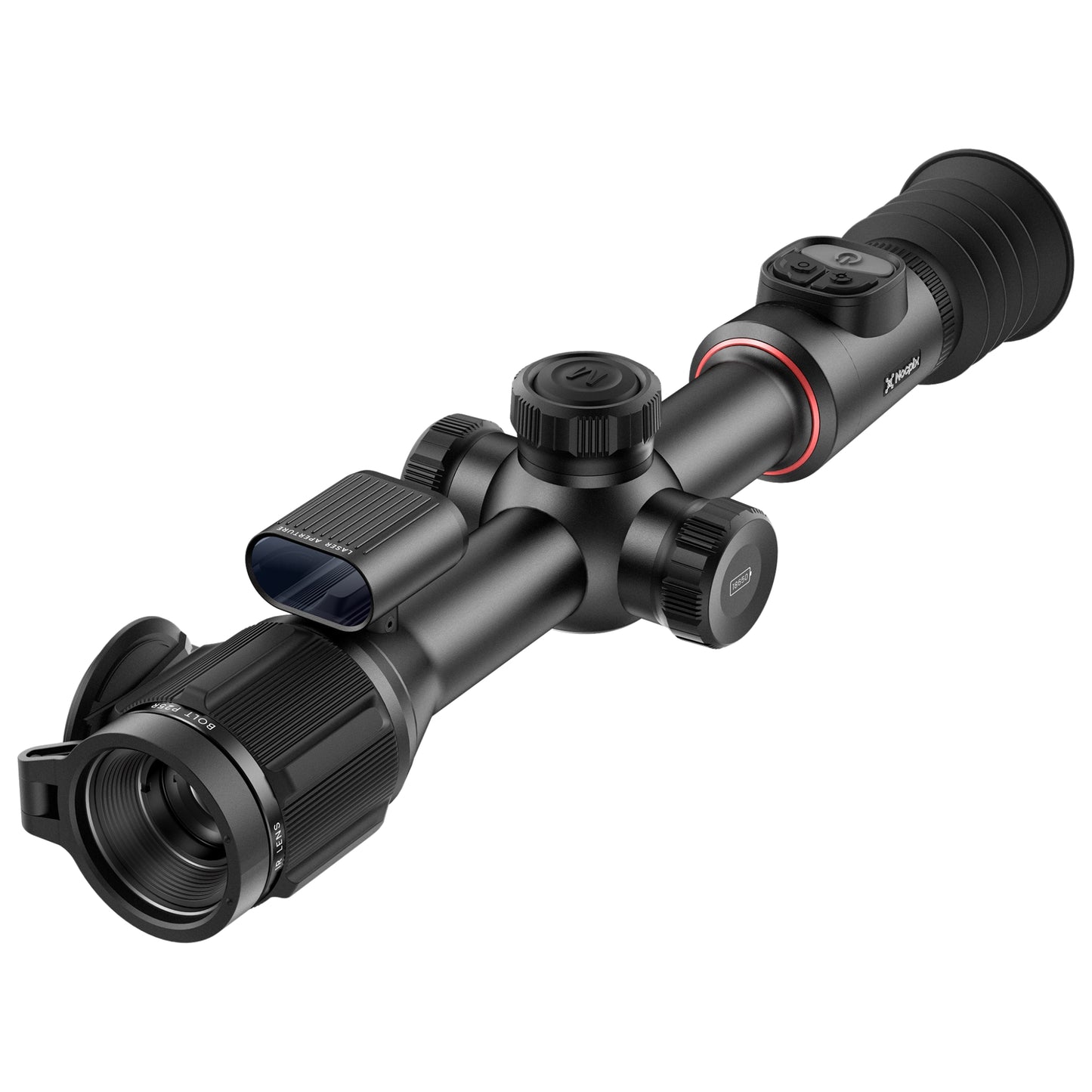

• A black thermal riflescope, the Noctpix Bolt P25R, is shown from a left-side angle. The scope has a wide front objective lens, a central body with turrets for adjustments

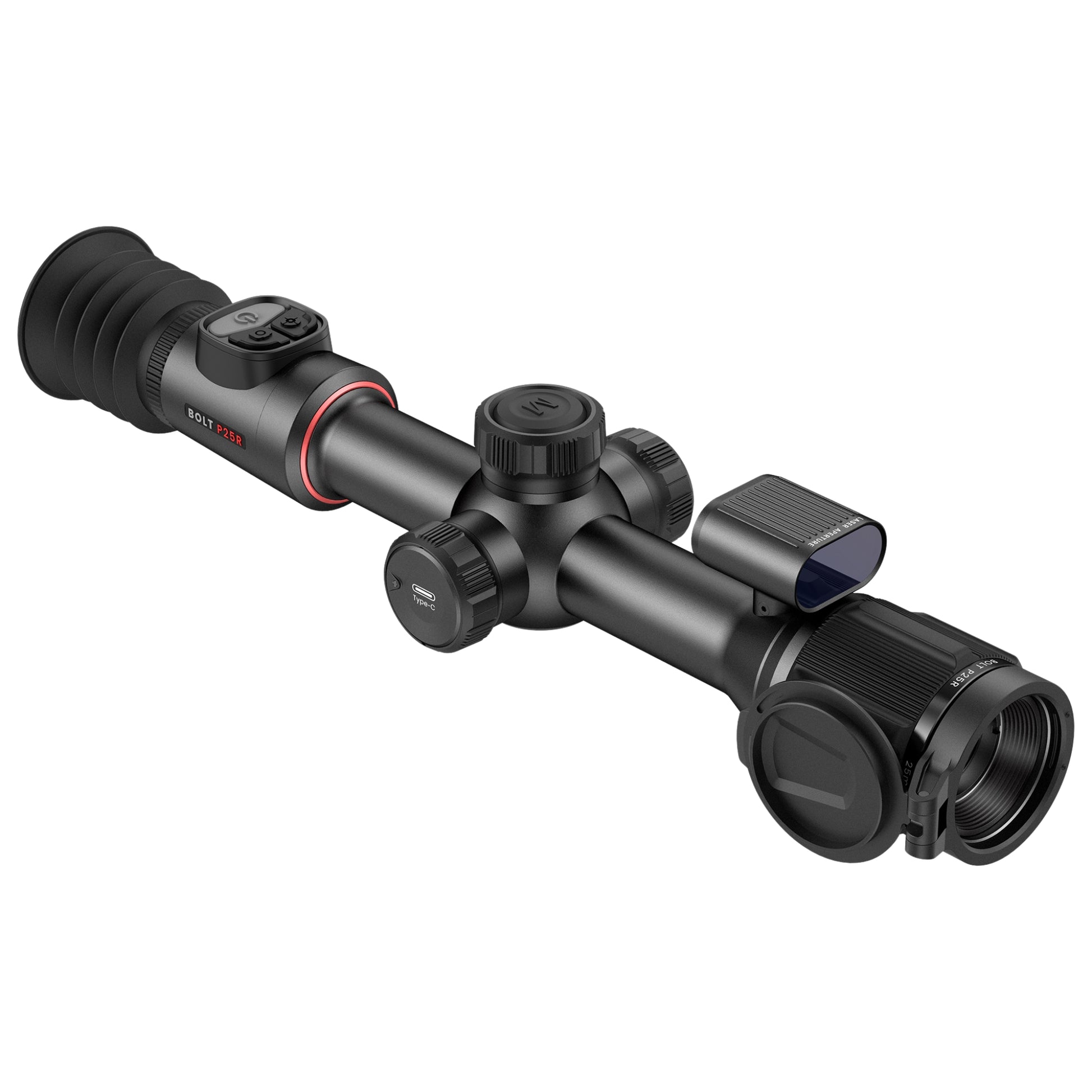

  • A black thermal riflescope, the Noctpix Bolt P25R, is shown from a right-side view. The large objective lens is at the front, with a screw-on cap. A top-mounted control panel with a power button and other controls is visible near the rear of the scope. The main tube has turrets for adjustments on the top and right side.

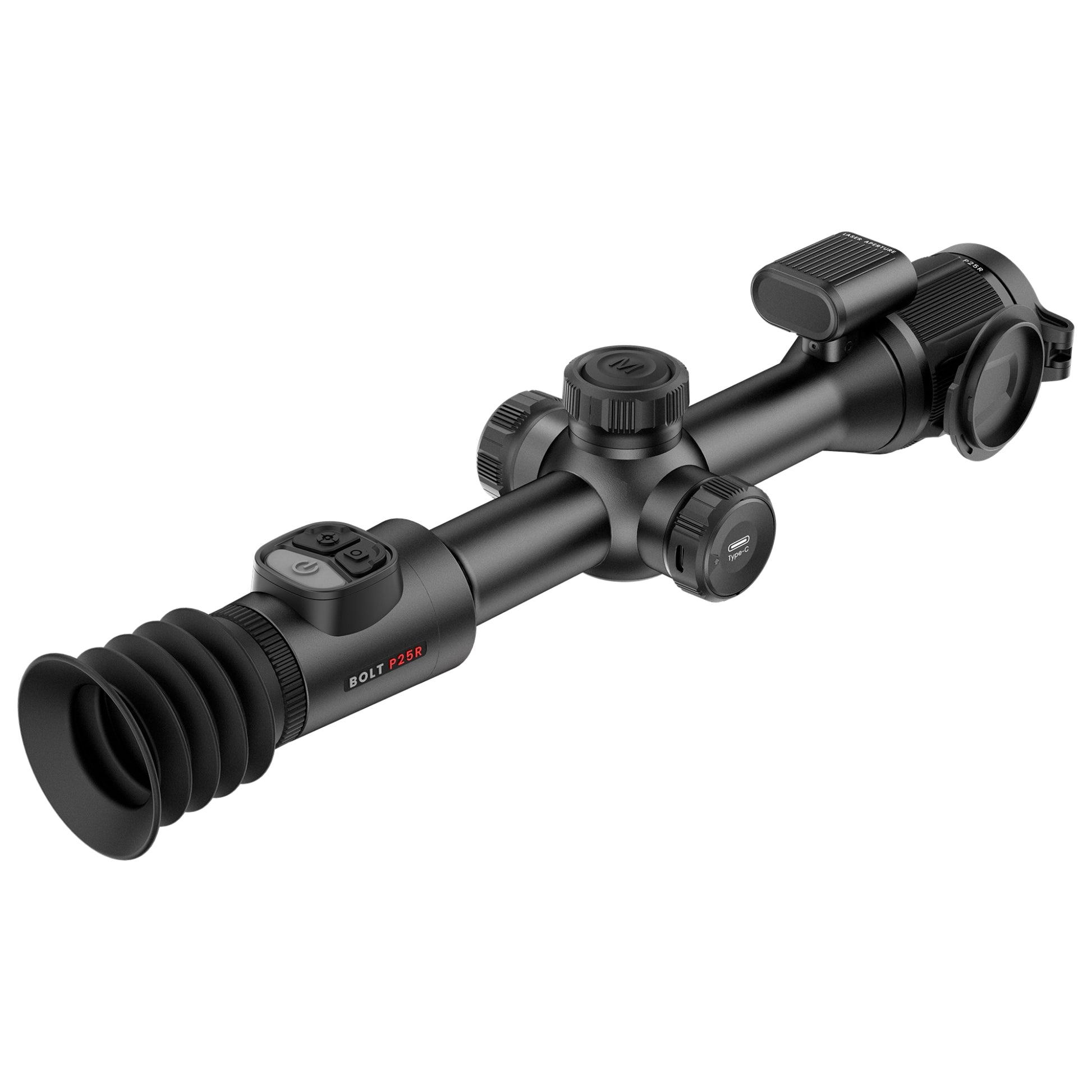

  • A black Noctpix Bolt P25R thermal riflescope is shown from a back-right angle, highlighting the rubber ocular cup, the control panel with the power button, the brand name on the side, and the turrets.
1 4

Nocpix Bolt P25R Thermal Scope

  • Thermal Resolution: 256 x 192
  • Thermal Lens: 25mm
  • Pixel Interval: 12µm
  • NETD: < 20mK
  • Thermal FOV: 7.0 x 5.3°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 24,990.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Nocpix Bolt P25R Thermal Scope.

SKU: 1A00600232

Detection Range

Pig
Kudu
Elephant
706mDetection
347mRecognition
174mIdentification
1059mDetection
521mRecognition
260mIdentification
2118mDetection
1042mRecognition
521mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Nocpix Bolt P25R Technical Specifications:

  • Sensor Resolution: 256x192 pixels
  • Optical Magnification: 3.5x (up to 14x digital zoom)
  • Refresh Rate: 50Hz
  • Battery Life: Up to 12 hours
  • Weight: Just over 800g
  • Water Resistance: IP67
Product Overview

The Nocpix Bolt P25R thermal scope directly addresses the needs of a diverse audience. Its powerful 25mm objective lens and high-resolution sensor make it an ideal choice for pest control—from eliminating rats in barns to handling larger quarry like foxes at intermediate ranges. The easy-to-zero system and intuitive controls ensure that users can quickly set up and confidently take their shot, reflecting a truly people-first approach to design.

The Nocpix Bolt P25R device is perfectly suited for air rifle and rimfire users, offering a significant upgrade to their night-time capabilities. For those searching for a thermal scope with a laser rangefinder, the P25R provides a seamless, integrated solution that boosts both efficiency and accuracy in the field. This blend of features not only enhances the user experience but also signals to search engines that this content is an authoritative and comprehensive resource for those with a specific search intent for affordable thermal solutions.

Nocpix Bolt P25R Technical Specifications:

  • Sensor Resolution: 256x192 pixels

  • Optical Magnification: 3.5x (up to 14x digital zoom)

  • Refresh Rate: 50Hz

  • Battery Life: Up to 12 hours

  • Weight: Just over 800g

  • Water Resistance: IP67

  • Connectivity: USB-C charging & app for photo/video sharing.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled Detector
Thermal Resolution256 x 192
Pixel Pitch12 µm
NETD< 20 mK
Thermal Lens25 mm
Focal Ratio (Aperture)F1.0
Field of View7.0 x 5.3
Magnification3.5x
Focus ModeManual (Lens focus ring)
Frame Rate50 Hz
Spectral Range8 to 14 um
Detection Range (1.7m Subject)1200 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Wavelength904nm
LRF Max Range1200 m
LRF Min Range10 m
Measurement OverlaysYes
Trajectory CalculatorYes
Calibration Profiles5
Projectile Mass InputYes
Initial Velocity InputYes
Aerodynamic CoefficientYes
Spindrift CalculationYes
Twist Rate InputYes
Freeze CalibrationYes
System & Display
Display Info1024x768
Screen BrightnessYes
Screen ContrastYes
Digital Zoom3.5x - 14x
Color PalettesWhite Hot, Black Hot, Red Hot, Violet, Crimson, Viridian
Image EnhancementUltra Clear Mode
Flat Field CorrectionYes
Image Modes10
Eye Relief50
Diopter Range-5D~+5D
Display FunctionsPIP, Status Bar
Defective Pixel CorrectionYes
Storage Capacity32
Media Capacity32
Media Format.JPG / .MP4
Recording CapabilitiesPhoto, Video with Audio
Shock-Activated RecordingYes
Built-In MicrophoneYes
Battery TypeDual System: Built-in 5000mAh + replaceable 18650
Battery Life12
Power Supply5V external power source support
Power Saving FeaturesYes
Power Consumption5V (Type-C)
Battery Indicator HUDYes
Polarity ProtectionYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotYes
Video StreamingYes
Video CompressionH.264 / H.265
USB ConnectivityType-C
AccelerometerYes
Supported OSiOS, Android, Windows
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-20 to +50 C
Storage Temperature-20 to +50 C
Relative Humidity50%
Dimensions & Weight375.7 x 91.6 x 75mm / 870g
Tripod MountingNo
Safety CertificationsCE , FCC
EMC CertificationsClass A
What's in the Box
Box ContentsNocpix Bolt P25 Scope
Heated target
Bag
2x 18650 Batteries
Charger
Data Cable
Cloth
Guide
