Nocpix Mate H38R Thermal Clip-on | 640x512 Sensor, 1200m LRF
- Thermal Resolution: 640 x 512
- Thermal Lens: 38mm
- Pixel Interval: 12µm
- NETD: < 15mK
- Thermal FOV: 11.6 x 8.7 (20.5m x 15.4m @ 100m)°
Kon nie bakkie beskikbaarheid laai nie
Detection Range
Key Features & Highlights
Product Overview

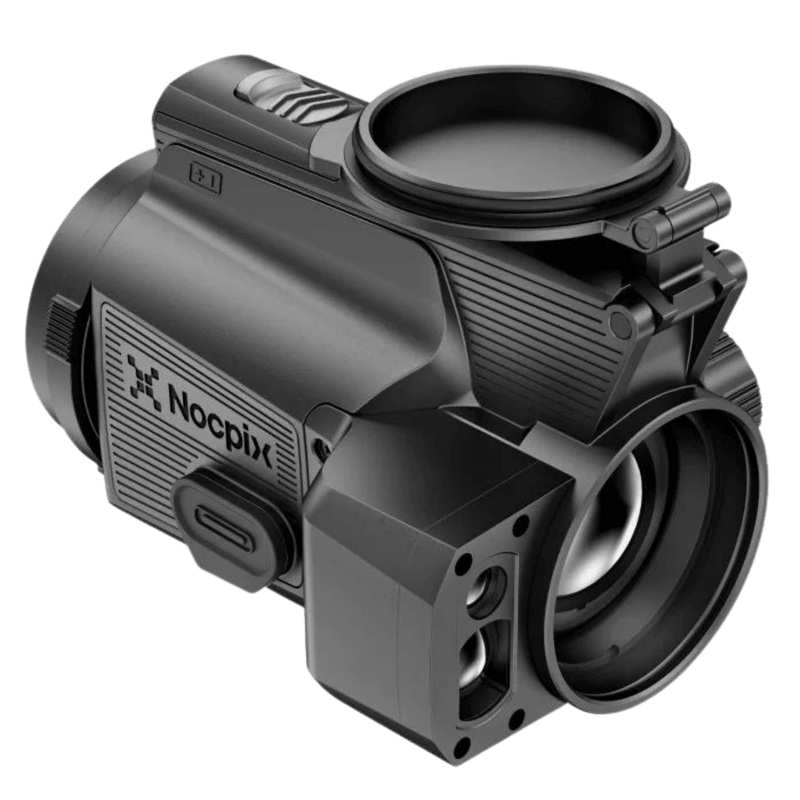

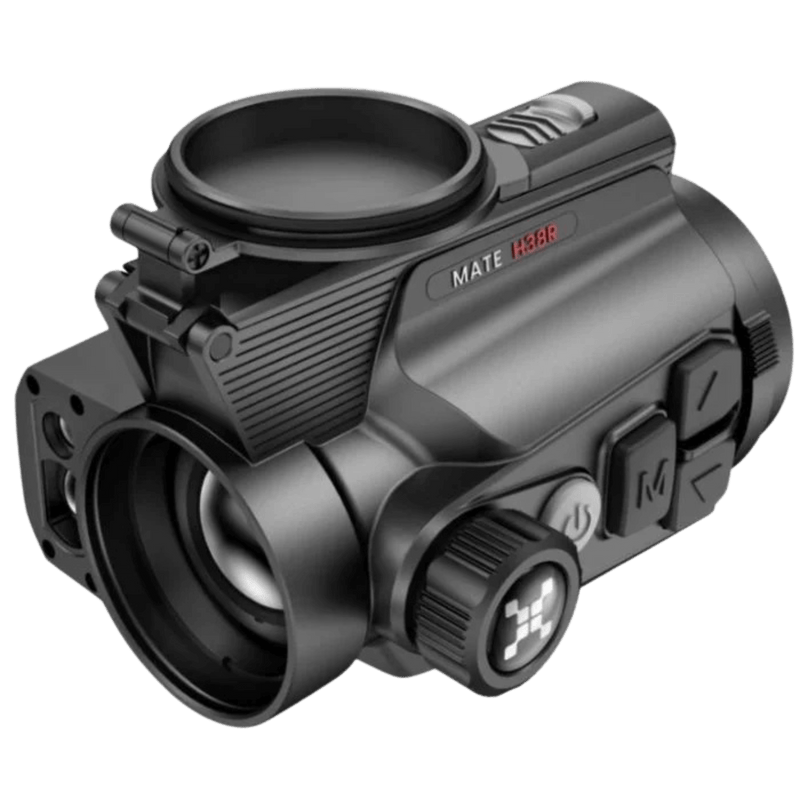

The Nocpix Mate H38R is a powerful and lightweight Thermal Clip-on Attachment engineered for high-precision target finding over long distances, offering a maximum detection range of 1950 meters. It features a highly sensitive 640x512, 12µm thermal sensor with an outstanding NETD of ≤15 mK. Key to its wide situational awareness is the 38mm F1.0 objective lens, providing a wide 11.6° x 8.7° field of view (20.5m @ 100m). Precision is ensured by the integrated 1200m Laser Rangefinder (LRF) and next-generation support for Ballistic Calculation.
Delivering fluid, uninterrupted visuals via a 60Hz frame rate, Nocpix Mate H38R is built with an excellent repeated disassembly fault tolerance for a consistent point of impact after repeated mounting and disassembly. The unit is encased in a strong, lightweight two-piece magnesium alloy body at (457g)
Nocpix Mate H38R Official Product Page
Nocpix Mate H38R Official User Manual
Nocpix Mate H38R Full Series on Cape Thermal
Free Shipping
Full Transit Insurance. Your investment is protected.
5 Star Google Rating
Experience the Cape Thermal Difference.
24/7 Support
Talk to us anytime via Whatsapp or phone.
Authorized Partner
Official brand partner for all top brands.
Proven in the Field by Africa’s Top Observers
We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.
Swipe to read more →"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."
"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."
"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."
Technical Specifications
While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.
Thermal Specifications
| Sensor Type | VOx Uncooled Detector |
| Thermal Resolution | 640 x 512 |
| Pixel Pitch | 12 µm |
| NETD | < 15 mK |
| Thermal Lens | 38 mm |
| Focal Ratio (Aperture) | F1.0 |
| Field of View | 11.6 x 8.7 (20.5m x 15.4m @ 100m) |
| Focus Mode | Manual (Lens Focus Knob) |
| Frame Rate | 60 Hz |
| Detection Range (1.7m Subject) | 1950 m |
Precision, Optics & Lasers
| LRF Safety Class | Class 1 |
| LRF Wavelength | 905nm |
| LRF Max Range | 1200 m |
| LRF Min Range | 10 m |
| LRF Accuracy | ±1 |
| Trajectory Calculator | Yes |
| Calibration Profiles | 8 |
| Projectile Mass Input | Yes |
| Initial Velocity Input | Yes |
| Aerodynamic Coefficient | Yes |
| Spindrift Calculation | Yes |
| Twist Rate Input | Yes |
| Freeze Calibration | Yes |
| Shock Resistance | 7000 Joules |
System & Display
| Display Info | AMOLED 1920x1080 |
| Screen Brightness | Yes |
| Screen Contrast | Yes |
| Color Palettes | White Hot, Black Hot, Red Hot, Violet, Crimson, Viridian |
| Image Enhancement | Magic Zoom, Ultra Clear Mode |
| Flat Field Correction | Yes |
| Image Modes | Thermal (7 Palettes) |
| Eye Pupil | (Determined by Day Optic) |
| Eye Relief | (Determined by Day Optic) |
| Display Functions | Distance Measurement, PIP, SPOA |
| Defective Pixel Correction | Yes |
| Storage Capacity | 64 |
| Media Capacity | 64 |
| Media Format | .JPG / .MP4 |
| Recording Capabilities | Photo, Video, Audio |
| Shock-Activated Recording | Yes |
| Built-In Microphone | Yes |
| Battery Type | Dual System: One built-in battery pack + one replaceable 18650 battery |
| Battery Life | 4 |
| Power Supply | USB-C (5V/2A) / Supports External Power Supply / Support Direct Charging |
| Power Saving Features | Yes (Standby mode and Auto Standby based on tilt/pitch angles) |
| Power Consumption | USB-C (5V/2A) |
| Battery Indicator HUD | Yes |
| Polarity Protection | Yes |
| Overvoltage Protection | Yes |
Connectivity & Software
| Wi-Fi Hotspot | Yes |
| Bluetooth | No |
| Video Streaming | Yes |
| USB Connectivity | Type-C |
| Accelerometer | Yes |
| Supported OS | iOS, Android |
| Multilingual Support | Yes |
| Android App | Download App |
| iOS App | Download App |
Physical & Environmental
| Protection Level (IP Rating) | IP67 |
| Operating Temperature | -20°C to +50°C |
| Vibration Resistance | 7000 Joules |
| Dimensions & Weight | 115mm x 85mm x 76mm; 457g |
| Tripod Mounting | No |
| Safety Certifications | CE / FCC / RoHS |
| EMC Certifications | Class A |
What's in the Box
| Box Contents | MATE H38R Series Thermal Imaging Attachment Remote Control Accessories MAGIC ZOOM 3x18650 battery Battery charger Type-C cable Heated target for zeroing (10) Lens cloth Quick start guide Portable bag |
