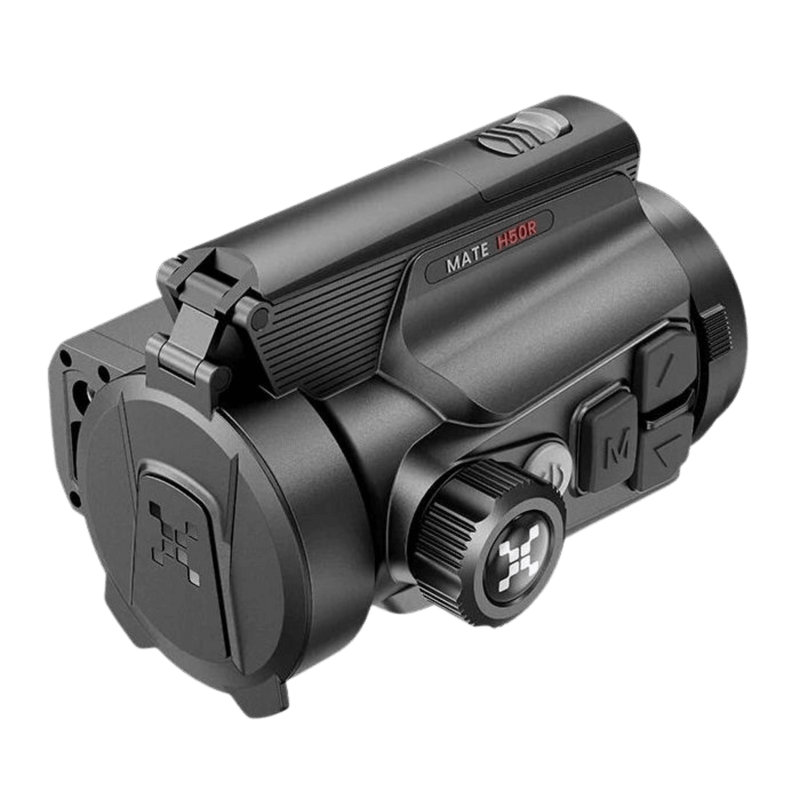

• Nocpix H50R Thermal Clip on Front Right view of clip-on with focus knob and Laser range finder with model name on the chasis

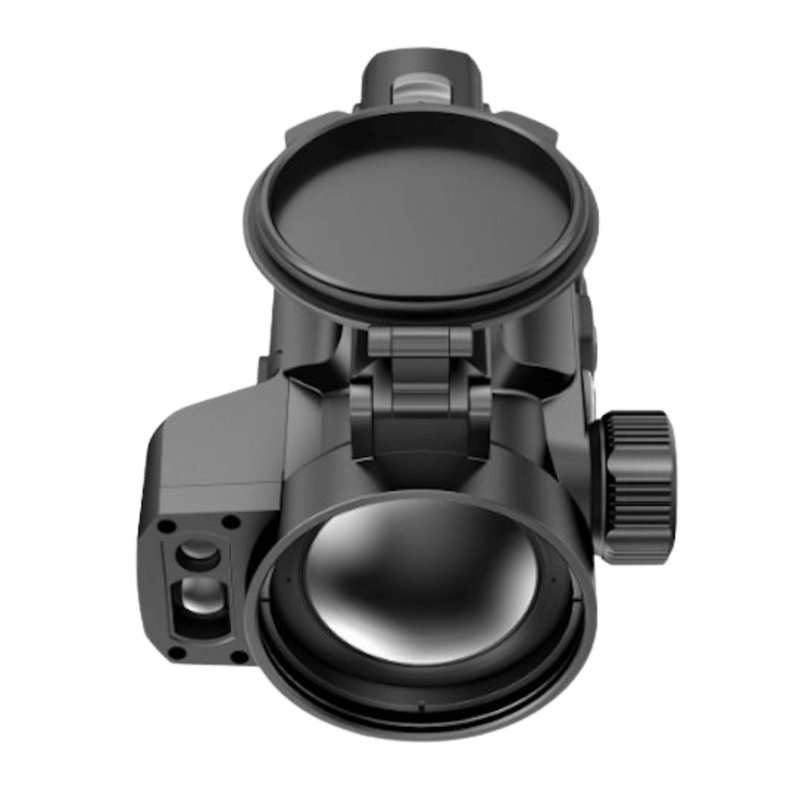

  • Nocpix Mate H50R Front lens view of thermal clip-on with 50mm objective lens and 1200 meter laser range finder , lens cap fully open
  • Nocpix Mate H50R hermal imaging clip-on side profile of device showcasing full button layout with focus knob Nocpix logo and model name
  • Nocpix Mate H50R Side profile view of thermal imaging clip-on with nocpix logo fully displayed and lens cap open
1 4

Nocpix Mate H50R - Thermal Clip-on day scope attachment

  • Thermal Resolution: 640 x 512
  • Thermal Lens: 50mm
  • Pixel Interval: 12µm
  • NETD: < 15mK
  • Thermal FOV: 8.6 x 6.6 (15x11.5m @100m)°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 83,990.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Nocpix Mate H50R - Thermal Clip-on day scope attachment.

SKU: 1A00600267

Detection Range

Pig
Kudu
Elephant
1529mDetection
694mRecognition
347mIdentification
2294mDetection
1042mRecognition
521mIdentification
4588mDetection
2083mRecognition
1042mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Nocpix Mate H50R - Thermal Clip-on day scope attachment Key Features:

• Extreme Detection Range: Capable of detecting targets up to 2600m.
• High-Fidelity Thermal Core: Features 640x512 resolution, 12µm pixel pitch, and exceptional sensitivity (NETD ≤15 mK).
• Long-Range Optics: Equipped with a 50mm F1.0 objective lens.• Precision Targeting: Includes an integrated 1200m Laser Rangefinder and supports Ballistic Calculation.
• Seamless Operation: Operates at a smooth 60 Hz frame rate and features Magic Zoom technology.
• Advanced Viewing: Uses a high-resolution AMOLED (1920x1080) display.
• Versatile Functions: Supports WIFI & APP integration, RAV (Recoil Activated Video), Gallery, N-link, and Remote Control.
• Durable and Portable: Weighs only 467g with compact dimensions.

Product Overview

The Nocpix Mate H50R Thermal Imaging Clip-on attachment is expertly engineered for users prioritizing maximum long-range detection (2600m) and superior thermal clarity. This model integrates a highly sensitive thermal core featuring 640x512 resolution with a 12µm pixel pitch and an ultra-low NETD of ≤15 mK. The system delivers fluid, uninterrupted visuals thanks to its 60 Hz frame rate and advanced processing capabilities.

Optimized for reaching extreme distances, the device incorporates a large 50mm F1.0 objective lens. Precision targeting is guaranteed by the integrated 1200m Laser Rangefinder (LRF) and dedicated support for Ballistic Calculation. The Nocpix Mate H50R utilizes infrared thermal imaging principles, operating without external light sources in all hard weather conditions (such as fog, rain, snow, and haze). Despite its powerful capabilities, the unit remains lightweight at 467g and compact. It can effectively observe targets hidden behind obstacles like shrubs, grass, and branches, and is protected against interference from strong light.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled Detector
Thermal Resolution640 x 512
Pixel Pitch12 µm
NETD< 15 mK
Thermal Lens50 mm
Focal Ratio (Aperture)F1.0
Field of View8.6° x 6.6° (15x11.5m @100m)
Focus ModeManual (Lens Focus Knob)
Frame Rate60 Hz
Detection Range (1.7m Subject)2600 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Max Range1200 m
LRF Accuracy±1m
Projectile Mass InputYes
Initial Velocity InputYes
Aerodynamic CoefficientYes
Spindrift CalculationYes
Twist Rate InputYes
Freeze CalibrationYes
System & Display
Display InfoAMOLED 1920x1080
Screen BrightnessYes
Screen ContrastYes
Color PalettesWhite Hot, Black Hot, Red Hot, Violet, Crimson, Viridian
Image EnhancementImage Contrast, Image Sharpness, Ultra Clear
Flat Field CorrectionAuto Calibration (A), Manual Calibration (M), Background Calibration (B)
Image ModesUltra Clear Mode, Image Hue (Warm/Cold)
Eye Pupil35
Eye Relief20
Display FunctionsMAGIC ZOOM
Defective Pixel CorrectionYes
Media Capacity64
Media Format.JPG / .MP4
Recording CapabilitiesPhoto/Video Recorder, Records Audio
Shock-Activated RecordingYes
Built-In MicrophoneYes
Battery TypeReplaceable 18650 battery
Battery Life4
Power SupplyUSB-C (5V/2A), Supports External Power Supply, Support Direct Charging
Power Saving FeaturesYes (Standby Mode)
Battery Indicator HUDYes
Connectivity & Software
Wi-Fi HotspotYes
Video StreamingYes
USB ConnectivityType-C
AccelerometerYes
Inclination SensorYes
Supported OSiOS, Android, Windows
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-20°C to +50°C
Storage Temperature-20°C to 50°C
Vibration Resistance7000 Joules
Dimensions & Weight115mm x 85mm x 76mm; 457g
Tripod MountingNo
Safety CertificationsCE, FCC, RoHS (2011/65/EU)
EMC CertificationsClass A
Other Hardware FeaturesClip-on/Monocular modes, N-link, Remote Controller, Magic Zoom
What's in the Box
Box ContentsMATE Series Thermal Imaging Attachment
Remote Control Accessories
MAGIC ZOOM
3x18650 battery, Battery charger
Type-C cable
Heated target for zeroing (10)
Lens cloth
Quick start guide
Portable bag
