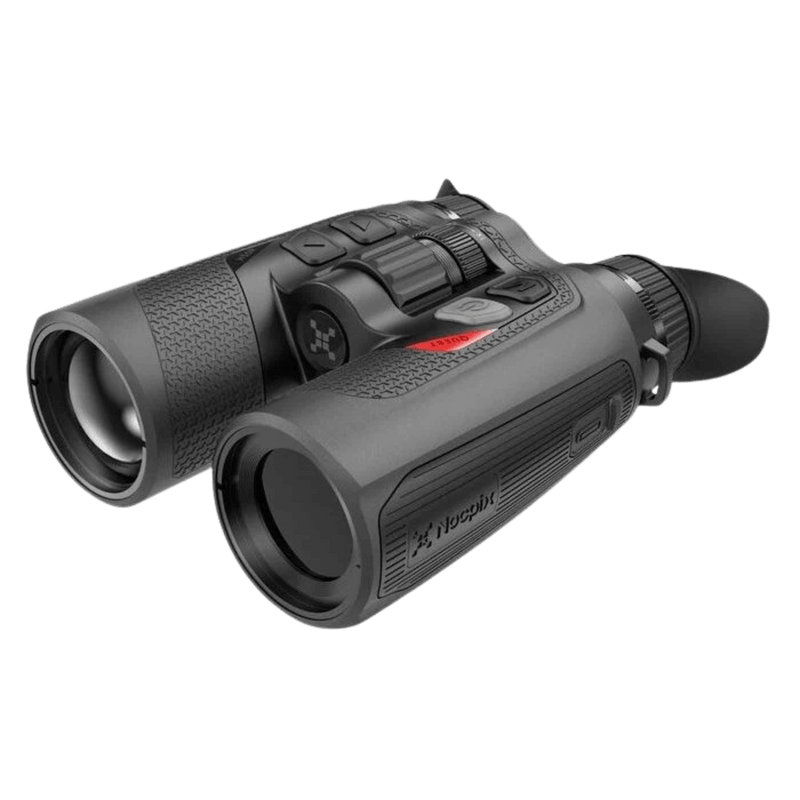

• A compact, traditional thermal imaging binocular unit (Quest H35R) featuring a rugged full-rubber coating designed for one-handed operation Front right view of thermal binoculars.

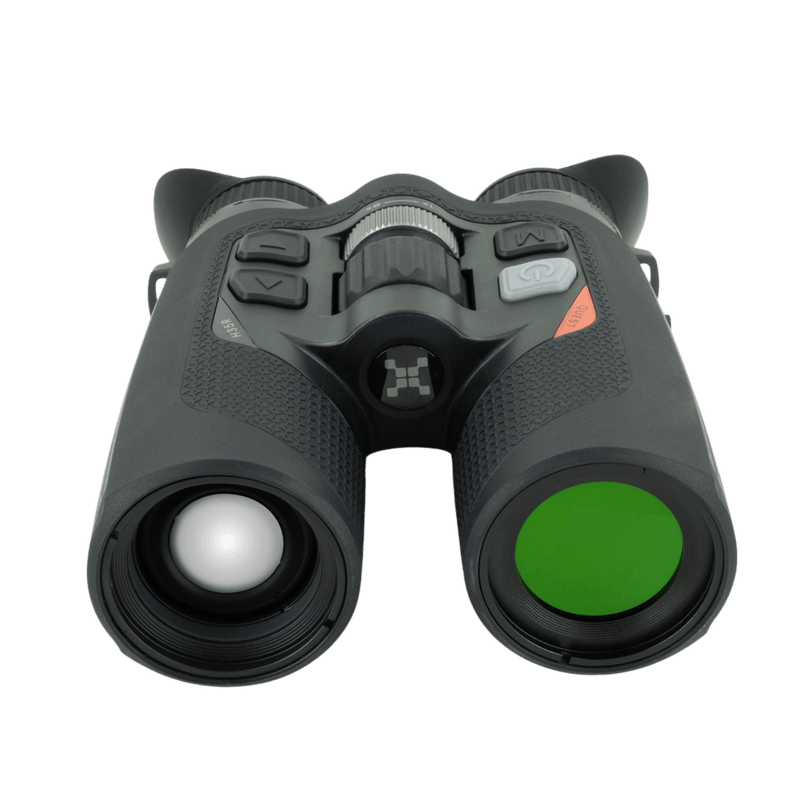

  • Focus on Form Factor and Handling The traditional binocular style Quest H35R is a robust thermal imaging device, optimized for single-handed control - Front Lens view showcasing 35mm lens and 1000 meter Laser range finder
  • Thermal imaging binocular (Quest H35R) with a high-performance 640x512 sensor,, IP67 waterproof rating,, and a 1000m concealed Laser Rangefinder - Direct view with Nocpix logo
  • A compact, durable thermal imaging binocular (Nocpix Quest H35R) designed for harsh environments, featuring a full-rubber coating and IP67 rating,. It integrates a concealed Laser Rangefinder (LRF), and is engineered for one-handed operation - Down facing image of device showcasing button layout, manual focus wheels
1 5

Nocpix QUEST H35R Professional Thermal Imaging Binocular

  • Thermal Resolution: 640 x 512
  • Thermal Lens: 35mm
  • Pixel Interval: 12µm
  • NETD: < 15mK
  • Thermal FOV: 12.5×10/22×18°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 53,990.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Nocpix QUEST H35R Professional Thermal Imaging Binocular.

SKU: 1A00600142

Detection Range

Pig
Kudu
Elephant
1529mDetection
486mRecognition
243mIdentification
2294mDetection
729mRecognition
365mIdentification
4588mDetection
1458mRecognition
729mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Nocpix Quest H35R Key Features:

• High-Performance Sensor: 640x512 resolution with a 12µm pixel interval delivers superior image clarity and thermal sensitivity (NETD ≤15mK).
• Long-Range Detection: Detects targets (1.7m x 0.5m) up to 1800 meters away.
• Integrated Laser Rangefinder: Built-in concealed LRF provides distance measurements up to 1000 meters (Class 1 safety).
• Exceptional Display Quality: Features a clear 0.72 inch AMOLED display with 1920x1200 resolution.
• Robust Durability: Traditional binocular design with full-rubber coating and an IP67 rating ensures durability in harsh conditions.
• Extended Operation: Dual-battery design (built-in 4200mAh + replaceable 18650) provides approximately 6 hours of maximum operation time at 22°C.

Nocpix QUEST H35R Thermal Imaging Binocular Official Product PageNocpix QUEST H35R Official User ManualFull Nocpix Thermal Imaging Range

Product Overview

Nocpix Quest H35R Product details and description

The Nocpix QUEST H35R Thermal Imaging Binocular delivers professional-grade clarity and long-range accuracy for hunting and demanding outdoor observation. Designed with a traditional binocular form factor and a durable full-rubber coating, the QUEST H35R boasts an IP67 rating for reliable performance in harsh, wet, and dusty conditions. It is built around a superior 640x512 uncooled thermal sensor with a sensitive NETD of ≤15mK and a high 60Hz frame rate, ensuring exceptional thermal sensitivity and seamless visual performance.

Featuring a powerful detection range of 1800 meters and a precise 1000m built-in concealed Laser Rangefinder (LRF), the device provides the accuracy needed for collaborative hunting and targeting. Users benefit from the Excellent Visual Experience provided by the high-resolution 1920x1200 AMOLED display, enhanced by the R+ image algorithm for superior clarity. The QUEST H35R maintains portability, weighing less than 700g, and eliminates power anxiety through its dual-battery design incorporating both built-in and replaceable 18650 batteries

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled
Thermal Resolution640 x 512
Pixel Pitch12 µm
NETD< 15 mK
Thermal Lens35 mm
Focal Ratio (Aperture)F0.9
Field of View12.5×10/22×18
Magnification3~24x
Focus ModeFocus Wheel
Frame Rate60 Hz
Detection Range (1.7m Subject)2600 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Max Range1000 m
System & Display
Screen BrightnessYes
Screen ContrastYes
Digital Zoom1×~8×
Color PalettesWhite Hot, Black Hot, Red Hot, Violet, Crimson, Viridian
Image ModesImage Hue, Ultra Clear
Eye Pupil10
Eye Relief25
Diopter Range±5
Defective Pixel CorrectionYes
Electronic StabilizationYes
Storage Capacity64
Media Capacity64
Media Format.JPG / .MP4
Recording CapabilitiesYes
Built-In MicrophoneYes
Battery TypeBuilt-in battery/4200mAh + replaceable 18650 battery
Battery Life6
Power Saving FeaturesYes
Battery Indicator HUDYes
Polarity ProtectionYes
Connectivity & Software
Wi-Fi HotspotYes
Video StreamingYes
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-20 ~ +50
Dimensions & Weight≤175.4 mm × 138 mm × 66 mm; ＜700g (Without Replaceable Battery)
Tripod MountingNo
What's in the Box
Box ContentsQuest series Thermal Imaging Binocular
Portable bag
18650 Battery × 2
Data cable
Neck Strap
Lens cleaning cloth
Quick start guide
Lens cap
18650 Battery charger
