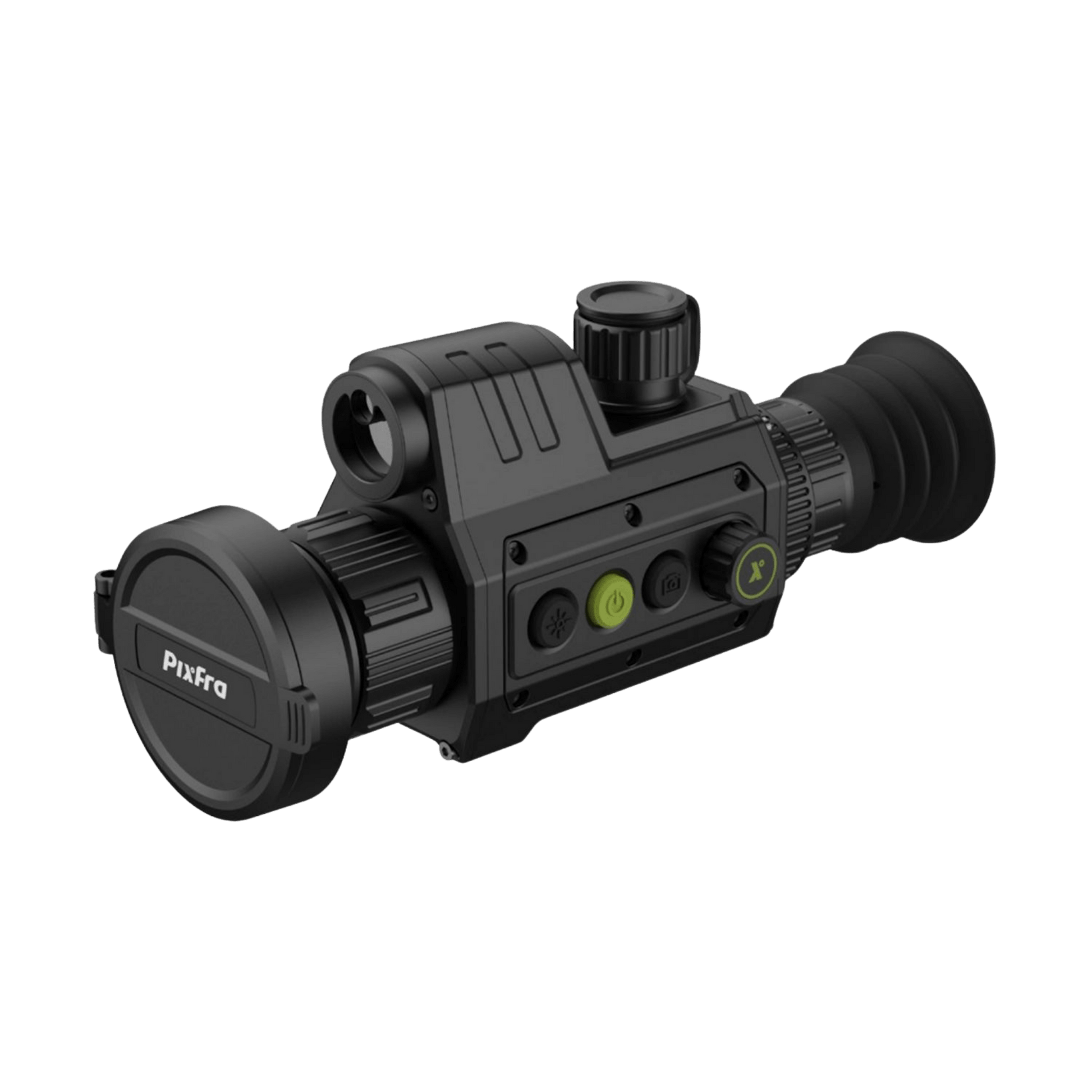

• Front view of Pixfra Chiron C650 LRF thermal scope showing the 50mm F1.0 manual focus lens and integrated 1000m laser rangefinder module

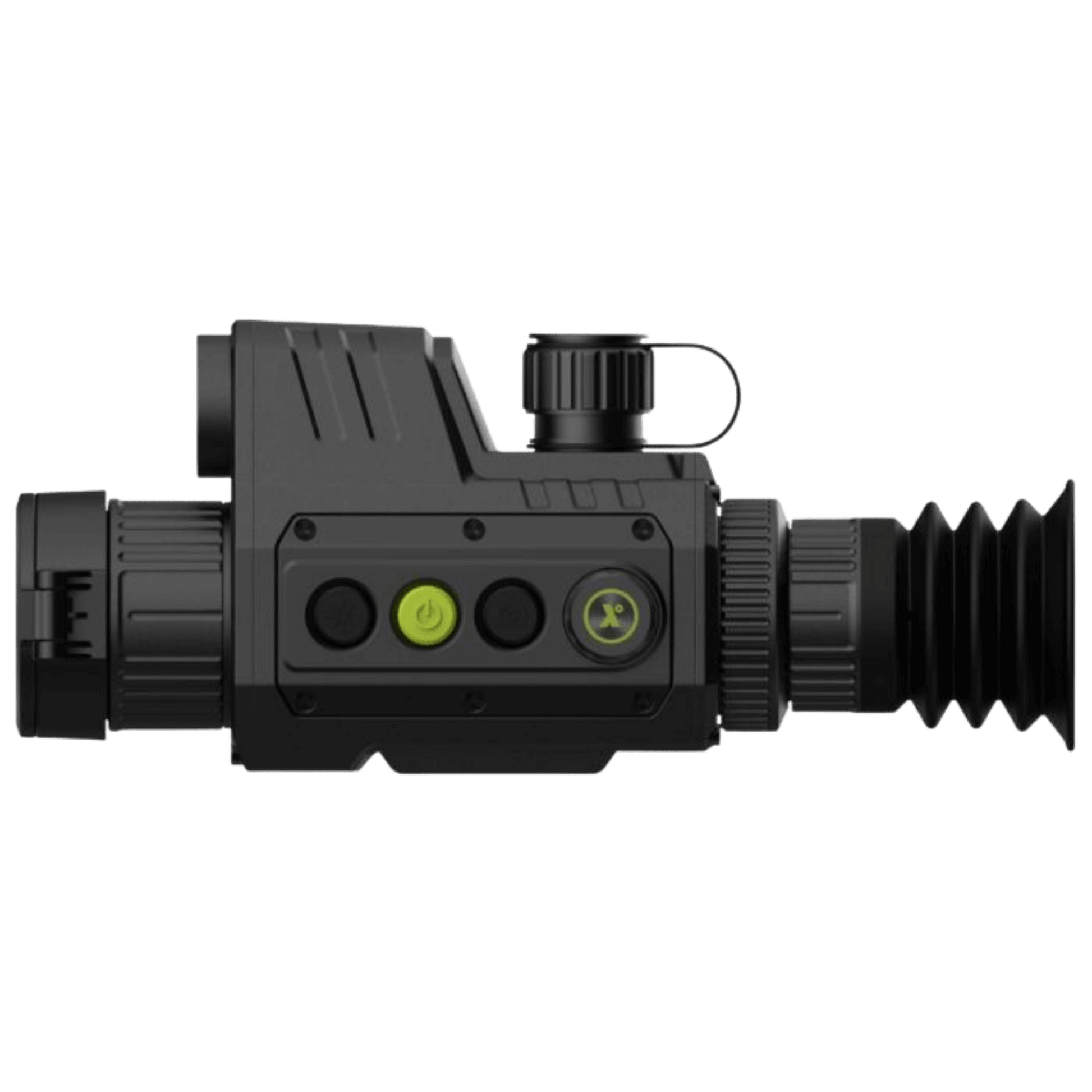

  • Left side view of the Pixfra Chiron C650 LRF thermal monocular showing the rugged metal construction and ergonomic 3-in-1 design

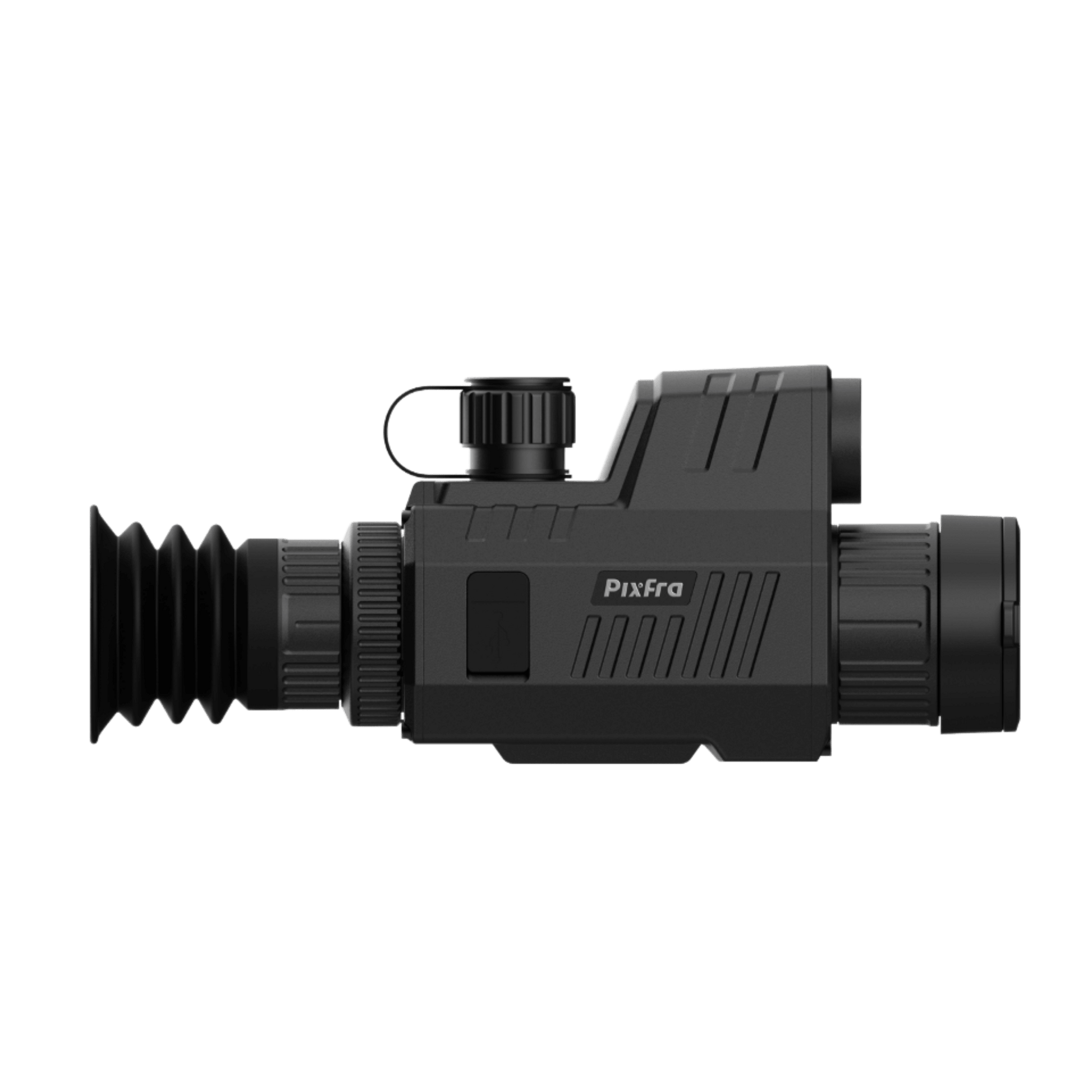

  • Right side profile of the Pixfra Chiron C650 LRF illustrating the compact, integrated laser rangefinder housing on the metal chassis

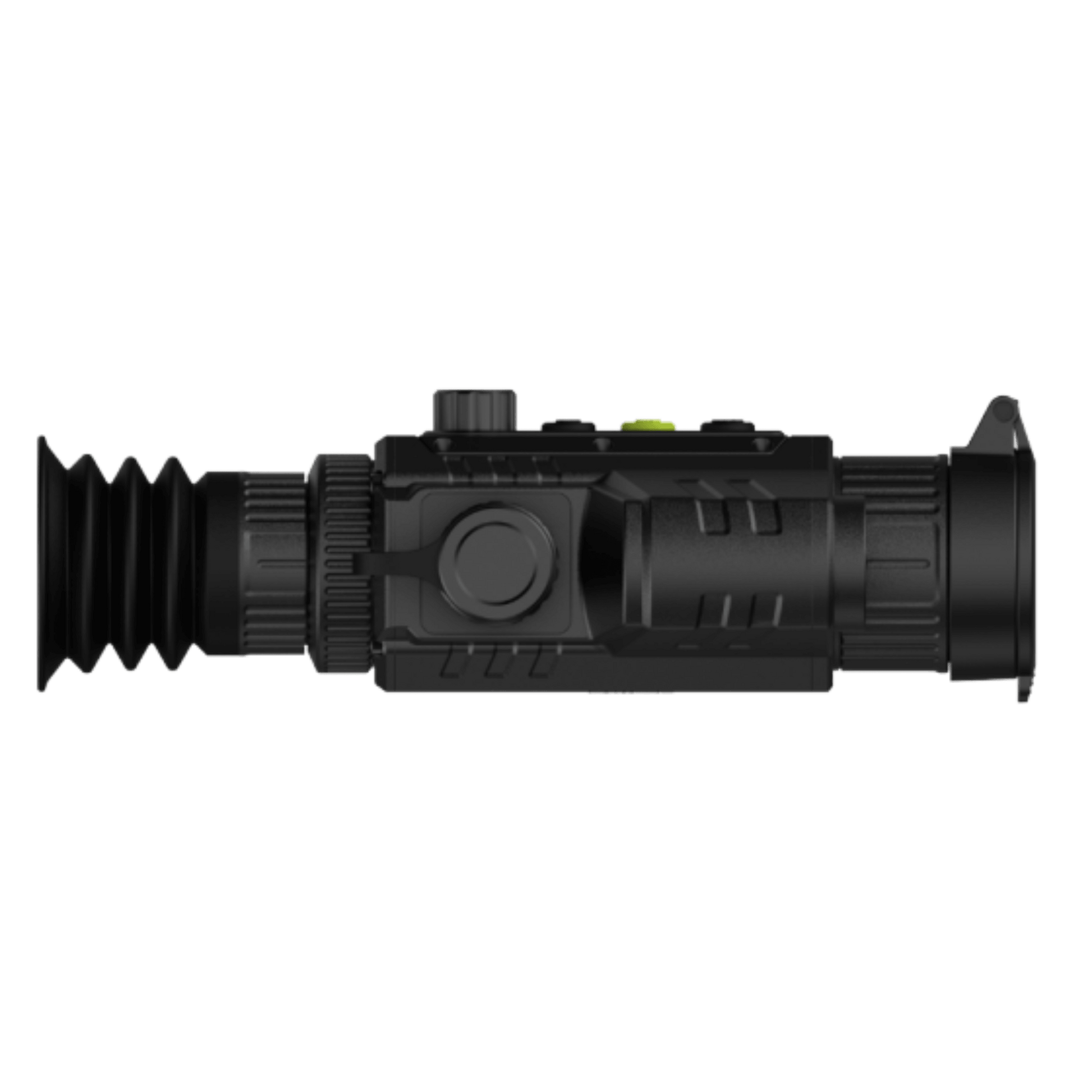

  • Top view of Pixfra C650 LRF thermal scope highlighting the intuitive rotary knob and button controls for rapid menu navigation in the field
1 4

Pixfra Chriron C650 LRF 3-in-1 Thermal Scope

  • Thermal Resolution: 640x512
  • Thermal Lens: 50mm
  • Pixel Interval: 12µm
  • NETD: < 20mK
  • Thermal FOV: 8.7 x 7.0°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 69,999.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Pixfra Chriron C650 LRF 3-in-1 Thermal Scope.

SKU: PFI-C650LRF

Detection Range

Pig
Kudu
Elephant
1529mDetection
694mRecognition
347mIdentification
2294mDetection
1042mRecognition
521mIdentification
4588mDetection
2083mRecognition
1042mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Pixfra C650 LRF Key Features

  • 3-in-1 Design: A multi-functional tool that can be used as a dedicated scope, a clip-on attachment, or a handheld scanner.
  • Integrated Laser Rangefinder (LRF): Provides precision distance measurements up to 1000m with ±1m accuracy.
  • Superior Thermal Sensitivity: An industry-leading <20mK NETD sensor captures minute temperature differences, even in heavy rain or fog.
  • High-Resolution Display: Features a 0.41-inch OLED screen with 1440x1080 resolution for sharp, detailed images.
  • Built-in Ballistic Calculator: Integrated software computes environmental variables for improved shot accuracy at varying distances.
  • Recoil-Activated Recording (RAR): Automatically captures video of your shots so you never miss a critical moment.
  • Robust & Recoil-Rated: Built with a rugged metal chassis that can withstand a maximum recoil of 6000 Joules (suitable for .375 H&H).
  • Extended Battery Life: Powered by dual 18650 batteries, offering up to 15 hours of continuous operation for all-night hunts.
  • IP67 Waterproof Rating: Fully dust-proof and waterproof, ensuring reliable performance in harsh outdoor environments.
Product Overview
The Pixfra C650 LRF 3-in-1 Thermal Monocular delivers unmatched long-range performance and multi-platform versatility. At the core of this premium device is a high-resolution 640 × 512 (12µm) vanadium oxide thermal detector. Paired with a massive 50mm F1.0 objective lens, it boasts an incredible human-sized detection distance of 2,600 meters. With an ultra-sensitive NETD rating of ≤20mK, it effortlessly cuts through rain, heavy fog, and dense foliage to render crisp, high-contrast thermal signatures in the most challenging environments.

Laser Rangefinding What truly sets the Pixfra C650 LRF 3-in-1 Thermal Monocular apart is its integrated precision targeting technology. It features a built-in 1,000-meter Laser Rangefinder (LRF) that is perfectly paired with onboard Ballistic Calculations. Whether you are scanning the horizon or utilizing its 5 zeroing profiles and 10 customizable reticles for shooting, this device ensures your point of impact is always accurate. It is encased in a rugged, IP67-rated metal housing designed to withstand heavy recoil and extreme weather.
Cinematic Display and Seamless Recording Viewing thermal data is incredibly comfortable thanks to the 0.41-inch 1440 × 1080 OLED display, offering rich contrast across 6 unique color palettes. Because capturing the action is just as important as seeing it, the Pixfra C650 LRF 3-in-1 Thermal Monocular features Recoil Activated Recording (RAR) and 32GB of internal storage to automatically save the moments before, during, and after your shot. Powered by a standard, quick-change 18650 lithium battery, it provides up to 6.5 hours of continuous operation so you can stay in the field longer.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVanadium oxide uncooled focal plane detector
Thermal Resolution640x512
Pixel Pitch12 µm
NETD< 20 mK
Thermal Lens50 mm
Focal Ratio (Aperture)F1.0
Field of View8.7 x 7.0
Magnification2.57x
Focus ModeManual Focus
Frame Rate50 Hz
Detection Range (1.7m Subject)2600 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Max Range1000 m
LRF Accuracy±1
Freeze CalibrationYes
Shock Resistance1000
System & Display
Screen BrightnessYes
Screen ContrastYes
Digital Zoom1x-8x
Color PalettesWhite Hot, Black Hot, Iron Red, Alarm, Emerald, Amber
Flat Field CorrectionAuto; Manual; External Correction
Eye Pupil6
Eye Relief44
Diopter Range–5 D to +5 D
Defective Pixel CorrectionYes
Storage Capacity32
Media Capacity32
Media FormatJPEG, MP4
Recording CapabilitiesVideo Recording, Image Capture, Audio Recording
Built-In MicrophoneYes
Battery Type18650 battery
Battery Life6.5
Power Supply5 VDC/2 A
Power Saving FeaturesYes
Battery Indicator HUDYes
Polarity ProtectionYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotYes
USB ConnectivityUSB Type-C
Supported OSiOS, Android
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Operating Temperature–30 °C to +55 °C
Storage Temperature–30 °C to +55 °C
Relative Humidity≤95%
Dimensions & Weight223.4 mm × 65.7 mm × 91.5 mm; 632g
