Pixfra Sirius SA50 HD Thermal Monocular

  • Thermal Resolution: 1280 x 1024
  • Thermal Lens: 50mm
  • Pixel Interval: 12µm
  • NETD: < 18mK
  • Thermal FOV: 17.2 x 13.8°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

Gereelde prys
R 74,999.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Pixfra Sirius SA50 HD Thermal Monocular.

SKU: PFI-SA50

Detection Range

Pig
Kudu
Elephant
1529mDetection
694mRecognition
347mIdentification
2294mDetection
1042mRecognition
521mIdentification
4588mDetection
2083mRecognition
1042mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Pixfra Sirius SA50 HD Key Features:

  • Ultra-HD 1280 x 1024 Thermal Sensor: This massive resolution provides unmatched image detail and four times the pixel density of standard high-end thermal units, ensuring clarity even at high digital magnification.
  • High-Sensitivity 18mK NETD Rating: Engineered for superior target contrast, this sensor detects minute temperature variances even in difficult fog or rainy conditions to maintain a sharp image.
  • Extreme 2600m Detection Performance: The 50mm focal length lens allows for long-range identification of targets at distances up to 2600 metres, ideal for vast open environments and maritime use.
  • Replaceable 18650 Battery Power System: Enjoy unlimited field runtime by simply swapping standard 18650 rechargeable batteries, ensuring the device never requires downtime for internal charging.
  • Expanded 64GB Internal EMMC Storage: Massive onboard memory capacity allows you to store hours of high-definition thermal video footage and thousands of high-resolution snapshots directly on the device.
  • Rugged IP67 Rated Carbon Fibre Chassis: A durable and lightweight construction designed to withstand the harshest South African weather while remaining comfortable for extended hand-held use.
Product Overview

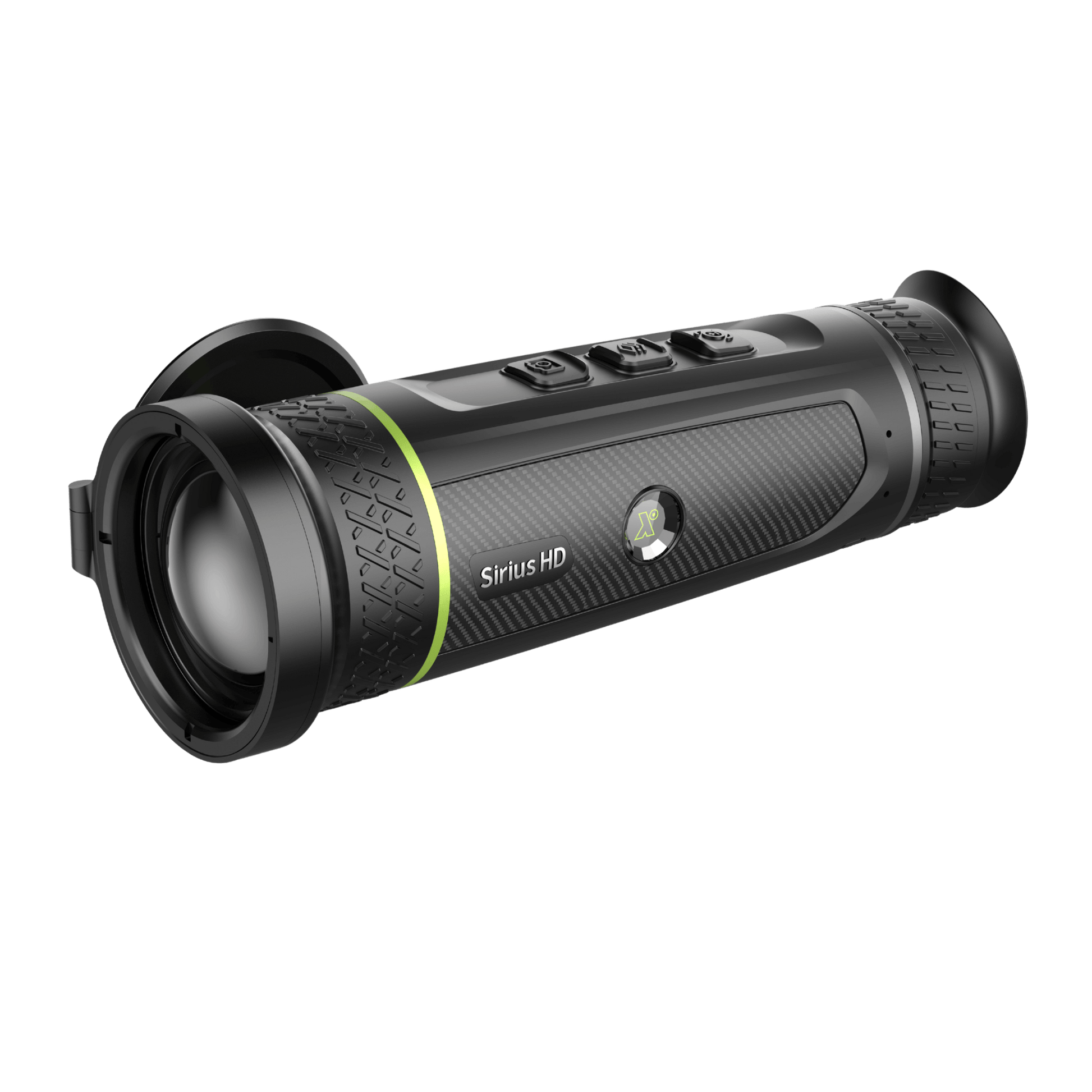

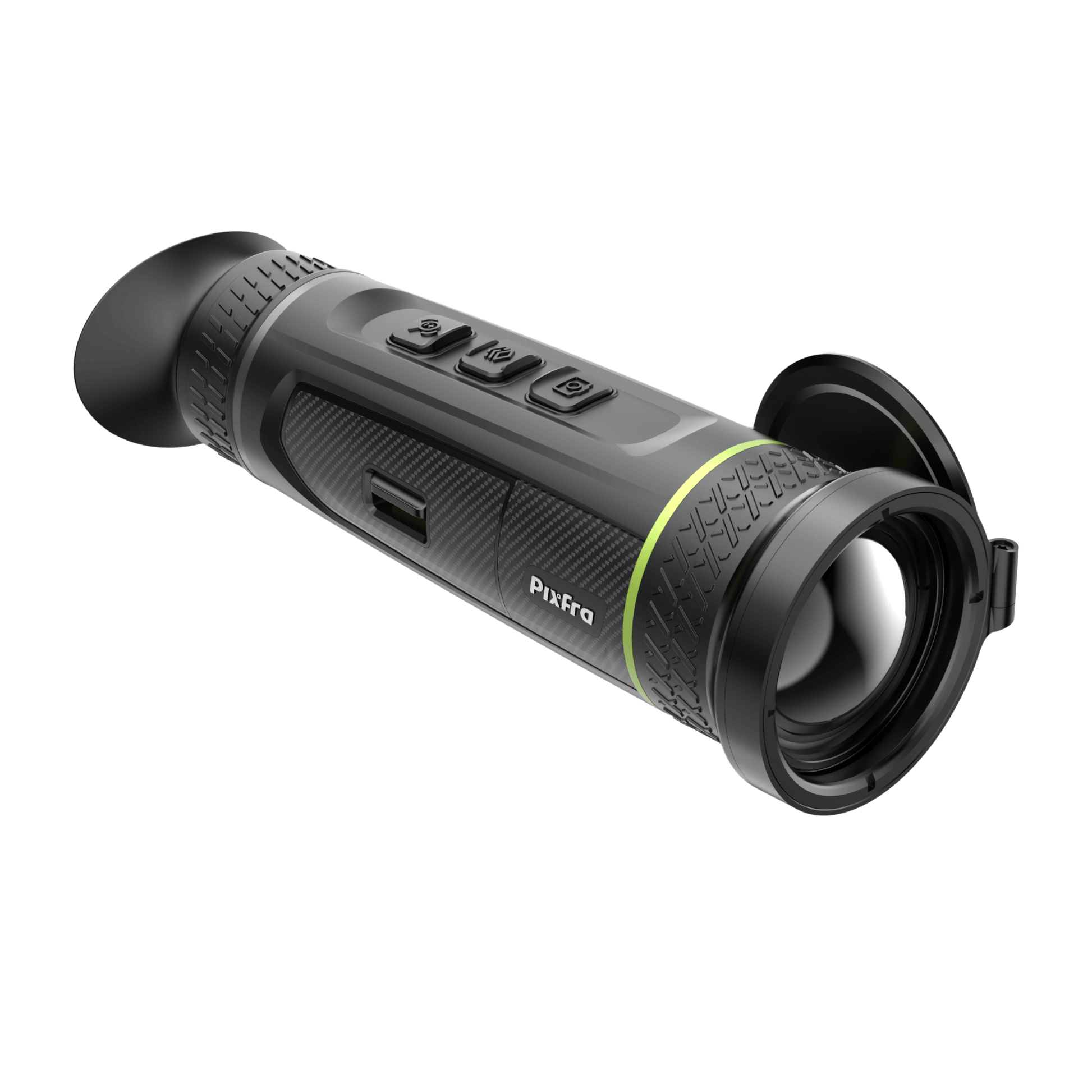

The Pixfra Sirius PFI-SA50 is a high-performance thermal monocular built around a massive 1280 x 1024 resolution sensor. Unlike standard 640-pixel units, this ultra-high-definition detector provides significantly more data points, resulting in a cleaner image with less pixelation when using digital zoom. This resolution is paired with a 50mm F1.0 objective lens, allowing for a 2600m detection range, making it highly effective for long-range observation in open South African terrain.

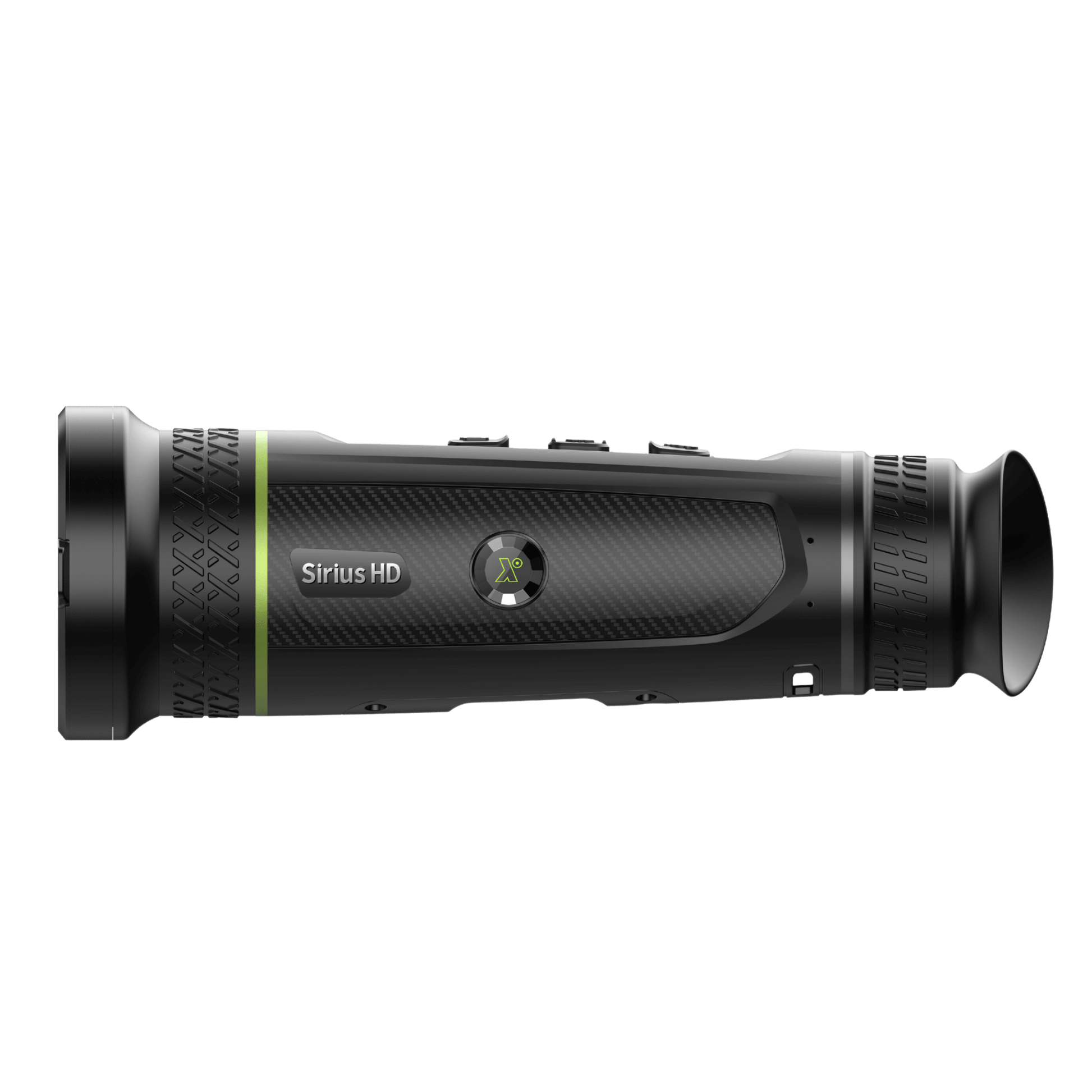

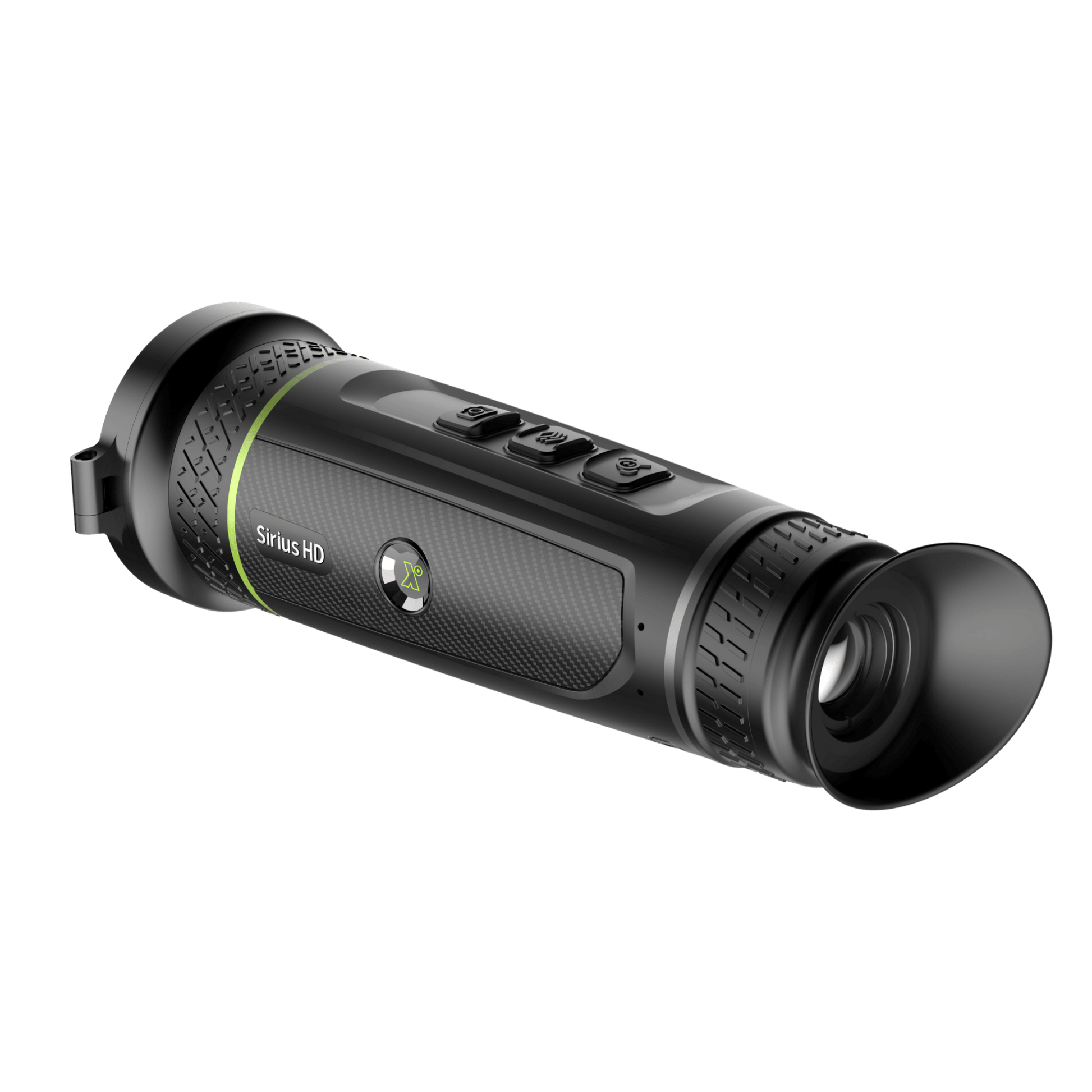

At 544g, the device is notably lightweight for its size, utilizing a carbon fibre reinforced chassis that balances durability with portability. The viewing experience is centered on a large 1920 x 1080 Full HD OLED display. This high-resolution screen ensures that the detail captured by the 1280 sensor is fully utilized, providing deep contrast and sharp target edges. While many high-end units now reach sub-20mk sensitivity, the SA50’s 18mk NETD rating ensures reliable performance in humid or low-contrast environments, maintaining a clear distinction between the target and the background.

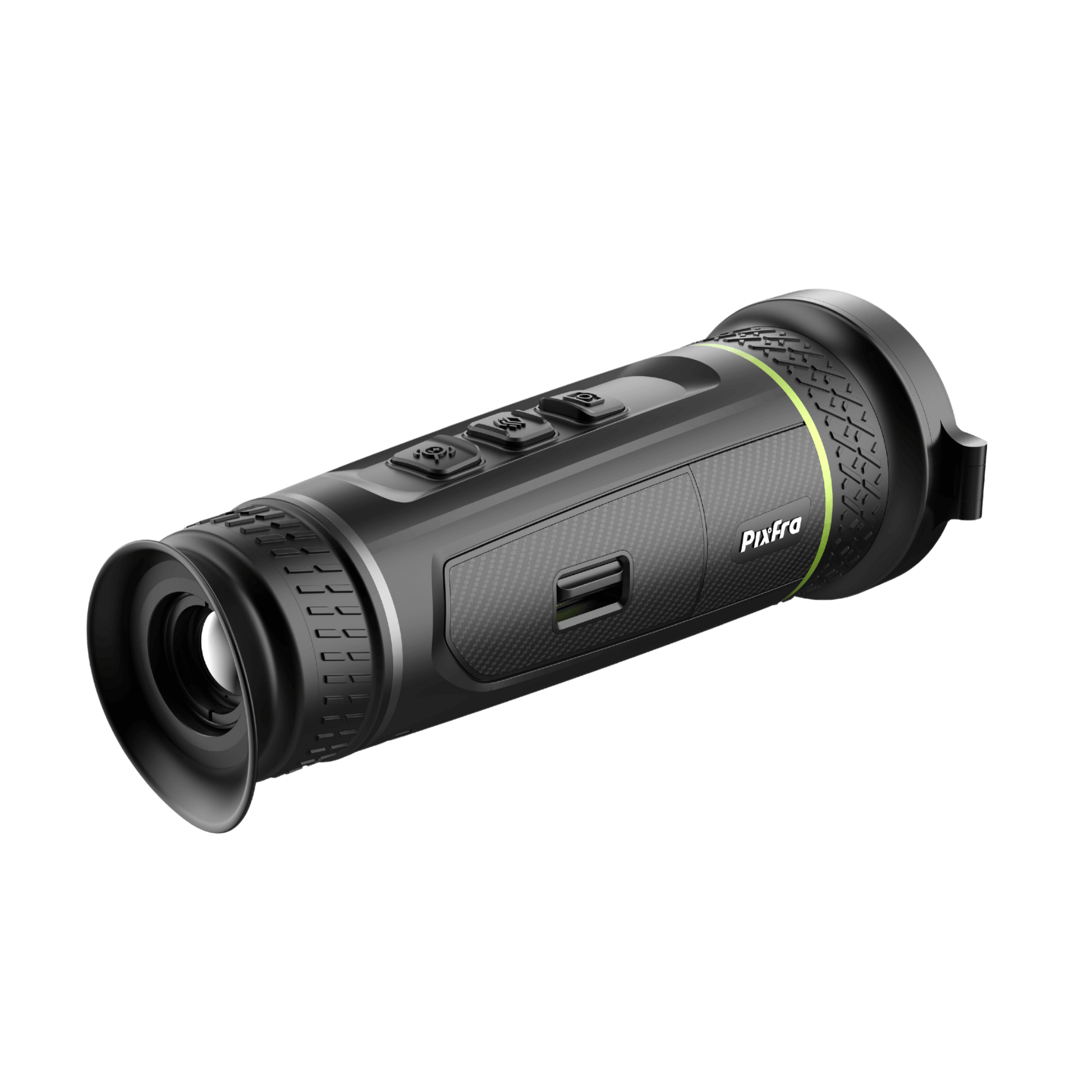

Operational efficiency is managed via a replaceable 18650 battery system. This design is preferred by professional users as it allows for instant power swaps in the field, removing the need for internal charging downtime. The unit includes 64GB of internal storage for high-definition video recording and is IP67 rated for protection against heavy rain and dust.

Pixfra Sirius SA50 HD Key Features:

  • Ultra-HD 1280 x 1024 Thermal Sensor: This massive resolution provides unmatched image detail and four times the pixel density of standard high-end thermal units, ensuring clarity even at high digital magnification.
  • High-Sensitivity 18mK NETD Rating: Engineered for superior target contrast, this sensor detects minute temperature variances even in difficult fog or rainy conditions to maintain a sharp image.
  • Extreme 2600m Detection Performance: The 50mm focal length lens allows for long-range identification of targets at distances up to 2600 metres, ideal for vast open environments and maritime use.
  • Replaceable 18650 Battery Power System: Enjoy unlimited field runtime by simply swapping standard 18650 rechargeable batteries, ensuring the device never requires downtime for internal charging.
  • Expanded 64GB Internal EMMC Storage: Massive onboard memory capacity allows you to store hours of high-definition thermal video footage and thousands of high-resolution snapshots directly on the device.
  • Rugged IP67 Rated Carbon Fibre Chassis: A durable and lightweight construction designed to withstand the harshest South African weather while remaining comfortable for extended hand-held use.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVanadium oxide uncooled focal plane detector
Thermal Resolution1280 x 1024
Pixel Pitch12 µm
NETD< 18 mK
Thermal Lens50 mm
Field of View17.2 x 13.8
Frame Rate50 Hz
Detection Range (1.7m Subject)2600 m
System & Display
Display Info1920 x 1080 OLED
Digital Zoom1, 2, 4, 8
Storage Capacity64
Battery Life4.5
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-30 to +55
Dimensions & Weight208.4 x 70.0 x 80.9; 544g
