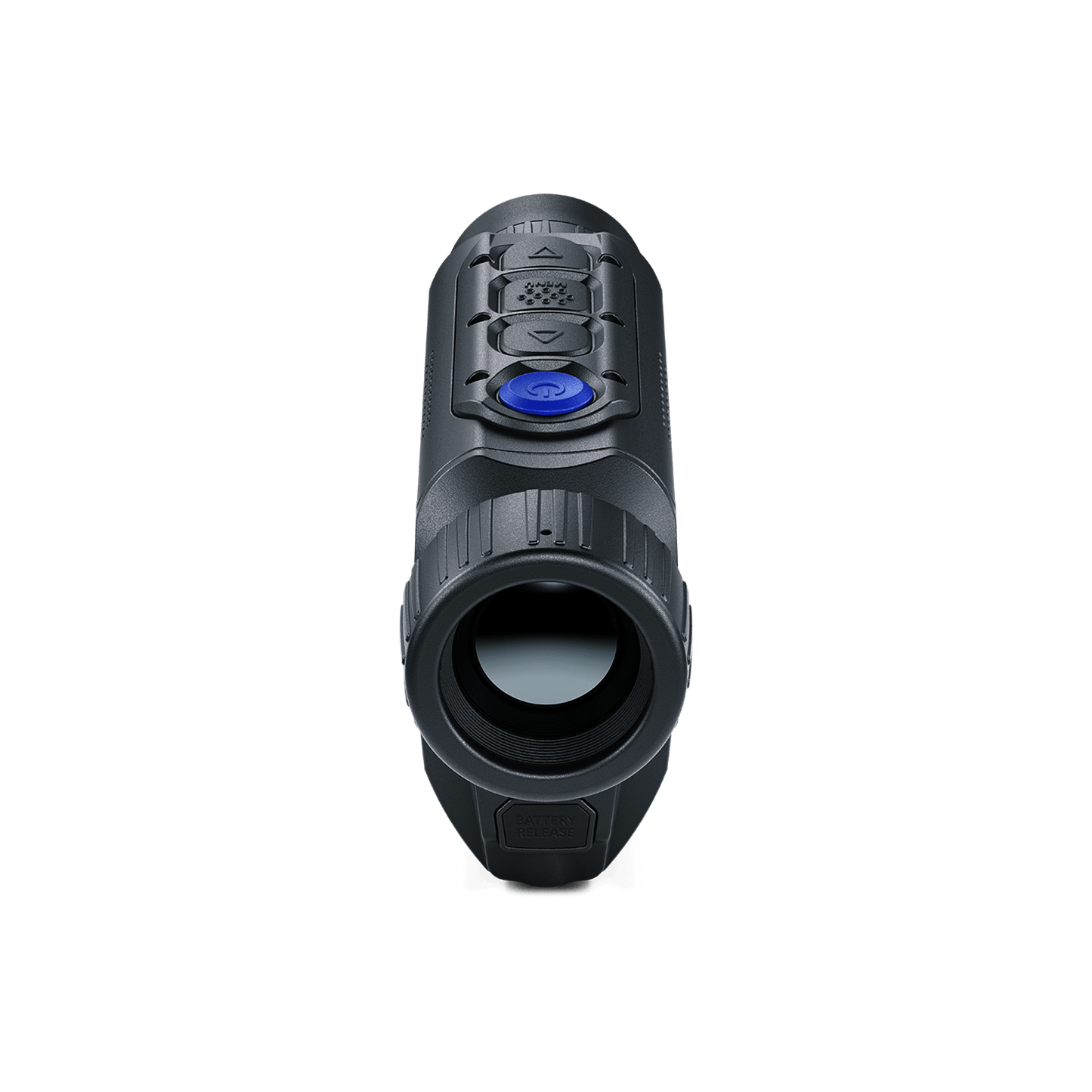

Pulsar Axion XM30F termiese beelding monokulêr
- Thermal Resolution: 320x240
- Thermal Lens: 30mm
- Pixel Interval: 12µm
- NETD: < <50mK
- Thermal FOV: 7.8 x 5.9 (13.7 @100)°
Detection Range
Key Features & Highlights
Product Overview
Die Pulsar Axion XM30F is 'n liggewig handheld termiese monokulêre. Die robuuste behuising van magnesiumlegering is ontwerp met ergonomiese, eenhandige gebruik in gedagte. Hierdie maklik-om-te-gryp handheld termiese beelding monokulêr is ideaal vir links- of regshandige gebruik danksy die simmetriese knoppie-ontwerp op die boonste paneel.
Termiese beeldvorming monokulêre sleutelkenmerke:
- 1300m opsporingsreeks (gemiddelde menslike grootte teiken)*
- 320x240 termiese resolusie
- Ingeboude WiFi vir Android- en iOS-stroom
- 640x400 rypbestande AMOLED-skerm
- IPX7 indringende beskerming
Aflaaie:
Free Shipping
Full Transit Insurance. Your investment is protected.
5 Star Google Rating
Experience the Cape Thermal Difference.
24/7 Support
Talk to us anytime via Whatsapp or phone.
Authorized Partner
Official brand partner for all top brands.
Proven in the Field by Africa’s Top Observers
We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.
Swipe to read more →"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."
"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."
"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."
Technical Specifications
While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.
Thermal Specifications
| Sensor Type | VOx Uncooled Microbolometer |
| Thermal Resolution | 320x240 |
| Pixel Pitch | 12 µm |
| NETD | < <50 mK |
| Thermal Lens | 30 mm |
| Focal Ratio (Aperture) | F1.2 |
| Field of View | 7.8° x 5.9° (13.7 @100) |
| Magnification | 3 – 12x |
| Frame Rate | 50 Hz |
| Detection Range (1.7m Subject) | 1300 m |
System & Display
| Screen Brightness | Yes |
| Screen Contrast | Yes |
| Digital Zoom | 4x |
| Color Palettes | White Hot, Black Hot, Green, Red Hot, Red Monochrome, Rainbow, Ultramarine, Violet, Sepia |
| Defective Pixel Correction | Yes |
| Storage Capacity | 16 |
| Media Format | .JPEG, .MP4 |
| Recording Capabilities | Image Capture, Video Recording, Audio Recording |
| Built-In Microphone | Yes |
| Battery Life | 7.5 |
| Battery Indicator HUD | Yes |
Connectivity & Software
| Wi-Fi Hotspot | Yes |
| USB Connectivity | Type-C |
| Android App | Download App |
| iOS App | Download App |
Physical & Environmental
| Protection Level (IP Rating) | IPX7 |
| Operating Temperature | -25°C to +50°C |
| Dimensions & Weight | 144x40x69; 250g |
What's in the Box
| Box Contents | Pulsar Axion 2 XM30F Thermal Imager APS 3 rechargeable battery Power Adapter USB Cable Carrying case Hand strap Quick User Manual Lens-cleaning cloth Warranty sheet |
