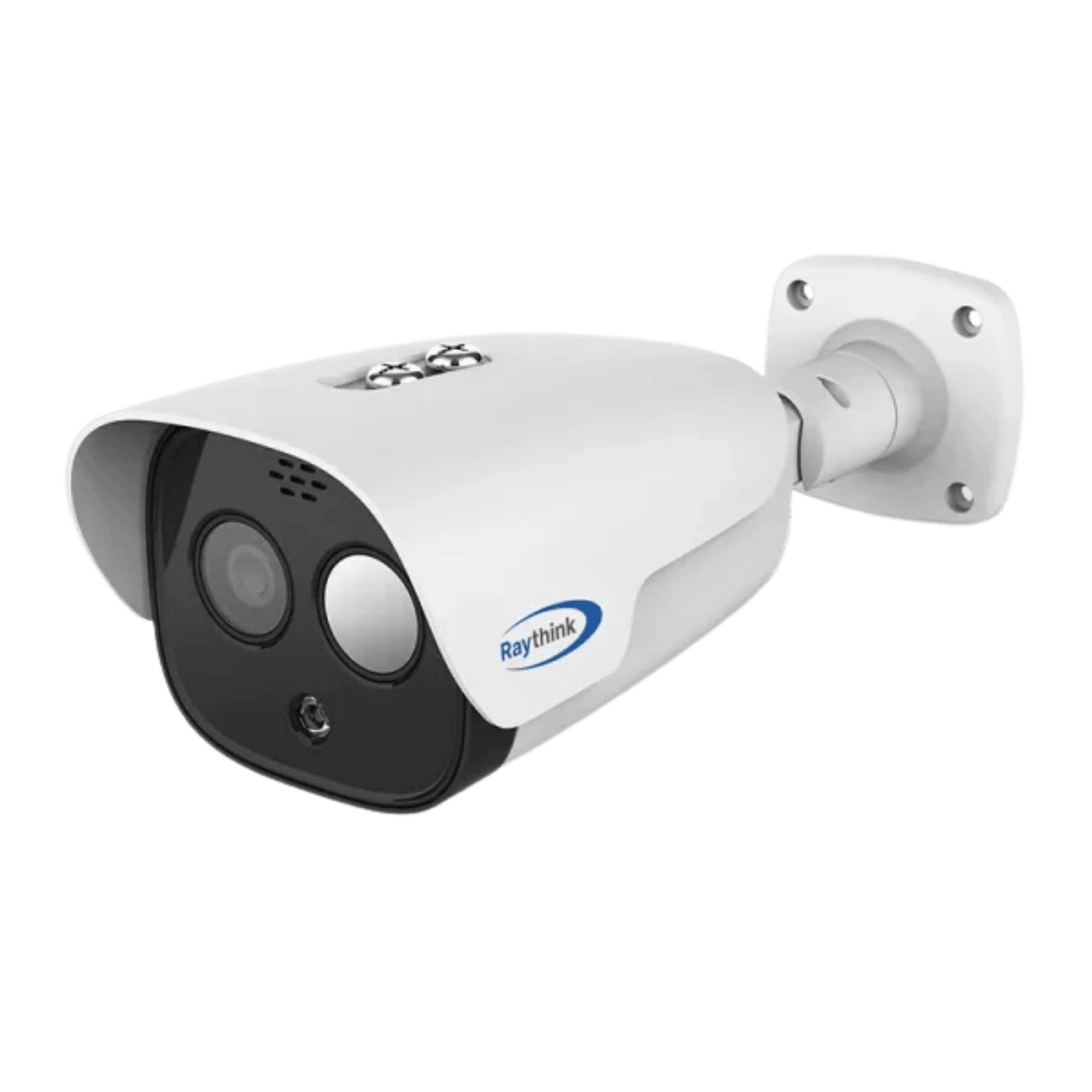

• Raythink FC225T-003A004FFL-B2 bi-spectrum thermal bullet camera with 3.2mm thermal lens, 5MP optical sensor, and mounting bracket
1 1

Raythink FC225T-003A004FFL-B2 Bi-Spectrum Thermal Camera

  • Thermal Resolution: 256 x 192
  • Thermal Lens: 3.2mm
  • Pixel Interval: 12µm
  • NETD: < 40mK
  • Thermal FOV: 56.0×42.2°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 12,299.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Raythink FC225T-003A004FFL-B2 Bi-Spectrum Thermal Camera.

SKU: FC225T-003A004FFL-B2

Detection Range

Pig
Kudu
Elephant
118mDetection
44mRecognition
22mIdentification
176mDetection
67mRecognition
33mIdentification
353mDetection
133mRecognition
67mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Raythink FC225T-003A004FFL-B2 Key Features

  • High Thermal Sensitivity (NETD ≤ 40mK): Detects minute temperature variations (as low as 0.04°C), ensuring crisp target silhouettes even in low-contrast, humid, or stormy environments.
  • AI Deep Learning Analytics: Features on-edge Video Content Analysis (VCA) that classifies humans and vehicles on the thermal channel, filtering out false triggers caused by foliage, small animals, weather, or lighting shifts.
  • Thermographic Temperature & Fire Monitoring: Measures target temperatures from -20°C to +550°C with an industrial accuracy of ±2°C or ±2%. Supports up to 4 concurrent measurement rules (spot, line, area, full frame) and dedicated early fire/hotspot alarm algorithms.
  • Two-Way Audio & Alarm Linkage: Equipped with 2 alarm inputs, 1 relay output, and two-way audio interfaces to link directly with external strobe lights, sirens, or perimeter access control systems.
  • Industrial Port & Outdoor Durability: Rated IP66 with an operating temperature range of -40°C to +70°C, housed in a rugged aluminum chassis with PoE (802.3af) support and up to 256GB local MicroSD edge storage.
Product Overview

The Raythink FC225T (3.2mm) is a compact, dual-spectrum IP bullet camera engineered for wide-area perimeter security, critical asset protection, and early-warning fire detection. By combining a high-sensitivity 256×192 12µm uncooled VOx thermal sensor with a crisp 5MP visible optical sensor, it provides true 24/7 visibility—penetrating total darkness, smoke, dust, and adverse coastal or misty conditions where standard cameras fail.

Lens & Optical Characteristics (Why 3.2mm Matters)

  • Ultra-Wide Situational Awareness: The fixed 3.2mm thermal lens delivers an expansive 56° horizontal field of view (FOV). This wide viewing angle is purpose-built for short- to medium-range monitoring, maximizing scene coverage while eliminating blind spots close to the camera mounting point.

  • Matched Bi-Spectrum Framing: Paired with an co-aligned 4mm visible optical lens (~82° H-FOV) and integrated 30m IR illumination, the camera allows seamless Bi-Spectrum Image Fusion. Thermal signatures are overlaid directly onto sharp visual details, giving control room operators immediate situational context and positive target identification.

  • Operational Detection Capabilities (3.2mm Optic):

    • Wide-Angle Human & Vehicle Detection: Detects human heat signatures at up to ~135m and vehicle signatures at up to ~415m across a wide front.

    • Short-to-Medium VCA Coverage: Optimized for automated line-crossing and intrusion detection at ranges up to 25m–35m from the boundary.

Ideal Applications for the 3.2mm Model

  • Gate Entrances & Loading Bays: Monitoring broad vehicle and personnel access points without blind zones.

  • Perimeter Corners & Short Boundary Runs: Covering wide angles along internal fences or perimeter walls.

  • EV Charging & Battery Substations: Wide-angle, continuous radiometric thermal monitoring across charging banks to spot battery overheating or thermal runaway early.

  • Warehouses & Waste/Material Storage: Fire prevention and hotspot monitoring across large indoor or open-bay storage yards.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx, uncooled FPA detector
Thermal Resolution256 x 192
Pixel Pitch12 µm
NETD< 40 mK
Thermal Lens3.2 mm
Focal Ratio (Aperture)F1.0
Field of View56.0×42.2
Magnification1× optical
Spatial Resolution~3.75 mrad
Focus ModeFixed Focus
Spectral Range8~14µm
Detection Range (1.7m Subject)200 m
Optical & Night Vision
Optical Sensor5MP 1/2.8" CMOS (Maximum Image Resolution: 2560 × 1920)
Optical Resolution5MP (maximum image resolution: 2560 × 1920)
Optical Lens5MP 1/2.8" CMOS
IR Emitter Type850nm LED illuminator. 30m IR night illuminator
Thermography & Measurement
Measurement Range-20ºC to +550ºC
Alarm ConditionsTripwire, Line crossing, Intrusion detection, Fire point/hotspot detection, Temperature threshold breach
Alarm IndicationVideo, Snapshot, Email, Alarm relay output, Sound and light, Alarm linkage
System & Display
Color PalettesIronbow, Iron Red, White Hot, Black Hot, Bi-Spectrum Image Fusion
Image ModesDual-Spectrum Imaging, Bi-Spectrum Image Fusion
Storage CapacityMicro SD card slot up to 256GB
Media CapacityMicro SD card slot supporting up to 256GB
Recording CapabilitiesEvent-Triggered Video Recording, Snapshot Capture, Dual-Spectrum Recording Context
Power Consumption< 6W (powered via DC 12V ±25% or PoE 802.3af)
Overvoltage ProtectionYes
Connectivity & Software
Video CompressionH.264/H.265
Software & AnalysisNVR and VMS software provided for application; ONVIF supported; SDK & demo provided for development.
Multilingual SupportYes
Physical & Environmental
Protection Level (IP Rating)IP66
Operating Temperature-40°C to +70°C (<95% RH)
Relative Humidity<95% RH
Dimensions & Weight265 mm × 99 mm × 87 mm
