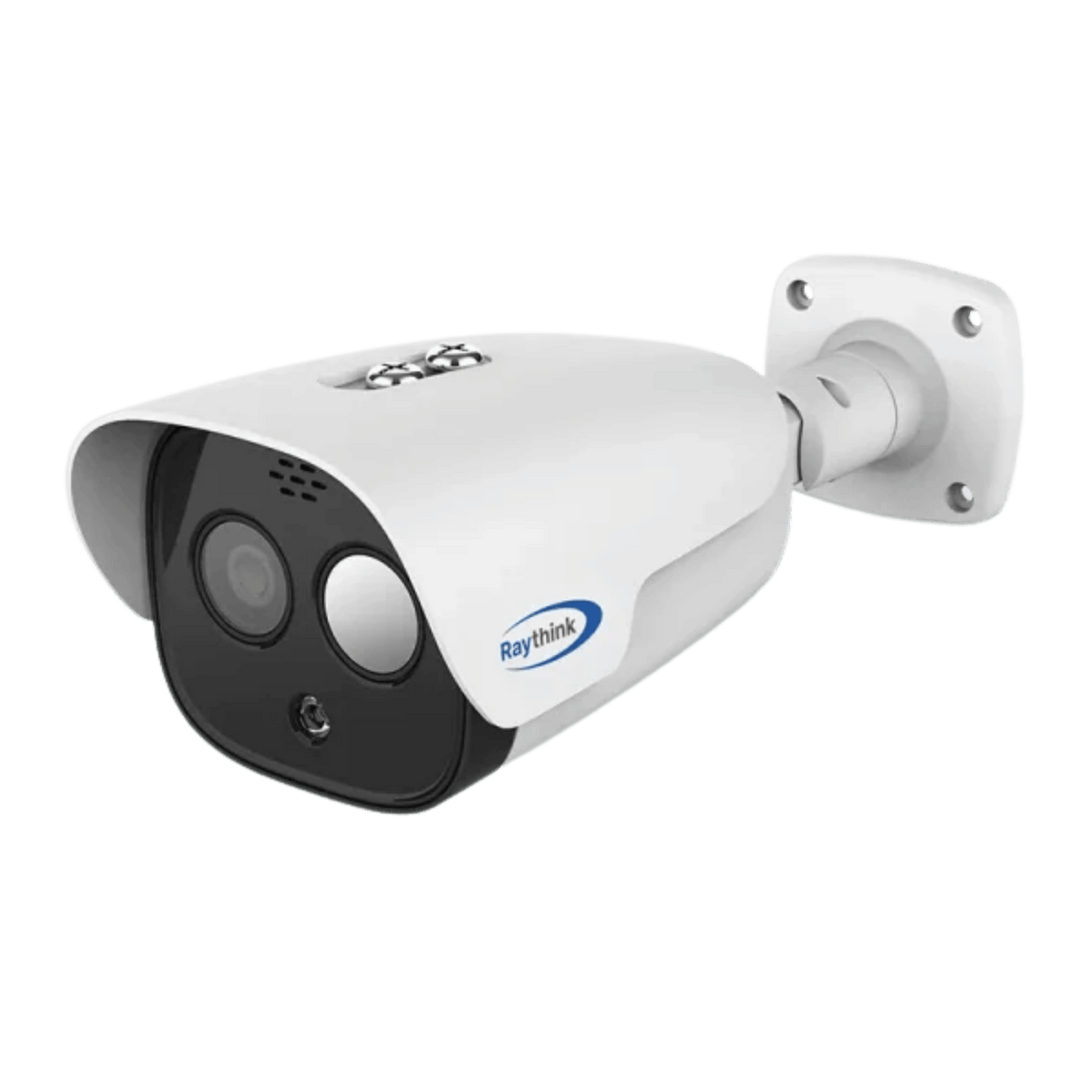

Raythink FC225T-007A008FFL-B2 Bi-Spectrum Thermal Camera
- Thermal Resolution: 256 x 192
- Thermal Lens: 7mm
- Pixel Interval: 12µm
- NETD: < 40mK
- Thermal FOV: 24.8 × 18.7°
Kon nie bakkie beskikbaarheid laai nie
Detection Range
Key Features & Highlights
Product Overview
The Raythink FC225T-007A008FFL-B2 is a mid-range, dual-spectrum IP bullet camera engineered for targeted perimeter surveillance, critical infrastructure protection, and industrial fire prevention. Combining a 256×192 12µm VOx thermal sensor with a crisp 5MP optical sensor, this model replaces wide-angle distortion with focused optical reach. It delivers dependable 24/7 detection through complete darkness, dense smoke, mist, and adverse outdoor conditions.
Optical Performance & Mid-Range Field of View
-
Focused Perimeter Coverage: Featuring a 7mm thermal lens with a 24.8° × 18.7° field of view, this camera narrows scene width to maximize pixel density at distance, eliminating the edge distortion of wide-angle units.
-
Matched Bi-Spectrum Framing: Paired with an 8mm visible lens (39° × 29° FOV) and 30m IR illumination, it enables real-time Bi-Spectrum Image Fusion. Thermal heat signatures overlay onto high-definition 5MP optical streams, giving control room operators immediate visual verification and contextual clarity.
Ideal Applications
-
Long Perimeter Corridors & Fence Lines: Securing linear industrial boundaries and transport corridors where wide-angle lenses lose target resolution.
-
Electrical Substations & Distribution Yards: Identifying hot-spots and transformer anomalies from safe stand-off distances up to ~194m.
-
Industrial Material Storage & Processing: Early-stage smolder and fire detection across large yards, timber piles, and coal or waste facilities.
Free Shipping
Full Transit Insurance. Your investment is protected.
5 Star Google Rating
Experience the Cape Thermal Difference.
24/7 Support
Talk to us anytime via Whatsapp or phone.
Authorized Partner
Official brand partner for all top brands.
Proven in the Field by Africa’s Top Observers
We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.
Swipe to read more →"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."
"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."
"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."
Technical Specifications
While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.
Thermal Specifications
| Sensor Type | VOx, uncooled FPA detector |
| Thermal Resolution | 256 x 192 |
| Pixel Pitch | 12 µm |
| NETD | < 40 mK |
| Thermal Lens | 7 mm |
| Focal Ratio (Aperture) | F1.0 |
| Field of View | 24.8 × 18.7 |
| Magnification | 1× optical |
| Spatial Resolution | ~3.75 mrad |
| Focus Mode | Fixed Focus |
| Spectral Range | 8~14µm |
| Detection Range (1.7m Subject) | 292 m |
Optical & Night Vision
| Optical Sensor | 5MP 1/2.8" CMOS (Maximum Image Resolution: 2560 × 1920) |
| Optical Resolution | 5MP (maximum image resolution: 2560 × 1920) |
| Optical Lens | 5MP 1/2.8" CMOS |
| IR Emitter Type | 850nm LED illuminator. 30m IR night illuminator |
Thermography & Measurement
| Measurement Range | -20ºC to +550ºC |
| Alarm Conditions | Tripwire, Line crossing, Intrusion detection, Fire point/hotspot detection, Temperature threshold breach |
| Alarm Indication | Video, Snapshot, Email, Alarm relay output, Sound and light, Alarm linkage |
System & Display
| Color Palettes | Ironbow, Iron Red, White Hot, Black Hot, Bi-Spectrum Image Fusion |
| Image Modes | Dual-Spectrum Imaging, Bi-Spectrum Image Fusion |
| Storage Capacity | Micro SD card slot up to 256GB |
| Media Capacity | Micro SD card slot supporting up to 256GB |
| Recording Capabilities | Event-Triggered Video Recording, Snapshot Capture, Dual-Spectrum Recording Context |
| Power Consumption | < 6W (powered via DC 12V ±25% or PoE 802.3af) |
| Overvoltage Protection | Yes |
Connectivity & Software
| Video Compression | H.264/H.265 |
| Software & Analysis | NVR and VMS software provided for application; ONVIF supported; SDK & demo provided for development. |
| Multilingual Support | Yes |
Physical & Environmental
| Protection Level (IP Rating) | IP66 |
| Operating Temperature | -40°C to +70°C (<95% RH) |
| Relative Humidity | <95% RH |
| Dimensions & Weight | 265 mm × 99 mm × 87 mm |
