• 50mm objective lens and laser rangefinder module on the RIX Leap L6R thermal scope

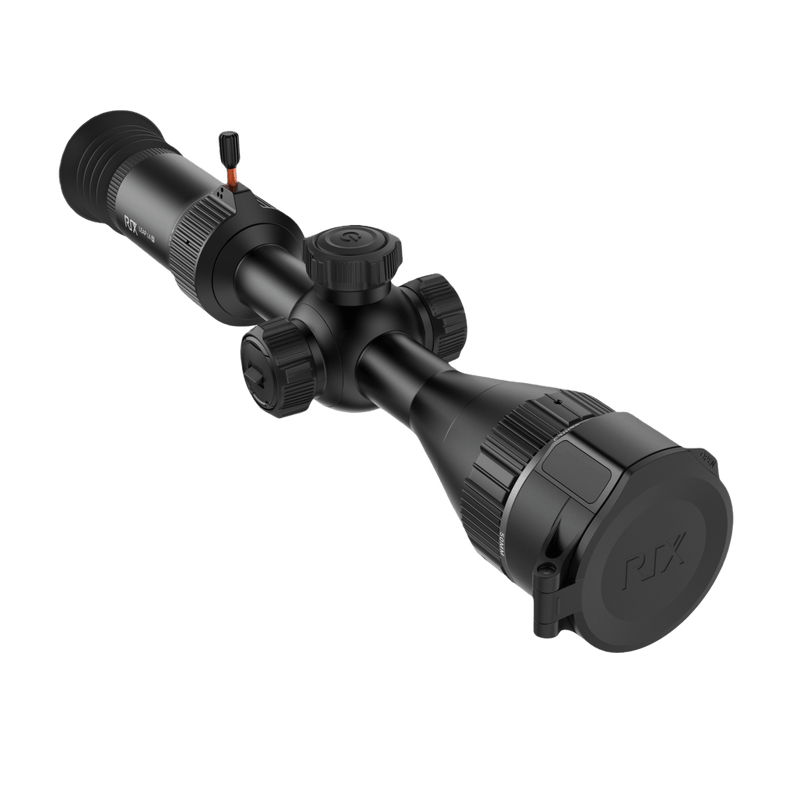

  • Front right angle of the RIX Leap L6R thermal scope showing the closed objective lens cap
  • Front right view of the RIX Leap L6R thermal observation scope highlighting the optical magnification lever

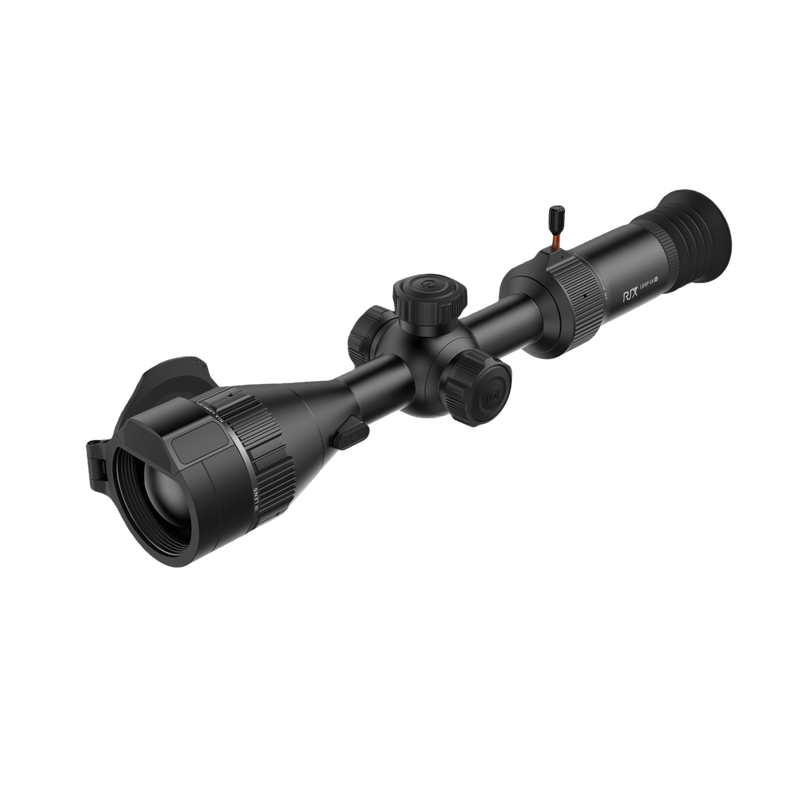

  • RIX Leap L6R tube-style thermal observation scope with an integrated laser rangefinder
  • Tube-style RIX Leap L6R thermal observation scope from the rear left angle featuring the left control buttons and ocular diopter
1 5

RIX Leap L6R Thermal Observation Scope with LRF

  • Thermal Resolution: 640x512
  • Thermal Lens: 50mm
  • Pixel Interval: 12µm
  • NETD: < 20mK
  • Thermal FOV: 8.8× 4.9°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 75,999.00
New Arrival
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for RIX Leap L6R Thermal Observation Scope with LRF.

SKU: N/A

Detection Range

Pig
Kudu
Elephant
1529mDetection
694mRecognition
347mIdentification
2294mDetection
1042mRecognition
521mIdentification
4588mDetection
2083mRecognition
1042mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

RIX Leap L6R Thermal Observation Scope with LRF Key Features:

  • Flagship Resolution Sensor: Features a 640 × 480 thermal sensor with a 12 μm pixel pitch for premium imagery.
  • Exceptional Thermal Sensitivity: An NETD rating of <20 mK and a 50 Hz frame rate ensure outstanding target detail, even in low-contrast environments.
  • Extreme-Range Detection: Capable of detecting heat signatures up to 2,600 meters (2,843 yards) away.
  • Built-In Laser Rangefinder: Embedded 1200m LRF provides instant, accurate distance measurements.
  • Premium AMOLED Display: Ultra-high resolution 1920 × 1080 screen for an immersive and clear viewing experience.
  • Game-Changing Optical Zoom: Offers 2.8× to 8.4× true optical zoom to prevent image pixelation, alongside 1× to 4× digital zoom.
  • Integrated Media Recording: 32 GB of internal storage for capturing 1280 × 720 high-definition video and photos during observation.
  • Advanced Viewing Modes: Includes a Picture-in-Picture (PIP) mode for enhanced aiming and a dedicated "Weather mode" for better imaging during high humidity.
  • Smart App Connectivity: Built-in Wi-Fi module connects to the smart app for live viewing and remote operation.
  • Standard Mounting Design: Built around a traditional 30mm tube, making it compatible with standard 30mm mounting rings, boasting a maximum recoil resistance of 1000 g / 6000 Joules.
  • All-Weather Durability: IP67-rated waterproof and dustproof housing withstands harsh environments.
  • Reliable Power: Powered by a replaceable 18650 battery that offers up to 4 hours of operating time, with support for 5V USB Type-C external power
Product Overview
Flagship Thermal Surveillance The RIX Leap L6R is a premium, tube-style thermal observation scope engineered for extreme-range perimeter surveillance, wildlife observation, and professional site monitoring. Designed with a traditional 30mm tube format, this flagship device mounts seamlessly to standard observation tripods and surveillance rigs, offering unparalleled situational awareness in total darkness or adverse weather conditions.
Ultra-Clarity Thermal Sensor & Display Equipped with a top-tier 640 × 480 (12 μm) thermal sensor and an exceptional NETD rating of <20 mK, the Leap L6R easily cuts through fog, heavy rain, and complete darkness to deliver highly detailed thermal signatures. Observers can view these crisp images on a massive, ultra-high-resolution 1920 × 1080 AMOLED display, allowing for the rapid identification of subjects at an incredible distance of up to 2,600 meters (2,843 yards).
Integrated Laser Rangefinder Crucial spatial data is seamlessly integrated directly into the objective lens. The built-in Laser Rangefinder (LRF) provides accurate distance measurements up to 1,200 meters (1,312 yards), ensuring field operators always have the exact range awareness needed when monitoring expansive properties.
Versatile Zoom & Game-Changing Optical Clarity To adapt to any monitoring situation, the Leap L6R offers a game-changing base optical magnification of 2.8× up to 8.4×, controlled via a dedicated optical zoom adjustment lever. Traditional thermal optics rely heavily on digital zoom, which crops the sensor data and often results in a grainy, heavily pixelated image at higher magnifications. The Leap L6R solves this common issue by using true optical zoom to magnify the ultra-high-resolution AMOLED display lens itself. This allows field operators to push in for close-up subject identification while retaining the crisp, native clarity of the 640 thermal sensor.

Current Rix Thermal Scope Line Up From Cape Thermal

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled
Thermal Resolution640x512
Pixel Pitch12 µm
NETD< 20 mK
Thermal Lens50 mm
Focal Ratio (Aperture)F1.0
Field of View8.8°× 4.9°
Magnification2.8 to 8.4x
Focus ModeManual Focus
Frame Rate50 Hz
Detection Range (1.7m Subject)2600 m
Precision, Optics & Lasers
LRF Max Range1200 m
LRF Accuracy±1
Freeze CalibrationYes
Shock ResistanceMax. recoil power 1000 g / 6000 J
System & Display
Display InfoAMOLED 1920×1080
Screen BrightnessYes
Screen ContrastYes
Digital Zoom4x
Color PalettesWhite Hot, Black Hot, Red Hot, Red Monochrome, Green Monochrome, Color
Image Modes Weather Mode (Sunny / Rainy)
Eye Relief50
Diopter Range-5 to +5 D
Defective Pixel CorrectionYes
Electronic StabilizationYes
Storage CapacityEMMC
Media Capacity32
Media FormatJPEG, MP4
Recording CapabilitiesVideo Recording, Image Capture
Battery Type18650
Battery Life4
Power Saving Features5V (Type-C USB)
Battery Indicator HUDYes
Polarity ProtectionYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotSupported
Supported OSiOS, Android
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-20 to +50 °C
Vibration ResistanceMax. recoil power 1000 g / 6000 J
Dimensions & Weight371 × 89 × 76 mm; 1230g
EMC CertificationsCE, RoHS, FCC
What's in the Box
Box ContentsRix LEAP L6R Thermal Imaging Scope
Eyeshade
Scope Ring
USB Type-C Cable
Battery Charger
18650 Battery
Lens Cloth
Thermal Target
