• The HIKMICRO Thunder TQ50C 3.0 thermal imaging clip-on scope, shown from the side with the objective lens facing right.

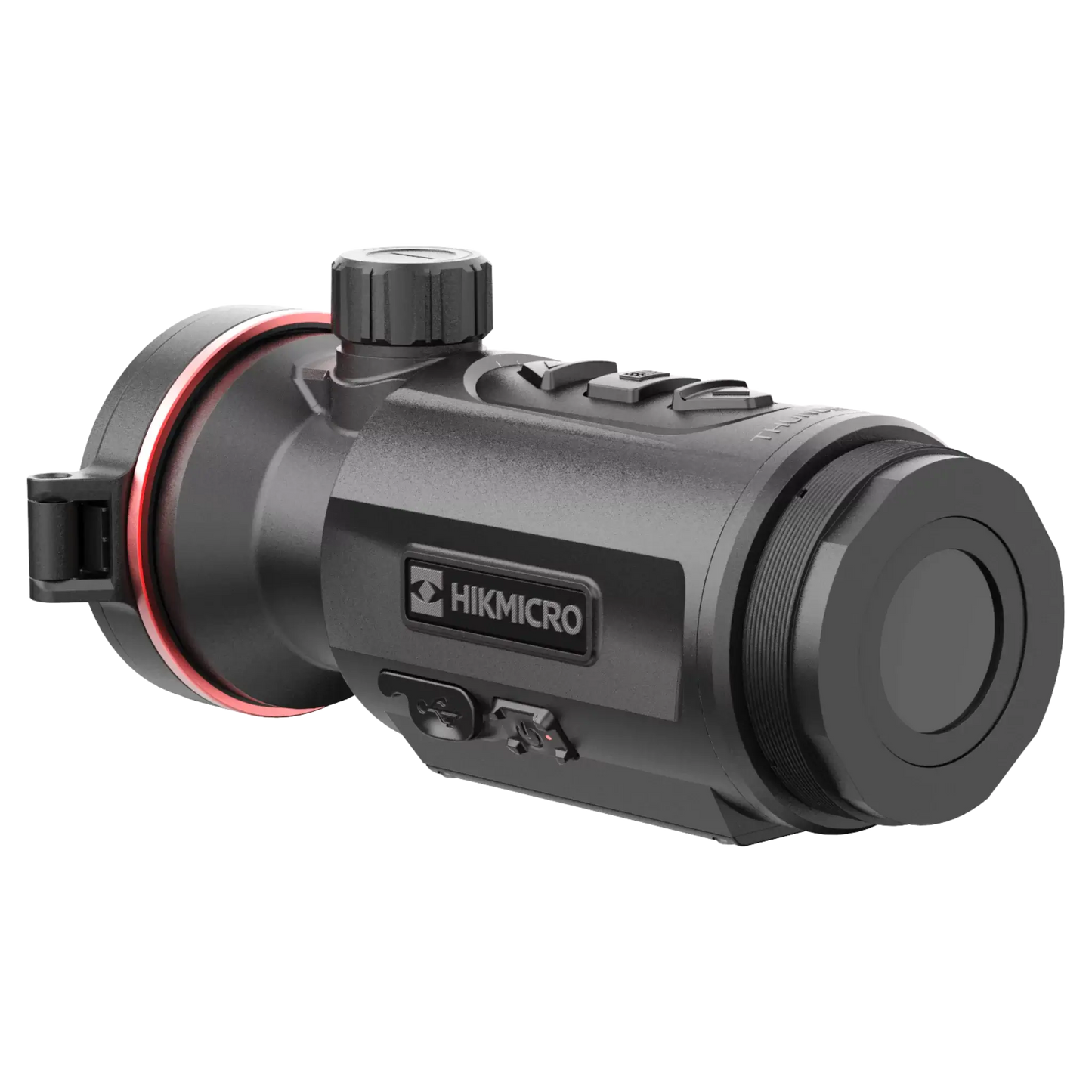

  • Rear view of the HIKMICRO Thunder TQ50C 3.0 thermal imaging clip-on scope, displaying the mounting threads and the rear lens element.

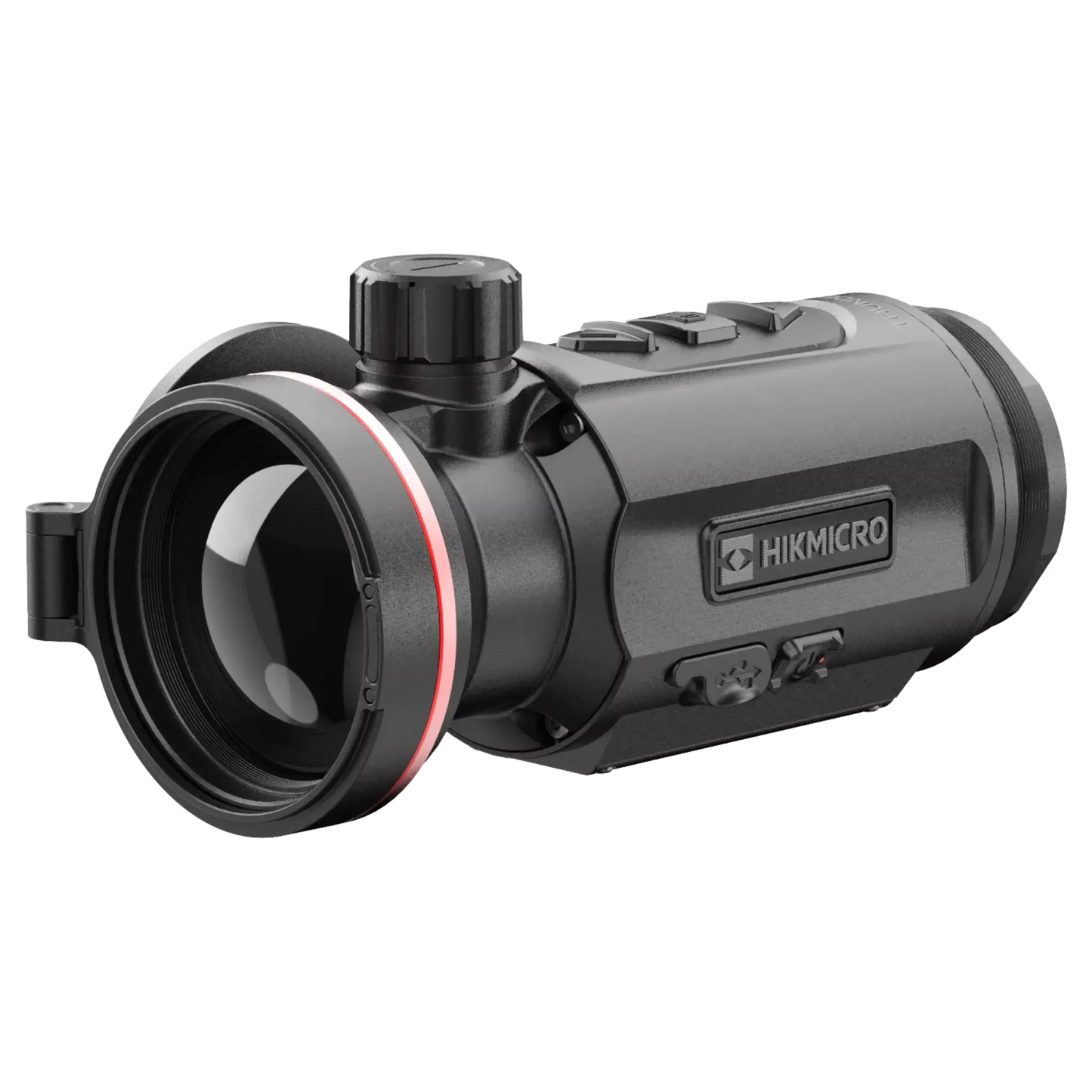

  • The HIKMICRO Thunder TQ50C 3.0 thermal imaging clip-on scope, shown from the side with the objective lens facing right.

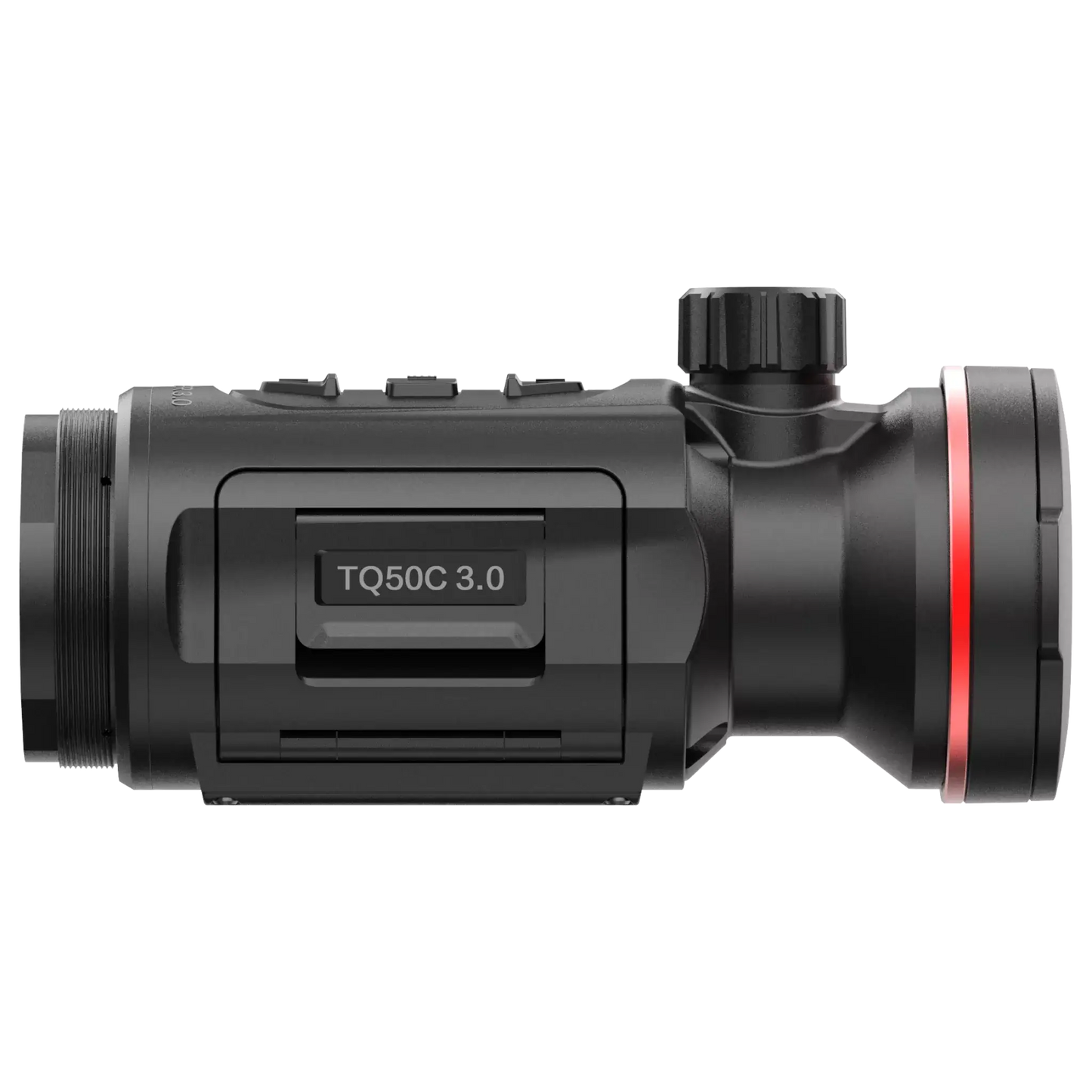

  • The HIKMICRO Thunder TQ50C 3.0 thermal imaging clip-on scope, shown from the side with the objective lens facing right.

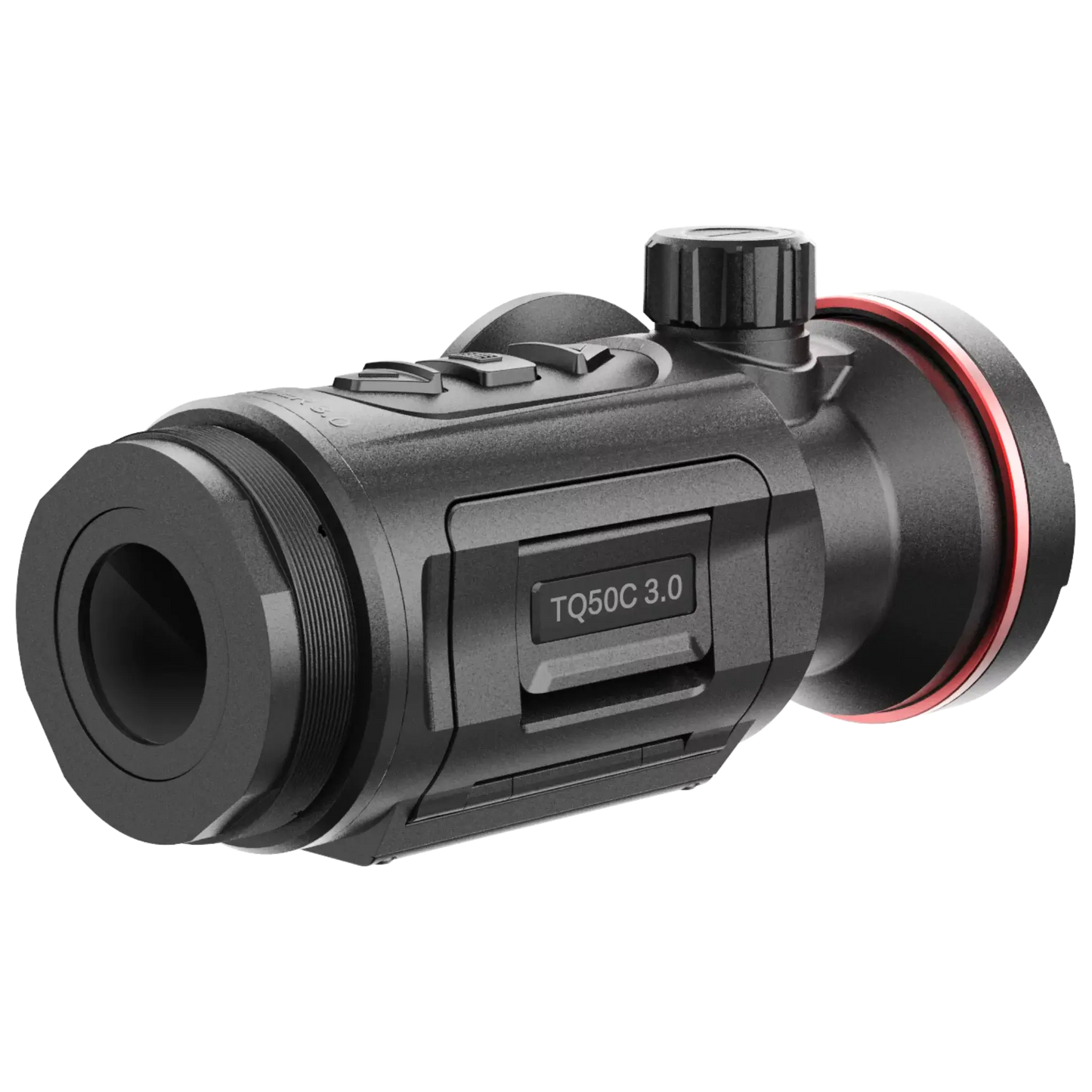

  • Rear view of a HIKMICRO thermal imaging clip-on scope, showing the mounting threads for attaching to a rifle.
1 6

Thunder TQ50C 3.0 - Thermal Imaging Clip-on

  • Thermal Resolution: 640x 512
  • Thermal Lens: 50mm
  • Pixel Interval: 12µm
  • NETD: < 15mK
  • Thermal FOV: 8.8 × 7.0/15.4 m × 12.3 m, 500g°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 67,259.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Thunder TQ50C 3.0 - Thermal Imaging Clip-on.

SKU: TQ50C 3.0

Detection Range

Pig
Kudu
Elephant
1529mDetection
694mRecognition
347mIdentification
2294mDetection
1042mRecognition
521mIdentification
4588mDetection
2083mRecognition
1042mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Key Features:

  • 640x512 resolution @ 12 μm thermal detector
  • High sensitivity thermal module NETD < 15 mK
  • 50 mm, F1.0 lens with a detection range up to 2,600 m
  • 6-hour continuous operation with a rechargeable Li-on battery
Product Overview

The HIKMICRO Thunder TQ50C 3.0 Thermal Imaging Clip-On, a premium addition to the new series of high-performance thermal clip-on attachments. Engineered for superior clarity and extended range, the TQ50C 3.0 transforms your favorite day scope into a powerful thermal imaging system. Ideal for:

  • Defending your farm: Safeguard your property, crops, and livestock from nocturnal predators like jackals and pigs.
  • Long-range detection: Identify threats at distances up to 2,600m with the powerful 50mm lens.
  • Uncompromised vision: Detect minute temperature differences for clear target identification in darkness, fog, or smoke.
  • Versatile mounting: Easily attach to various scopes and platforms using clamping adaptors.

Experience Unmatched Clarity:

The Thunder TQ50C 3.0 features an advanced thermal detector with exceptional sensitivity and Hikmicro's innovative Shutterless Image System (HSIS). HSIS ensures smooth, flicker-free imaging, eliminating the need for a physical shutter that can cause image freezing. This, combined with a large 1920x1080 OLED display, delivers crisp, detailed visuals, ensuring you never miss a critical detail.

Recommended Magnification of the Day Scope: 1-15x

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled Focal Plane Arrays
Thermal Resolution640x 512
Pixel Pitch12 µm
NETD< 15 mK
Thermal Lens50 mm
Focal Ratio (Aperture)F1.0
Field of View8.8° × 7.0°/15.4 m × 12.3 m, 500g
Magnification1-15x
Frame Rate50 Hz
Detection Range (1.7m Subject)2600 m
Precision, Optics & Lasers
LRF Accuracy± 1
System & Display
Screen BrightnessYes
Screen ContrastYes
Digital Zoom1x
Color PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Eye Pupil25
Eye Relief20
Defective Pixel CorrectionYes
Storage Capacity64
Media Capacity64
Media Format.JPEG & .MP4
Recording CapabilitiesOn-board recording
Built-In MicrophoneYes
Battery TypeReplacable and Rechargeable Li-ion Battery Pack
Power Consumption≥6
Battery Indicator HUDYes
Connectivity & Software
Wi-Fi HotspotYes
USB ConnectivityUSB Type-C
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-30°C to 55°C
Dimensions & Weight149.4 mm × 76 mm × 74.6 mm, 500g
What's in the Box
Box ContentsHikmicro Thunder Clip-on attachment
1x Battery Charger
2x Battery
Carrying Case
Wrench
Type-C Cable
Lint free cloth
Quick start guide
