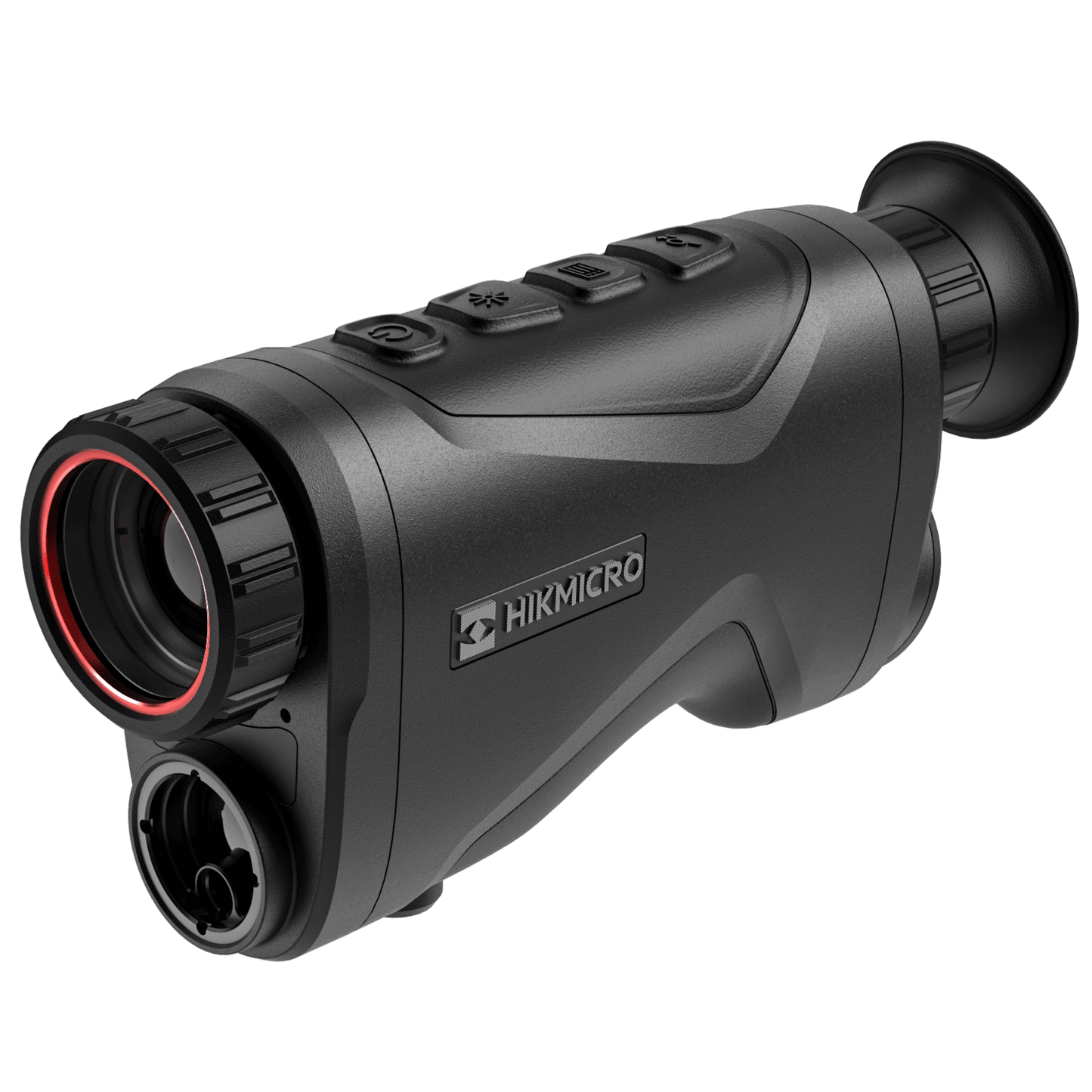

• Frontal view of the HikMicro Condor CH25L Thermal Monocular, displaying its lens and branding

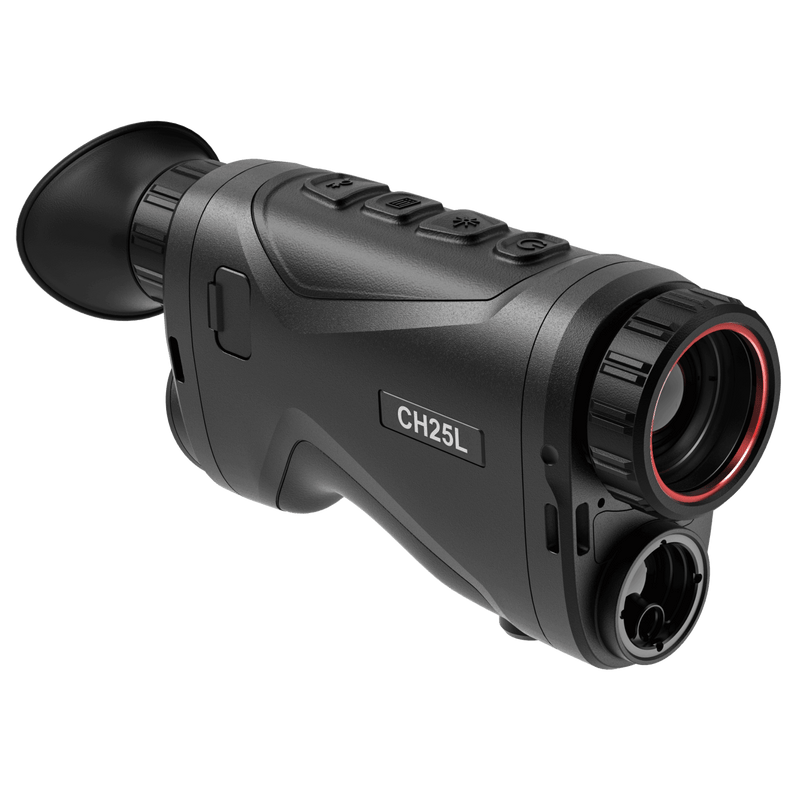

  • Front Right view of the HikMicro Condor CH25L Thermal Monocular with Rangefinder ocular, displaying its lens and branding.

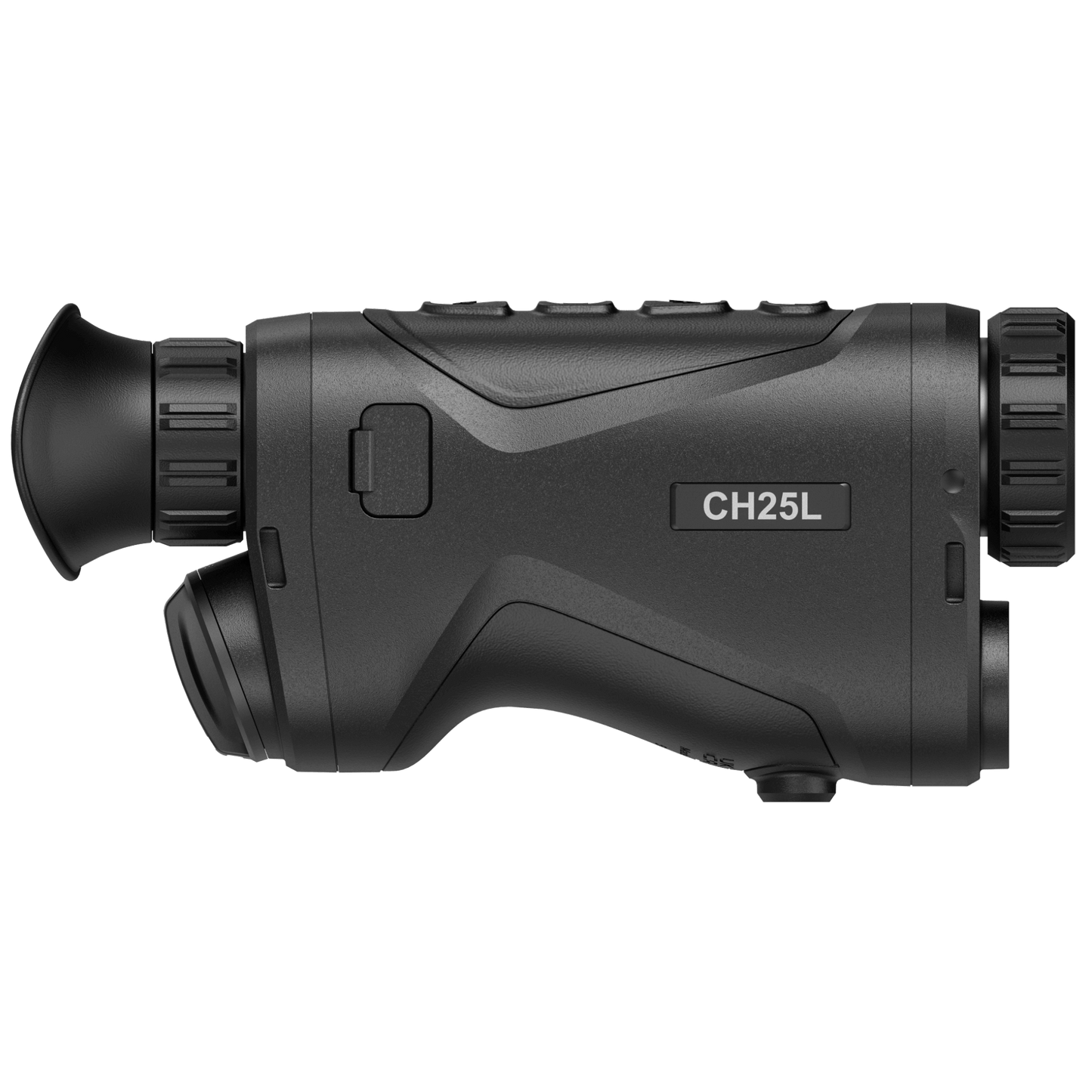

  • Right Side profile of the Hikmicro Condor CH25L, showcasing its ergonomic design and charger port

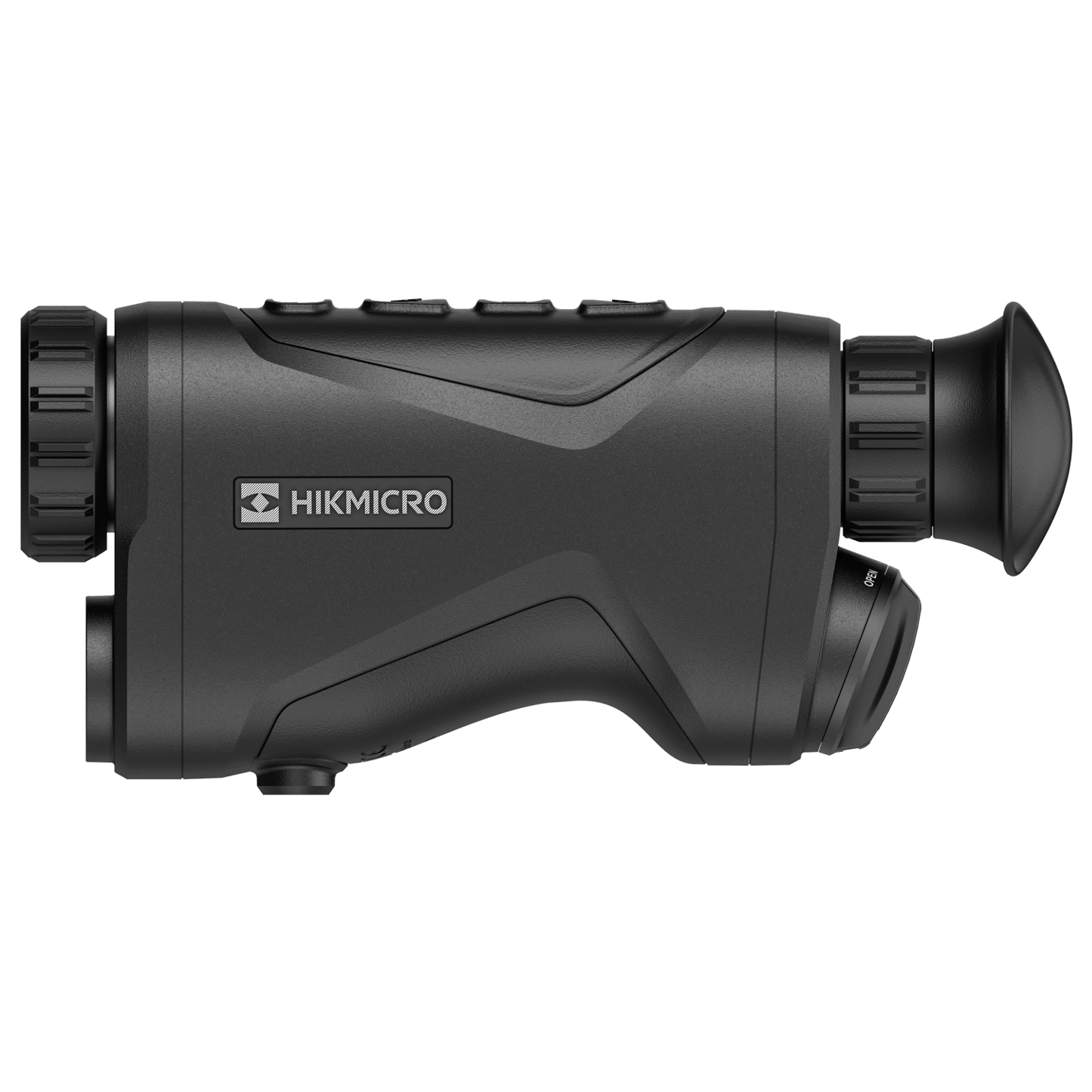

  • Side profile of the CH25L Thermal Monocular with RangeFinder, showcasing its ergonomic design and branding

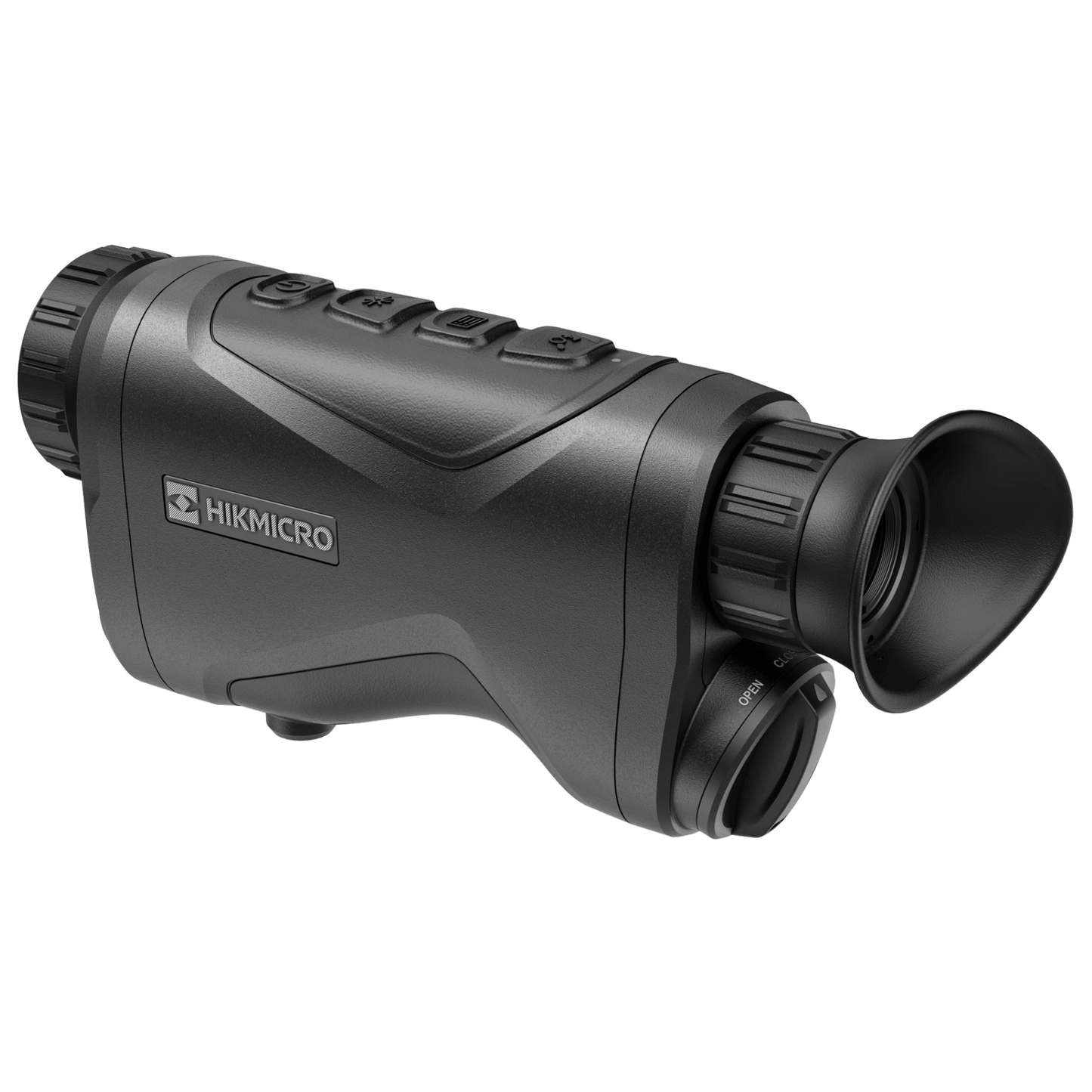

  • Rear Left perspective of the HikMicro Condor CH25L, revealing its eyepiece and battery port
1 5

HikMicro Condor CH25L Termiese Monokulêr met Range Finder

  • Thermal Resolution: 388 x 284
  • Thermal Lens: 25mm
  • Pixel Interval: 12µm
  • NETD: < 20mK
  • Thermal FOV: 10.5 ×7.9/ 18.3m × 13.8m @ 100m°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 27,989.00 R 39,879.00
Uitverkoping
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for HikMicro Condor CH25L Termiese Monokulêr met Range Finder.

SKU: HM-TS63-25QG/WL-CH25L

Detection Range

Pig
Kudu
Elephant
706mDetection
347mRecognition
174mIdentification
1059mDetection
521mRecognition
260mIdentification
2118mDetection
1042mRecognition
521mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Hikmicro CH25L Thermal Monocular with Range Finder Key Features:

  • High Sensitivity Thermal Module: Less than 20 mK NETD ensures unmatched image clarity.
  • High-Resolution Display: 1024 × 768 OLED for detailed thermal imaging.
  • Versatile Magnification: Ranges from 2.5× to 20.0×.
  • Long Detection Range: Up to 1200m for comprehensive coverage.
  • Laser Rangefinder Integration: Accurate distance measurement up to 1000m.
  • Advanced Image Processing: Features like Image Pro and Zoom Pro enhance detail recognition and provide digital zooming without quality loss.
  • Extended Battery Life: Up to 4.5 hours of continuous operation.
  • Compact & Lightweight: Weighs just 386g, making it easy to carry during extended use.
  • IP67 Protection Level: Ensures durability and resistance against tough environmental conditions.
  • Multifunctional System Capabilities: Including video recording, snapshot capture, audio recording, and more.

Dive into a world of precision and clarity with the HikMicro Condor CH25L, the perfect tool for all your security, surveillance, and hunting endeavors.

Product Overview

Ervaar die volgende vlak van akkuraatheid met die HikMicro Condor CH25L termiese monokulêr. Hierdie gevorderde monokulêre is spesiaal gemaak vir diegene wat passievol is oor sekuriteit, toesig en jag, en is 'n samesmelting van innoverende tegnologie en robuuste ontwerp. Of jy nou in die digte woud is, wild dophou of op 'n toesigsending is, die toestel se hoë termiese sensitiwiteit verseker onberispelike beeldkwaliteit en detailherkenning selfs in die moeilikste weerstoestande. Sy geïntegreerde 1000m laserafstandmeter bied ongeëwenaarde akkuraatheid, wat dit die beste termiese monokulêre met afstandmeter vir jag- en sekuriteitstake maak. Wanneer presisie, duidelikheid en omvang saak maak, is die HikMicro Condor CH25L die metgesel wat jy kan vertrou.
Blaai deur ons volledige reeks termiese monokulêre hier

Termiese monokulêre met Range Finder Sleutelkenmerke:

  • Hoë sensitiwiteit termiese module: Minder as 20 mK NETD verseker ongeëwenaarde beeldhelderheid.
  • Hoë-resolusie-skerm: 1024 × 768 OLED vir gedetailleerde termiese beelding.
  • Veelsydige vergroting: wissel van 2,5× tot 20,0×.
  • Lang opsporingsafstand: Tot 1200m vir omvattende dekking.
  • Laserafstandmeter-integrasie: Akkurate afstandmeting tot 1000m.
  • Gevorderde beeldverwerking: Kenmerke soos Image Pro en Zoom Pro verbeter detailherkenning en bied digitale zoem sonder kwaliteitverlies.
  • Verlengde batterylewe: Tot 4,5 uur se deurlopende werking.
  • Kompak en liggewig: weeg net 386 g, wat dit maklik maak om te dra tydens langdurige gebruik.
  • IP67 Beskermingsvlak: Verseker duursaamheid en weerstand teen moeilike omgewingstoestande.
  • Multifunksionele stelselvermoëns: insluitend video-opname, snapshot-opname, oudio-opname, en meer.

Duik in 'n wêreld van akkuraatheid en helderheid met die HikMicro Condor CH25L, die perfekte hulpmiddel vir al jou sekuriteit, toesig en jagpogings.

Meer HikMicro Condor-reeks termiese monokulêre inligting:

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled Focal Plane Arrays
Thermal Resolution388 x 284
Pixel Pitch12 µm
NETD< 20 mK
Thermal Lens25 mm
Focal Ratio (Aperture)F1.0
Field of View10.5° ×7.9°/ 18.3m × 13.8m @ 100m
Focus ModeFocus Ring
Frame Rate50 Hz
Detection Range (1.7m Subject)1200 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Wavelength905nm
LRF Max Range1000 m
LRF Accuracy± 1 m
System & Display
Screen BrightnessYes
Screen ContrastYes
Digital Zoom1-8x
Color PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Eye Pupil4
Eye Relief15
Defective Pixel CorrectionYes
Storage Capacity64
Media Capacity64
Media Format.JPEG & .MP4
Built-In MicrophoneYes
Battery TypeReplaceable and Rechargeable Li-ion Battery
Power Supply5V DC, 2 A Supports External Power Supply
Battery Indicator HUDYes
Connectivity & Software
Wi-Fi HotspotYes
USB ConnectivityType-C
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Storage TemperatureBuilt-in EMMC
Dimensions & Weight10.5° ×7.9°/ 18.3m × 13.8m @ 100m, 386g
What's in the Box
Box ContentsHikmicro Condor LRF CH25L Thermal Monocular Charger
3x Replaceable Li-ion Battery
USB Cable
Non-dust cloth
Quick start guide
