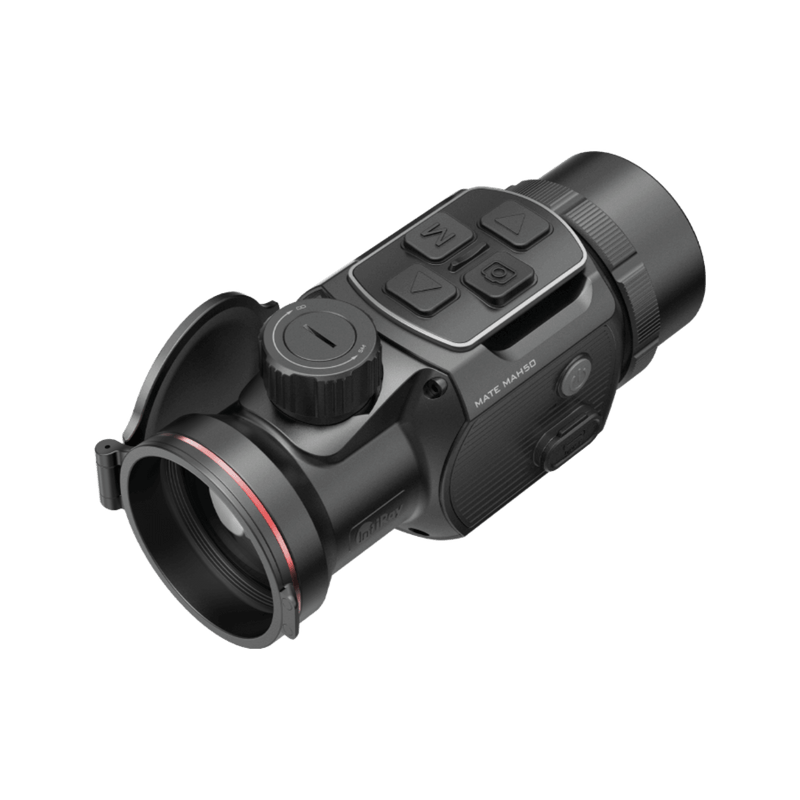

• Infiray MATE MAH50 left view of the thermal clip-on device

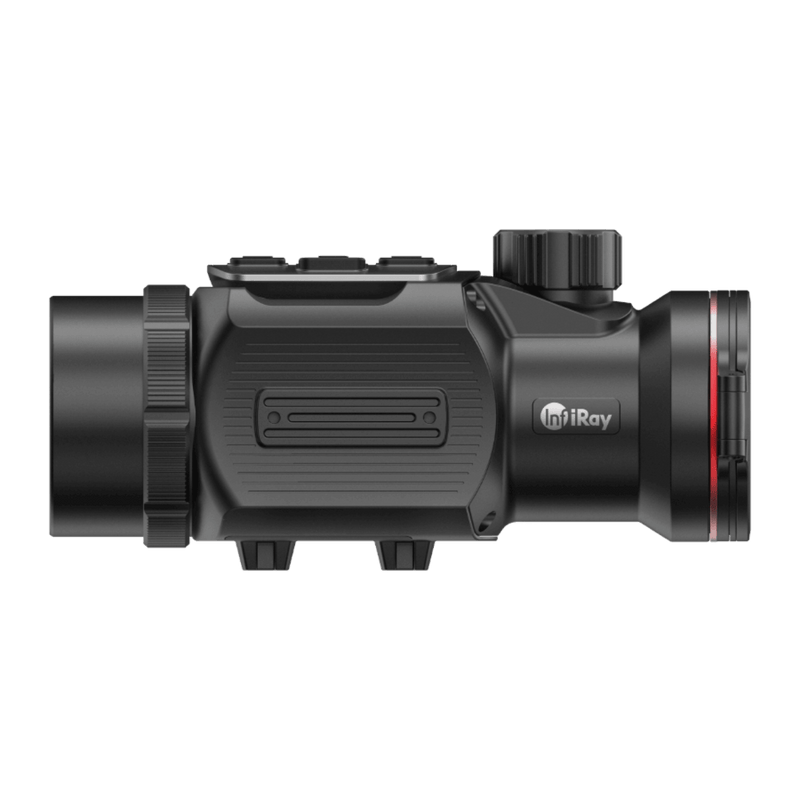

  • Infiray MATE MAH50 side right view of the thermal clip-on device
  • Infiray MATE MAH50 top view of the thermal clip-on device
1 3

InfiRay MATE MAH50 - Handheld termiese clip-on-aanhegsel

  • Thermal Resolution: 640x512
  • Thermal Lens: 50mm
  • Pixel Interval: 12µm
  • NETD: < 18mK
  • Thermal FOV: 15.4 x 12.3°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 0.00
End of Line
Including VAT • Includes Shipping

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay

Detection Range

Pig
Kudu
Elephant
1529mDetection
694mRecognition
347mIdentification
2294mDetection
1042mRecognition
521mIdentification
4588mDetection
2083mRecognition
1042mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Key Features:

  • 640 x 512 Thermal Resolution: Experience industry-leading image clarity with a 640 x 512 resolution sensor, revealing even the finest details in complete darkness.
  • 12μm Pixel Pitch: The 12μm pixel pitch ensures superior thermal sensitivity, allowing you to detect subtle temperature differences and identify targets with precision.
  • NETD <25mk: The ultra-low noise equivalent temperature difference (NETD) guarantees exceptional image quality, even in challenging conditions.
  • Lightweight & Compact: The magnesium alloy housing makes the MA50 remarkably lightweight and compact, minimizing strain during extended use and ensuring effortless portability.
  • Distortion-Free Optics: Enjoy crystal-clear, undistorted images even when paired with a 10x daytime scope, thanks to the precision-engineered optical system.
  • Sense-Based Algorithms: Adaptive algorithms intelligently adjust image settings based on the environment (forest, plain, city), delivering optimal image quality in any scenario.
  • Removable Buttons: Customize button placement for comfortable and intuitive control, keeping your focus on the target.
  • Power Bank Compatible: Extend your observation time with the included power bank, ensuring you never miss a moment.
  • Optional Monocular Extension: Transform your MA50 into a handheld thermal monocular with the IOM accessory, offering versatile viewing options.

The InfiRay MATE MAH50 sets a new standard for thermal clip-on attachments. Its exceptional image quality, advanced features, and compact design make it the perfect choice for those demanding the very best in thermal technology.

Explore our Full Clip-on attachment range here

Product Overview

Die InfiRay MATE MAH50 Thermal Clip-on Attachment is die vlagskipmodel van die MATE-reeks, wat ongeëwenaarde termiese beeldprestasie vir oordeelkundige jagters en buitelug-entoesiaste lewer. Hierdie hoëprestasie-aanhegstuk spog met buitengewone helderheid, gevorderde kenmerke en 'n kompakte ontwerp, wat dit die uiteindelike hulpmiddel maak vir nagwaarneming en teikenverkryging.
Verken die Infiray MATE-reeksversameling hier.

- MATE Reeks Brosjure
- MATE-reeks gebruikershandleiding

Sleutel kenmerke:

  • 640 x 512 termiese resolusie: Ervaar toonaangewende beeldhelderheid met 'n 640 x 512-resolusiesensor, wat selfs die fynste besonderhede in volledige duisternis openbaar.
  • 12μm Pixel Pitch: Die 12μm pixel Pitch verseker voortreflike termiese sensitiwiteit, wat jou toelaat om subtiele temperatuurverskille op te spoor en teikens met presisie te identifiseer.
  • NETD <25mk: Die ultra-lae geraas-ekwivalente temperatuurverskil (NETD) waarborg uitsonderlike beeldkwaliteit, selfs in uitdagende toestande.
  • Liggewig en kompak: Die magnesiumlegeringsbehuising maak die MA50 merkwaardig liggewig en kompak, wat spanning tydens langdurige gebruik verminder en moeitelose draagbaarheid verseker.
  • Vervormingsvrye optika: Geniet kristalhelder, onverdraaide beelde, selfs wanneer dit met 'n 10x-dag-omvang gepaar word, danksy die presisie-gemanipuleerde optiese stelsel.
  • Sense-gebaseerde algoritmes: Aanpasbare algoritmes pas beeldinstellings intelligent aan op grond van die omgewing (bos, vlakte, stad), en lewer optimale beeldkwaliteit in enige scenario.
  • Verwyderbare knoppies: pasmaak knoppie plasing vir gemaklike en intuïtiewe beheer, hou jou fokus op die teiken.
  • Power Bank-versoenbaar: Verleng jou waarnemingstyd met die ingeslote kragbank, om te verseker dat jy nooit 'n oomblik mis nie.
  • Opsionele monokulêre verlenging: Transformeer jou MA50 in 'n handheld termiese monokulêre met die IOM-bykomstigheid, wat veelsydige kykopsies bied.

Die InfiRay MATE MAH50 stel 'n nuwe standaard vir termiese clip-on aanhegsels. Sy uitsonderlike beeldkwaliteit, gevorderde kenmerke en kompakte ontwerp maak dit die perfekte keuse vir diegene wat die allerbeste in termiese tegnologie eis.

Verken ons volledige clip-on-aanhegselreeks hier

Pakketinhoud:

⚫ Universele adapter*
⚫ IBP-4 Infiray-batterypak
⚫ Kragadapter
⚫ Tipe C-kabel
⚫ Picatinny-reling met sytoegang
⚫ Afstandbeheerbasis en verband
⚫ Afstandbeheerbedekking
⚫ Verhitte teiken vir nulstelling (x10)
⚫ Lensdoek
⚫ Vinnige begingids

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S termiese monokulêr
Purchased: HikMicro Lynx Pro LE15S termiese monokulêr
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Thermal Resolution640x512
Pixel Pitch12 µm
NETD< 18 mK
Thermal Lens50 mm
Field of View15.4° x 12.3°
Detection Range (1.7m Subject)2600 m
What's in the Box
Box ContentsIBP-4 Infiray battery pack
Power adapter
Type C cable
Side-entry picatinny rail
Remote control base and bandage
Remote control cover
Heated target for zeroing (x10)
Lens cloth
Quick start guide
