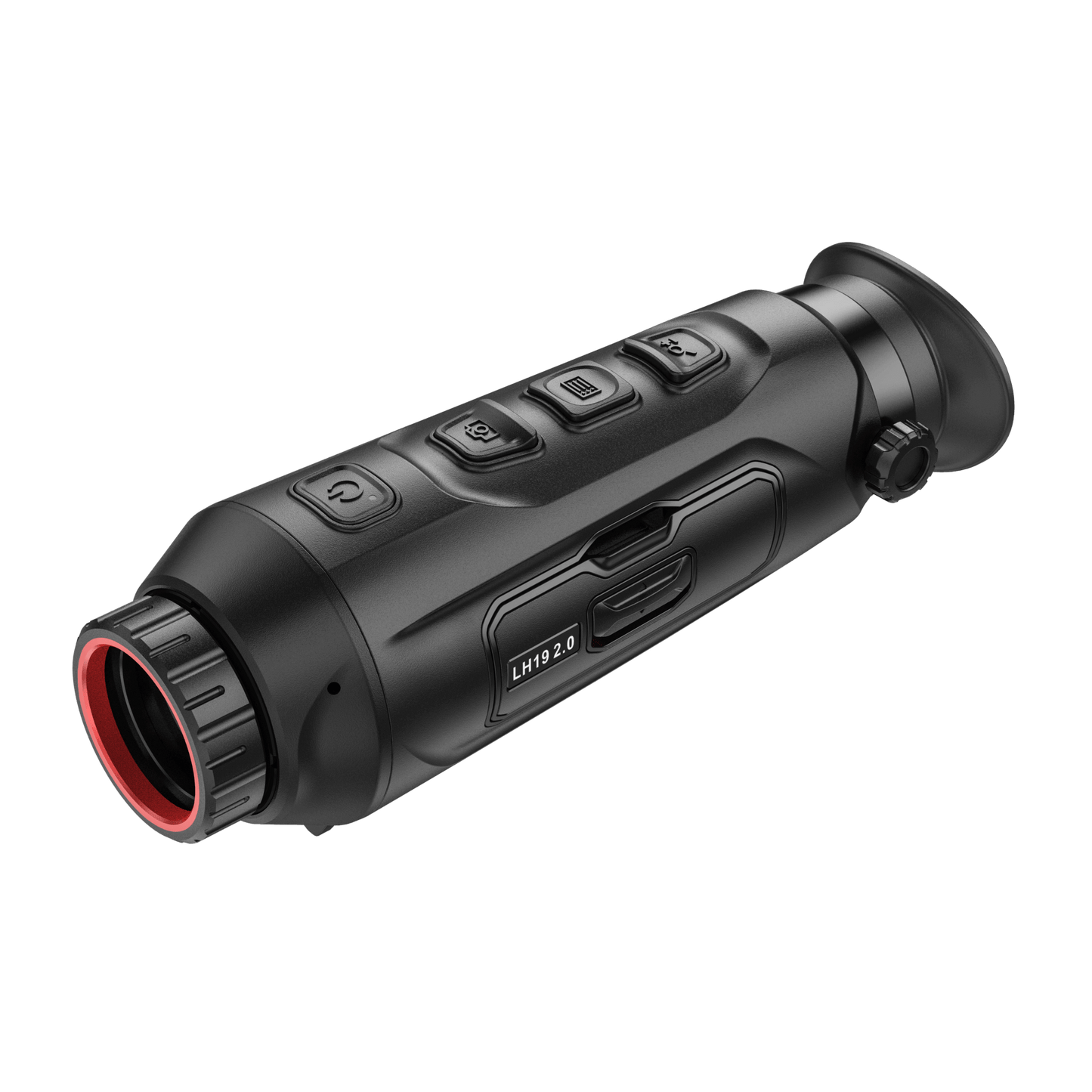

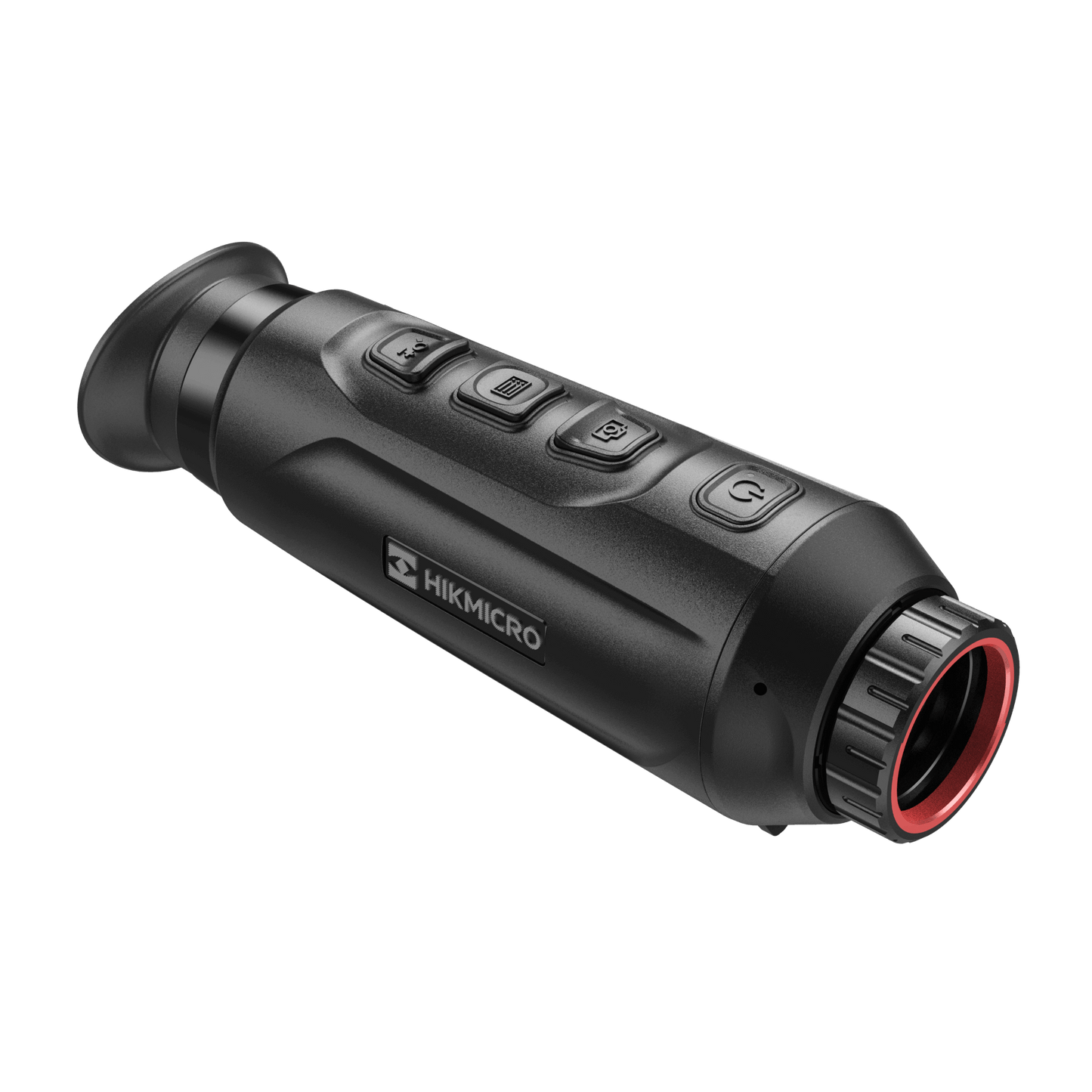

HikMicro Lynx LH19 2.0 Thermal Monocular

HikMicro Lynx LH19 2.0 Thermal Monocular

  • Thermal Resolution: 384x288
  • Thermal Lens: 19mm/f1.0
  • Detection Distance: 900m

  • Free Insured Shipping
  • Includes Product Lifetime Support
Regular price R 27,999.00 ZAR
Regular price Sale price R 27,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

The HikMicro Lynx LH19 2.0 is an advanced handheld thermal monocular designed for those who seek detailed clarity and extended performance. With a 384×288 resolution and a NETD of <20 mK, the LH19 2.0 offers superior imaging, enabling users to detect heat signatures with precision. Upgraded with a replaceable and rechargeable Li-ion battery, this device ensures up to 6.5 hours of continuous operation, catering to extended field use. The Lynx LH19 2.0 is an ideal tool for professionals and outdoor enthusiasts alike, offering a blend of high-end features in a portable form factor. Experience the upgrade with the Lynx LH19 2.0 at Cape Thermal, where innovation meets the great outdoors.

HikMicro Lynx LH19 2.0 Thermal Monocular Key Features:

  • Enhanced Thermal Resolution: 384x288 for intricate detail and clear image quality.
  • Ultra-sensitive Detection: NETD <20 mK captures the slightest temperature variations.
  • User-Friendly Design: Lightweight at 282g, with a compact and ergonomic build.
  • Advanced Display: 1024x768 OLED screen delivers crisp, clear visuals.
  • New Battery System: Replaceable battery design for prolonged use.
  • Robust and Reliable: IP67 rated, ensuring performance in challenging environments.

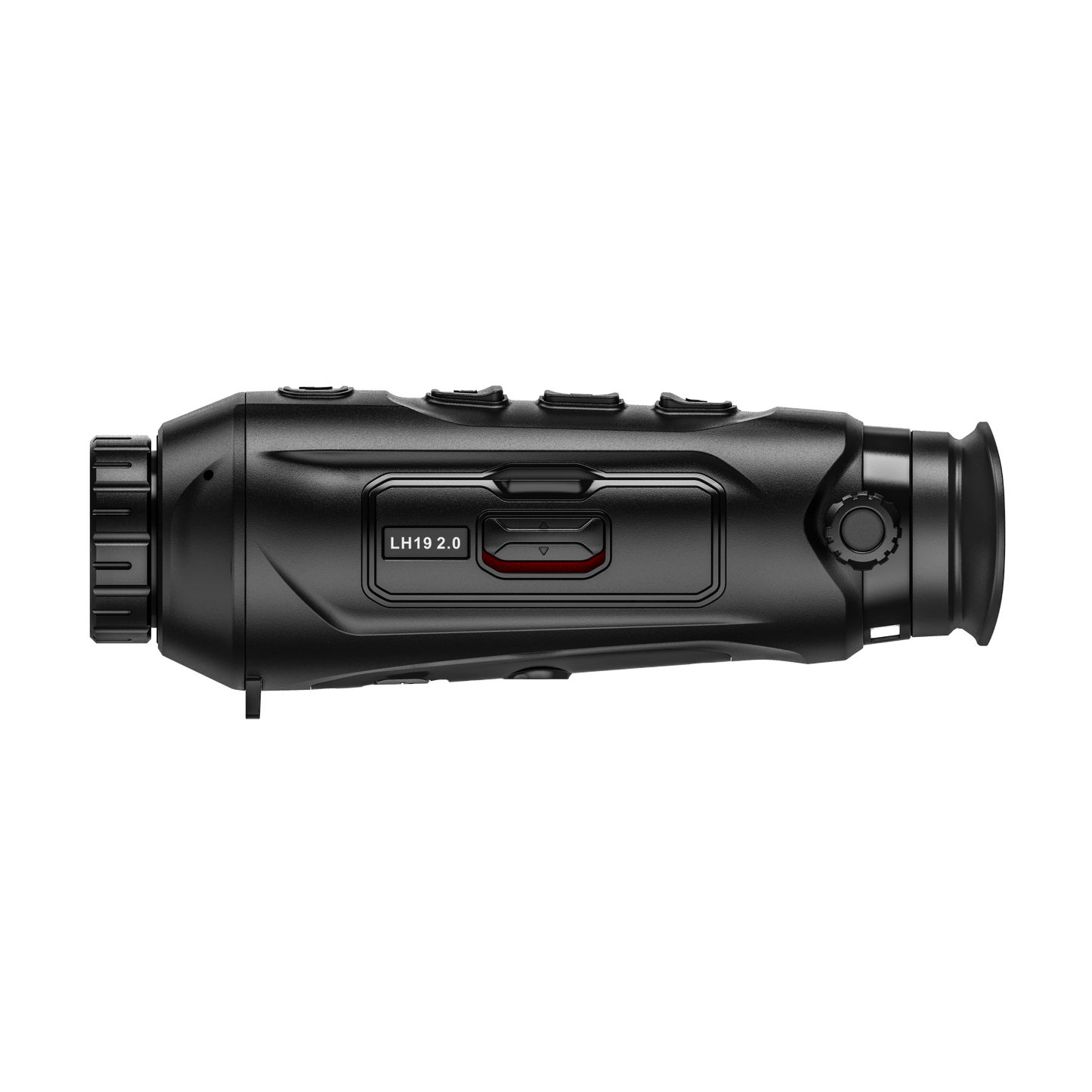

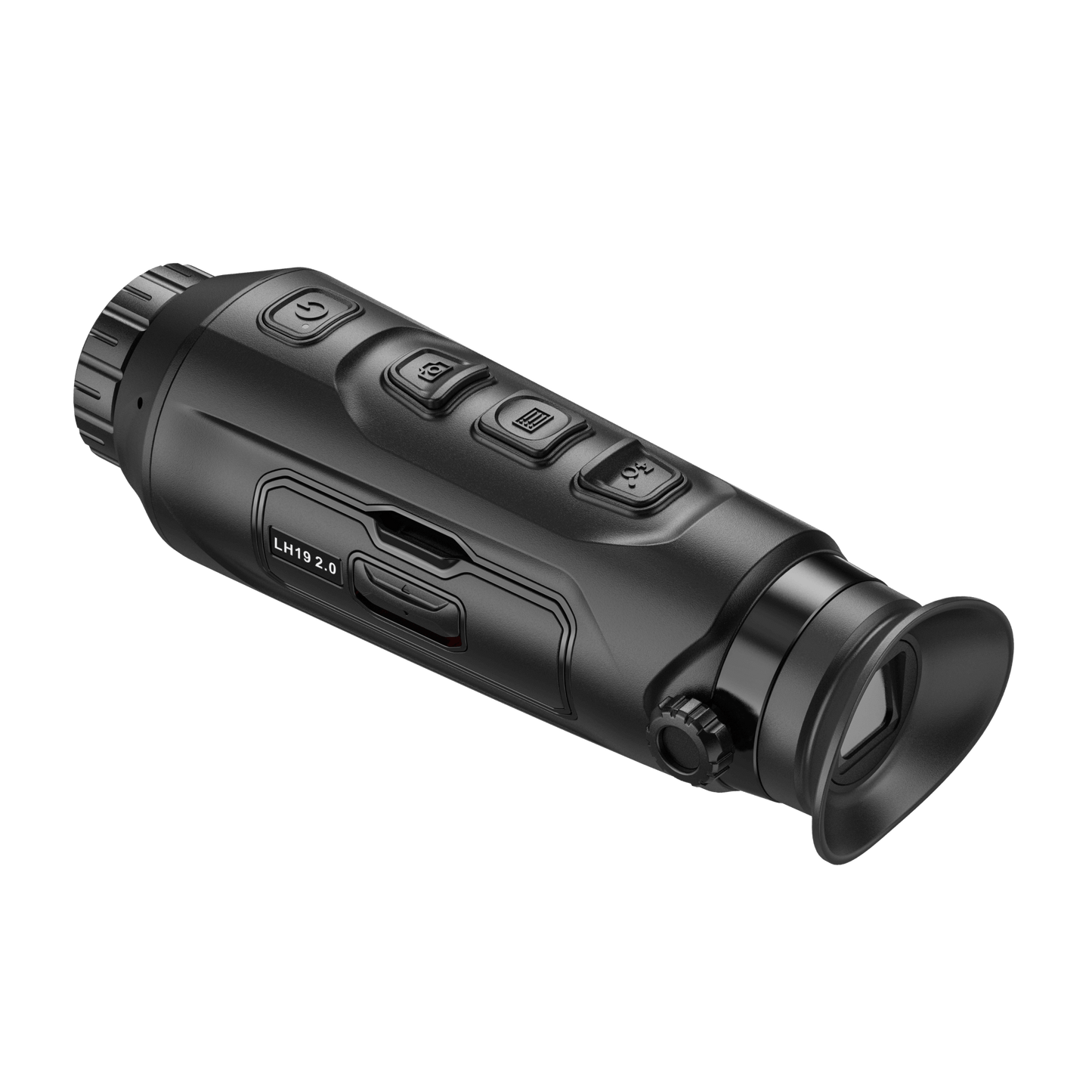

Lynx LH19 2.0 Thermal Monocular 360° view:

More Lynx LH19 2.0 Thermal Imaging Monocular Information:

View full details

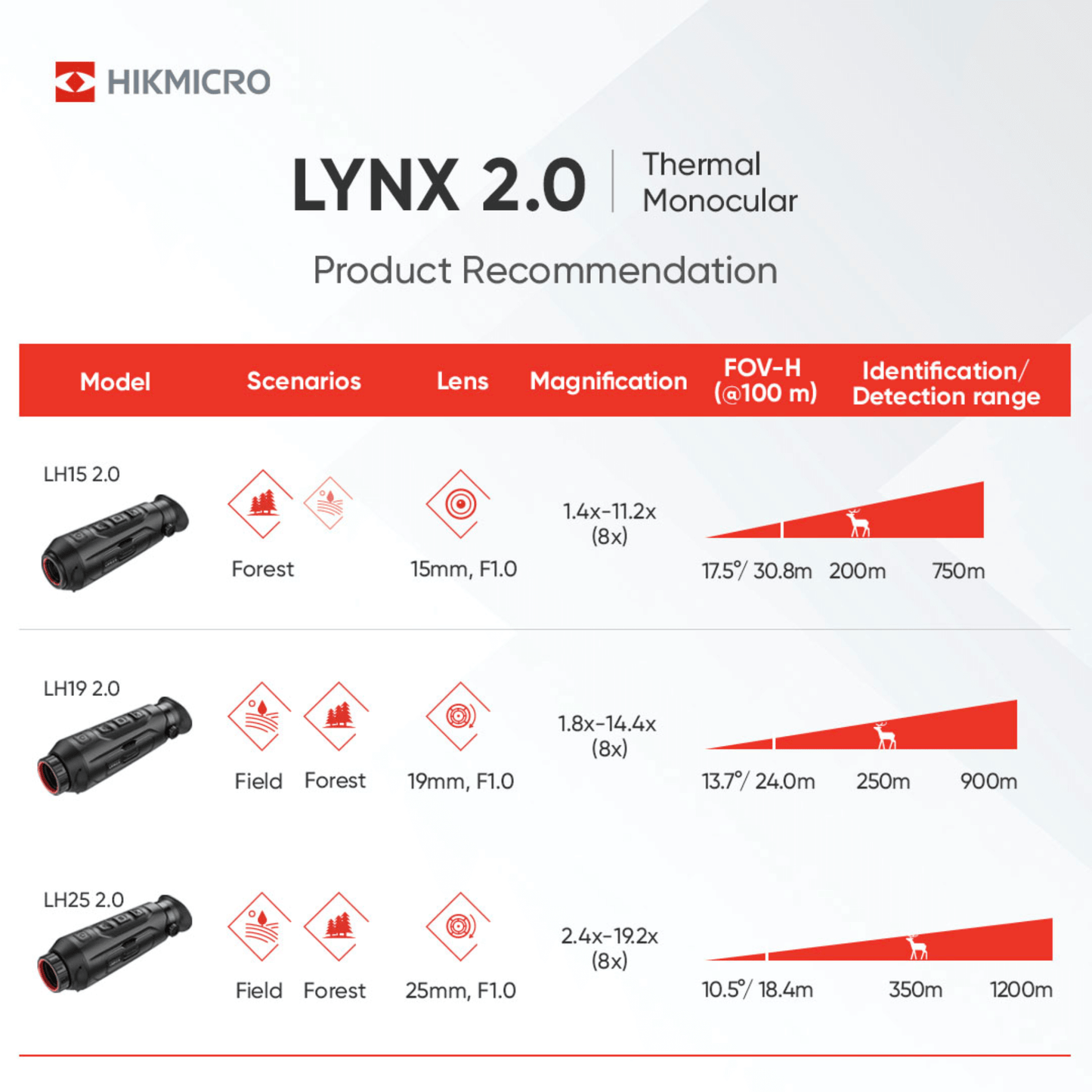

HikMicro Lynx LH19 2.0 Thermal Monocular Detection, Recognition, & Identification Ranges

Detection, recognition, and identification ranges are approximate and based on ideal conditions.

  • Thermal image of a group of pigs, likely Kunekune pigs, taken with a HikMicro Condor CQ50L Thermal Monocular. Their heat signatures are visible in shades of orange and yellow against a cool purple background.

    Bush Pig - 100cm

    Detection: 900m

    Recognition: 250m
    Identification: 120m

  • Thermal image of a deer standing in a field, showcasing the detail and clarity of the Pulsar Axion 2 XQ35 Pro thermal monocular.

    Deer - 150cm

    Detection: 1500m

    Recognition: 380m
    Identification: 180m

  • HikMicro Condor CQ50L captures stunning thermal image of elephants drinking at a watering hole in the African savanna. The high-resolution thermal monocular reveals intricate details of their heat signatures, even in low-light conditions.

    Elephant - 300cm

    Detection: 3100m

    Recognition: 750m
    Identification: 350m

1 of 3

HikMicro Lynx LH19 2.0 Thermal Monocular Detailed Specifications

Thermal Module Specifications

Resolution: 384x288

Lens: 19mm/f1.0

NETD: <20mK

Pixel Interval: 12μm

Response Waveband: 8-14μm

Frame Rate: 50Hz

Zoom: 1.8x to 14.4x (8x)

Focus Mode: Focus Ring


Screen: 1024x768 OLED

Field of View: 13.7° × 10.3° / 24 × 18.0 m (HxV) @ 100m

Palettes: Black Hot, White Hot, Red Hot, Fusion

System Functions

Storage: 16Gb Built-in

Notable features: Wi-Fi
HikMicro Sight Smartphone App
Records photos & videos
Picture-in-Picture Mode
Hotspot Tracking
Distance Measurement
20mm Exit Pupil with 6mm Eye Relief

Battery & Power

Battery Life: 6.5 hours: CVBS and hotspot off.

Power Supply: DC 5V 2A USB-C (Supports Power Bank)

Battery Type: Replaceable and Rechargeable Lithium Battery


Operating Temperature: -30°C to 55°C

Ingress Protection: IP67

Dimensions: 164 × 56 × 60.8 mm (222g)

SKU: HM-TS83-19S1GW-LH19 2.0

Package Contents

Quick Start Guide
Non-Dust Cloth
Protective Bag
Wrist Strap
External Charger
2 x Batteries
