• HikMicro B20S handheld thermal imaging camera with 256x192 resolution and SuperIR, used for electrical and HVAC inspections.

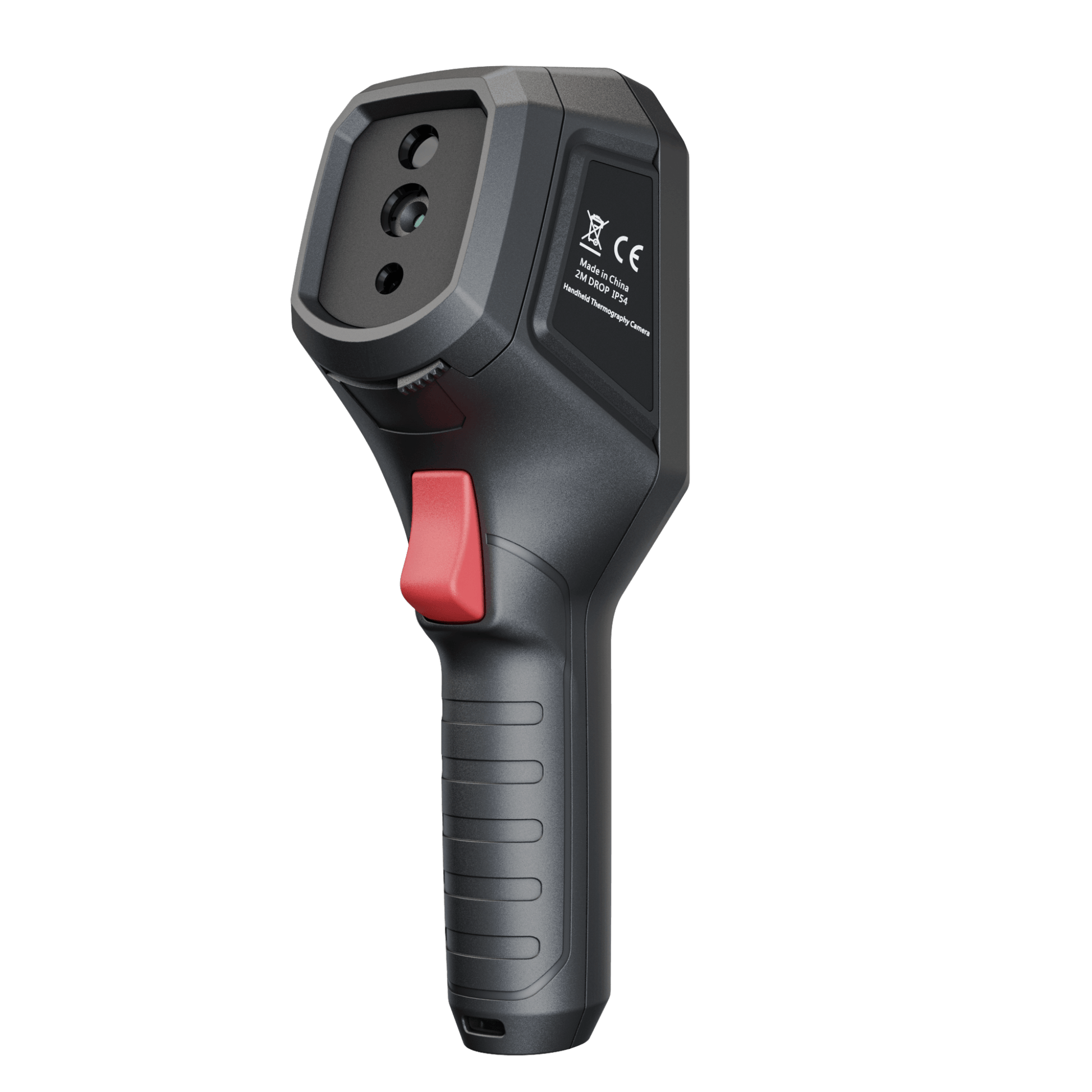

  • HikMicro B20S thermal imager featuring a 3.2-inch LCD screen, 2MP visual camera, and IP54 rugged housing for industrial use
  • HikMicro B20S handheld thermal imaging camera with 256x192 resolution and SuperIR technology for professional electrical and HVAC inspections.
1 3

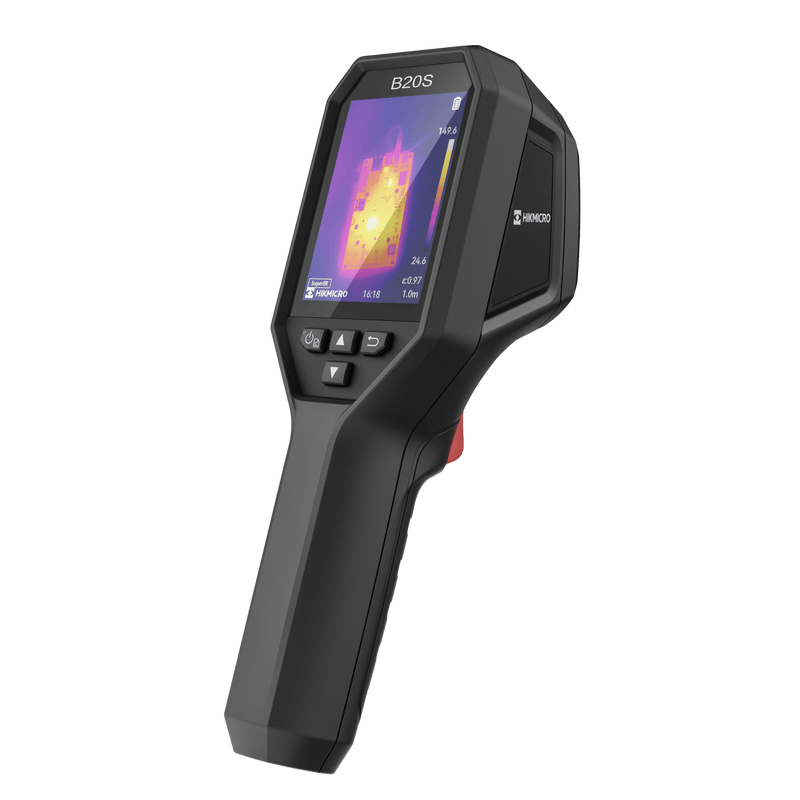

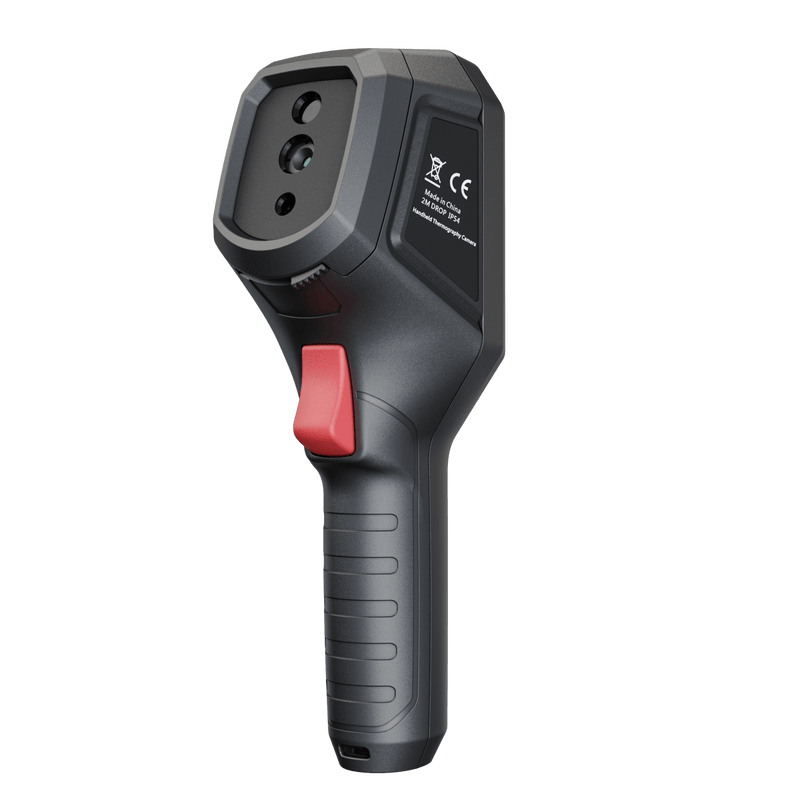

Hikmicro B20S Handheld Thermography Camera

  • Thermal Resolution: 256x192
  • Thermal Lens: 3.6mm
  • Pixel Interval: 12µm
  • NETD: < 40mK
  • Thermal FOV: 37.2 × 50.0°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 19,289.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Hikmicro B20S Handheld Thermography Camera.

SKU: HM-TP52+-3AQF/W-B20S
Key Features & Highlights

Key Features:

  • SuperIR Enhancement: Boosts thermal resolution from 256x192 (49,152 pixels) to a much sharper image for better detail.
  • Wide Temperature Range: Accurately measures from -20 to 550°C suitable for everything from cold-chain storage to industrial furnaces.
  • Real-Time Troubleshooting: A fast 25 Hz frame rate ensures smooth scanning without the "choppy" lag found in cheaper entry-level units.
  • Rugged Design: IP54 rated and 2-meter drop tested, built to survive the realities of a South African job site.
  • Wi-Fi Connectivity: Connect to the HikMicro Viewer App to share reports with clients instantly from your phone.
Product Overview

Find Invisible Faults Before They Become Costly Failures.

The HikMicro B20S is a professional-grade thermography tool designed for building inspections, HVAC troubleshooting, and electrical maintenance. Equipped with a 256x192 thermal detector and a 2MP optical camera, the B20S provides high-clarity thermal overlays that make identifying hotspots effortless. From detecting underfloor heating leaks and insulation gaps to identifying overloaded circuit breakers or solar panel cells, the B20S is the ultimate diagnostic partner for SA contractors.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S Thermal Monocular
Purchased: HikMicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx uncooled
Thermal Resolution256x192
Pixel Pitch12 µm
NETD< 40 mK
Thermal Lens3.6 mm
Focal Ratio (Aperture)F1.0
Field of View37.2° × 50.0°
Spatial Resolution3.3 mrad
Min. Focusing Distance0.3 m
Focus ModeFocus Free
Frame Rate25 Hz
Optical & Night Vision
Smart IR TechnologyYes
Thermography & Measurement
Measurement Range-20°C to 150°C
Temperature AccuracyMax. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C
Measurement Modescenter spot, max spot, min spot, off
Level & Span ModeAuto/Manual
Alarm ConditionsMore than, Less than
Alarm IndicationFlashing Alarm, Audible Warning, Alarm Mode Palettes
System & Display
Display Info480 × 640 Resolution, 3.2" LCD Screen
Screen BrightnessYes
Screen ContrastYes
Color PalettesWhite Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Blue Yellow
Image EnhancementSuper IR
Defective Pixel CorrectionYes
Storage CapacityApprox. 35,000 Images
Media Capacity64
Media FormatRadiometric JPEG, .MP4
Recording CapabilitiesVideo, Image
Battery TypeRechargeable Li-ion battery
Battery Life6
Charge Time3
Power SupplyUSB-C (5V/2A)
Connectivity & Software
Wi-Fi HotspotYes
BluetoothType-C
USB ConnectivityYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP57
Drop Test Rating2
Operating Temperature-10°C to 50°C
Storage Temperature-20°C to 60°C
Relative Humidity< 95% non-condensing
Dimensions & Weight221.7 × 73.5 × 123.8mm; 380g
Tripod MountingYes
What's in the Box
Box ContentsHikmicro B20S Thermal Camera
QSG
USB2.0 A to USB Type-C Cable
Wrist Strap
Calibration Cetificate
