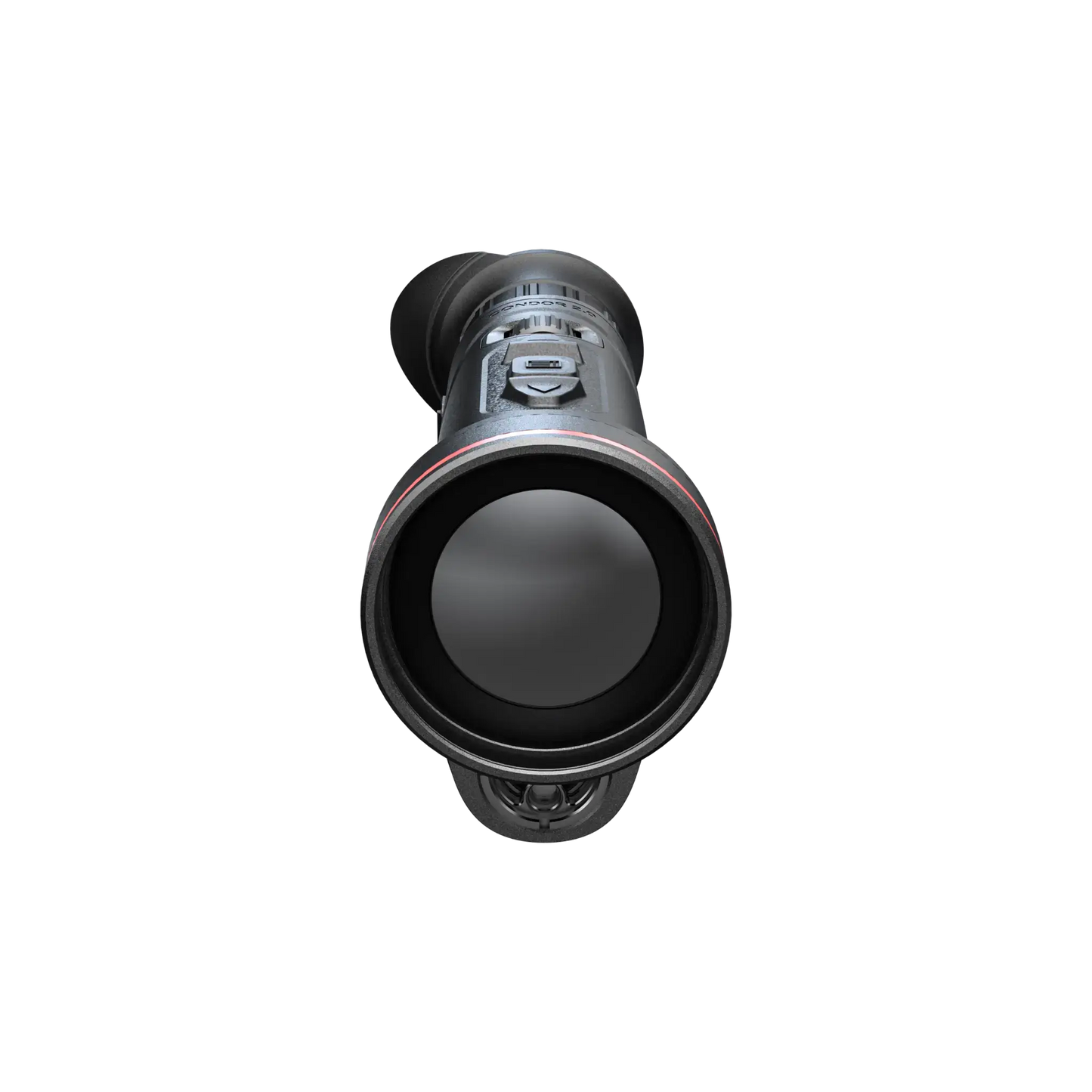

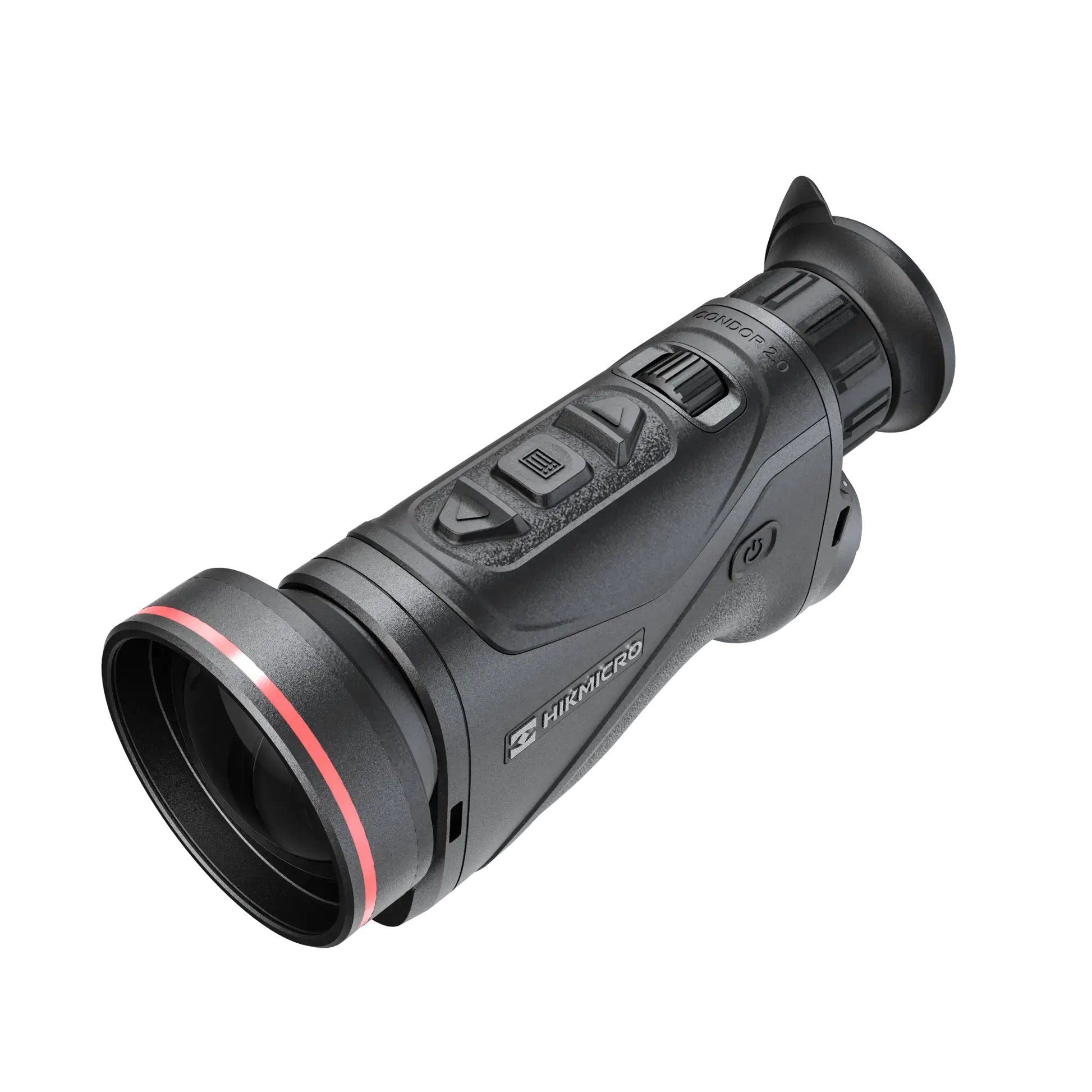

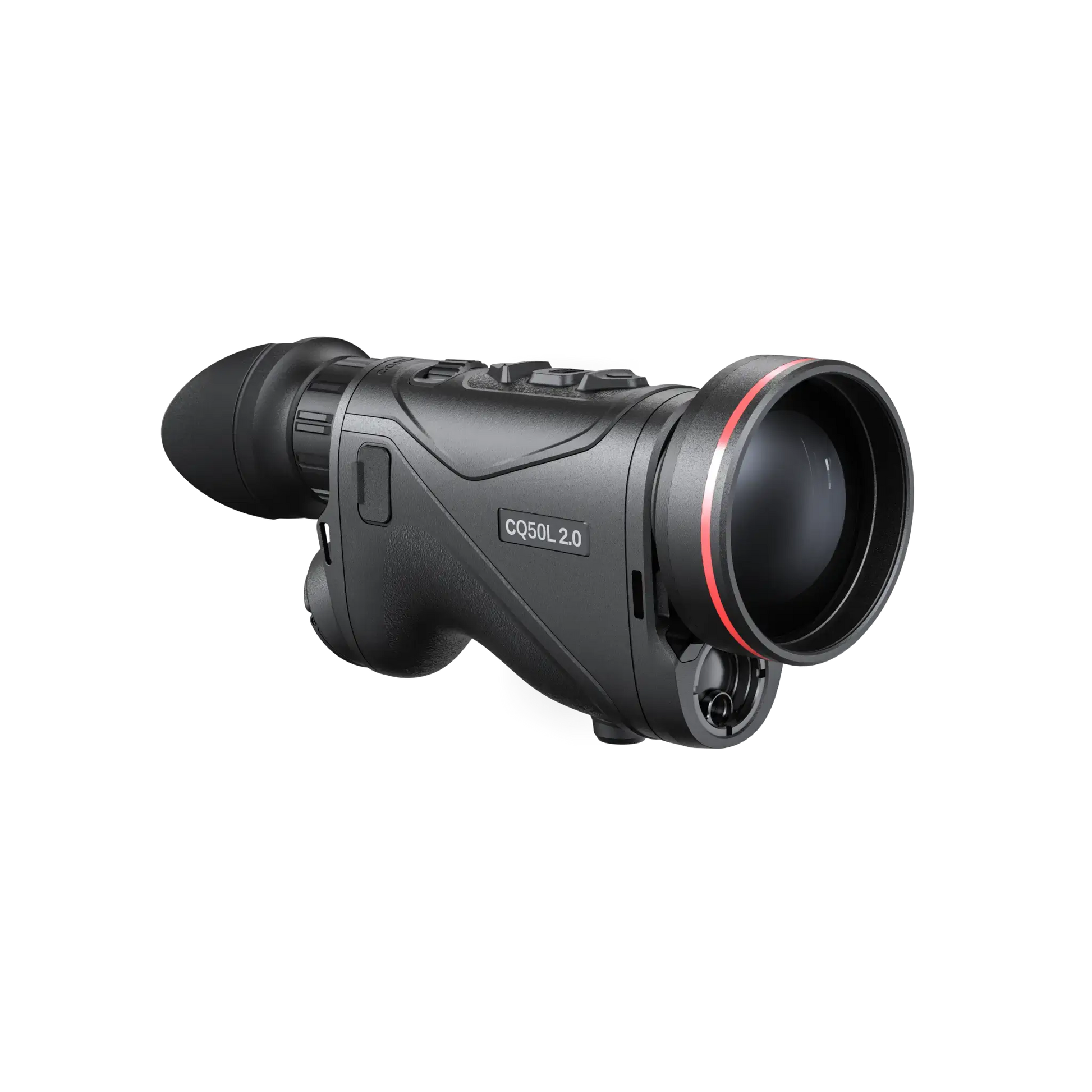

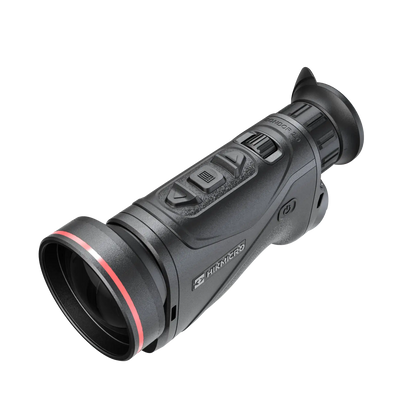

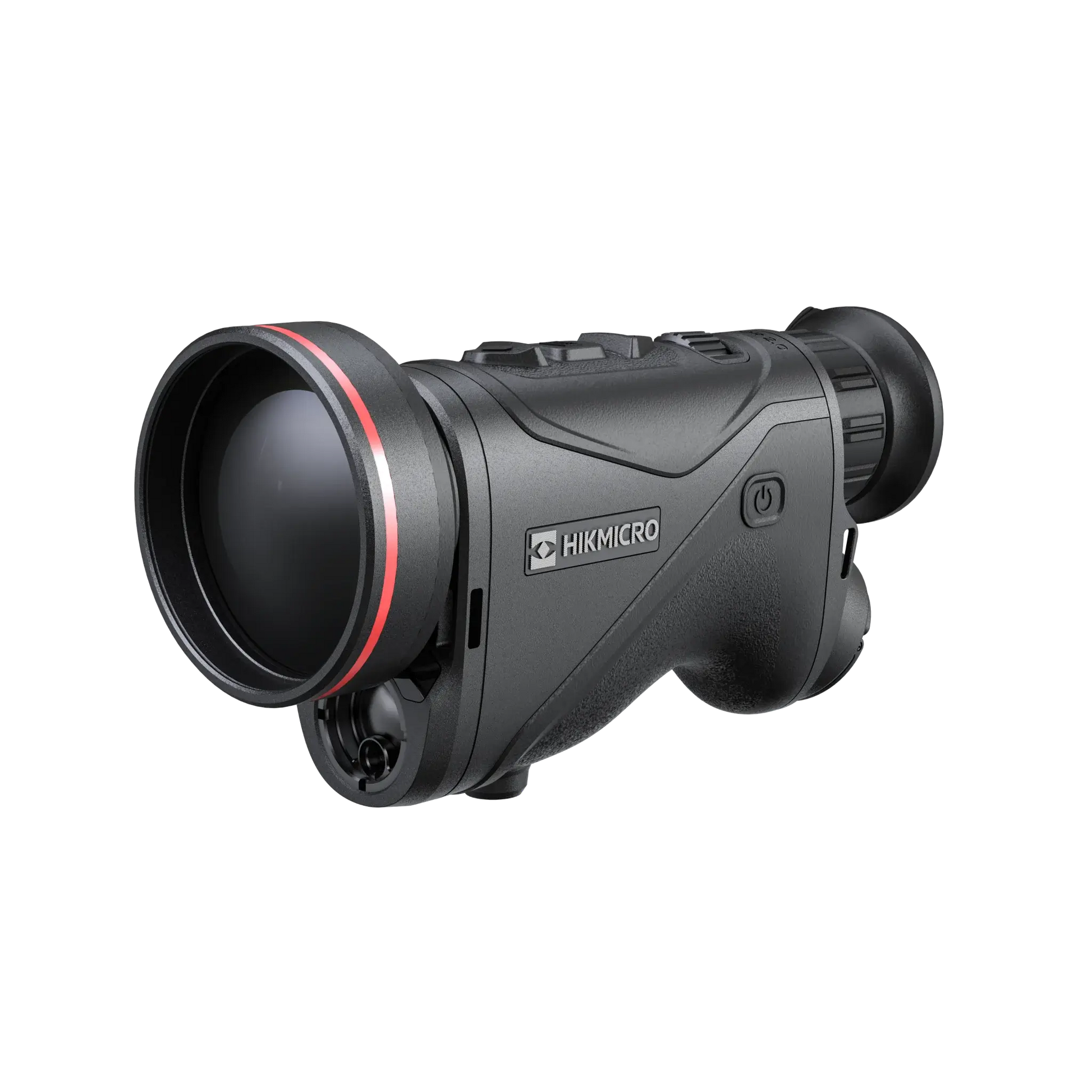

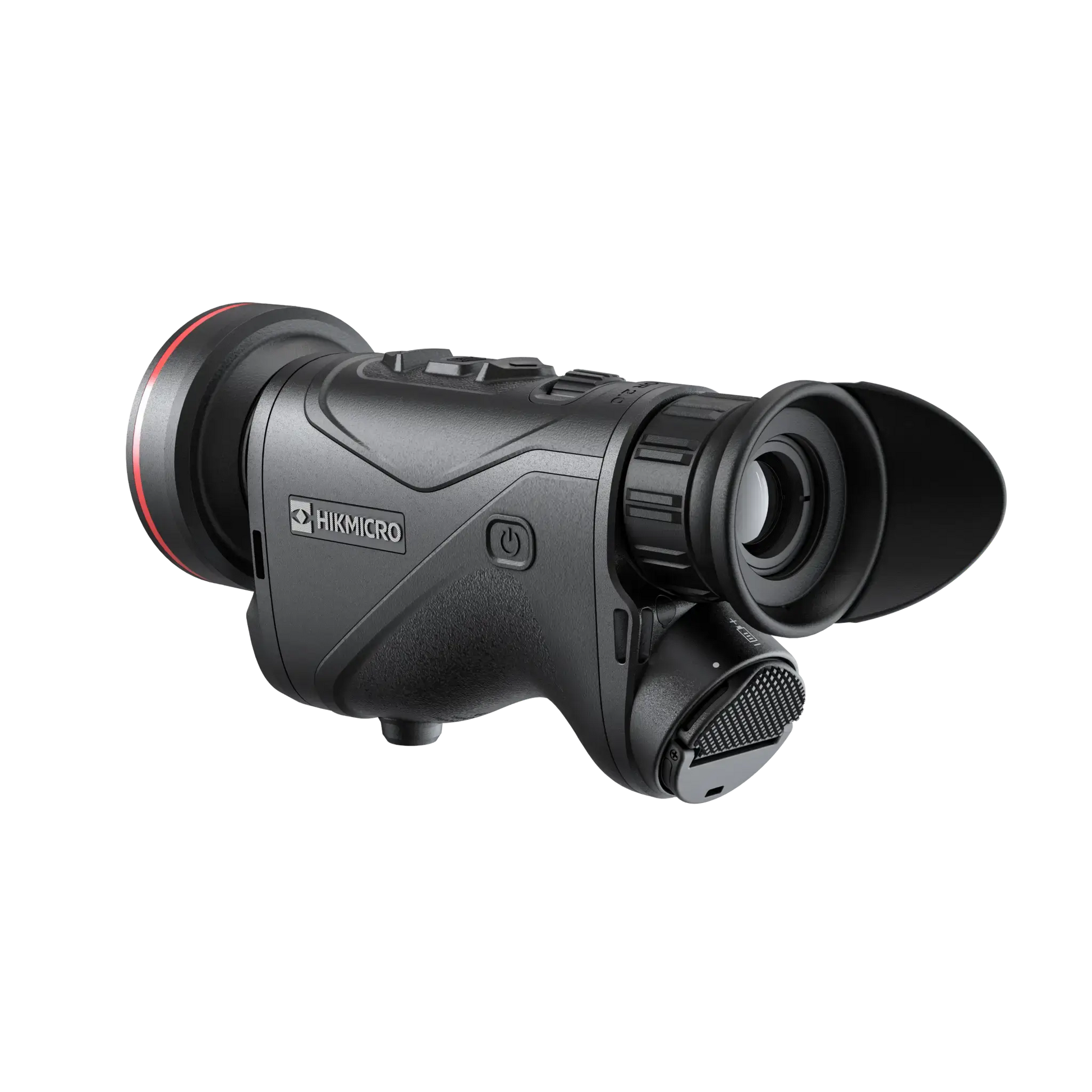

HIKMICRO Condor LRF CQ50L 2.0 - Handheld Thermal Monocular
HIKMICRO Condor LRF CQ50L 2.0 - Handheld Thermal Monocular
Thermal Resolution: 640x512
Thermal Lens: 50mm,f0.9
Detection Distance: 2600m
Free Insured Shipping
Includes Product Lifetime Support
Couldn't load pickup availability
The Hikmicro Condor LRF CQ50L 2.0 is a cutting-edge handheld thermal monocular designed for exceptional clarity and long-range observation. This new version of the Condor series boasts enhanced sensitivity and advanced features, making it a powerful tool for various applications.
Equipped with a highly sensitive 640 × 512 @12 μm thermal detector (NETD < 15 mK), the CQ50L 2.0 captures the finest details even in challenging weather or lighting conditions. The integrated 0.49” 1920 × 1080 larger OLED display and the innovative HIKMICRO Shutterless Image System (HSIS) provide a smooth and immersive viewing experience. Furthermore, the built-in laser rangefinder delivers precise distance measurements up to 1000 meters.
HIKMICRO Condor LRF CQ50L 2.0 Key Features:
- High sensitivity thermal module: NETD < 15 mK (@25°C, F#=1.0)
- High-resolution: 640 × 512 resolution with 12 μm detector
- Crisp OLED display: 1,920 × 1,080 resolution 0.49-inch OLED display
- Long-range detection: 50 mm, F0.9 lens with detection range up to 2,600 m
- Shutterless operation: HIKMICRO Shutterless Image System (HSIS)
- Extended operation: 5 h+ continuous operation time with replaceable and rechargeable 21700 battery
- Portable and ergonomic: 537 g lightweight, ergonomic compact shape
- Accurate distance measurement: Integrated laser rangefinder up to 1,000 m
Share










HIKMICRO Condor LRF CQ50L 2.0 - Handheld Thermal Monocular Detection, Recognition, & Identification Ranges
Detection, recognition, and identification ranges are approximate and based on ideal conditions.
-
Bush Pigs - 100cm
Detection: 2500m
Recognition: 650m
Identification: 320m -
Male Kudu - 150cm
Detection: 4000m
Recognition: 1000m
Identification: 500m -
Elephant - 300cm
Detection: 8200m
Recognition: 2050m
Identification: 1020m
HIKMICRO Condor LRF CQ50L 2.0 - Handheld Thermal Monocular Detailed Specifications
Thermal Module Specifications
Resolution: 640x512
Lens: 50mm,f0.9
NETD: Less than 15 mK (@25°C),F#=1.0
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
Frame Rate: 50Hz
Zoom: 2.7×-21.6x (8x)
Focus Mode: Rear focus wheel
Display
Screen: OLED, 1920x1080, 0.49 inch
Field of View: 8.7° x7.0°/15.2m x 12.2m@100m
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Laser Range Finder
Laser Safety Class: Class 1
LRF Wavelength: 905nm
Max Measurement Range: 1000m
Min Measurement Range: 10m
Accuracy: ±1m
System Functions
Storage: Built-in EMMC (64GB)
Notable features: Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode : Yes
Storage: Built-in Module (64 GB)
PIP: Yes
Hotspot: 2.4/5 G Wi-Fi Waveband
Hot Track: Yes
Distance Measurement: Yes
Local Album: Yes
Battery & Power
Battery Life: ≥6.5h (@25°C, WiFi, Zoom Pro, LRF on)
Power Supply: 5V DC, 2A Supports External Power Supply, Support Direct Charging
Battery Type: Replaceable and rechargeable 21700 battery
General
Operating Temperature: From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
Ingress Protection: IP67
Dimensions: 193 mm × 71.5 mm × 93.3mm, 537g with Battery
SKU: HM-TSD6-50S2G/W1L-CQ50L 2.0
Package Contents
HIKMICRO Condor LRF CQ50L 2.0 Handheld Thermal Monocular
Neck Strap
Hand Strap
Lens Cloth
Quick Start Guide
Protective Bag
Power Cable
Battery (x2)
Battery Charger
