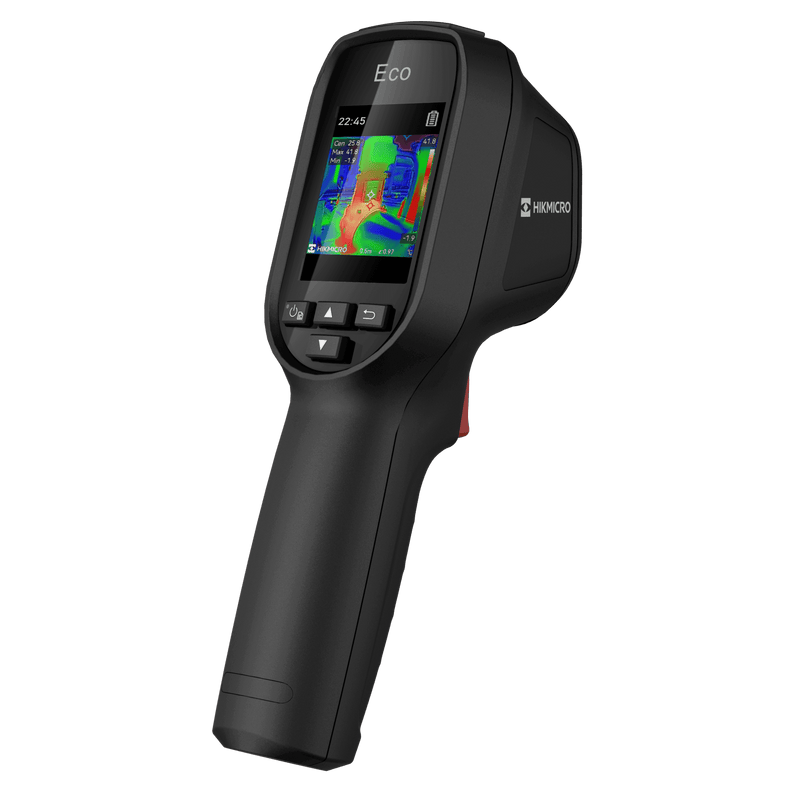

• Screen and Button View of the HikMicro Eco Handheld Thermal Imaging Camera

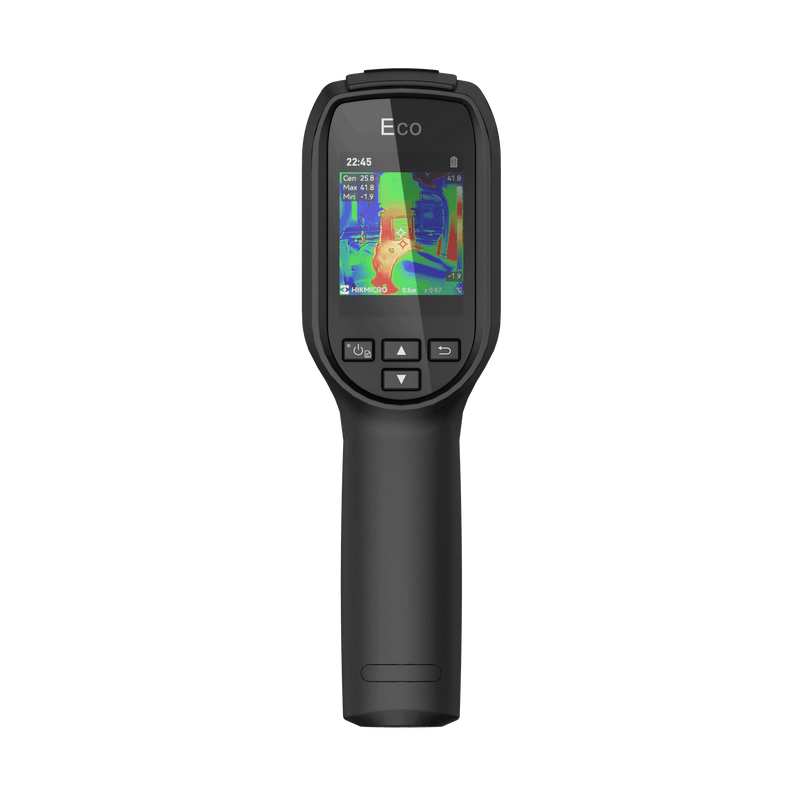

  • HikMicro Eco Handheld Thermal Imaging Camera Rear View
  • HikMicro Eco Handheld Thermal Imaging Camera Rear Left View
  • HikMicro Eco Handheld Thermal Imaging Camera Left Side Profile View
  • HikMicro Eco Handheld Thermal Imaging Camera View of Front
  • HikMicro Eco Handheld Thermal Imager Full screen precise temperature measurement
  • HikMicro Eco Handheld Thermal Imager Wide angle lens
  • HikMicro Eco Handheld Thermal Imager Digitally upscale thermal images with SuperIR
  • HikMicro Eco Handheld Thermal Imager Rugged Device IP54 2m Drop Test
  • HikMicro Eco Handheld Thermal Imager Has up to 8 Hours of battery life with continuous operation
1 10

HikMicro Eco Handheld Thermal Imaging Camera

  • Thermal Resolution: 96x96 px
  • Thermal Lens: 1.35mm
  • Pixel Interval: 12µm
  • NETD: < 50mK
  • Thermal FOV: 50 × 50°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 5,599.00
Special Order
Including VAT • Includes Shipping

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay
Split your purchase with interest-free payments from R 933.16/m

Make your first payment today, then monthly over 2–6 months.

Request a Quote

Please provide your details below and our team will contact you shortly with a customized quote for HikMicro Eco Handheld Thermal Imaging Camera.

SKU: HM-TP30-1AQF-Eco
Key Features & Highlights

HikMicro Eco Handheld Thermal Imaging Camera Key Features:

  • Superior Thermal Imaging Quality with SuperIR: The HikMicro Eco stands out with its 96x96 IR resolution, bolstered by the advanced SuperIR function. This feature enhances image clarity and detail, even in challenging conditions, making it easier to identify issues and conduct thorough diagnostics.
  • Enhanced Sensitivity: A NETD of <50mK ensures detection of subtle temperature differences, vital for precise diagnostics in industrial and technical settings.
  • Wide Field of View: Offering a 50° x 50° field of view and a 1.35mm focal length, the camera allows for extensive area scanning.
  • User-Friendly Operation: Designed for simplicity, with a focus-free lens and intuitive controls, suitable for both experts and novices.
  • Effortless Media Capture and Storage: The HikMicro Eco features substantial internal storage, allowing for the capture and one-click storage of IR images. This function makes it simple to document and review thermal data for analysis and reporting.
  • Durable and Portable: Robust design with an IP54 rating and 2-meter drop test durability ensures reliability in tough working conditions.
  • Long Battery Life: Up to 8 hours of continuous operation, ideal for prolonged field use.
Product Overview

The HikMicro Eco Handheld Thermal Imaging Camera is a paradigm of excellence in thermal imaging technology. Tailored for professionals in various industries, it offers a compact yet powerful solution for precise thermal analysis and diagnostics.

This device is notable for its 96x96 thermal resolution and a NETD of <50mK, enabling the capture of fine temperature differences with high accuracy. The HikMicro Eco is perfect for applications including equipment maintenance, electrical inspections, and HVAC troubleshooting, ensuring detailed and informative thermal images.

More information on the HikMicro Eco Handheld Thermal Imager:

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Thermal Resolution96 x 96
Pixel Pitch12 µm
NETD< 50 mK
Thermal Lens1.35 mm
Field of View50° × 50°
Frame Rate25 Hz
Thermography & Measurement
Measurement Range-20°C to 550°C
Temperature AccuracyMax. (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)
System & Display
Display Info240 × 320 Resolution, 2.4”LCD Screen
Storage Capacity4
Battery Life8
Physical & Environmental
Protection Level (IP Rating)IP54
Operating Temperature-00°C to 50°C
Dimensions & Weight196mm × 117mm × 59mm; <290g
