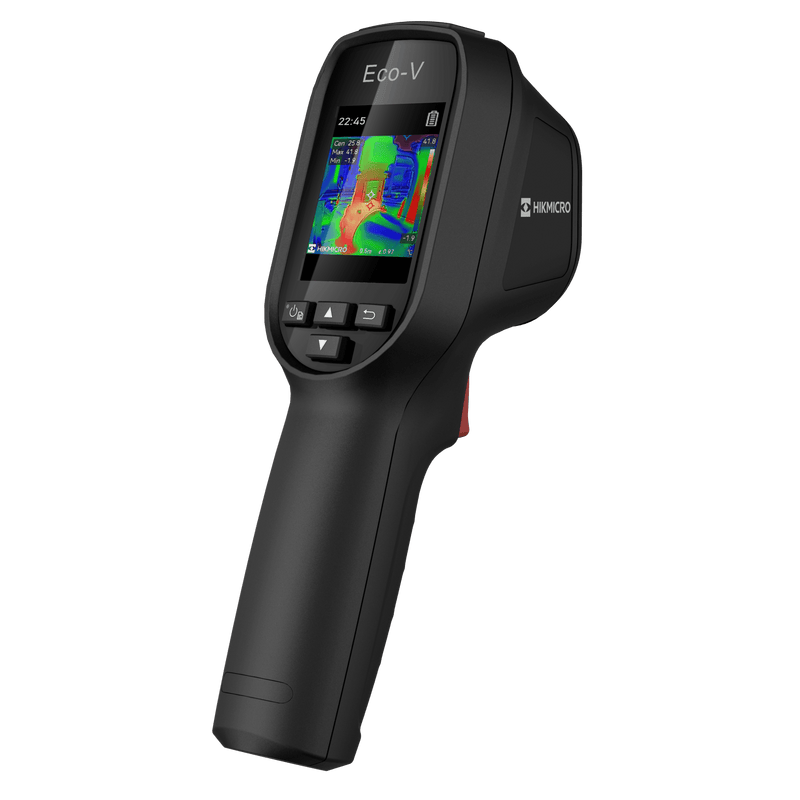

• Rear Right Hand View of the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager

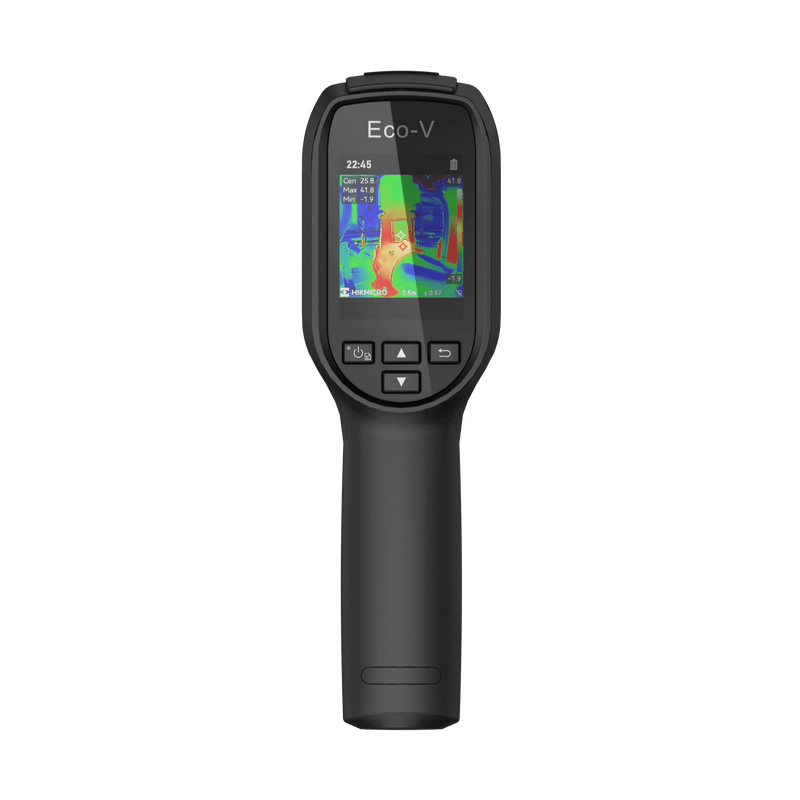

  • Screen and button view of the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager
  • Rear Left View of the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager
  • Left Side Profile view of the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager
  • Front Left View of the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager
  • Built in Thermal and Visual Camera on the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager
  • Get precise temperature measurement with the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager
  • Scan larger areas quickly with the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager
  • SuperIR enhanced thermal clarity from the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager
  • the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager is both rugged and durable
  • Get 8 hours of continuous use from the Bi-Spectrum HikMicro Eco-V Handheld Thermal Imager
1 11

HikMicro Eco-V Bi-Spectrum Handheld Thermal Imager

  • Thermal Resolution: 96x96
  • Thermal Lens: 1.35mm
  • Pixel Interval: 12µm
  • NETD: < <50mK
  • Thermal FOV: 50 × 50°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 7,949.00 R 9,635.00
Sale
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for HikMicro Eco-V Bi-Spectrum Handheld Thermal Imager.

SKU: HM-TP30-1AQF-Eco-V
Key Features & Highlights

HikMicro Eco-V Bi-Spectrum Handheld Thermal Imager Key Features:

  • Innovative Bi-Spectrum Technology: The dual thermal and visual imaging functionality sets the Eco-V apart, offering a more thorough and insightful diagnostic experience.
  • High-Quality Thermal Imaging: A 96x96 thermal resolution, powered by SuperIR technology, ensures detailed and clear images, essential for precise diagnostics.
  • Advanced Sensitivity for Accuracy: The NETD of <50mK highlights its capability as a superior handheld thermal imager, detecting subtle temperature variations effortlessly.
  • Efficient Image Storage: Equipped with 4 GB of internal storage, allowing for easy, one-click storage of approximately 30,000 images, streamlining the documentation process.
  • Extended Operational Duration: Up to 8 hours of continuous use, ideal for comprehensive field operations.
  • Durable and User-Friendly Design: Built to endure challenging environments, with an IP54 rating and a 2-meter drop test resilience.
Product Overview

Introducing the HikMicro Eco-V Handheld Bi-Spectrum Thermal Imaging Camera, a game-changer in the world of handheld thermal imagers. This device is an essential asset for professionals who require a versatile and powerful thermal imaging solution.

The Eco-V distinguishes itself with its bi-spectrum capabilities, seamlessly combining thermal and visual imaging. This unique feature enables users to overlay visual and thermal images, providing enhanced diagnostics and a more comprehensive analysis. With a thermal resolution of 96x96 and a NETD of <50mK, it captures intricate temperature differences with precision, making it perfect for a wide range of applications, from industrial maintenance to electrical inspections.

More information on the HikMicro Eco-V Handheld Thermal Imager:

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Thermal Resolution96x96
Pixel Pitch12 µm
NETD< <50 mK
Thermal Lens1.35 mm
Focal Ratio (Aperture)F1.0
Field of View50° × 50°
Spatial Resolution8.89 mrad
Min. Focusing Distance0.1
Focus ModeFocus Free
Frame Rate25 Hz
Precision, Optics & Lasers
Laser PointerYes, Class II
Thermography & Measurement
Measurement Range-20°C to 150°C
Temperature AccuracyMax (± 2°C/3.6° F, ± 2%) at ambient temperature 25°C
Measurement ModesThermometer mode, Measurements presets
Level & Span ModeAuto/Manual
Alarm ConditionsMore than, Less than
Alarm IndicationAlarm Mode Palettes
System & Display
Display Info240 × 320 Resolution, 2.4”LCD Screen
Screen BrightnessYes
Screen ContrastYes
Color PalettesWhite Hot, Black Hot, Rainbow, Ironbow, Red hot, Fusion, Blue Yellow
Image EnhancementWater Leak Scene, Insulation Scene
Image ModesThermal
Storage Capacity4
Battery TypeRechargeable Li-ion battery
Battery Life11
Connectivity & Software
Wi-Fi HotspotYes
Video StreamingOver UVC
USB ConnectivityType-C
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP54
Operating Temperature-10 °C to 50 °C
Dimensions & Weight196 × 117 × 59 mm; 290g
Other Hardware FeaturesSuperIR
What's in the Box
Box ContentsHikmicro ECO-V Thermal Camera
QSG
USB 2.0 A to USB Type-C Cable
Wrist Strap
Calibration Certificate
