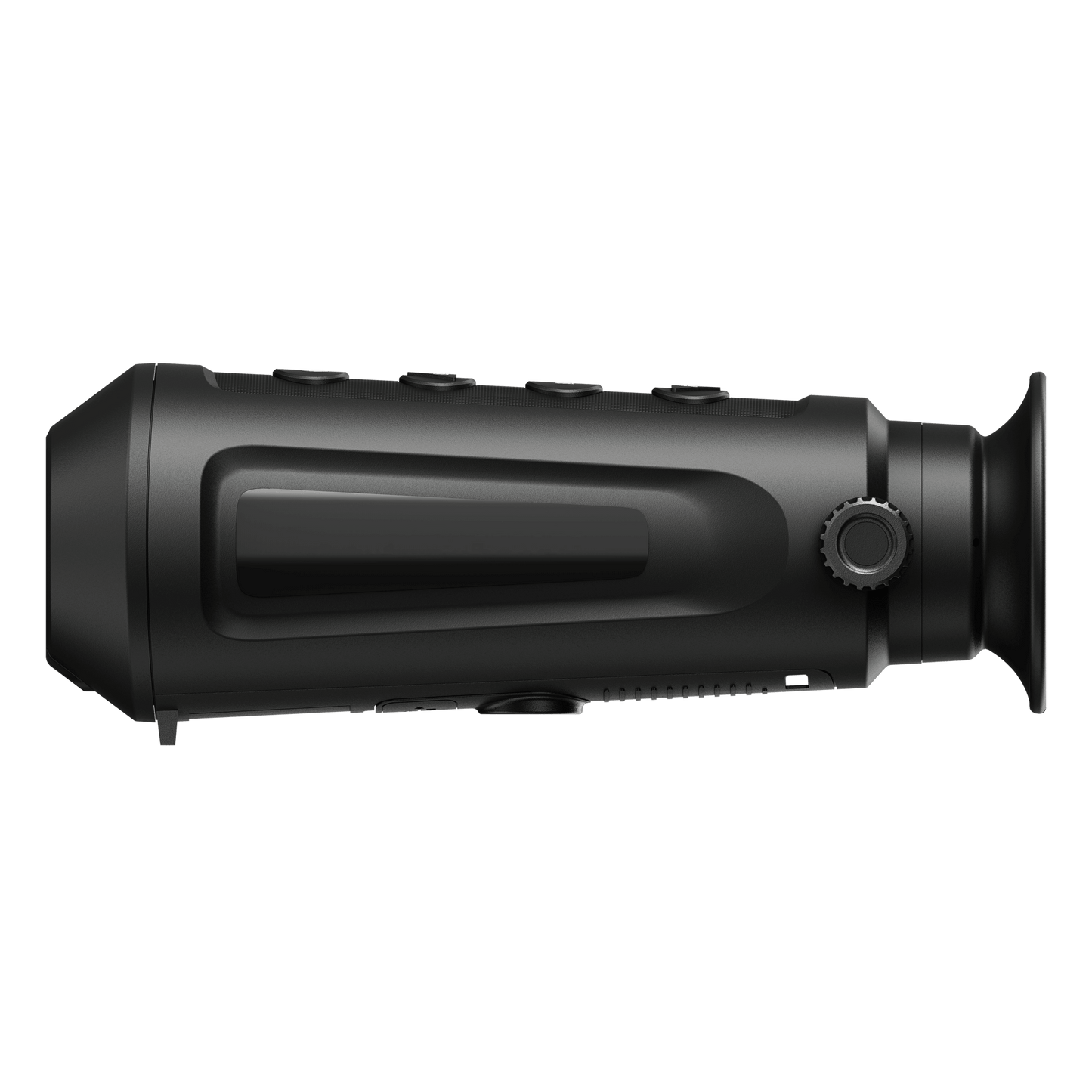

HikMicro Lynx LC06S Thermal Monocular
HikMicro Lynx LC06S Thermal Monocular
Thermal Resolution: 160x120px
Thermal Lens: 6.2mm/f1.1
Detection Distance: 250m
Free Insured Shipping
Includes Product Lifetime Support
Couldn't load pickup availability
The HikMicro Lynx LC06S unlocks the power of enhanced thermal vision. The second generation Lynx LC06S is a sophisticated handheld monocular that delivers unparalleled clarity and precision. Featuring a 160×120 thermal resolution, the LC06S allows you to detect heat signatures in complete darkness or through obscurants like smoke and foliage. Its exceptional NETD of <35 mK ensures detailed imaging even in challenging weather conditions. Experience the next level of handheld thermal observation with the Lynx LC06S. Perfect for outdoor enthusiasts, security professionals, and more, this device stands as a testament to HikMicro's commitment to innovation and quality. View our Thermal Monocular Collection here.
HikMicro Lynx LC06S Thermal Monocular Key Features:
- High-Resolution Thermal Imaging: 160×120 resolution for clear, detailed views.
- Exceptional Sensitivity: NETD <35 mK for superior image quality.
- Extended Viewing Range: Effective for observing distant objects in various environments.
- User-Friendly Interface: Intuitive controls for seamless operation.
- Long Battery Life: Up to 10 hours of continuous use on a single charge.
- Robust Design: Durable and reliable for use in all weather conditions.
- Portable and Lightweight: Ideal for on-the-go scouting, surveillance, and exploration.
More Lynx LC06S Thermal Imaging Monocular Information:
Share




HikMicro Lynx LC06S Thermal Monocular Detection, Recognition, & Identification Ranges
Detection, recognition, and identification ranges are approximate and based on ideal conditions.
-
Bush Pig - 100cm
Detection: 250m
Recognition: 50m
Identification: 25m -
Deer - 150cm
Detection: 350m
Recognition: 85m
Identification: 40m -
Elephant - 300cm
Detection: 700m
Recognition: 150m
Identification: 80m
HikMicro Lynx LC06S Thermal Monocular Detailed Specifications
Thermal Module Specifications
Resolution: 160x120px
Lens: 6.2mm/f1.1
NETD: <35mK
Pixel Interval: 17μm
Response Waveband: 8-14μm
Frame Rate: 50Hz
Zoom: 1.0x to 4.0x (4x)
Focus Mode: Focus Free
Display
Screen: 800x600 OLED
Field of View: 24.7° × 18.7° / 43.8 × 32.9m (HxV) @ 100m
Palettes: Black Hot, White Hot, Red Hot, Fusion
System Functions
Storage: 8Gb Built-in
Notable features: Wi-Fi
HikMicro Sight Smartphone App
Records photos & videos
Picture-in-Picture Mode
Hotspot Tracking
Distance Measurement
20mm Exit Pupil with 6mm Eye Relief
CVBS
Battery & Power
Battery Life: 10 hours: CVBS and hotspot off. 8.5 hours: CVBS and hotspot on (@25°C)
Power Supply: DC 5V 2A USB-C (Supports Power Bank)
Battery Type: Rechargeable Lithium Battery (Not removable)
General
Operating Temperature: -20°C to 55°C
Ingress Protection: IP67
Dimensions: 158.4 × 60.4 × 57 mm (250g)
SKU: HM-TS01-06S1F/W-LC06S
Package Contents
Quick Start Guide
Non-Dust Cloth
Usb-cable
Protective Bag
Wrist Strap
