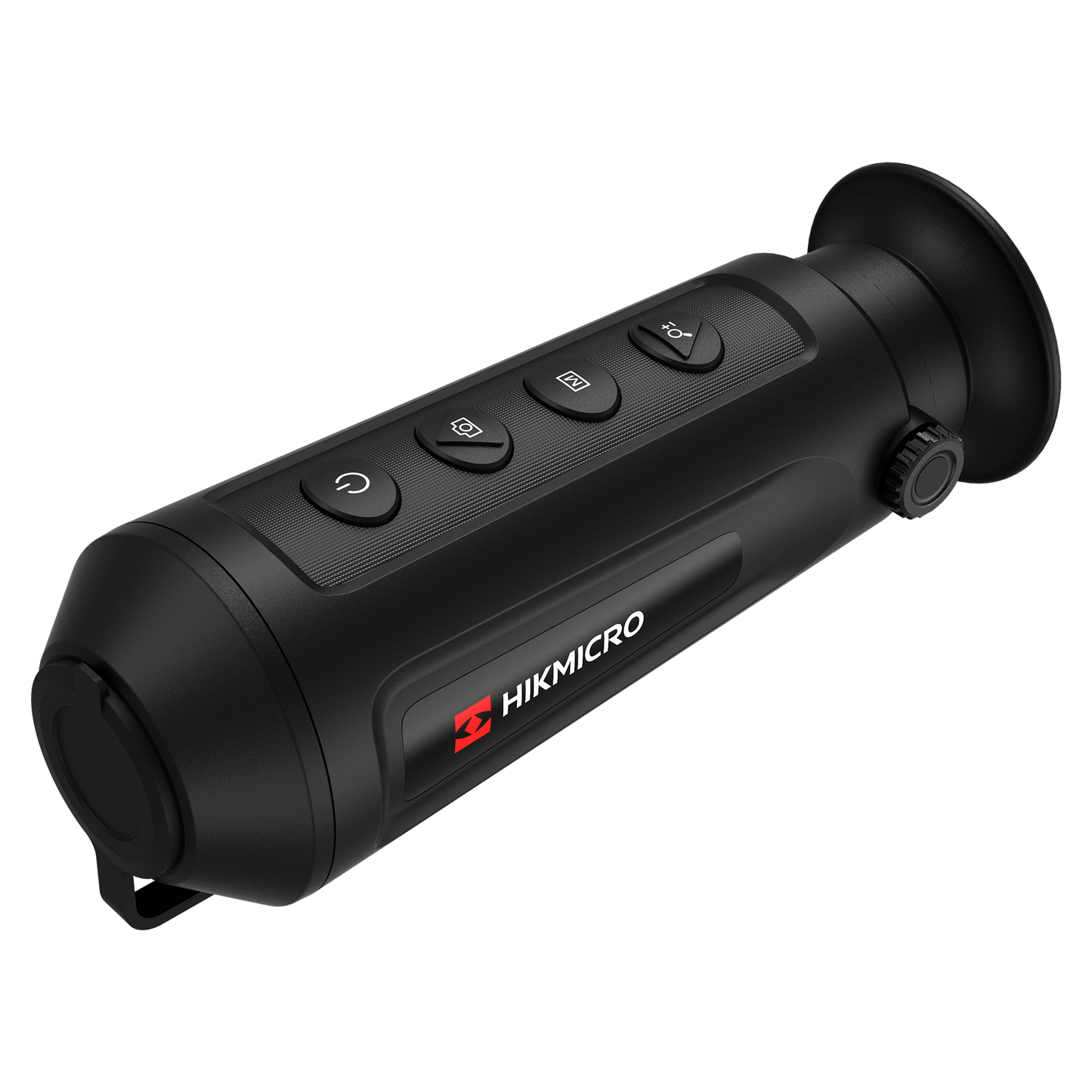

• Lynx Pro LE10S Thermal Monocular front left view with HikMicro logo and diopter adjustment

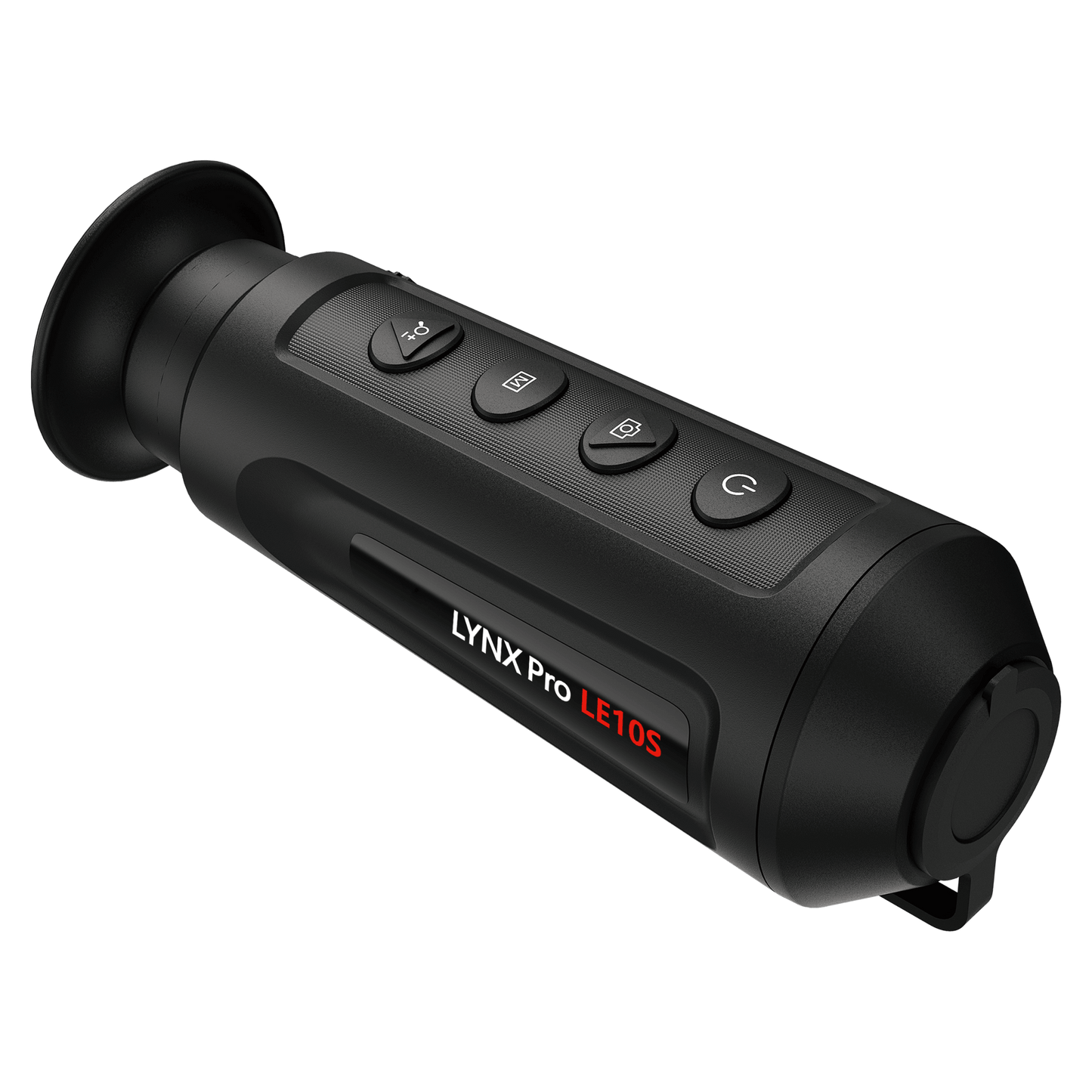

  • Lynx Pro LE10S Thermal Monocular front right view showing product variant

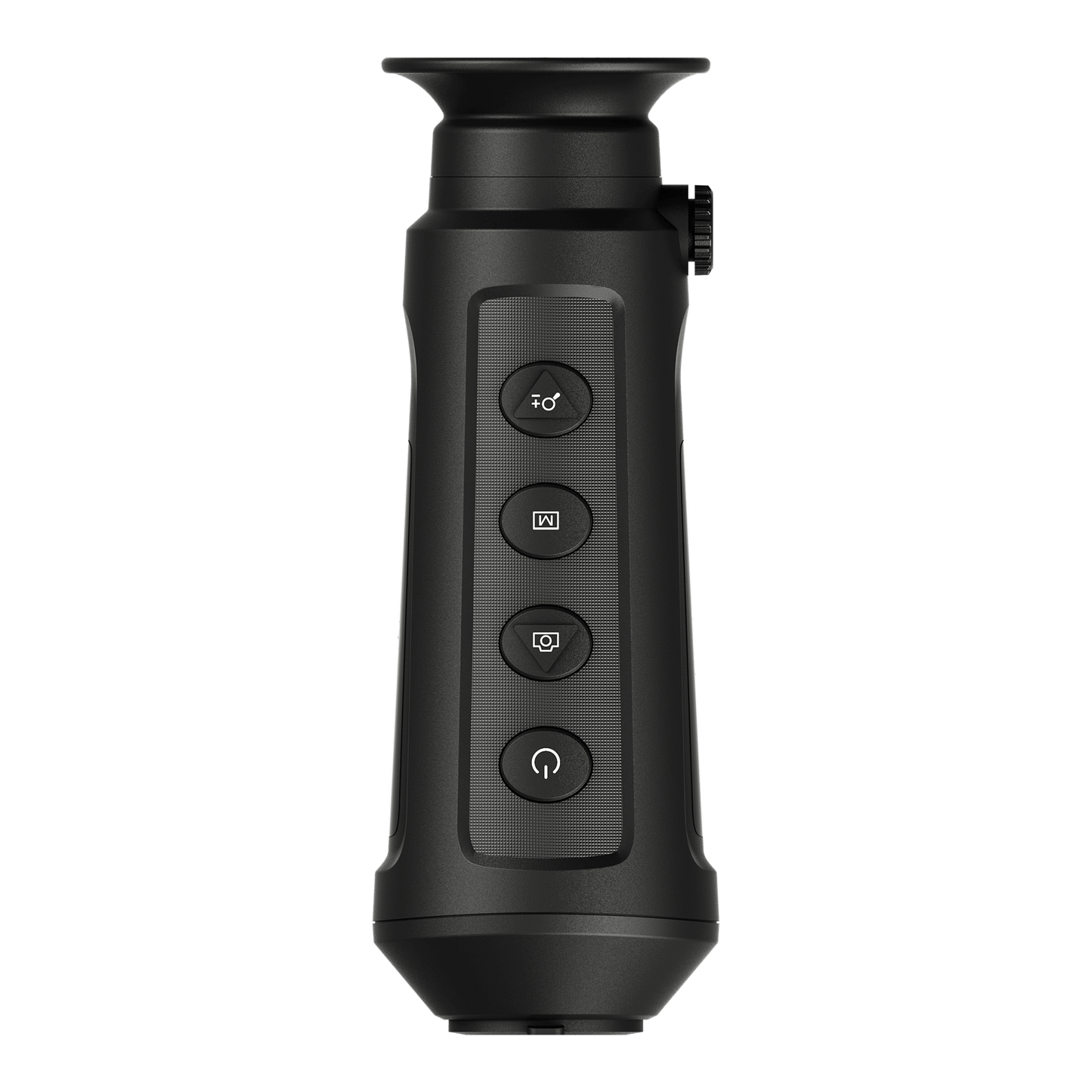

  • Lynx Pro LE10S Thermal Monocular top view showing easy-to-use navigation buttons

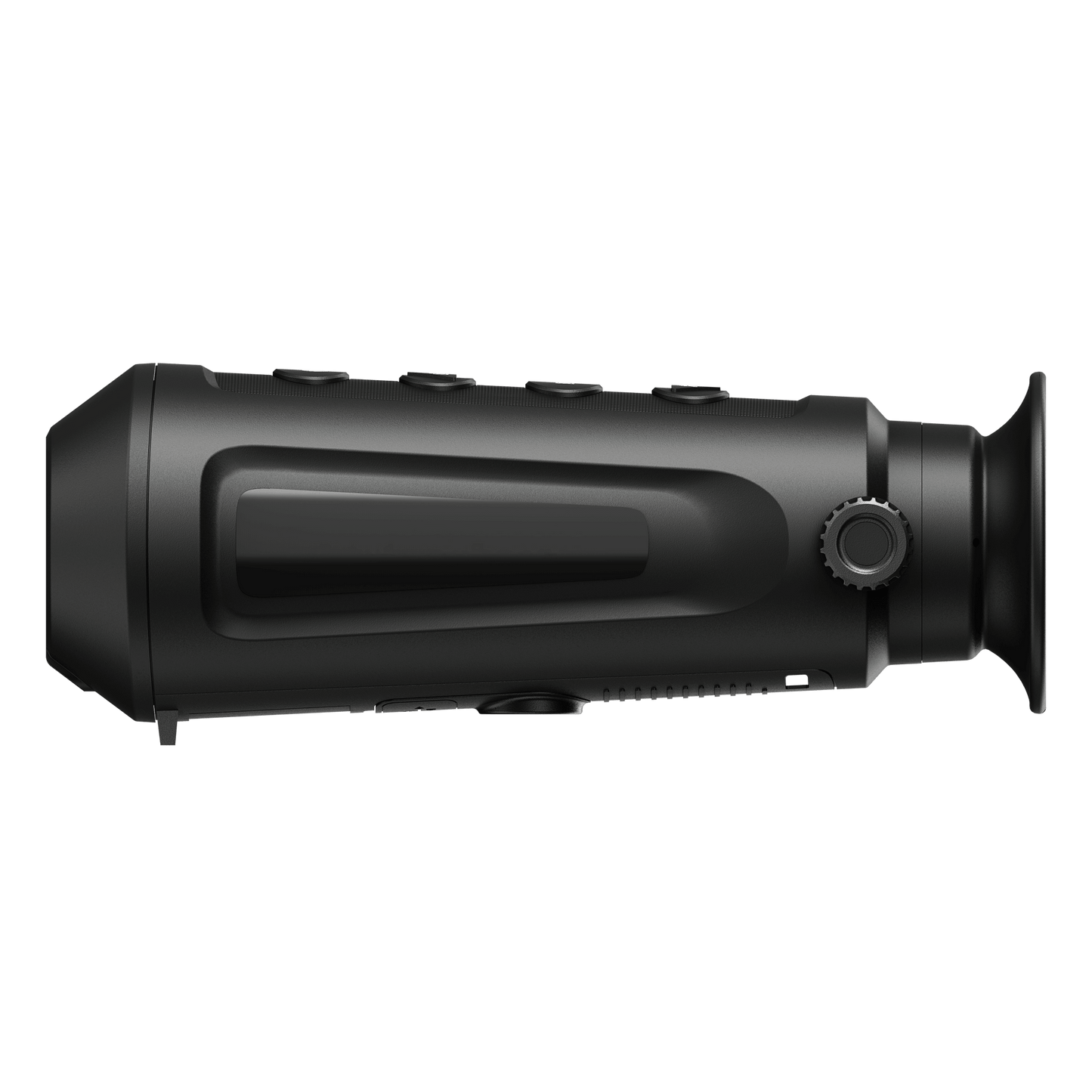

  • Lynx Pro LE10S Thermal Monocular side view
1 4

HikMicro Lynx Pro LE10S Thermal Monocular

HikMicro Lynx Pro LE10S Thermal Monocular

  • Thermal Resolution: 256x192px
  • Thermal Lens: 9.7mm/f1.0
  • Detection Distance: 500m

  • Free Insured Shipping
  • Includes Product Lifetime Support
R 10,799.00 ZAR
R 10,799.00 ZAR
Sale Sold out
Shipping calculated at checkout.

The HikMicro Lynx Pro LE10S is an exceptional handheld thermal monocular designed for precision and clarity. With its 256×192 thermal resolution, the LE10S enables accurate detection of heat signatures in various environments, whether in complete darkness or through challenging visual conditions. Its NETD of <35 mK guarantees sharp imaging, critical for detailed observation and analysis. Embrace the advanced capabilities of the Lynx Pro LE10S for your outdoor, security, or exploration needs.

HikMicro Lynx Pro LE10S Thermal Monocular Key Features:

  • Detailed Thermal Imaging: 256x192 resolution enhances your ability to observe subtle thermal variations.
  • Superior Sensitivity: NETD <35 mK ensures clear images, crucial for accurate identification.
  • Extended Operation: Up to 8 hours of continuous use, ideal for lengthy missions or outdoor adventures.
  • Durable and Compact: Built to endure tough conditions while being portable for ease of movement.
  • User-Friendly Design: Intuitive interface for efficient operation and quick adaptation.

More Lynx Pro LE10S Thermal Imaging Monocular Information:

View full details

HikMicro Lynx Pro LE10S Thermal Monocular Detection, Recognition, & Identification Ranges

Detection, recognition, and identification ranges are approximate and based on ideal conditions.

  • Thermal image of a group of pigs, likely Kunekune pigs, taken with a HikMicro Condor CQ50L Thermal Monocular. Their heat signatures are visible in shades of orange and yellow against a cool purple background.

    Bush Pig - 100cm

    Detection: 500m

    Recognition: 120m
    Identification: 60m

  • Thermal image of a deer standing in a field, showcasing the detail and clarity of the Pulsar Axion 2 XQ35 Pro thermal monocular.

    Deer - 150cm

    Detection: 800m

    Recognition: 200m
    Identification: 100m

  • HikMicro Condor CQ50L captures stunning thermal image of elephants drinking at a watering hole in the African savanna. The high-resolution thermal monocular reveals intricate details of their heat signatures, even in low-light conditions.

    Elephant - 300cm

    Detection: 1600m

    Recognition: 400m
    Identification: 200m

1 3

HikMicro Lynx Pro LE10S Thermal Monocular Detailed Specifications

Thermal Module Specifications

Resolution: 256x192px

Lens: 9.7mm/f1.0

NETD: <35mK

Pixel Interval: 12μm

Response Waveband: 8-14μm

Frame Rate: 50Hz

Zoom: 1.5x to 12.0x (8x)

Focus Mode: Focus Free

Display

Screen: 800x600 OLED

Field of View: 18.0° × 13.6° / 31.7 × 23.8 m (HxV) @ 100m

Palettes: Black Hot, White Hot, Red Hot, Fusion

System Functions

Storage: 8Gb Built-in

Notable features: Wi-Fi
HikMicro Sight Smartphone App
Records photos & videos
Picture-in-Picture Mode
Hotspot Tracking
Distance Measurement
20mm Exit Pupil with 6mm Eye Relief
CVBS

Battery & Power

Battery Life: 8 hours: CVBS and hotspot off. 6 hours: CVBS and hotspot on (@25°C)

Power Supply: DC 5V 2A USB-C (Supports Power Bank)

Battery Type: Rechargeable Lithium Battery (Not removable)

General

Operating Temperature: -20°C to 55°C

Ingress Protection: IP67

Dimensions: 158.3 × 61 × 57 mm (260g)

SKU: HM-TS02-10S1G/W-LE10S

Package Contents

Quick Start Guide
Non-Dust Cloth
Usb-cable
Protective Bag
Wrist Strap
