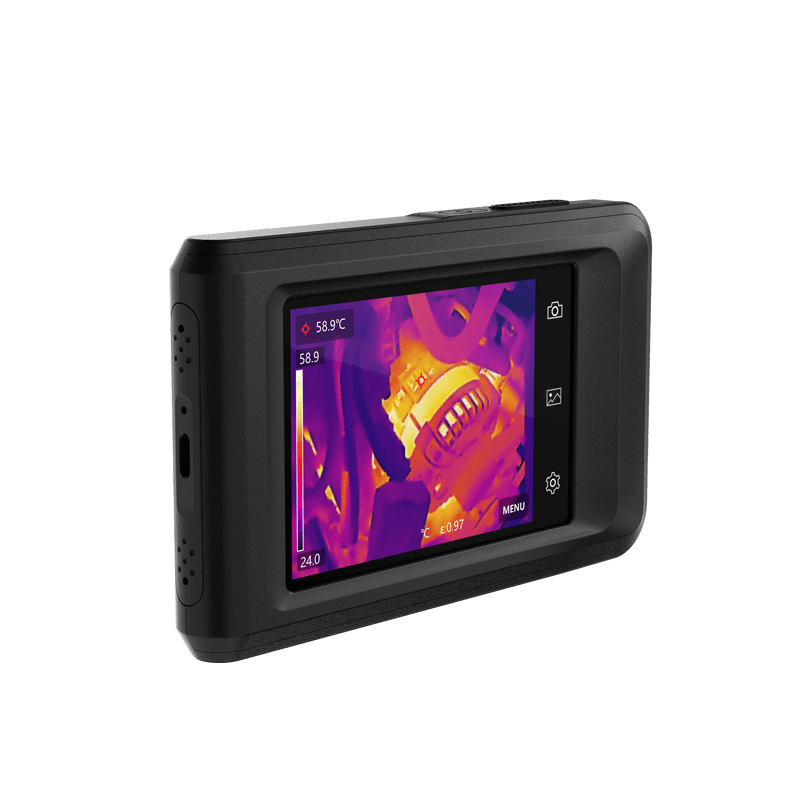

• HikMicro Pocket2 Handheld Thermal Imager Rear Left View Showing Screen and charging port

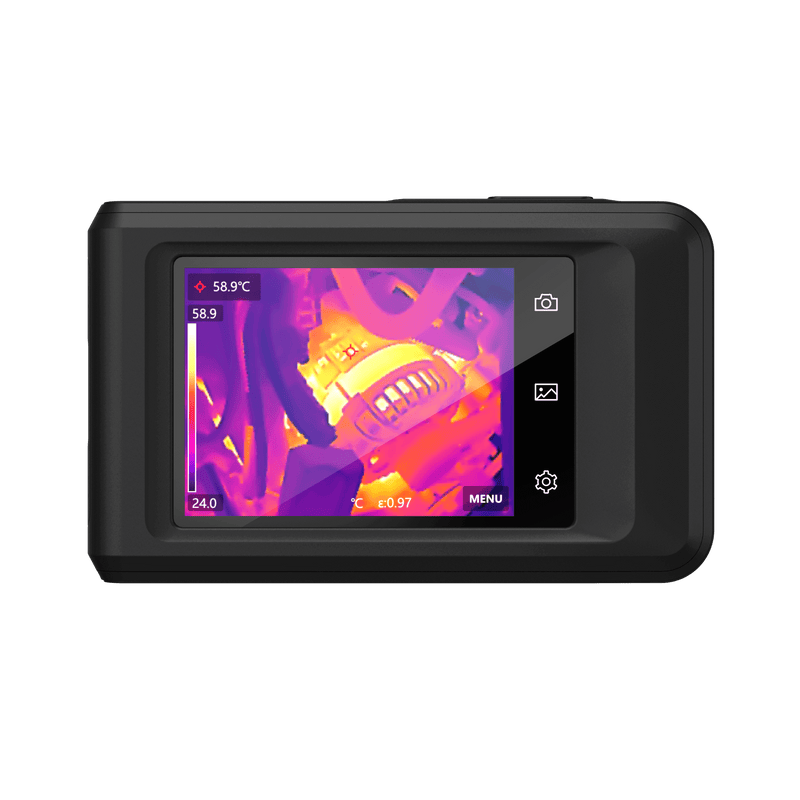

  • HikMicro Pocket2 Handheld Thermal Imager Screen View
  • HikMicro Pocket2 Handheld Thermal Imager Front View from Right hand Side showing dual thermal and optical lenses
  • HikMicro Pocket2 Handheld Thermal Imager Front Lens View
  • HikMicro Pocket2 Handheld Thermal Imager Front View from Below
  • HikMicro Pocket2 Handheld Thermal Imager Screen view from above showing power and image capture button
  • HikMicro Pocket2 Handheld Thermal Imager Key Specifications
  • HikMicro Pocket2 Handheld Thermal Imager Outstanding Image Quality
  • HikMicro Pocket2 Handheld Thermal Imager Portable Pocket Sized Power
  • HikMicro Pocket2 Handheld Thermal Imager Fast Wireless Communication
  • HikMicro Pocket2 Handheld Thermal Imager Instantly improve image contrast to highlight potential problems
  • HikMicro Pocket2 Handheld Thermal Imager used to inspect HVAC
  • HikMicro Pocket2 Handheld Thermal Imager used to test oven appliance
1 14

HikMicro Pocket2 Bi-Spectrum Handheld Thermal Imager (3.5mm) (256x192)

  • Thermal Resolution: 256x192
  • Thermal Lens: 3.5mm
  • Pixel Interval: 12µm
  • NETD: < 40mK
  • Thermal FOV: 50 × 37.2°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 28,799.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for HikMicro Pocket2 Bi-Spectrum Handheld Thermal Imager (3.5mm) (256x192).

SKU: HM-TP42-3AQF/W-Pocket2
Key Features & Highlights

HikMicro Pocket2 Handheld Thermal Imager Key Features:

  • High-Resolution Thermal Imaging: With a 256x192 IR resolution, the Pocket2 captures detailed thermal data, ensuring that no heat pattern goes unnoticed.
  • Integrated Visual Camera: An 8MP optical camera complements the thermal sensor, providing clear visual context to your thermal readings.
  • Portable and Pocket-Sized: The Pocket2’s ergonomic design fits comfortably in your hand and pocket, making it your go-to tool for quick and easy field assessments.
  • Rugged and Durable: Built to last with a robust casing that’s ready for any industrial or outdoor environment.
  • Intuitive 3.5" LCD Touch Screen: Navigate through menus and images with a user-friendly interface that responds to your touch.
  • Fast Troubleshooting: Identify issues quickly with features like on-camera recording for capturing real-time thermal data and fast communication via Wi-Fi for immediate sharing.
  • Versatile Imaging: Choose from 4 image modes and 7 color palettes to visualize thermal data in a way that works best for you.
  • Long-Lasting Battery Life: Stay operational throughout the day with a battery that keeps up with the demands of rigorous fieldwork.
Product Overview

The HikMicro Pocket2 Bi-Spectrum Thermography Camera sets a new standard for handheld thermal imaging technology. With a 256x192 IR resolution, this device offers high-fidelity thermal images, capturing detailed temperature variations crucial for thorough inspections. The integrated 8MP visual camera provides clear visual context to thermal data, enhancing diagnostic accuracy. The camera's compact design does not compromise on durability, offering a robust casing suitable for industrial environments. An intuitive 3.5-inch LCD touchscreen streamlines operation, while built-in Wi-Fi capabilities facilitate quick data transfer and remote viewing, bolstering efficiency in field operations.

More information on the HikMicro Pocket2 Handheld Thermography Camera:

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Purchased: Nocpix Bolt L35R Thermal Riflescope | LRF & Ballistics
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

HikMicro Lynx Pro LE15S Thermal Monocular
Purchased: HikMicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Thermal Resolution256x192
Pixel Pitch12 µm
NETD< 40 mK
Thermal Lens3.5 mm
Focal Ratio (Aperture)F1.1
Field of View50° × 37.2°
Spatial Resolution3.43 mrad
Min. Focusing Distance0.3 m (0.98 ft)
Focus ModeFocus Free
Frame Rate25 Hz
Spectral Range7.5 to 14 μm
Optical & Night Vision
Optical Resolution3264 × 2448 (8 MP)
Thermography & Measurement
Measurement RangeRange -20°C to 150°C (-4°F to 302°F)
Temperature AccuracyMax (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
Measurement ModesMeasurements presets (center spot, max spot, min spot, off)
Level & Span ModeAuto/Manual/1-Tap Touch-screen
Alarm ConditionsMore than, Less than
Alarm IndicationFlashing Alarm, Audible Warning, Alarm Mode Palettes
AnnotationsText note: max. 255 characters
System & Display
Display Info640 × 480 Resolution, 3.5" LCD Touch Screen with auto-rotation
Screen BrightnessManual
Digital Zoom1.0x to 4.0x continuous
Color PalettesWhite Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Image EnhancementSuperIR
Image ModesThermal, Visual, Fusion, PIP, Blending
Storage Capacity16Gb
Media CapacityApprox. 60,000 Images or Approx. 90 hours
Media FormatRadiometric JPEG, MP4 video (25 Hz), Radiometric video (5 Hz)
Battery Type Battery Operating Time
Battery Life4h
Charge TimeApprox. 2.5 hours fully charged
Power SupplyUSB-C (5V/2A)
Power Saving FeaturesAuto Power-off and manual sleep
Battery Indicator HUDYes
Connectivity & Software
Wi-Fi Hotspot802.11 b/g/n (2.4 GHz and 5 GHz)
Video StreamingOver UVC and Wi-Fi
USB ConnectivityUSB Type-C
Supported OSAndroid, iOS, Windows
Software & AnalysisHIKMICRO Analyzer (Windows): https://www.hikmicrotech.com/en_us/support/download-center/software-download/
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP54
Drop Test Rating2 m (6.56 ft)
Operating Temperature-10°C to 50°C
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Relative Humidity< 95% non-condensing
Dimensions & Weight138.5mm × 85.2mm × 23.6mm; <218g
Tripod MountingUNC 1/4"-20
Other Hardware FeaturesBuilt-in LED light
What's in the Box
Box ContentsPocket2 Thermal Camera
Quick Start Guide
Power Supply
USB Cable
Carrying Pouch
Wrist Strap
