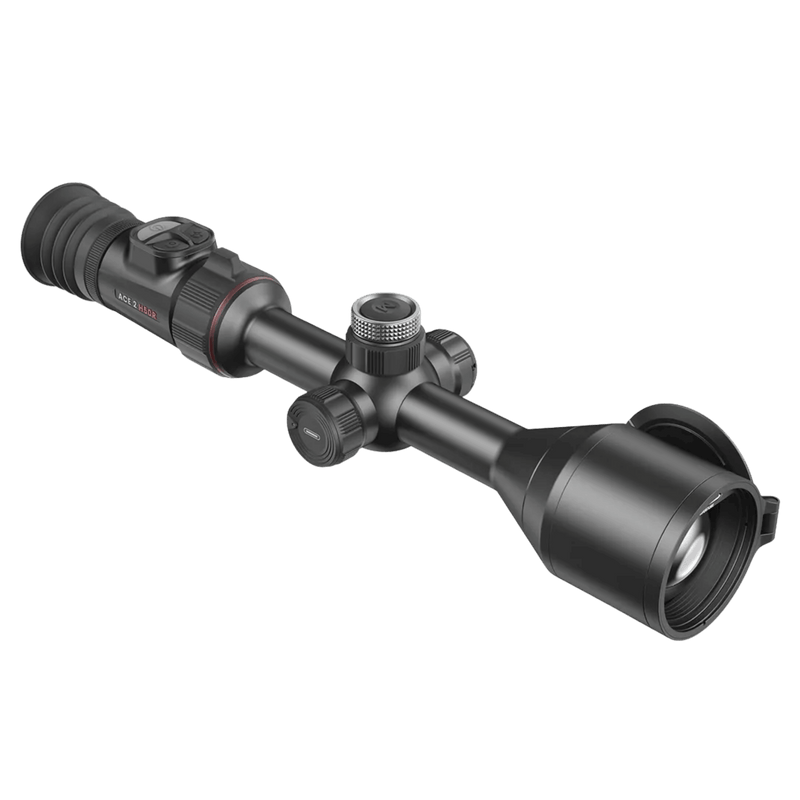

Nocpix ACE 2 H50R Thermal Riflescope
- Thermal Resolution: 640 x 512
- Thermal Lens: 50mm
- Pixel Interval: 12µm
- NETD: < 12mK
- Thermal FOV: 8.8 × 7.0°
We accept
Couldn't load pickup availability
Detection Range
Key Features & Highlights
Product Overview
The Nocpix ACE 2 H50R represents the next generation of flagship thermal riflescopes, purpose-built for medium- to long-range hunting and precision night shooting. Powered by a high-resolution 640×512 12µm uncooled VOx sensor boasting a thermal sensitivity of NETD ≤ 12mK, the ACE 2 H50R extracts fine target anatomy and environmental contrast where traditional thermal cores wash out. Paired with a massive 50mm F0.9 fast aperture lens, integrated 1,200 m Laser Rangefinder (LRF 2.0), and onboard Ballistic Calculation 2.0, it provides complete firing confidence out to 2,600 m.
Optical Precision & Mechanics
-

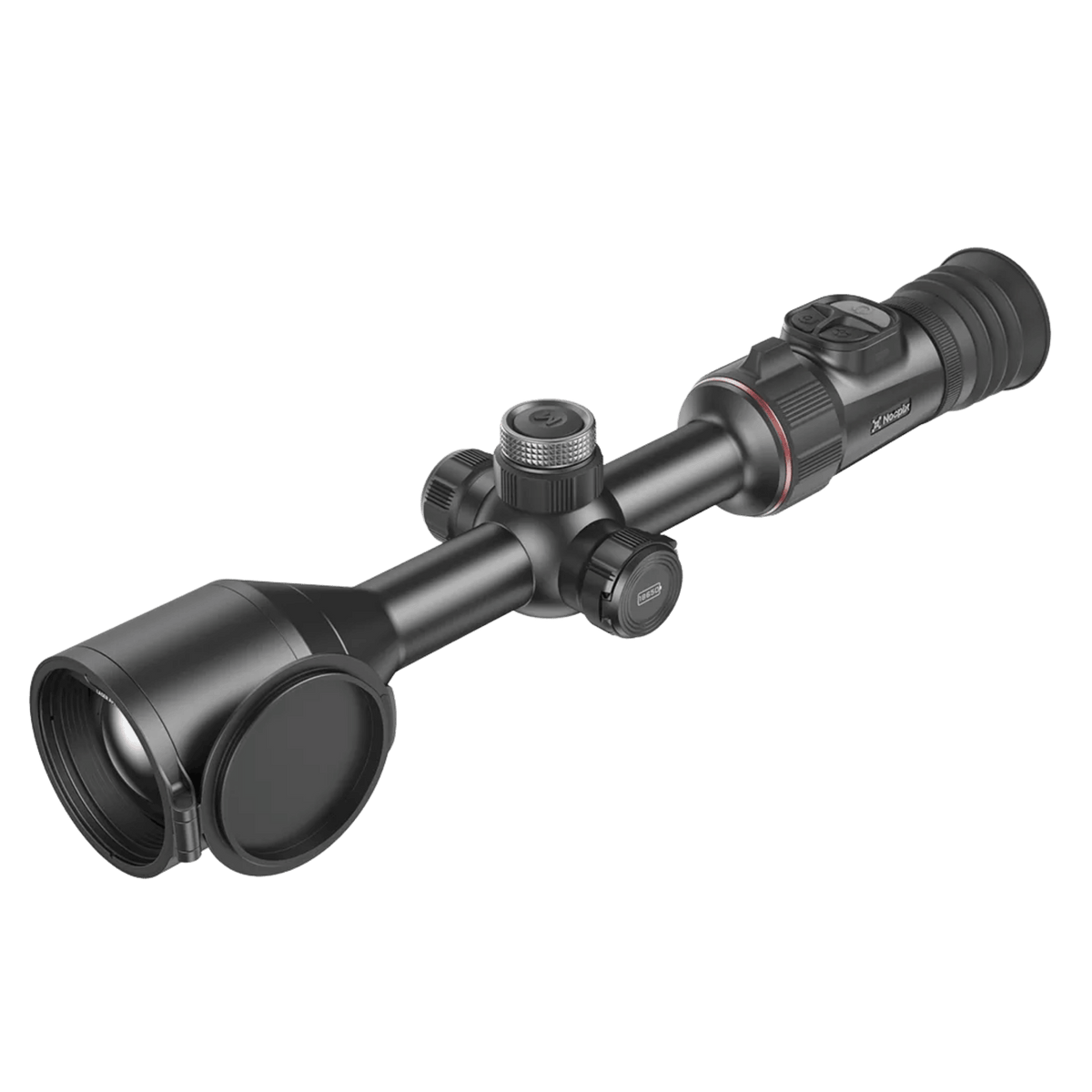

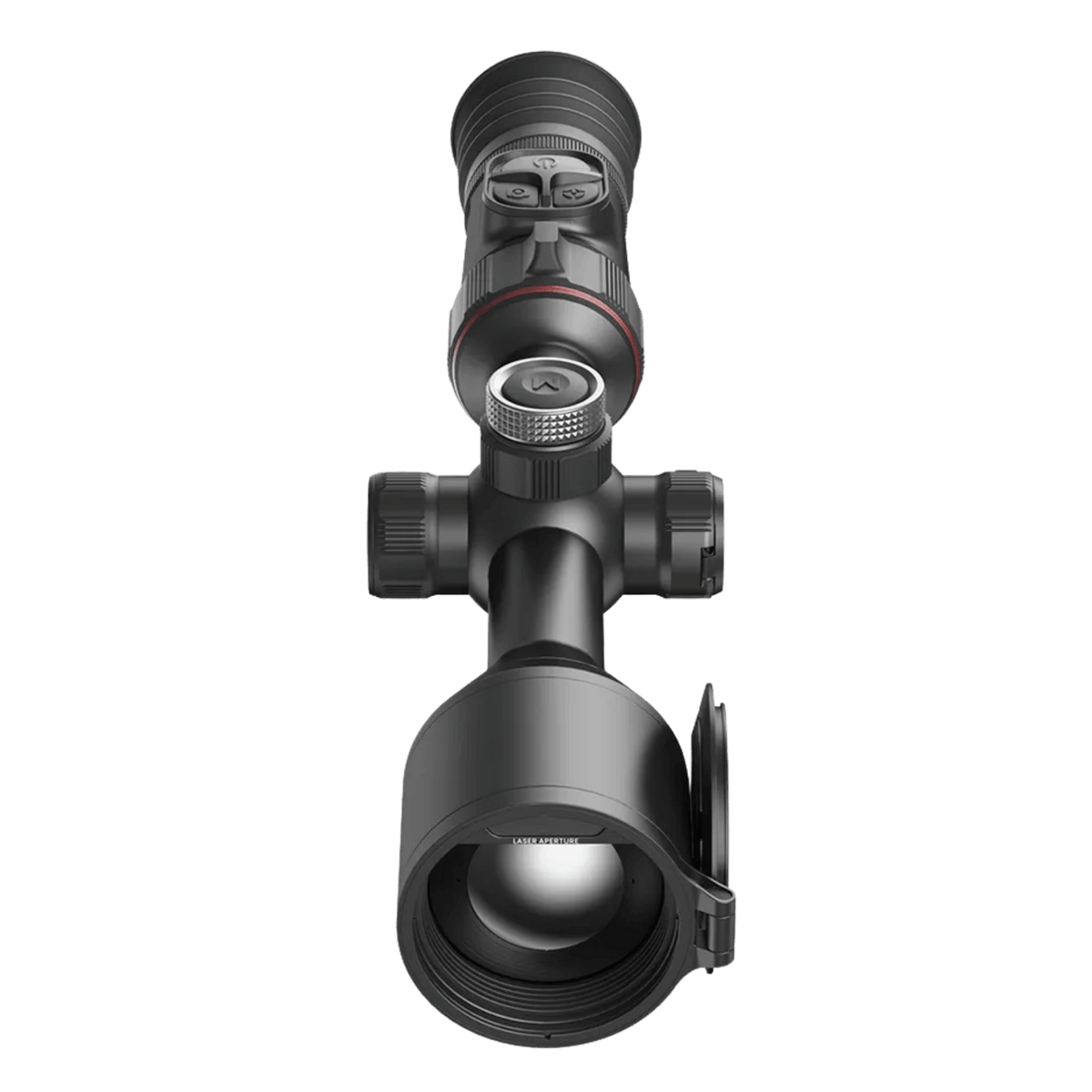

Ultra-Fast 50mm F0.9 Optics: Captures maximum infrared energy with an aperture ratio previously unseen in standard rifle scopes, paired with an 8.8° × 7.0° field of view (15.4 m × 12.3 m at 100 m) for balanced detection and distance identification.
-

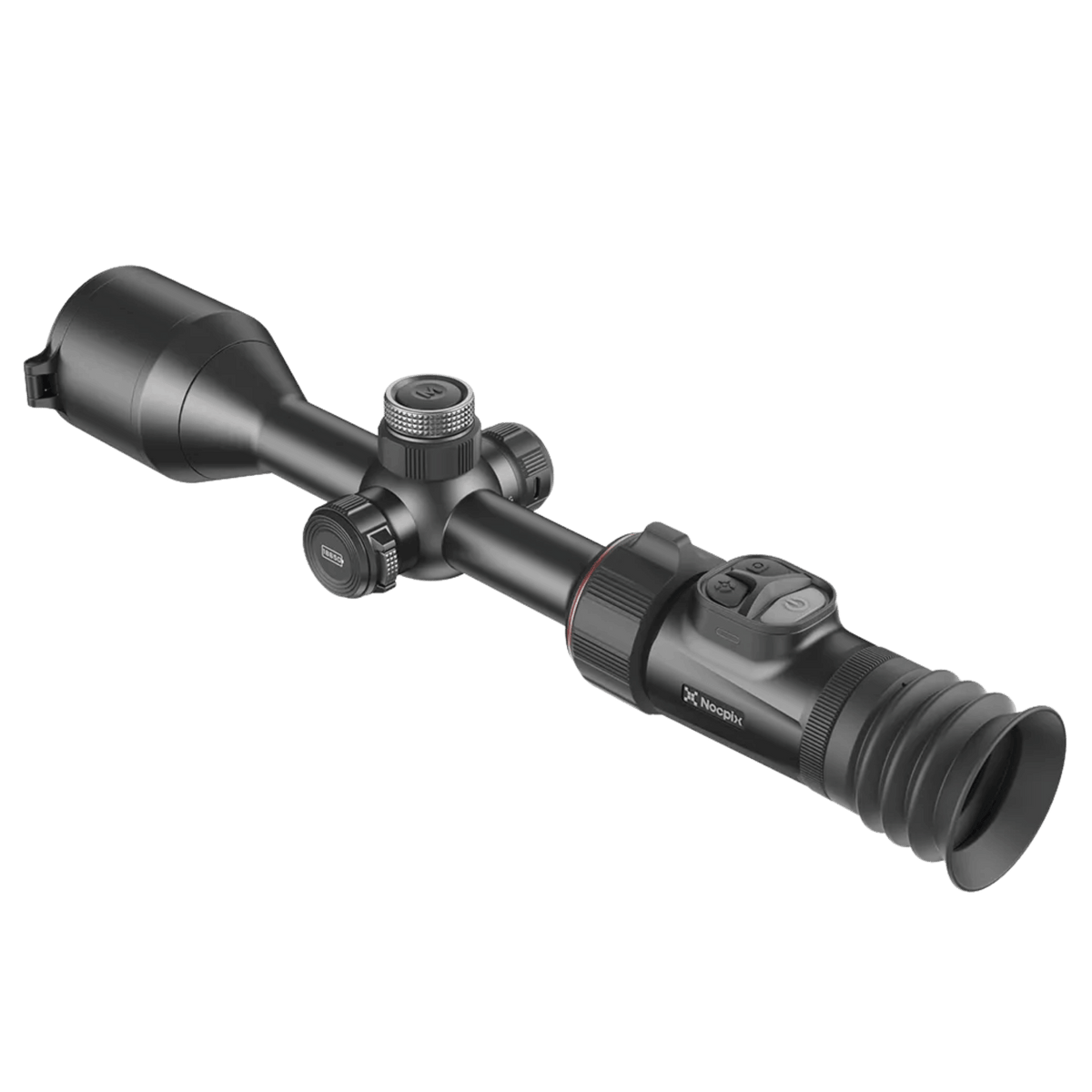

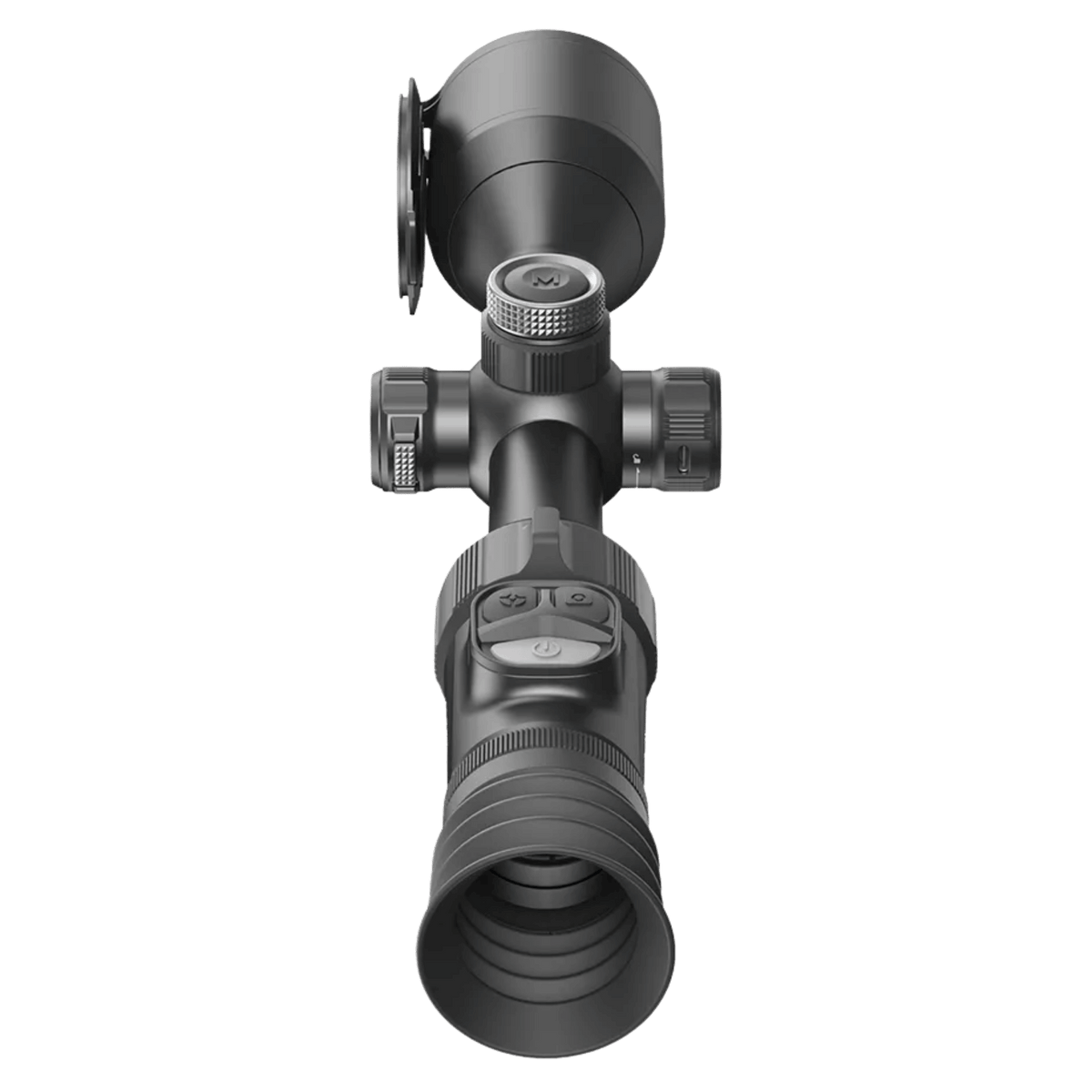

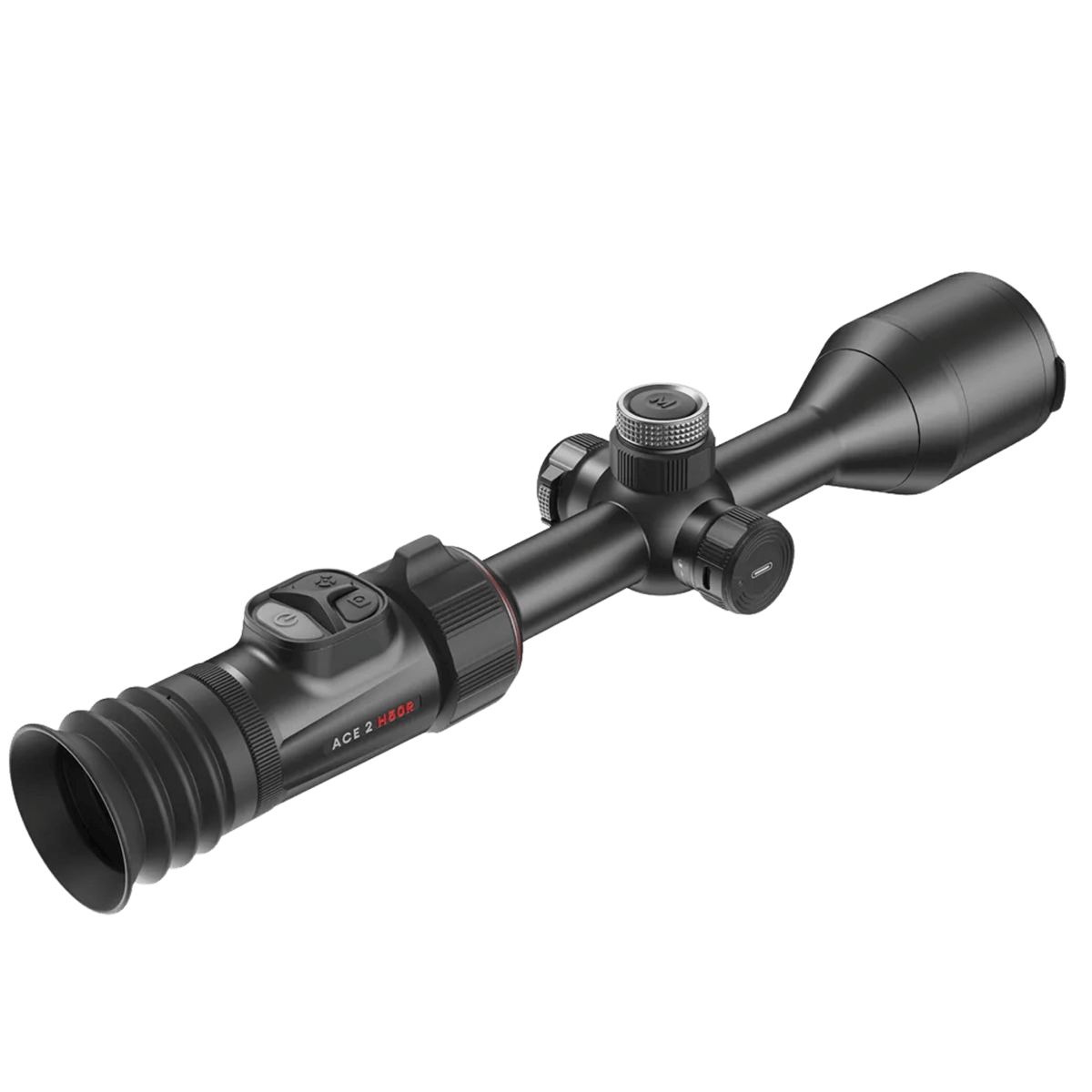

Ocular Zoom 2.0 & Circular AMOLED Display: Features a round 2560×2560 AMOLED display backed by a 10mm exit pupil and 60mm eye relief. The mechanical Ocular Zoom system adjusts from 3x to 6x optical base magnification (up to 24x total magnification) without pixel distortion or reticle scaling errors.
-

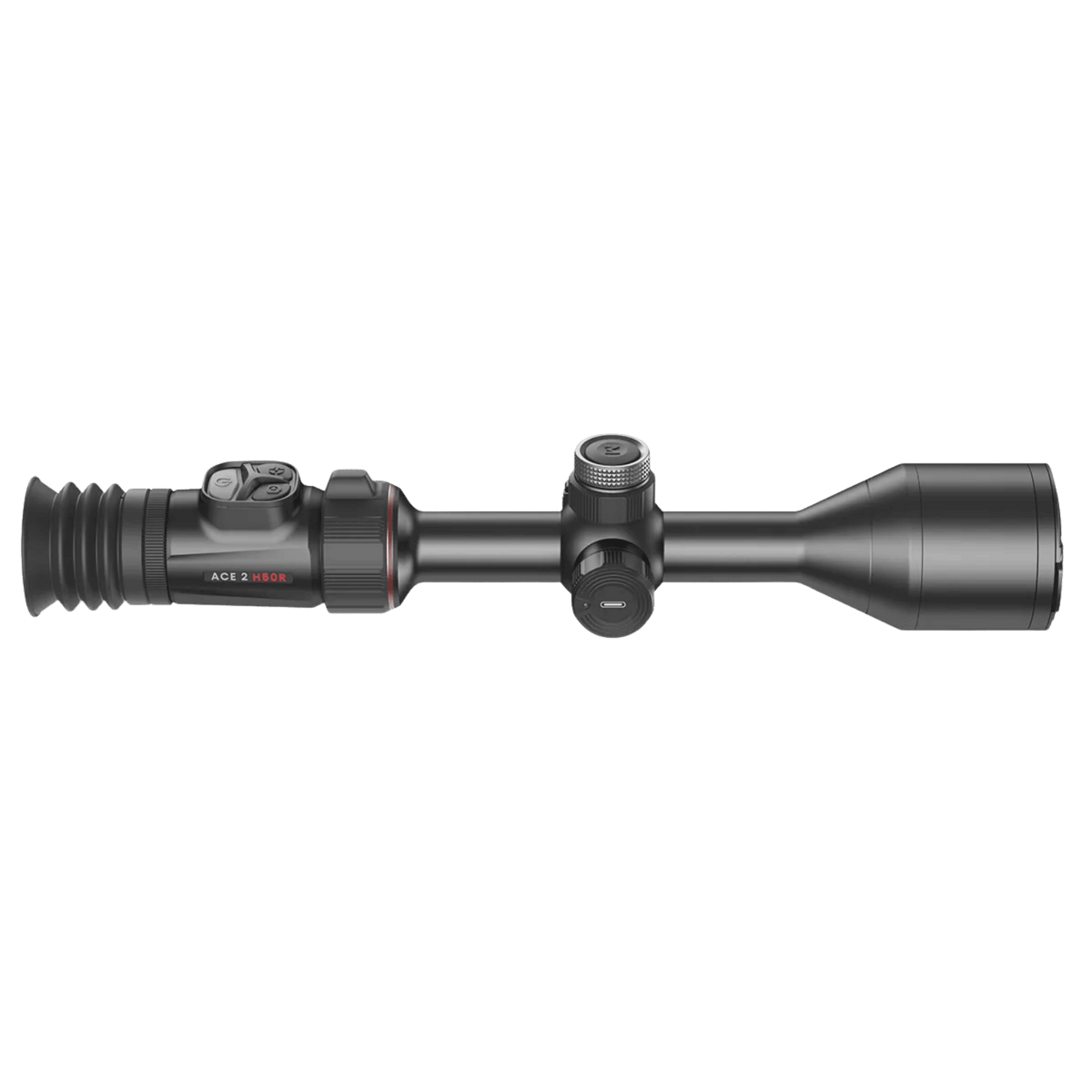

Central Turret Focus Wheel: Eliminates front objective reaching by moving the focus control directly atop the central turret housing. Hunters can adjust optical focus seamlessly from behind the rifle while maintaining shooting position.
Ballistics, LRF & Post-Shot Target Tracking
-
Integrated LRF 2.0 & Real-Time Ballistics: The integrated laser rangefinder accurately measures targets out to 1,200 m (±1 m). When connected with onboard Ballistic Calculation 2.0, the scope instantly places a dynamic Suggested Point of Aim (SPOA) reticle mark accounting for distance, shot angle, bullet velocity, and wind drift.
-
Intelligent Game Recovery (Tracking Function): Combines the scope's internal electronic compass and laser ranging data to capture the exact bearing and coordinate offset of the quarry. The system logs the coordinates of the last 10 ranged shots, allowing the Nocpix mobile app to guide hunters directly through dark bushveld or thick terrain straight to the down target.
-
Recoil Activated Video (RAV): Automatically detects weapon discharge and captures the shot sequence with custom buffer settings (5s or 10s pre-recoil, and up to 60s post-recoil) saved directly to internal 64GB storage.
Free Shipping
Full Transit Insurance. Your investment is protected.
5 Star Google Rating
Experience the Cape Thermal Difference.
24/7 Support
Talk to us anytime via Whatsapp or phone.
Authorized Partner
Official brand partner for all top brands.
Proven in the Field by Africa’s Top Observers
We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.
Swipe to read more →"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."
"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."
"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."
Technical Specifications
While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.
Thermal Specifications
| Sensor Type | Uncooled VOx (Vanadium Oxide) |
| Thermal Resolution | 640 x 512 |
| Pixel Pitch | 12 µm |
| NETD | < 12 mK |
| Thermal Lens | 50 mm |
| Focal Ratio (Aperture) | F0.9 |
| Dual FOV System | Optical Zoom 2.0 |
| Field of View | 8.8 × 7.0 |
| Magnification | 20x |
| Focus Mode | Focus Wheel on Turret |
| Frame Rate | 60 Hz |
| Detection Range (1.7m Subject) | 2600 m |
Precision, Optics & Lasers
| LRF Safety Class | Class 1 |
| LRF Min Range | 10 m |
| LRF Accuracy | ±1m |
| Trajectory Calculator | Yes |
| Calibration Profiles | 8 |
| Projectile Mass Input | Yes |
| Initial Velocity Input | Yes (Use Chronograph) |
| Aerodynamic Coefficient | Yes |
| Spindrift Calculation | Yes |
| Twist Rate Input | Supported |
| Freeze Calibration | Yes |
System & Display
| Display Info | 1.03-inch round AMOLED: 2560 x 2560 |
| Screen Brightness | Yes (1-10) |
| Screen Contrast | Yes (1-10) |
| Digital Zoom | 2x - 20x |
| Color Palettes | White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian |
| Image Enhancement | Ultra-Clear mode, R+ 2.0 AI image enhancement algorithm, Image Hue adjustments (Cool/Warm) |
| Flat Field Correction | Auto Calibration (A)Manual Calibration (M), and Background Calibration (B) |
| Eye Pupil | 10mm |
| Eye Relief | 60mm |
| Display Functions | Current magnification, Ultraclear mode status, WIFI status, Image calibration status, Time, MIC Status, RAV Status, Dual Clarity, Zeroing Distance, Current Profile Selected, Battery Indicator |
| Defective Pixel Correction | Yes |
| Storage Capacity | EMMC 64GB |
| Media Capacity | 64GB |
| Media Format | JPEG, MP4 |
| Recording Capabilities | Video Recording, Audio Recording |
| Shock-Activated Recording | Yes |
| Built-In Microphone | Yes |

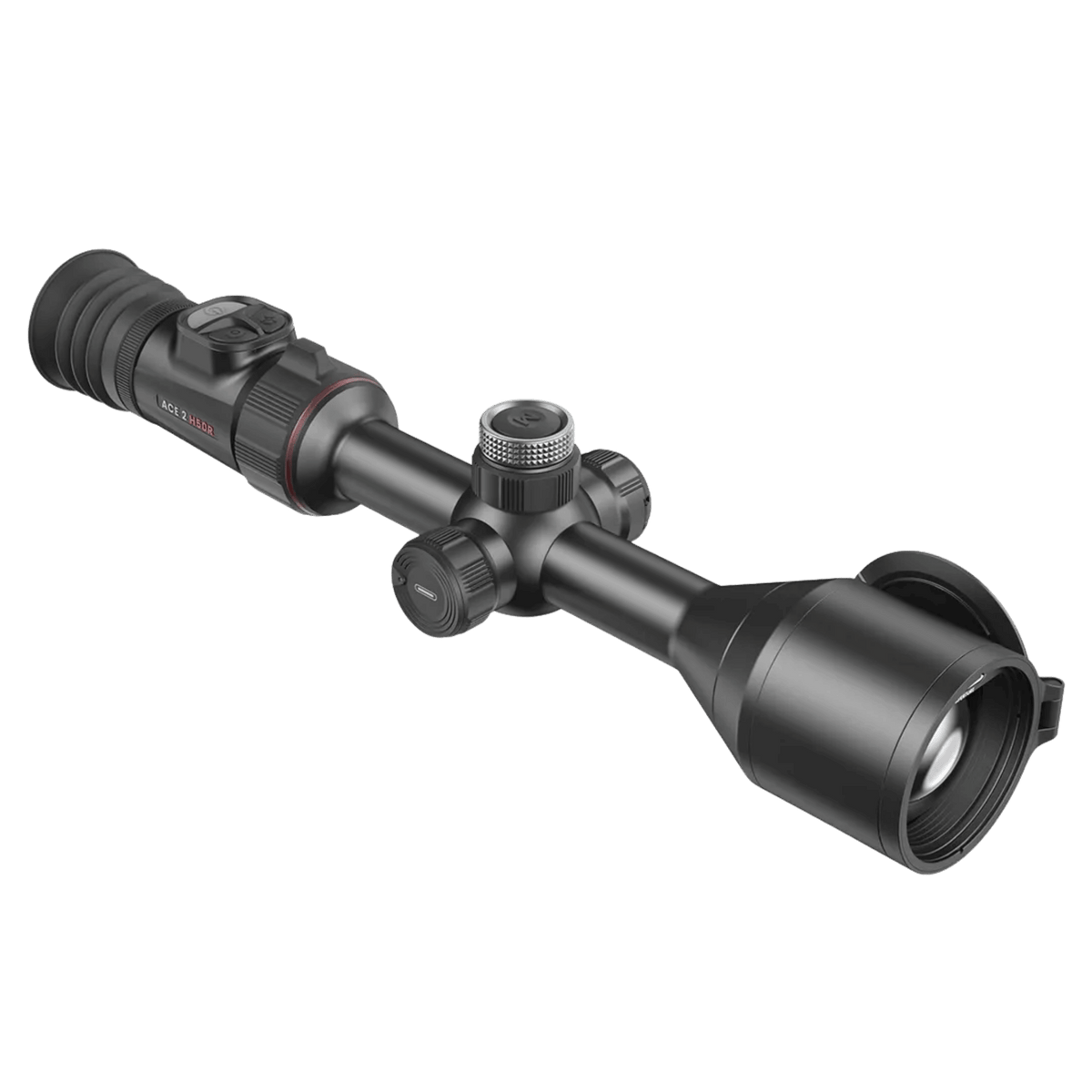

| Battery Type | 18650mAh |
| Power Supply | 5V (Type C) |
| Power Saving Features | Auto Display Off |
| Power Consumption | 5V / 2A (via Type-C external supply) |
| Battery Indicator HUD | Yes |
| Polarity Protection | Yes |
| Overvoltage Protection | Yes |
Connectivity & Software
| Wi-Fi Hotspot | Supported |
| GPS Positioning | Yes |
| Digital Compass | Yes |
| Inclination Sensor | Yes |
| Supported OS | Android, iOS |
| Multilingual Support | Yes |
| Android App | Download App |
| iOS App | Download App |
Physical & Environmental
| Protection Level (IP Rating) | IP67 |
| Operating Temperature | -20° C to + 50° C |
| Storage Temperature | -20°C - +50°C |
| Vibration Resistance | Rated up to 7,000 Joules max recoil |
| Dimensions & Weight | 383x70x92mm; 920 grams |
| Safety Certifications | Class 1 Consumer Laser Product (IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021) |
| EMC Certifications | Class A |
| Other Hardware Features | Occular Zoom Functionality |
What's in the Box
| Box Contents | NocPix Ace 2 H50R Thermal Scope Heated target for zeroing Lens cloth QSG USB Type-C cable 2x 18650 batteries 2x focus knob rubbers Battery charger Portable Bag |
