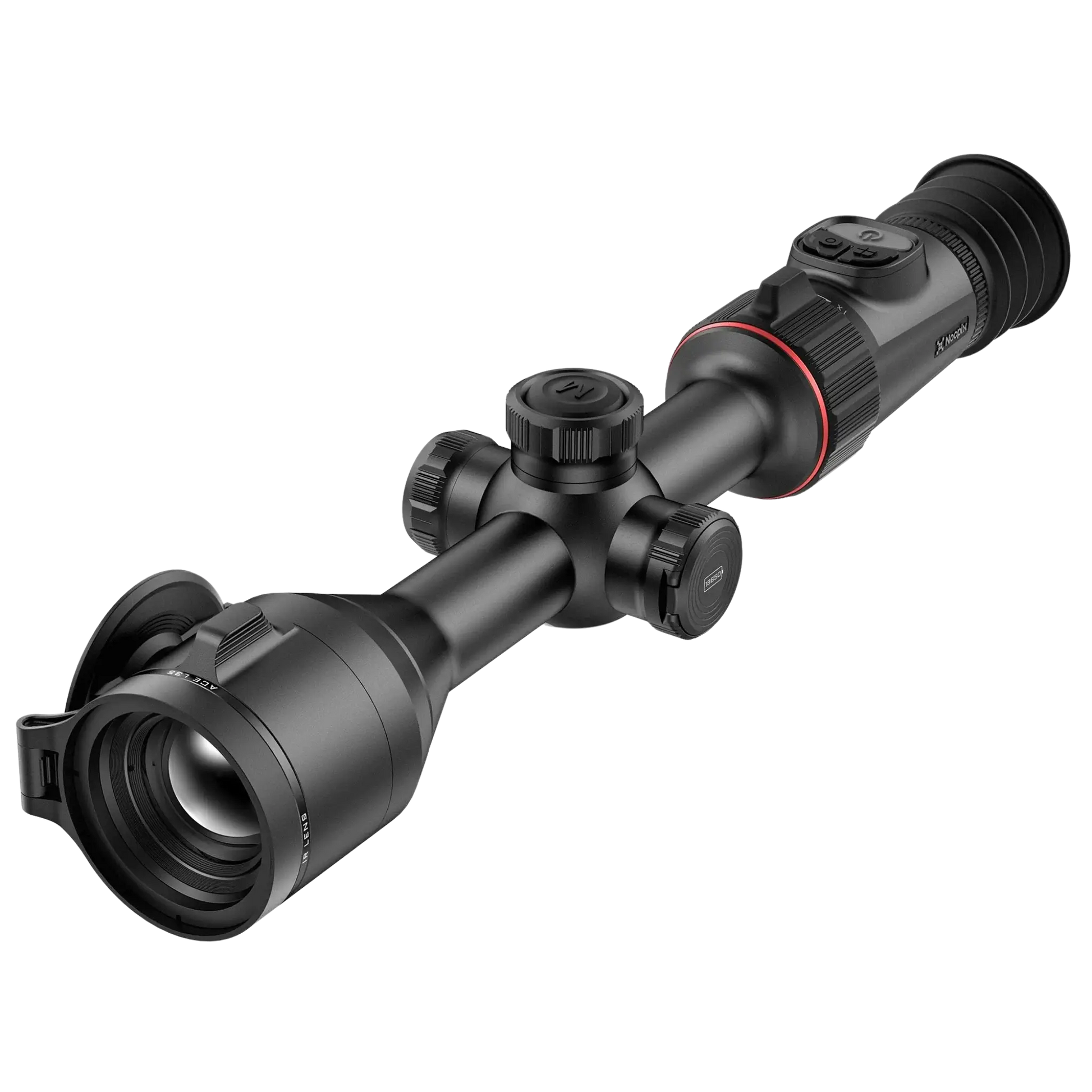

• A front-left angled view of the Nocpix ACE L35 thermal tube style scope, showcasing its traditional riflescope design with adjustment turrets, objective lens with a flip-up cover, and rear eyepiece.

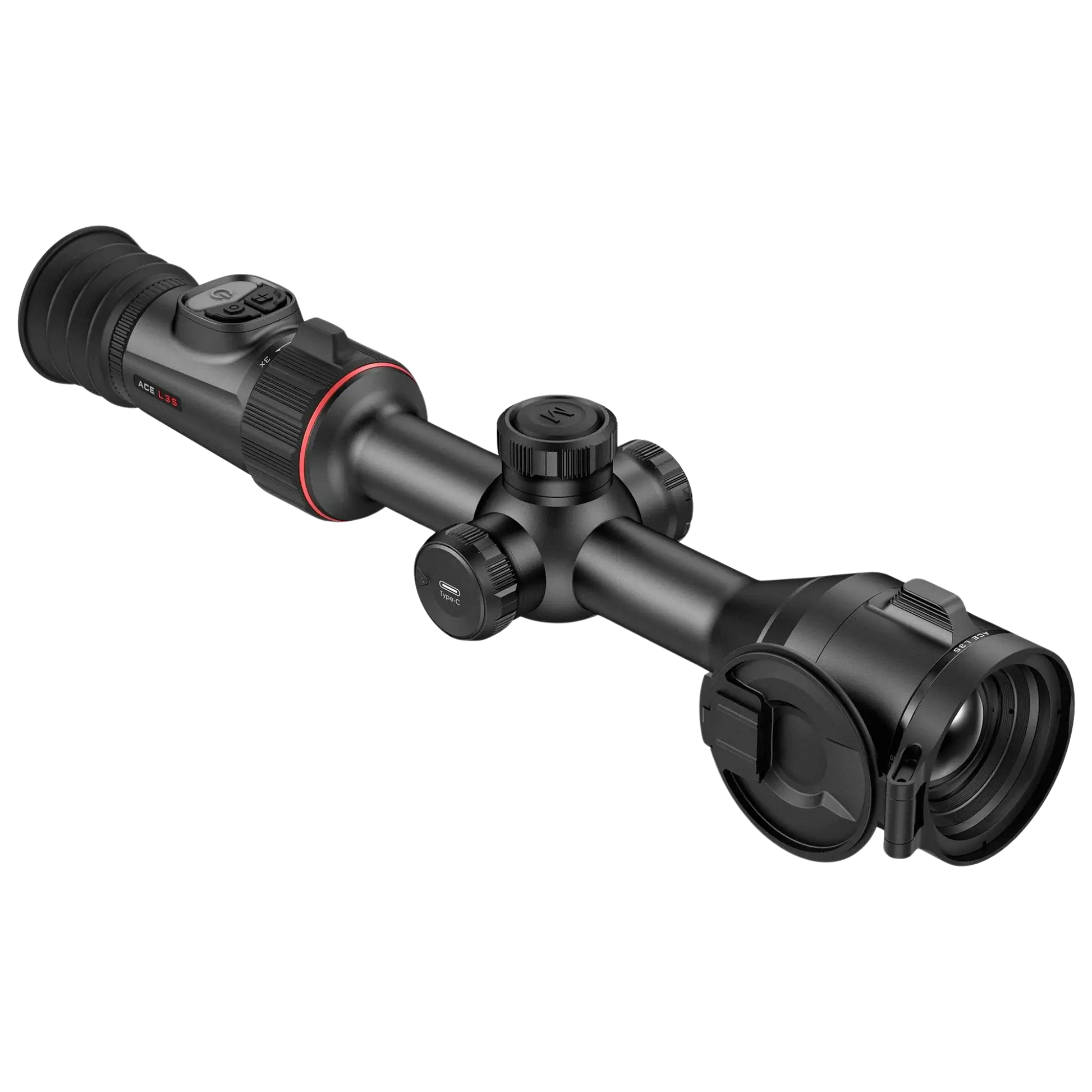

  • A front-right angled view of the Nocpix ACE L35 thermal tube style scope, with the objective lens cap closed, highlighting its traditional design and control turrets.

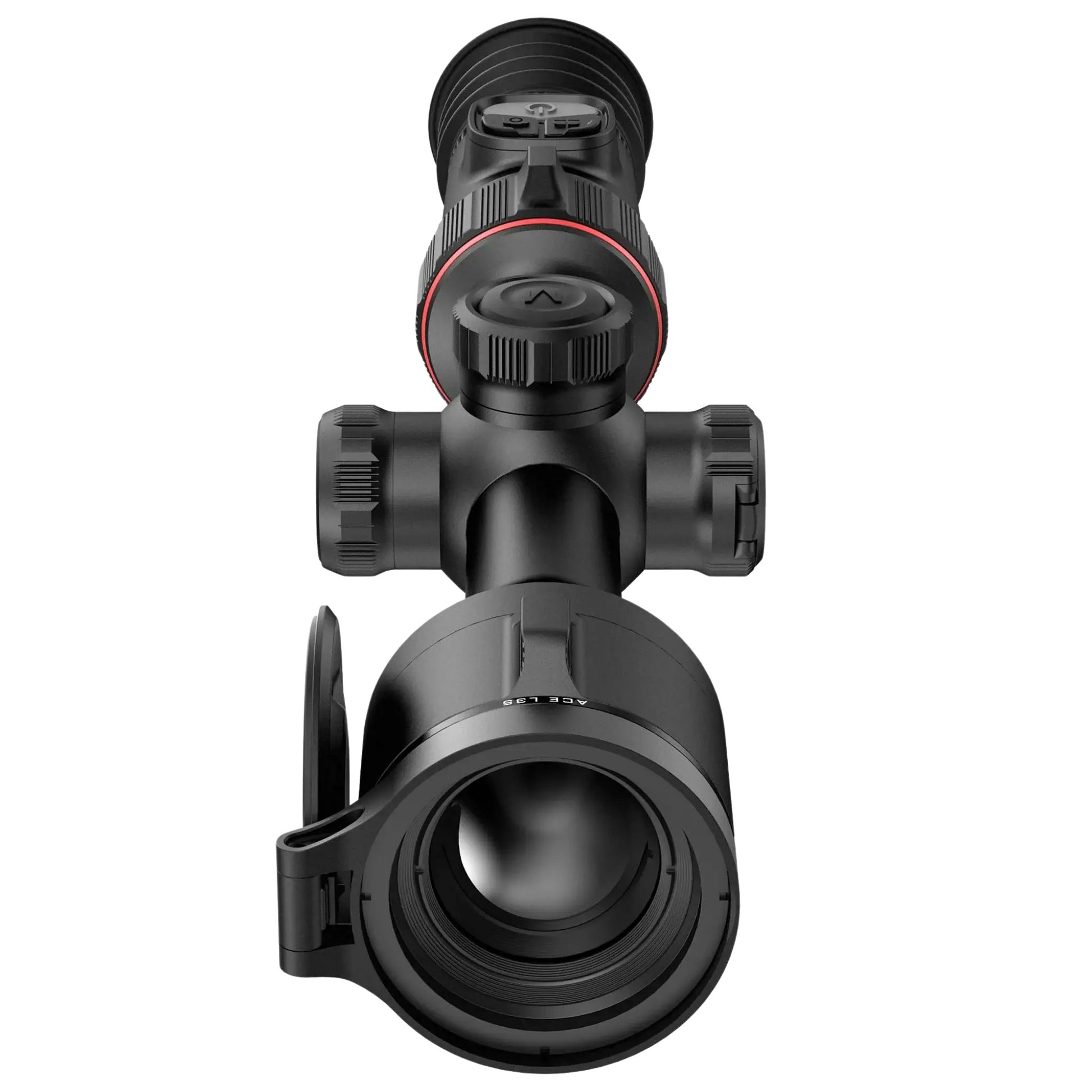

  • A direct front view of the Nocpix ACE L35 thermal tube style scope, prominently displaying the objective lens, control buttons on top, and the ocular eyecup.

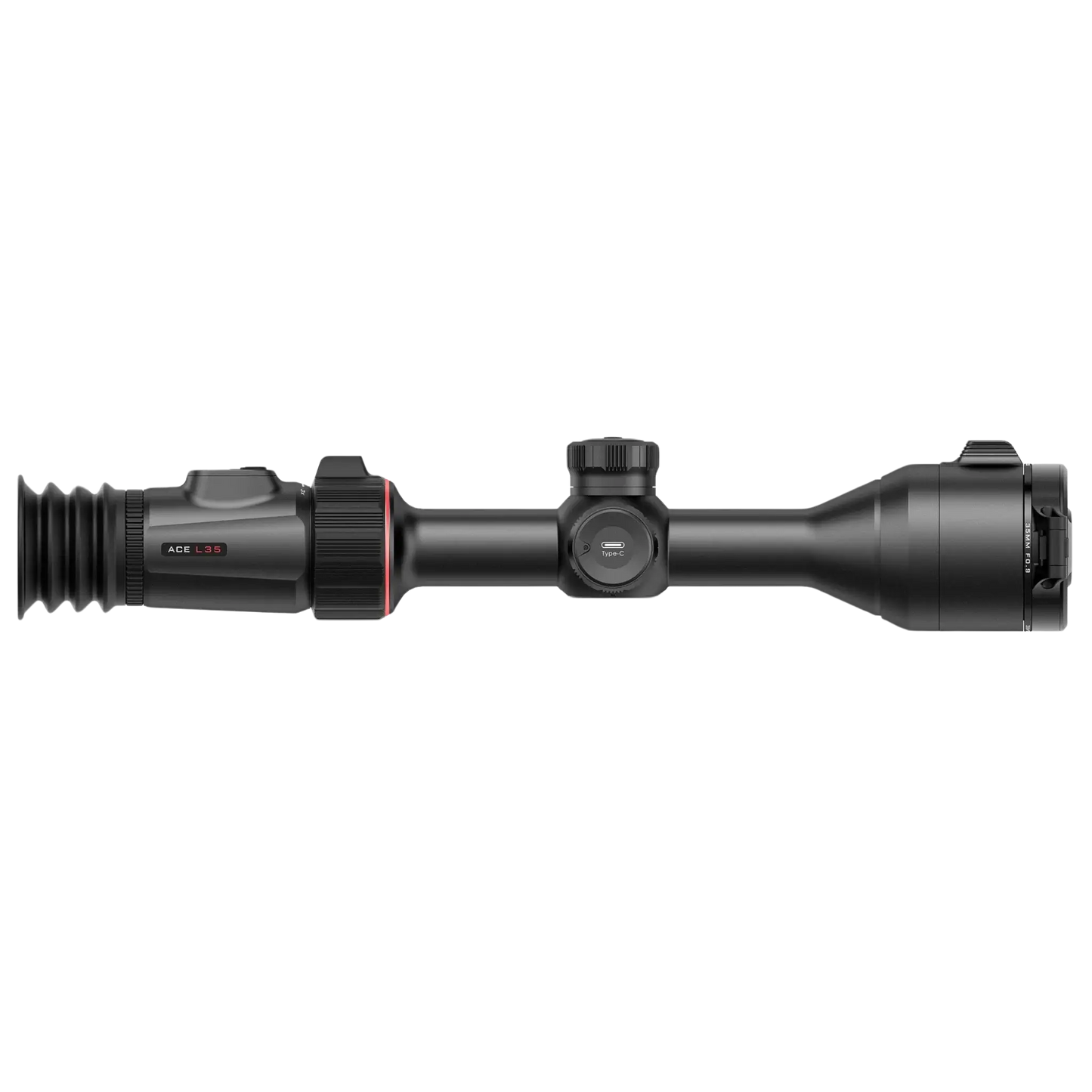

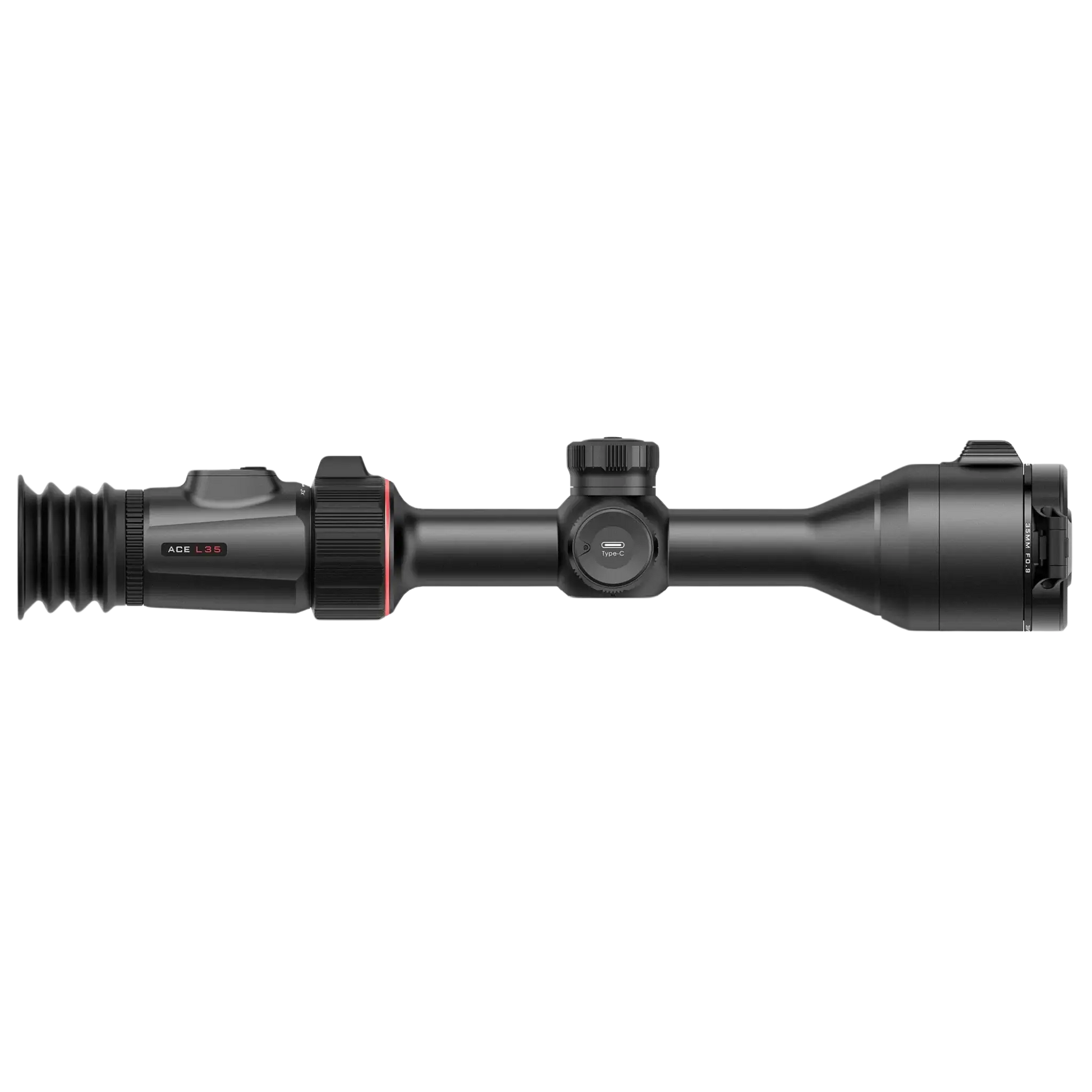

  • A right side profile view of the Nocpix ACE L35 thermal tube style scope, highlighting its traditional form factor, control turrets, and the eyepiece.
1 4

Nocpix ACE L35 - Thermal Tube Style Scope

  • Thermal Resolution: 388 x 284
  • Thermal Lens: 35mm
  • Pixel Interval: 12µm
  • NETD: < 18mK
  • Thermal FOV: 7.5 x5.7 (13m × 10m @100m)°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 47,899.00
Special Order
Including VAT • Includes Shipping

Request a Quote

Please provide your details below and our team will contact you shortly with a customized quote for Nocpix ACE L35 - Thermal Tube Style Scope.

SKU: ACEL35

Detection Range

Pig
Kudu
Elephant
1059mDetection
486mRecognition
243mIdentification
1588mDetection
729mRecognition
365mIdentification
3176mDetection
1458mRecognition
729mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Nocpix ACE L35 Key Features:

  • Flagship Thermal Riflescope: Designed for all hunting environments.
  • High-Resolution Thermal Sensor: 384x288 @ 12μm with ≤18mK NETD and 60Hz refresh rate.
  • Advanced Reality+ Imaging Enhancement: Proprietary algorithms for superior contrast and detail.
  • Revolutionary Vision+ System: Delivers high-resolution images and a broad field of view.
  • Precision Optics: 35mm F0.9 Objective Lens.
  • Magnification Range: 4-16x.
  • Wide Field of View: 7.5°x5.7° / 13x10 m@100m.
  • Extended Detection Range: Up to 1800 meters (for 1.7m x 0.5m target, P(n)=99%).
  • Robust Dual-Battery System: 4000mAh built-in + replaceable 18650 for prolonged use.
  • User Comfort: 50mm exit relief, 8mm exit pupil diameter, -5~5 diopter adjustment.
  • True Tube Style Design: Mimics traditional daytime scopes for familiar mounting and handling.
Product Overview

Introducing the Nocpix ACE L35, the flagship thermal riflescope engineered for discerning hunters and professionals. This thermal tube style scope combines a high-resolution thermal sensor with an industry-leading display and true optical magnification, delivering unparalleled image quality and an immersive viewing experience in any hunting environment.

The Nocpix ACE L35 provides exceptional thermal performance, featuring a 384x288 @ 12μm thermal sensor with a rapid 60Hz refresh rate and an impressive ≤18mK NETD for superior thermal sensitivity. Its advanced Reality+ image processing algorithms enhance contrast and detail, while the revolutionary Vision+ system truly sets it apart. This system boasts a round 1.03-inch, 2560x2560 AMOLED display, complemented by a unique 1-3x ocular zoom that provides direct optical magnification, eliminating the distortion often seen with traditional digital zoom. With an integrated Laser Rangefinder and a formidable 1800-meter detection range, the ACE L35 ensures precise targeting. Its ergonomic design is powered by a robust dual-battery system, combining a 4000mAh built-in battery with an additional replaceable 18650 battery, ensuring extended operation during prolonged outdoor sessions.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Thermal Resolution388 x 284
Pixel Pitch12 µm
NETD< 18 mK
Thermal Lens35 mm
Focal Ratio (Aperture)F0.9
Field of View7.5° x5.7° (13m × 10m @100m)
Magnification4~16x
Frame Rate60 Hz
Detection Range (1.7m Subject)1800 m
System & Display
Screen BrightnessYes
Screen ContrastYes
Color PalettesWhite Hot, Black Hot, Red Hot, Violet, Crimson, Viridian
Eye Pupil50
Defective Pixel CorrectionYes
Media Capacity64
Media Format.JPG / .MP4
Recording CapabilitiesPhoto, Video (with Audio), and Recoil-Activated Recording (RAV)
Built-In MicrophoneYes
Battery Indicator HUDYes
Polarity ProtectionYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotYes
BluetoothType-C
Video StreamingYes
Supported OSiOS, Android, Windows
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Dimensions & Weight350×90×62mm, 1050g
