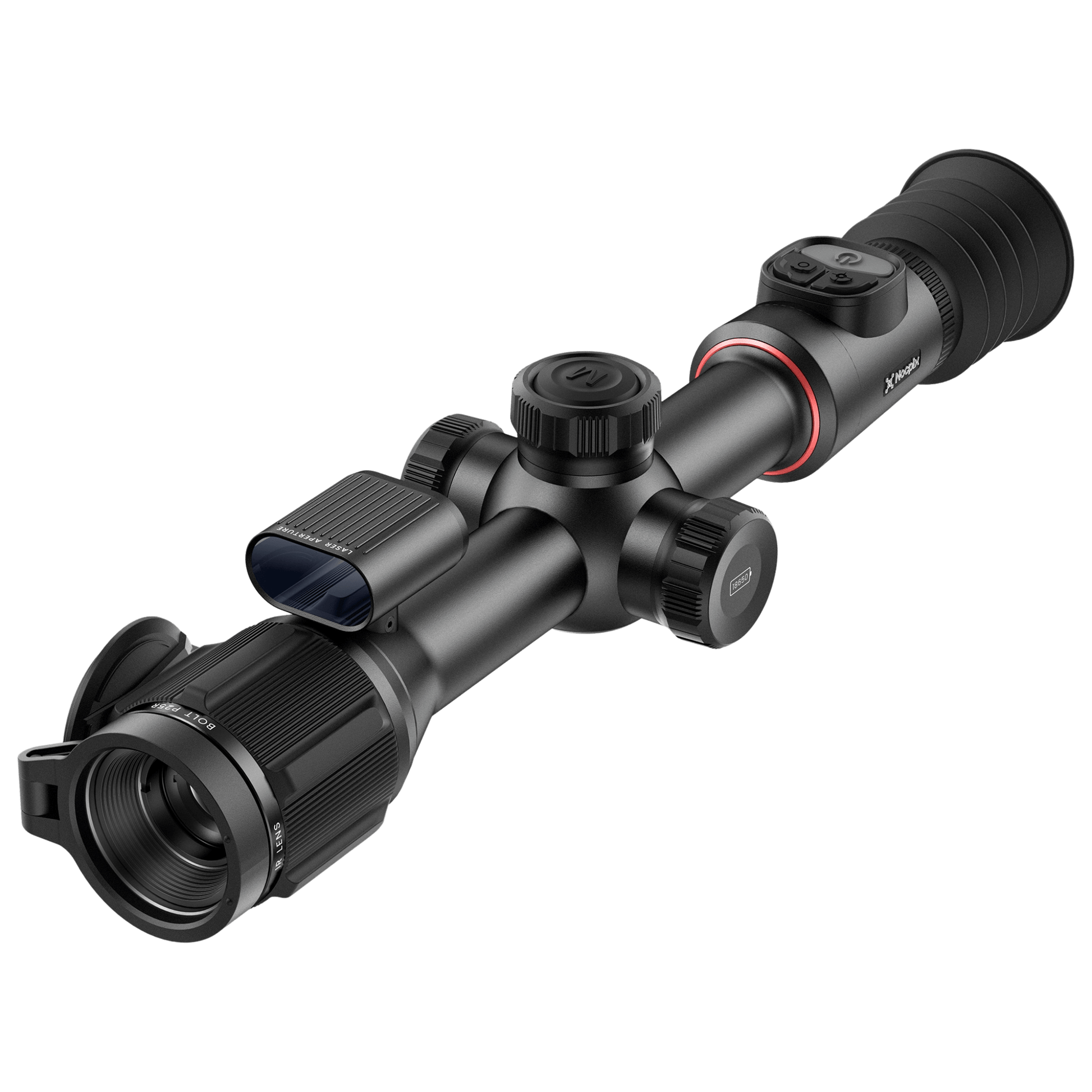

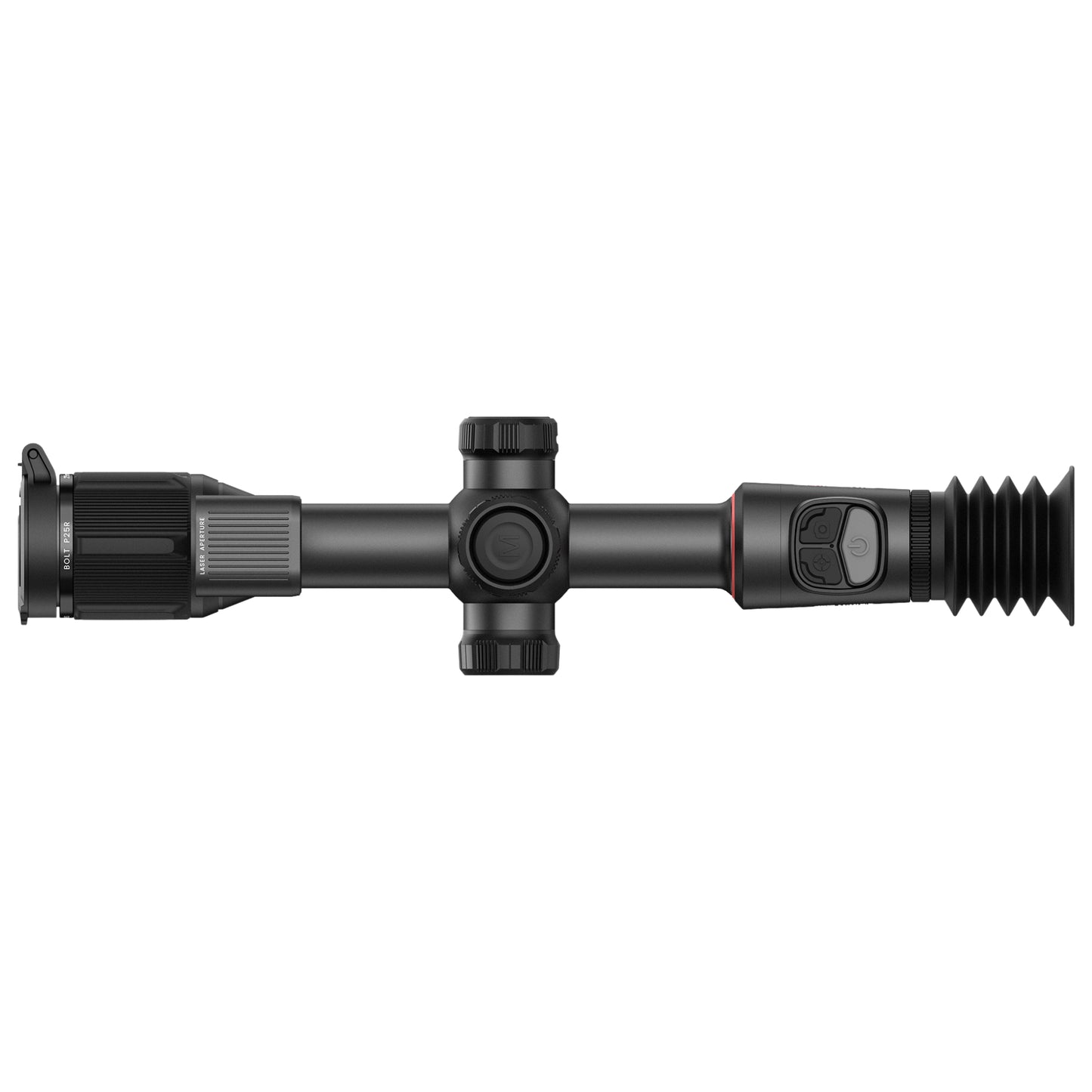

Nocpix Bolt P25R Thermal Scope
- Thermal Resolution: 256 x 192
- Thermal Lens: 25mm
- Pixel Interval: 12µm
- NETD: < 20mK
- Thermal FOV: 7.0 x 5.3°
We accept
Couldn't load pickup availability
Detection Range
Key Features & Highlights
Product Overview
The Nocpix Bolt P25R thermal scope directly addresses the needs of a diverse audience. Its powerful 25mm objective lens and high-resolution sensor make it an ideal choice for pest control—from eliminating rats in barns to handling larger quarry like foxes at intermediate ranges. The easy-to-zero system and intuitive controls ensure that users can quickly set up and confidently take their shot, reflecting a truly people-first approach to design.
The Nocpix Bolt P25R device is perfectly suited for air rifle and rimfire users, offering a significant upgrade to their night-time capabilities. For those searching for a thermal scope with a laser rangefinder, the P25R provides a seamless, integrated solution that boosts both efficiency and accuracy in the field. This blend of features not only enhances the user experience but also signals to search engines that this content is an authoritative and comprehensive resource for those with a specific search intent for affordable thermal solutions.
Nocpix Bolt P25R Technical Specifications:
-
Sensor Resolution: 256x192 pixels
-
Optical Magnification: 3.5x (up to 14x digital zoom)
-
Refresh Rate: 50Hz
-
Battery Life: Up to 12 hours
-
Weight: Just over 800g
-
Water Resistance: IP67
-
Connectivity: USB-C charging & app for photo/video sharing.
Free Shipping
Full Transit Insurance. Your investment is protected.
5 Star Google Rating
Experience the Cape Thermal Difference.
24/7 Support
Talk to us anytime via Whatsapp or phone.
Authorized Partner
Official brand partner for all top brands.
Proven in the Field by Africa’s Top Observers
We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.
Swipe to read more →"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."
"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."
"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."
Technical Specifications
While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.
Thermal Specifications
| Sensor Type | VOx Uncooled Detector |
| Thermal Resolution | 256 x 192 |
| Pixel Pitch | 12 µm |
| NETD | < 20 mK |
| Thermal Lens | 25 mm |
| Focal Ratio (Aperture) | F1.0 |
| Field of View | 7.0 x 5.3 |
| Magnification | 3.5x |
| Focus Mode | Manual (Lens focus ring) |
| Frame Rate | 50 Hz |
| Spectral Range | 8 to 14 um |
| Detection Range (1.7m Subject) | 1200 m |
Precision, Optics & Lasers
| LRF Safety Class | Class 1 |
| LRF Wavelength | 904nm |
| LRF Max Range | 1200 m |
| LRF Min Range | 10 m |
| Measurement Overlays | Yes |
| Trajectory Calculator | Yes |
| Calibration Profiles | 5 |
| Projectile Mass Input | Yes |
| Initial Velocity Input | Yes |
| Aerodynamic Coefficient | Yes |
| Spindrift Calculation | Yes |
| Twist Rate Input | Yes |
| Freeze Calibration | Yes |
System & Display
| Display Info | 1024x768 |
| Screen Brightness | Yes |
| Screen Contrast | Yes |
| Digital Zoom | 3.5x - 14x |
| Color Palettes | White Hot, Black Hot, Red Hot, Violet, Crimson, Viridian |
| Image Enhancement | Ultra Clear Mode |
| Flat Field Correction | Yes |
| Image Modes | 10 |
| Eye Relief | 50 |
| Diopter Range | -5D~+5D |
| Display Functions | PIP, Status Bar |
| Defective Pixel Correction | Yes |
| Storage Capacity | 32 |
| Media Capacity | 32 |
| Media Format | .JPG / .MP4 |
| Recording Capabilities | Photo, Video with Audio |
| Shock-Activated Recording | Yes |
| Built-In Microphone | Yes |
| Battery Type | Dual System: Built-in 5000mAh + replaceable 18650 |
| Battery Life | 12 |
| Power Supply | 5V external power source support |
| Power Saving Features | Yes |
| Power Consumption | 5V (Type-C) |
| Battery Indicator HUD | Yes |
| Polarity Protection | Yes |
| Overvoltage Protection | Yes |
Connectivity & Software
| Wi-Fi Hotspot | Yes |
| Video Streaming | Yes |
| Video Compression | H.264 / H.265 |
| USB Connectivity | Type-C |
| Accelerometer | Yes |
| Supported OS | iOS, Android, Windows |
| Multilingual Support | Yes |
| Android App | Download App |
| iOS App | Download App |
Physical & Environmental
| Protection Level (IP Rating) | IP67 |
| Operating Temperature | -20 to +50 C |
| Storage Temperature | -20 to +50 C |
| Relative Humidity | 50% |
| Dimensions & Weight | 375.7 x 91.6 x 75mm / 870g |
| Tripod Mounting | No |
| Safety Certifications | CE , FCC |
| EMC Certifications | Class A |
What's in the Box
| Box Contents | Nocpix Bolt P25 Scope Heated target Bag 2x 18650 Batteries Charger Data Cable Cloth Guide |
