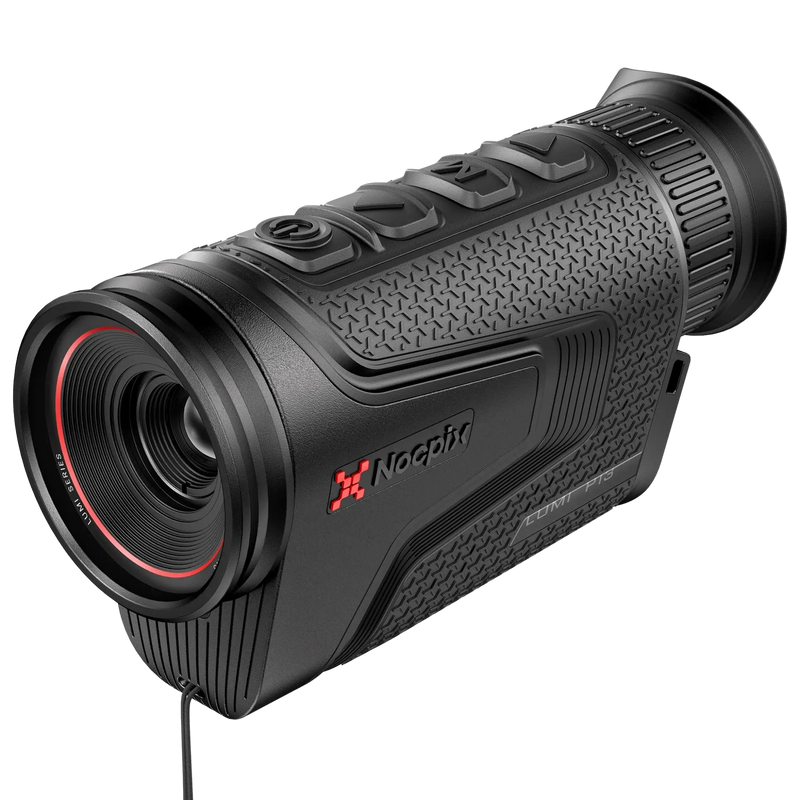

• The LUMI P13 series thermal imaging monocular - Small Compact thermal monocular- Front Left side of device displaying NOCPIX logo

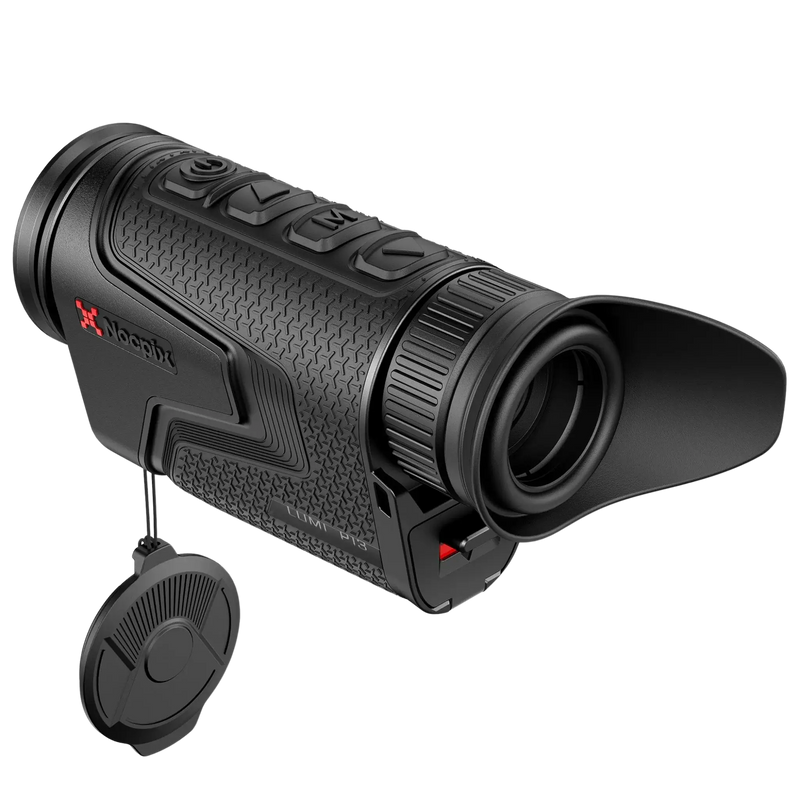

  • The LUMI P13 series thermal imaging monocular - Small Compact thermal monocular- Back Left side of device displaying NOCPIX logo and the ocular lens
  • The LUMI P13 series thermal imaging monocular - Small Compact thermal monocular- Side profile view of device displaying NOCPIX logo and the model of device the Lumi P13
  • The LUMI P13 series thermal imaging monocular - Push pigs spotted in the wild
1 4

Nocpix Lumi P13 - Handheld Thermal Monocular

Nocpix Lumi P13 - Handheld Thermal Monocular

  • Thermal Resolution: 256 x 192px
  • Thermal Lens: 13mm F0.9
  • Detection Distance: 1200m

  • Free Insured Shipping
  • Includes Product Lifetime Support
R 17,499.00 ZAR
R 17,499.00 ZAR
Sale Sold out
Shipping calculated at checkout.

Nocpix Lumi P13: Mini Thermal Monocular, Mighty Performance

The Nocpix Lumi P13 is a compact and lightweight thermal monocular designed for day and night use. Experience exceptional image quality even in adverse weather conditions.

Key Features:

  • Compact & Lightweight: Easy to carry and handle.
  • 12μm Thermal Sensor: High sensitivity for clear images.
  • F0.9 Objective Lens: Bright, detailed visuals.
  • 1024x768 AMOLED Display: Crisp, vibrant images.
  • Replaceable 18650 Battery: Extended operation time.
  • Ultra-clear Mode: Enhanced image detail in challenging conditions.

The Nocpix Lumi P13 is ideal for hunting, observation, security, and more.

View full details

Nocpix Lumi P13 - Handheld Thermal Monocular Detection, Recognition, & Identification Ranges

Detection, recognition, and identification ranges are approximate and based on ideal conditions.

  • Thermal image of a group of pigs, likely Kunekune pigs, taken with a HikMicro Condor CQ50L Thermal Monocular. Their heat signatures are visible in shades of orange and yellow against a cool purple background.

    Bush Pigs - 100cm

    Detection: 700m

    Recognition: 150m
    Identification: 90m

  • Thermal image of a deer standing in a field, showcasing the detail and clarity of the Pulsar Axion 2 XQ35 Pro thermal monocular.

    Male Kudu - 150cm

    Detection: 1000m

    Recognition: 250m
    Identification: 120m

  • HikMicro Condor CQ50L captures stunning thermal image of elephants drinking at a watering hole in the African savanna. The high-resolution thermal monocular reveals intricate details of their heat signatures, even in low-light conditions.

    Elephant - 300cm

    Detection: 250m

    Recognition: 520m
    Identification: 2000m

1 3

Nocpix Lumi P13 - Handheld Thermal Monocular Detailed Specifications

Thermal Module Specifications

Resolution: 256 x 192px

Lens: 13mm F0.9

NETD: 20mK

Pixel Interval: 12μm

Response Waveband:

Frame Rate: 50Hz

Zoom: 2-8x

Focus Mode: Focus Ring

Display

Screen: 1024 x 768 AMOLED

Field of View: 13.5º x 10.1º

Palettes:

Laser Range Finder

Laser Safety Class:

LRF Wavelength:

Max Measurement Range:

Min Measurement Range:

Accuracy:

System Functions

Storage: 32GB

Notable features: Video recording
App functionality

Battery & Power

Battery Life: 4.5 hours

Power Supply:

Battery Type: Replaceable li-ion battery 18650mah

General

Operating Temperature: -20 ~ +50℃

Ingress Protection: IP67

Dimensions: 147×47×74mm

SKU: P13

Package Contents

• LUMI series Thermal Imaging Monocular
• Portable bag
• 18650 Battery × 2
• 18650 battery charger
• Data cable
• Neck Strap
• Lens cleaning cloth
• Quick start guide
