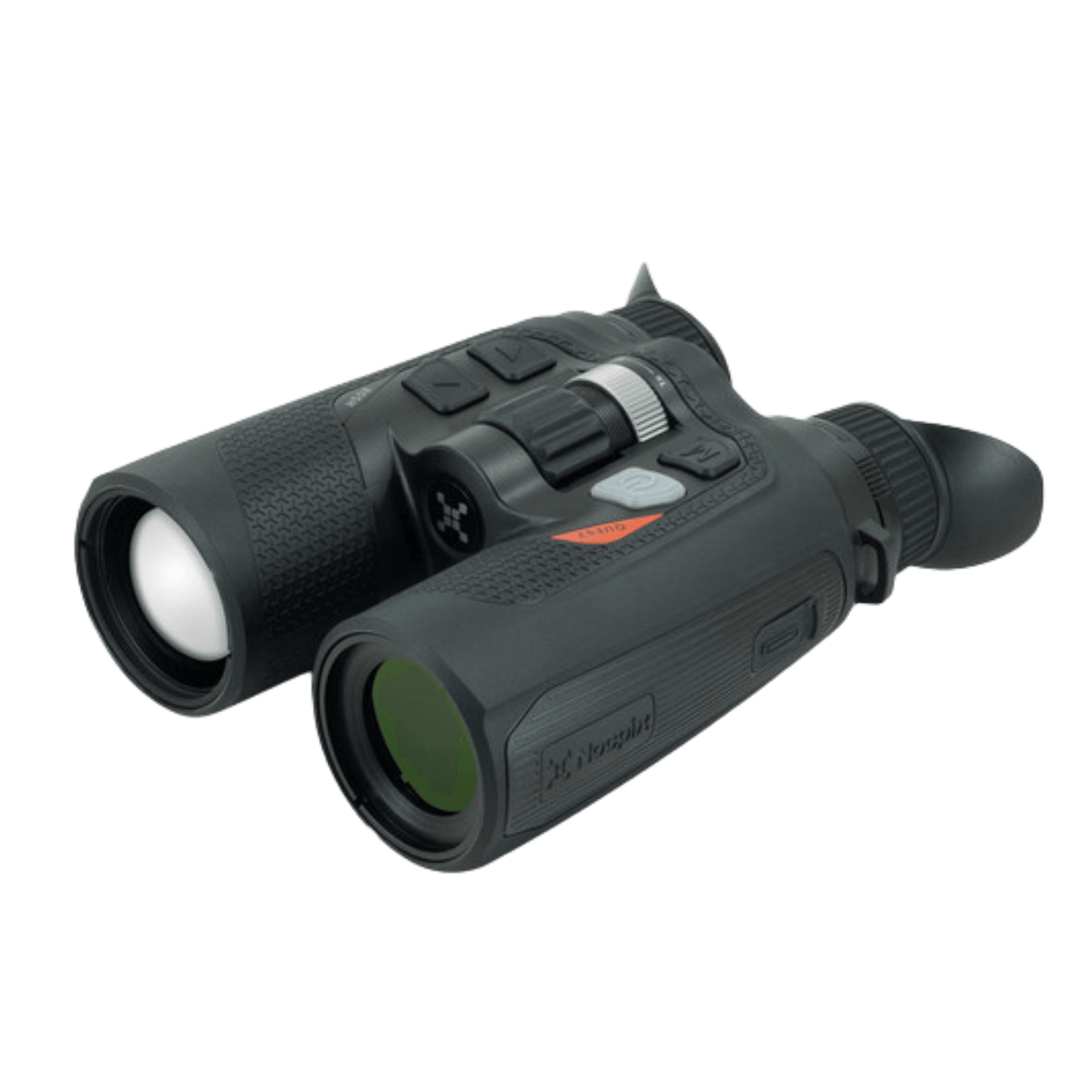

• A professional thermal imaging binocular (Quest H50R), designed for long-range night time observation, featuring a high-performance 640x512, 12µm sensor with NETD ≤15 mK, capable of detecting at up to 2600 meters Front Right view of thermal binoculars with Nocpix logo

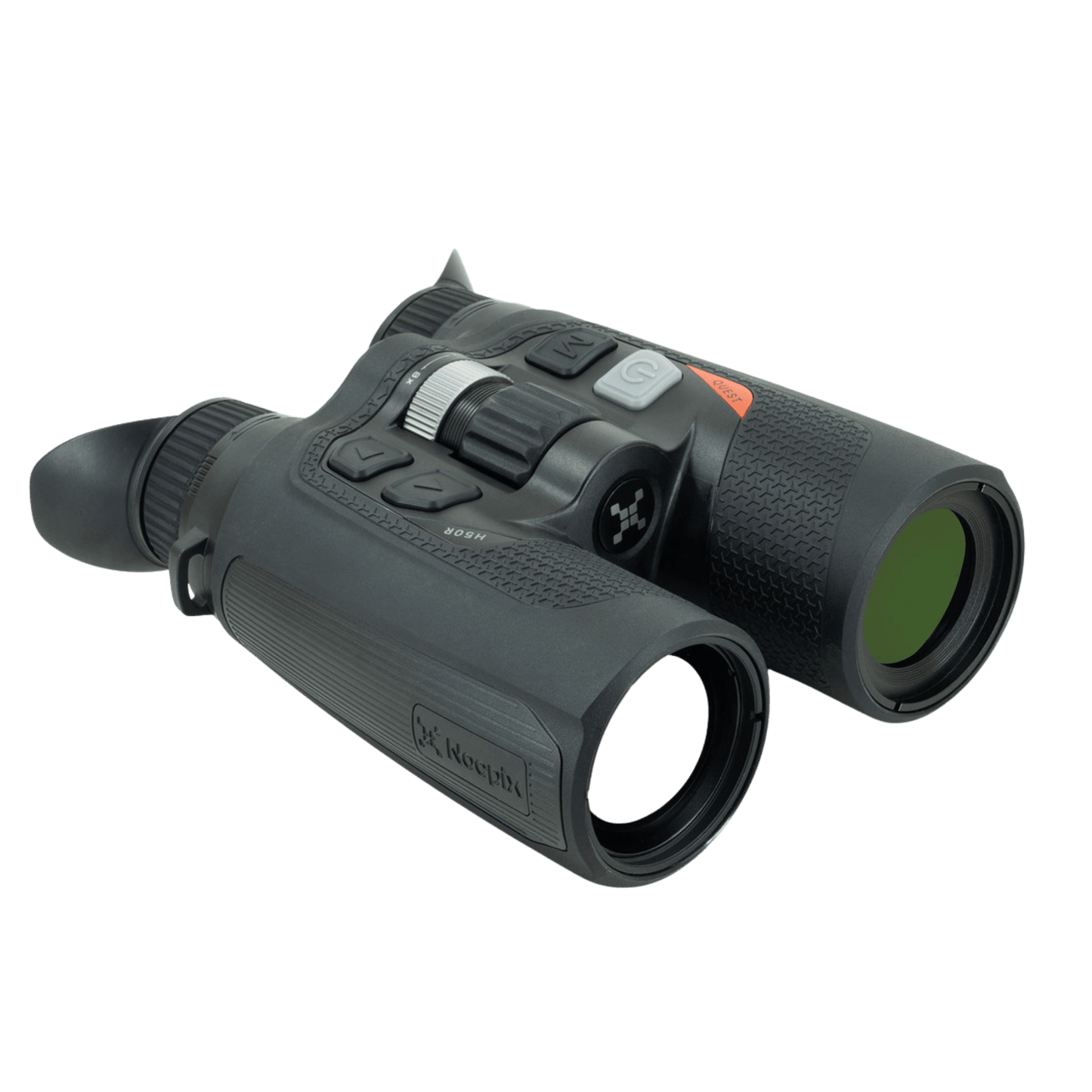

  • Rugged IP67-rated thermal binocular (Quest H50R) built with a full-rubber coating for durability, featuring an integrated 1000m Laser Rangefinder (LRF) for precise spotting in adverse outdoor conditions. Front Left View of Binoculars featuring button layout and manual focus wheel

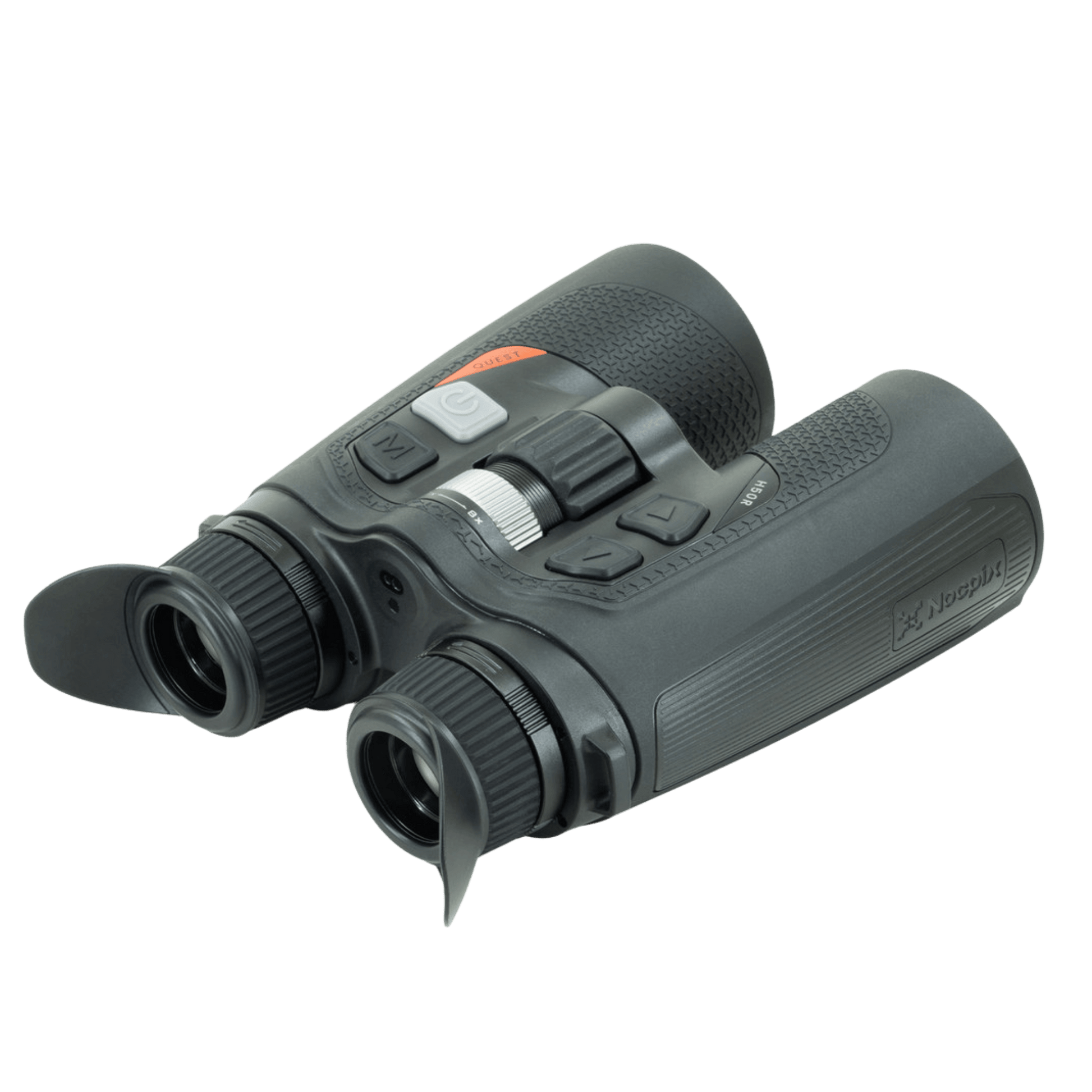

  • The traditional binocular-style Quest H50R, showcasing its 50mm objective lens and ergonomic housing designed for one-handed operation via a simplified 4-button layout and central digital zoom control. Rear Right View with button layout and diopters

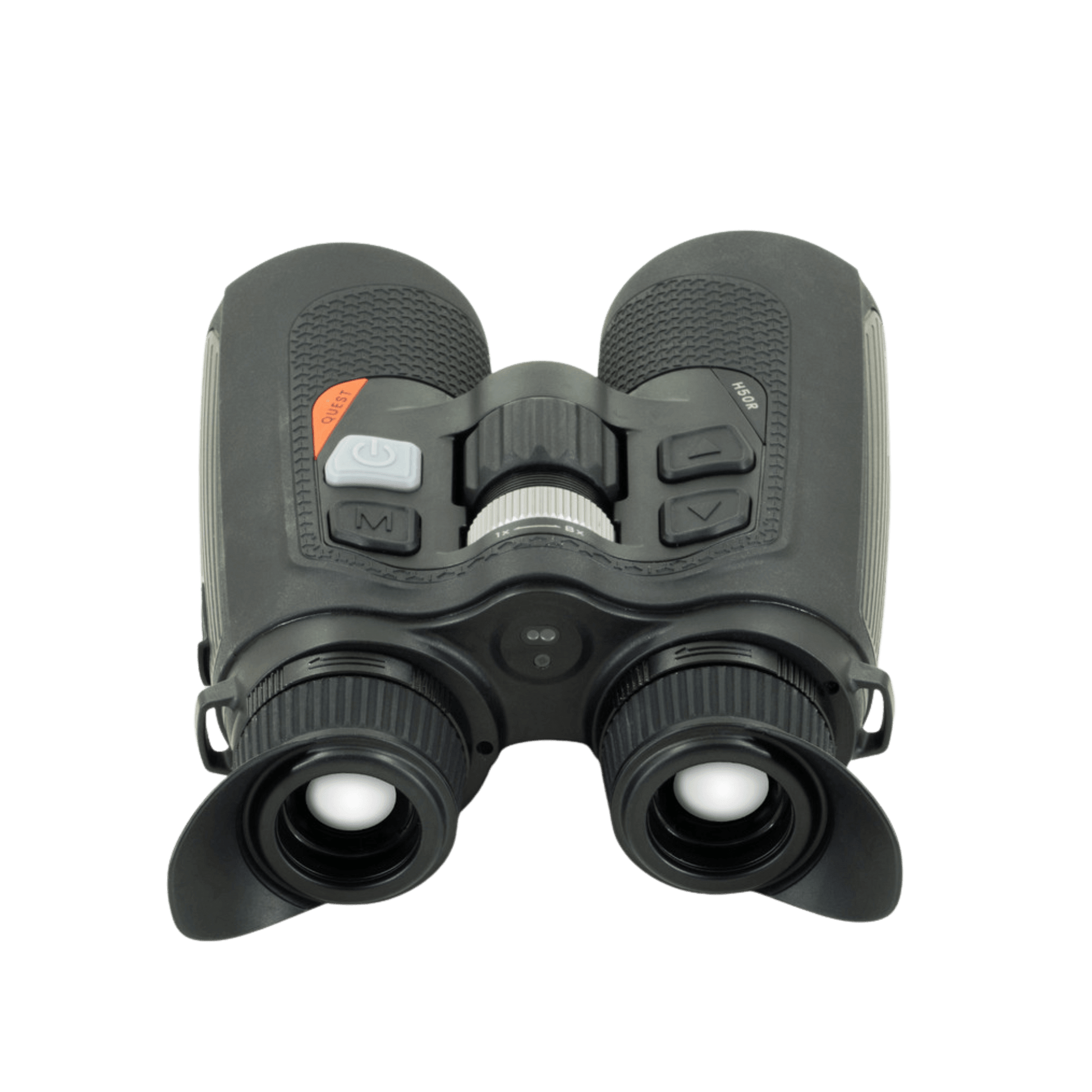

  • igh-definition thermal binocular (Nocpix Quest H50R) offering an Excellent Visual Experience through its 1920x1200 AMOLED display and R+ image enhancement algorithm. Rear full view of device

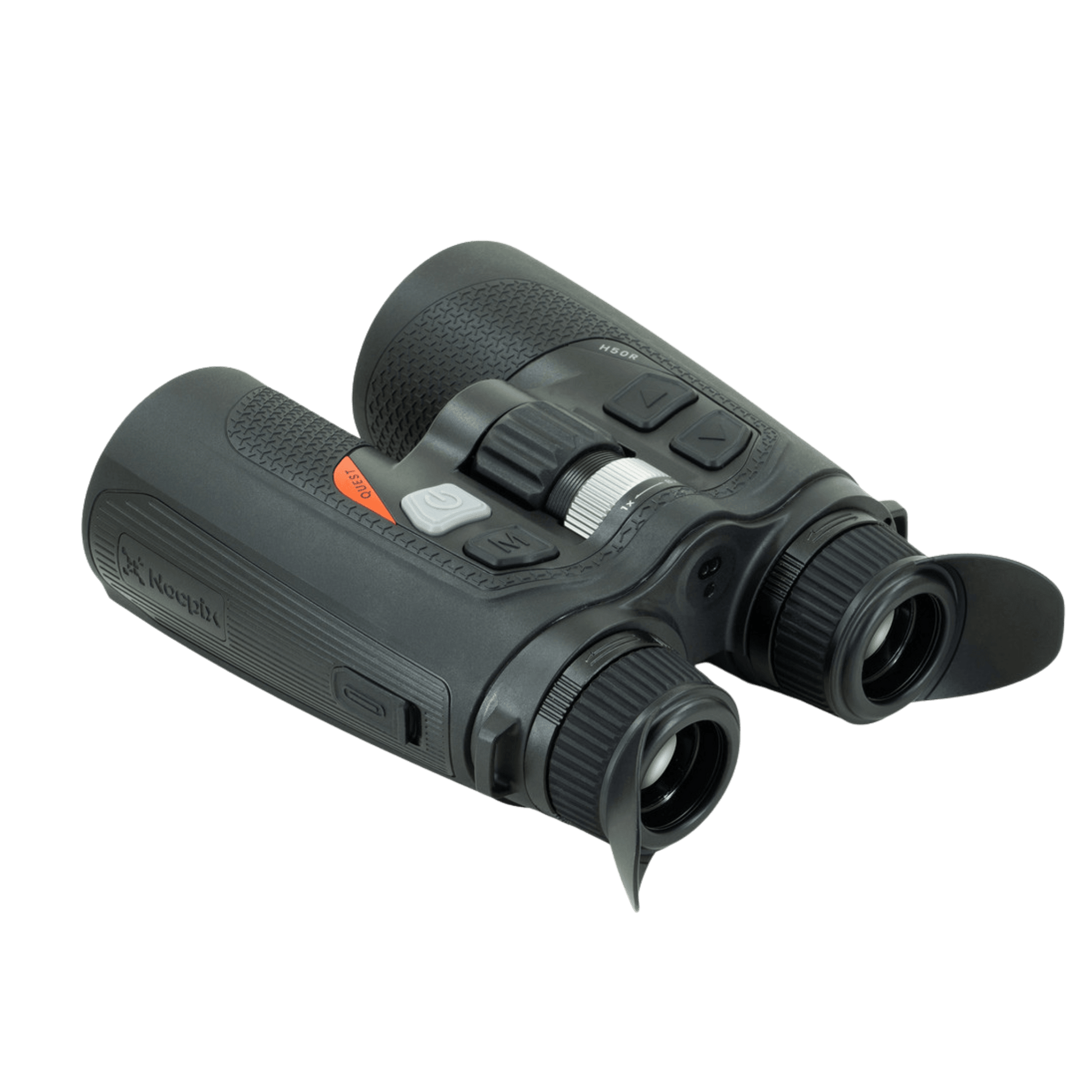

  • Compact and lightweight (under 700g), the Nocpix Quest H50R delivers advanced surveillance capabilities with its 640x512 thermal resolution and built-in 1000m Laser Rangefinder. Rear Left view of thermal binoculars feautring red quest logo with button layout
1 5

Nocpix QUEST H50R Professional Thermal Binocular

  • Thermal Resolution: 640 x 512
  • Thermal Lens: 50mm
  • Pixel Interval: 12µm
  • NETD: < 15mK
  • Thermal FOV: 8.8×7.0/15×12°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 62,990.00
Including VAT • Includes Shipping

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay
Split your purchase with interest-free payments from R 10,498.33/m

Make your first payment today, then monthly over 2–6 months.

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Nocpix QUEST H50R Professional Thermal Binocular.

SKU: 1A00600204

Detection Range

Pig
Kudu
Elephant
1529mDetection
694mRecognition
347mIdentification
2294mDetection
1042mRecognition
521mIdentification
4588mDetection
2083mRecognition
1042mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Nocpix Quest H50R Key Features:

• High-Definition Sensor: Features a 640x512 resolution thermal core with a 12µm pixel interval and a high frame rate of 60Hz.
• Extreme Thermal Sensitivity: Achieves an impressive thermal resolution with a Noise Equivalent Temperature Difference (NETD) of ≤15mK.
• Long-Range Capability: Offers a substantial target detection range of up to 2600 meters.
• Integrated Rangefinder: Equipped with a built-in concealed Laser Rangefinder (LRF) capable of measuring distances up to 1000 meters (Class 1 safety).
• Advanced Optics and Zoom: Features a powerful 50mm Objective Lens (F1.1) and variable magnification from 4x up to 32x.
• Rugged and Waterproof Build: Designed with a durable full-rubber coating and rated IP67 for protection against dust and water ingress.
• Ergonomic Design: Engineered for comfortable, non-slip handling and features simple one-handed operation via a simplified button layout and central scroll wheels.

Product Overview



Nocpix Quest H505 - Featuring a 640x512 thermal resolution with a 50mm lensNocpix QUEST H50R - Featuring new technology and bigger display


The Nocpix QUEST H50R Thermal Imaging Binocular is the professional choice for superior long-range observation and hunting, achieving an impressive 2600m detection range. This model utilizes a high-performance 640x512, 12µm thermal sensor with exceptional thermal sensitivity (NETD ≤15mK) and a fast 60Hz frame rate to ensure crystal-clear imaging, even in challenging environments. For precision targeting, the device features a powerful 1000m built-in concealed Laser Rangefinder (LRF) and supports ballistic calculation.

Designed in a traditional binocular style, the rugged unit features a refined full-rubber coating and an IP67 rating for comprehensive durability against water and dust. The Quest H50R provides an Excellent Visual Experience via its high-resolution 1920x1200 AMOLED display with R+ image enhancement for outstanding clarity.

Nocpix Quest H50R Key Features:

• High-Definition Sensor: Features a 640x512 resolution thermal core with a 12µm pixel interval and a high frame rate of 60Hz.
• Extreme Thermal Sensitivity: Achieves an impressive thermal resolution with a Noise Equivalent Temperature Difference (NETD) of ≤15mK.
• Long-Range Capability: Offers a substantial target detection range of up to 2600 meters.
• Integrated Rangefinder: Equipped with a built-in concealed Laser Rangefinder (LRF) capable of measuring distances up to 1000 meters (Class 1 safety).
• Advanced Optics and Zoom: Features a powerful 50mm Objective Lens (F1.1) and variable magnification from 4x up to 32x.
• Rugged and Waterproof Build: Designed with a durable full-rubber coating and rated IP67 for protection against dust and water ingress.
• Ergonomic Design: Engineered for comfortable, non-slip handling and features simple one-handed operation via a simplified button layout and central scroll wheels.

Nocpix QUEST H50R Official Manufacturer Product Page
Nocpix QUEST H50R Official User Manual with Specifications
Nocpix Outdoor Thermal Imaging Range from Cape Thermal

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Thermal Resolution640 x 512
Pixel Pitch12 µm
NETD< 15 mK
Thermal Lens50 mm
Focal Ratio (Aperture)F1.1
Field of View8.8×7.0/15×12
Magnification4~32x
Frame Rate60 Hz
Detection Range (1.7m Subject)2600 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Max Range1000 m
Trajectory CalculatorYes
System & Display
Display Info0.72 inch AMOLED
Screen BrightnessYes
Screen ContrastYes
Digital Zoom4x - 32x
Color PalettesWhite Hot, Black Hot, Red Hot, Violet, Crimson, Viridian
Image ModesUltra Clear Mode, Image Stabilizor
Defective Pixel CorrectionYes
Storage Capacity64
Media Format.JPG / .MP4
Recording CapabilitiesPhoto, Video, Audio
Battery Life6
Connectivity & Software
Wi-Fi HotspotYes
Video StreamingYes
Supported OSiOS, Android, Windows
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-20°C to 50°C
Dimensions & Weight175.4mm × 138mm × 66mm; <700g
What's in the Box
Box ContentsQuest series Thermal Imaging Binocular
Portable bag
18650 Battery × 2
Data cable
Neck Strap
Lens cleaning cloth
Quick start guide
Lens cap
18650 Battery charger
