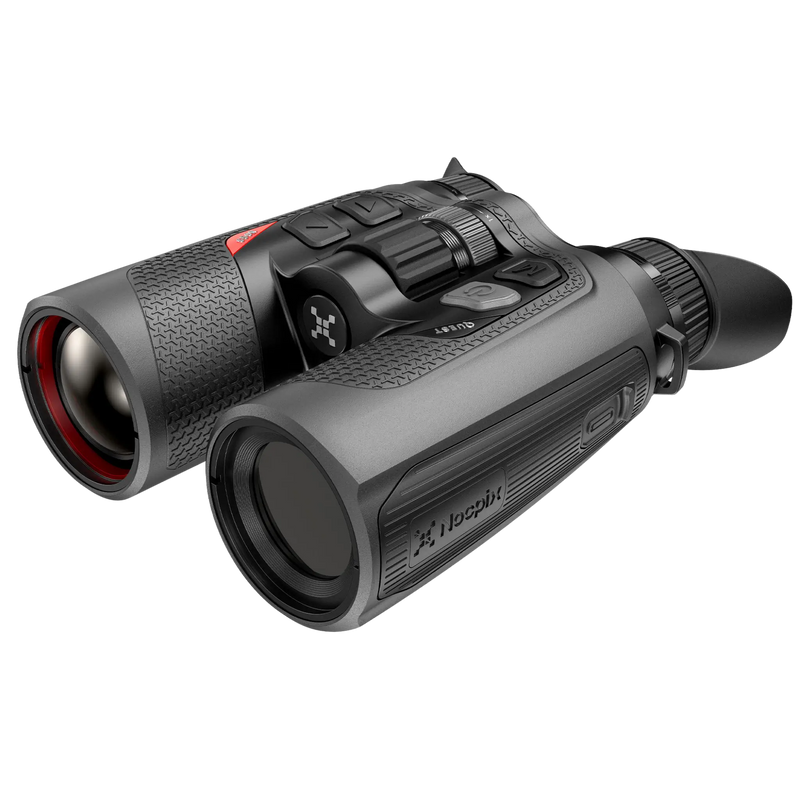

• Front-right view of the Nocpix Quest S50R Thermal Binoculars, showcasing the rugged rubberised grip texture and the side profile of the 50mm objective lens barrel.

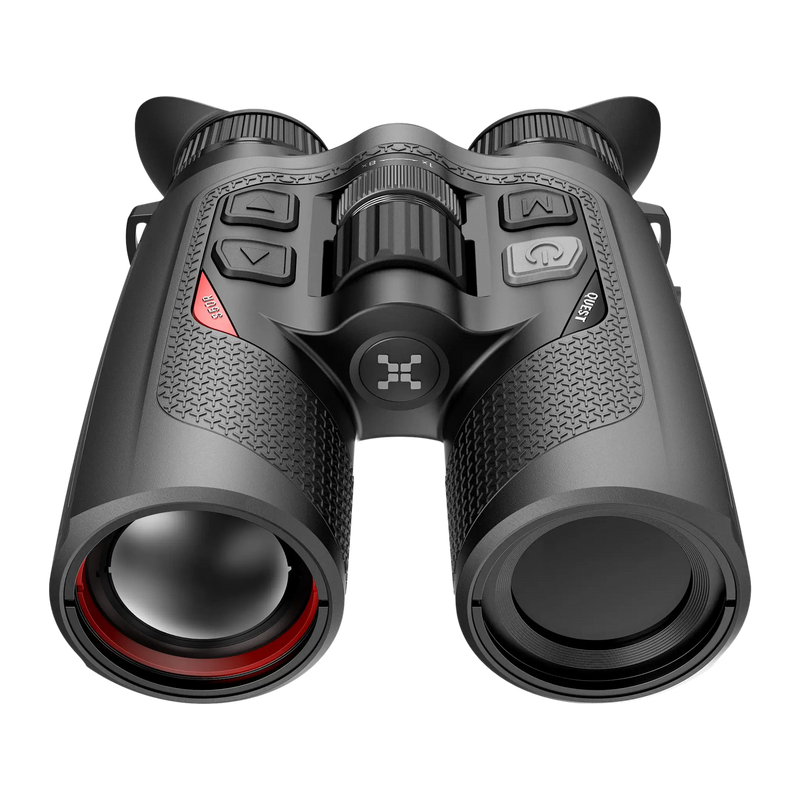

  • Close-up front view of the Nocpix Quest S50R, highlighting the large 50mm F1.1 germanium thermal lenses and the integrated laser rangefinder (LRF) module located centrally between the tubes.
  • Front-left profile of the Nocpix Quest S50R Thermal Binoculars, displaying the Nocpix branding and the housing for the 1280x1024 resolution thermal sensor.
  • Nocpix Quest S50R Thermal Binoculars resting on a surface, demonstrating the compact traditional binocular design and top-mounted rotary control wheels for zoom and focus.
  • Rear view of the Nocpix Quest S50R showing the dual rubber eyepieces, interpupillary distance (IPD) adjustment mechanism, and the large 0.72-inch AMOLED display housing.
1 5

Nocpix Quest S50R HD Thermal Binoculars

  • Thermal Resolution: 1280 x 1024
  • Thermal Lens: 50mm
  • Pixel Interval: 12µm
  • NETD: < 15mK
  • Thermal FOV: 17.5x14/30x24°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 99,989.00
New Arrival
Including VAT • Includes Shipping

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay
Split your purchase with interest-free payments from R 16,664.83/m

Make your first payment today, then monthly over 2–6 months.

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Nocpix Quest S50R HD Thermal Binoculars.

SKU: 1A0060031

Detection Range

Pig
Kudu
Elephant
1529mDetection
694mRecognition
347mIdentification
2294mDetection
1042mRecognition
521mIdentification
4588mDetection
2083mRecognition
1042mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Nocpix Quest S50R Thermal Binoculars key features:

• Ultra-HD Thermal Sensor: 1280×1024 resolution keeps images crisp during digital zoom, significantly reducing pixelation.
• Fluid Motion: 60Hz frame rate ensures smooth, lag-free imaging for tracking moving targets.
• Immersive Display: Large 0.72-inch 1920×1200 AMOLED screen delivers a cinematic experience with reduced eye fatigue.
• Dual Power System: Combines built-in and replaceable 18650 batteries for continuous, hot-swappable operation.
• Classic Ergonomics: Traditional binocular design with adjustable IPD and lightweight housing (<750g) for easy handling

Ultra-HD 1280x1024 Resolution: > Powered by a flagship 1280x1024 sensor, the S50R delivers a staggering 1,310,720 pixels of thermal data.

Product Overview
The Nocpix Quest S50R is designed to bridge the gap between traditional glass optics and advanced thermal imaging. Styled with the classic ergonomics of standard binoculars, it offers a handling experience that feels instantly familiar and balanced in the hand. Unlike many thermal devices that force you to navigate complex menus or click buttons repeatedly to change magnification, the Quest S50R simplifies the process with a dedicated Digital Zoom Ring and Lens Focus Ring.
This mechanical approach makes focusing and zooming significantly more fluent and controlled. You can fine-tune your view instantly without fumbling for buttons in the dark, allowing for smooth, continuous target tracking.
The viewing experience is further refined by the internal display—one of the largest in its class. The Quest S50R houses a stunning 0.72-inch AMOLED screen with a 1920×1200 resolution. This massive display makes the viewing experience significantly "sweeter" than standard models, offering edge-to-edge clarity that reduces eye strain and fully utilizes the immense detail captured by the 1280 sensor.

Cape Thermal Expert Field Test: The S50R Difference

After testing the Nocpix Quest S50R in the South African field, one thing is clear: this was built for the traditional hunter. Unlike other digital units, Nocpix moved the focus wheel to the rear—exactly where your fingers expect it on a pair of daylight binoculars. The dedicated magnification wheel is equally impressive, allowing for stepless, fluid zooming rather than jumping through fixed digital increments. Combined with the 1280x1024 HD sensor, it offers a level of intuitive identification we haven't seen in this category before

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled
Thermal Resolution1280 x 1024
Pixel Pitch12 µm
NETD< 15 mK
Thermal Lens50 mm
Focal Ratio (Aperture)F1.1
Field of View17.5x14/30x24
Magnification2~16x
Focus ModeManual Focus
Frame Rate60 Hz
Detection Range (1.7m Subject)2600 m
Optical & Night Vision
Interpupillary Range63 to 72mm
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Max Range1000 m
LRF Min Range10 m
LRF Accuracy±1
Trajectory CalculatorYes
System & Display
Display Info 0.72 inch AMOLED (1920×1200 Resolution)
Screen BrightnessYes
Screen ContrastYes
Digital Zoom8x
Color PalettesWhite Hot, Black Hot, Red Hot, Violet, Crimson, Viridian
Image ModesUltra Clear Mode, Image Stabilizor
Eye Pupil10mm
Eye Relief25mm
Diopter Range±5
Display FunctionsTime, WI-FI, Magnification, Battery Indicator
Defective Pixel CorrectionYes
Electronic StabilizationYes
Storage Capacity64
Media Capacity64GB
Media Format.JPG / .MP4
Recording CapabilitiesPhoto/Video Recorder, Records Audio
Built-In MicrophoneYes
Battery TypeBuilt-in battery/4200mAh + replaceable 18650 battery
Battery Life5
Battery Indicator HUDYes
Polarity ProtectionYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotYes
BluetoothN-Link
Video StreamingYes
USB ConnectivityType-C
Supported OSAndroid, IOS
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-20°C to 50°C
Dimensions & Weight175.4mm × 138mm × 66mm; <750g
EMC CertificationsCLASS A
What's in the Box
Box ContentsQuest S50R Thermal Imaging Binocular
Portable bag
18650 Battery × 2
Data cable
Neck Strap
Lens cleaning cloth
Quick start guide
Lens cap
18650 Battery charger
