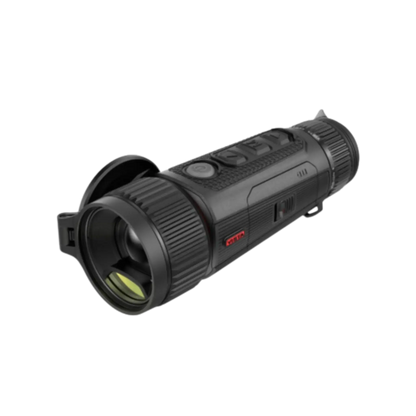

• A Nocpix VISTA H35R thermal monocular with a laser range finder visibly integrated above the objective lens, shown from an angled view.

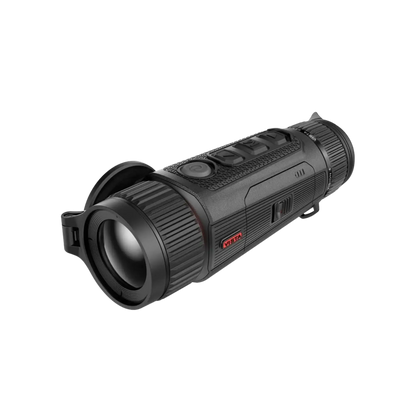

  • A Nocpix VISTA H35 thermal monocular, black in color, shown from a front-left angled view, highlighting its objective lens and ergonomic body.

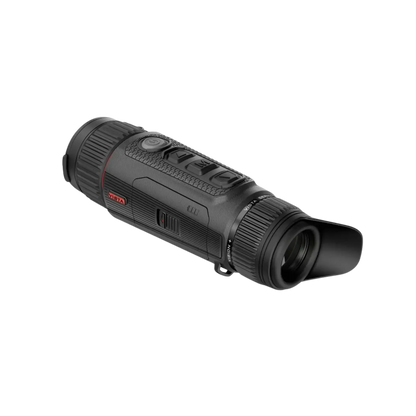

  • A Nocpix VISTA H35 thermal monocular shown from a rear-left angle, focusing on the eyepiece, control buttons, and ergonomic grip.

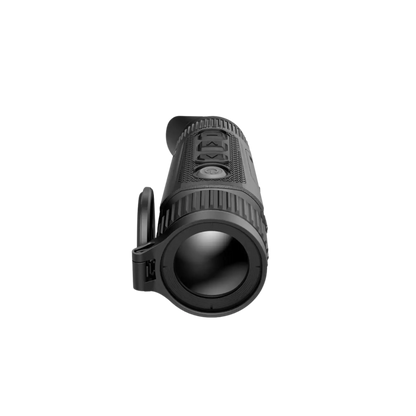

  • Front view of the Nocpix VISTA H35 thermal monocular, clearly displaying its objective lens
  • A side profile view of the Nocpix VISTA H35 thermal monocular, highlighting its compact shape and the placement of the focus ring and controls.
1 5

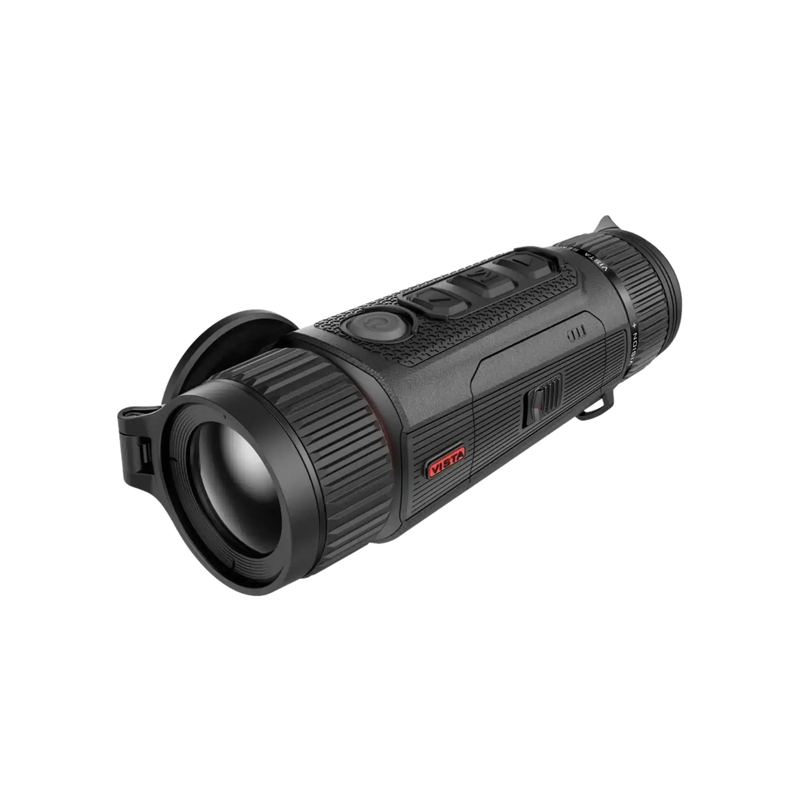

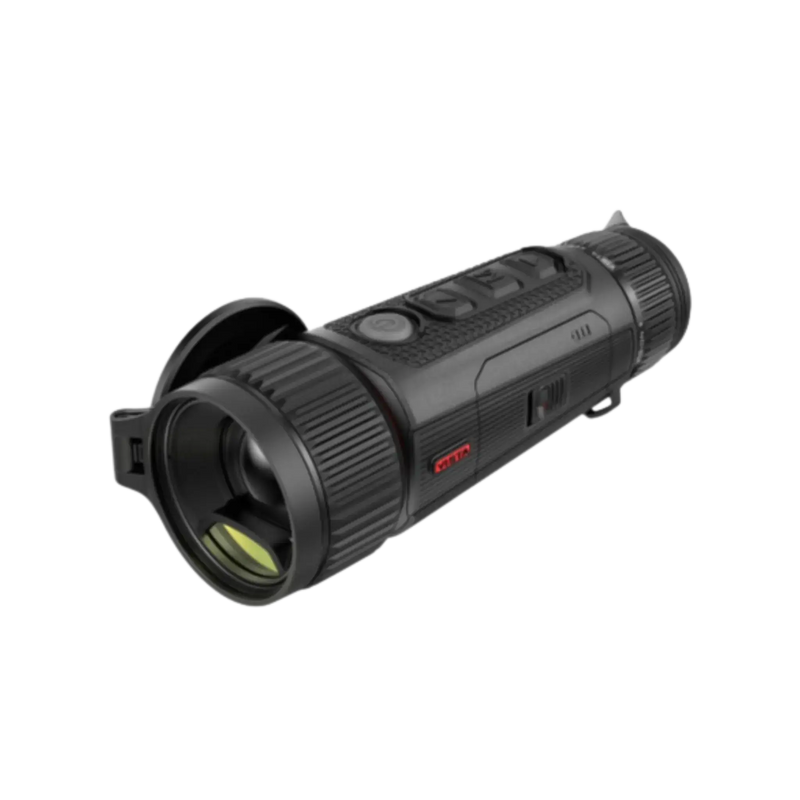

NOCPIX VISTA H35R - Handheld Thermal Monocular

  • Thermal Resolution: 640 x 512
  • Thermal Lens: 35mm
  • Pixel Interval: 12µm
  • NETD: < 15mK
  • Thermal FOV: 12.5×10.0 (22m × 18m @100)°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 53,907.00
Including VAT • Includes Shipping

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay
Split your purchase with interest-free payments from R 8,984.50/m

Make your first payment today, then monthly over 2–6 months.

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for NOCPIX VISTA H35R - Handheld Thermal Monocular.

SKU: 1A00600180

Detection Range

Pig
Kudu
Elephant
1059mDetection
486mRecognition
243mIdentification
1588mDetection
729mRecognition
365mIdentification
3176mDetection
1458mRecognition
729mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Product Overview

Experience unparalleled clarity and fluid imaging with the Nocpix VISTA H35R, a cutting-edge thermal monocular designed for serious outdoor enthusiasts and professionals. Part of the new Nocpix Vista series, this device delivers exceptional detail and a remarkably smooth viewing experience, making it ideal for scouting, observation, and wildlife detection. Powered by a high-resolution 640x512 thermal sensor and an impressive 60Hz frame rate, the VISTA H35 ensures you capture every moment with precision and fluid motion.

Nocpix VISTA H35R Key Features:

  • High-Resolution Thermal Sensor: Features a 640×512 & 12μm thermal core for outstanding image detail.
  • Ultra-Sensitive NETD: ≤15 mK NETD ensures superior detection of subtle temperature differences.
  • Smooth 60Hz Frame Rate: Provides an exceptionally fluid and comfortable viewing experience, even with fast-moving targets.
  • Powerful 35mm Objective Lens: Captures ample thermal radiation for clear, bright images (F0.9).
  • Wide Field of View: 12.5°×10.0° / 22×18 m@100m for broad situational awareness.
  • Versatile Magnification: Ranges from 3x to 28x, allowing for both wide-area scanning and detailed close-ups.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Thermal Resolution640 x 512
Pixel Pitch12 µm
NETD< 15 mK
Thermal Lens35 mm
Focal Ratio (Aperture)F0.9
Field of View12.5°×10.0° (22m × 18m @100)
Magnification3~28x
Frame Rate60 Hz
Detection Range (1.7m Subject)1800 m
System & Display
Screen BrightnessYes
Screen ContrastYes
Color PalettesWhite Hot, Black Hot, Red Hot, Violet, Crimson, Viridian
Defective Pixel CorrectionYes
Media Format.JPG / .MP4
Recording CapabilitiesPhoto, Video (with Audio), and Recoil-Activated Recording (RAV)
Built-In MicrophoneYes
Battery Indicator HUDYes
Connectivity & Software
Wi-Fi HotspotYes
Video StreamingYes
Supported OSiOS, Android, Windows
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Dimensions & Weight 184mm×61mm×71mm, 610g
