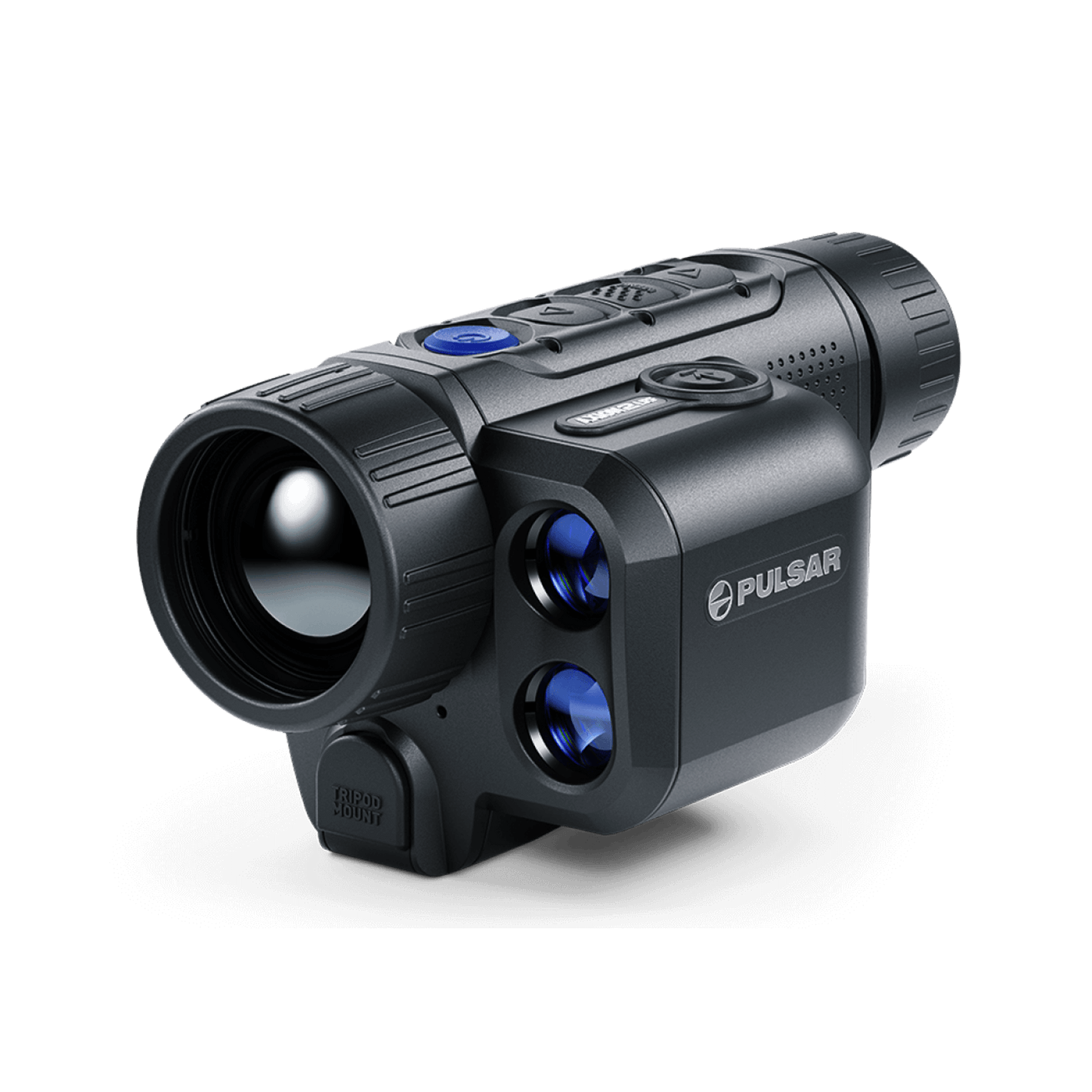

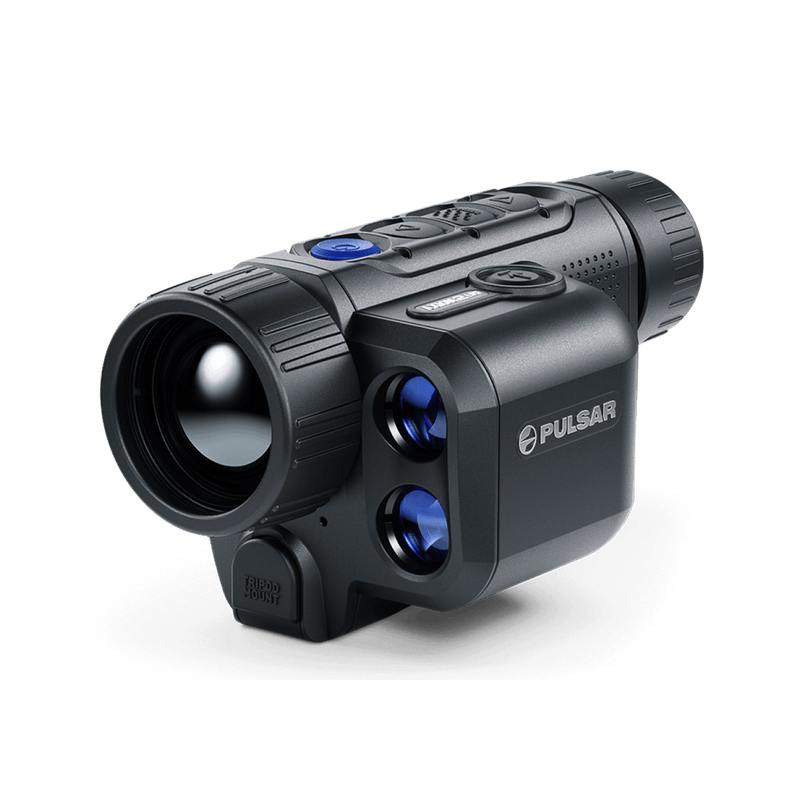

• Pulsar Axion 2 XQ35 LRF PRO Handheld Thermal Monocular for Sale with Cape Thermal Front Left View with Laser Range Finder

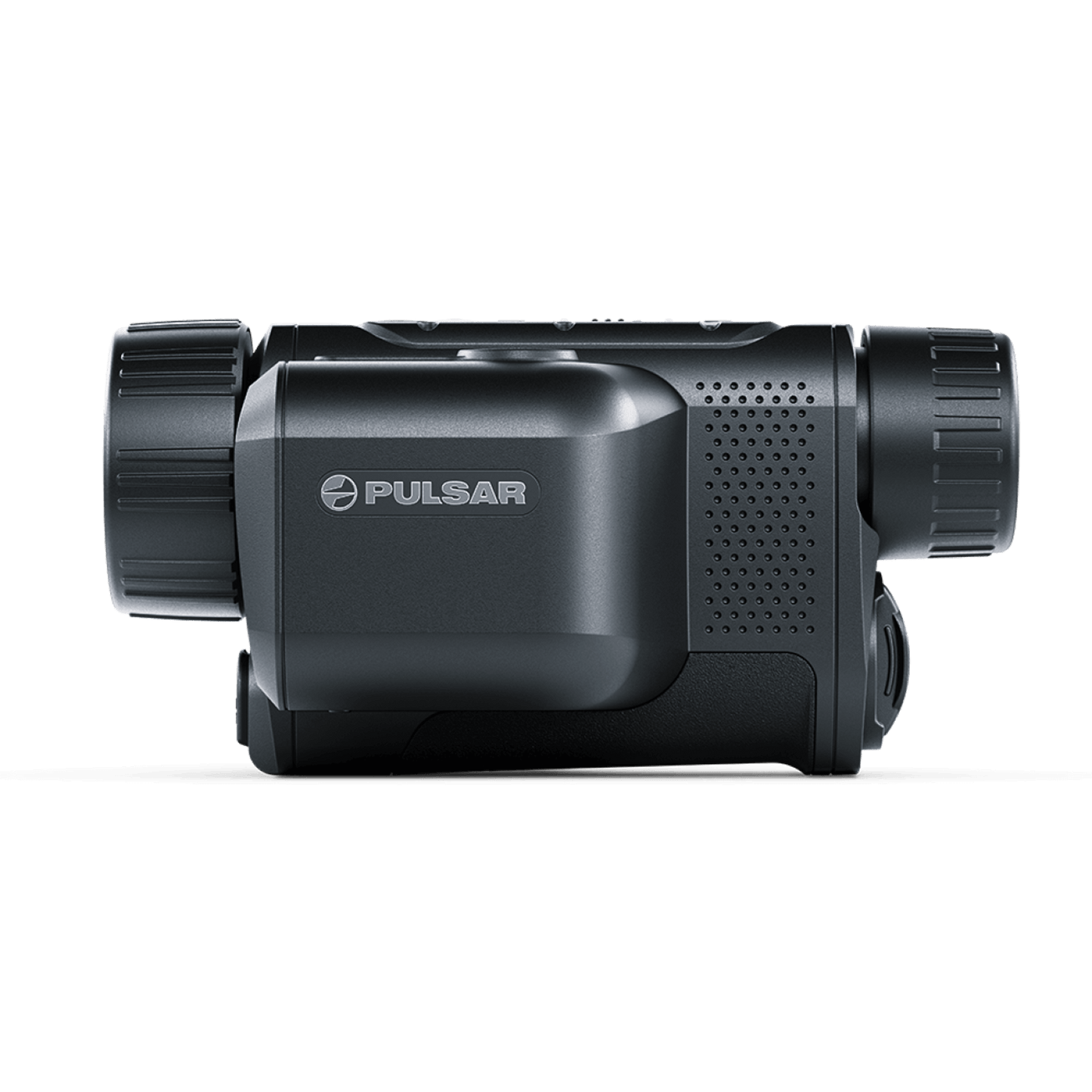

  • Pulsar Axion 2 XQ35 PRO LRF Handheld Thermal Monocular for Sale with Cape Thermal Left Side View

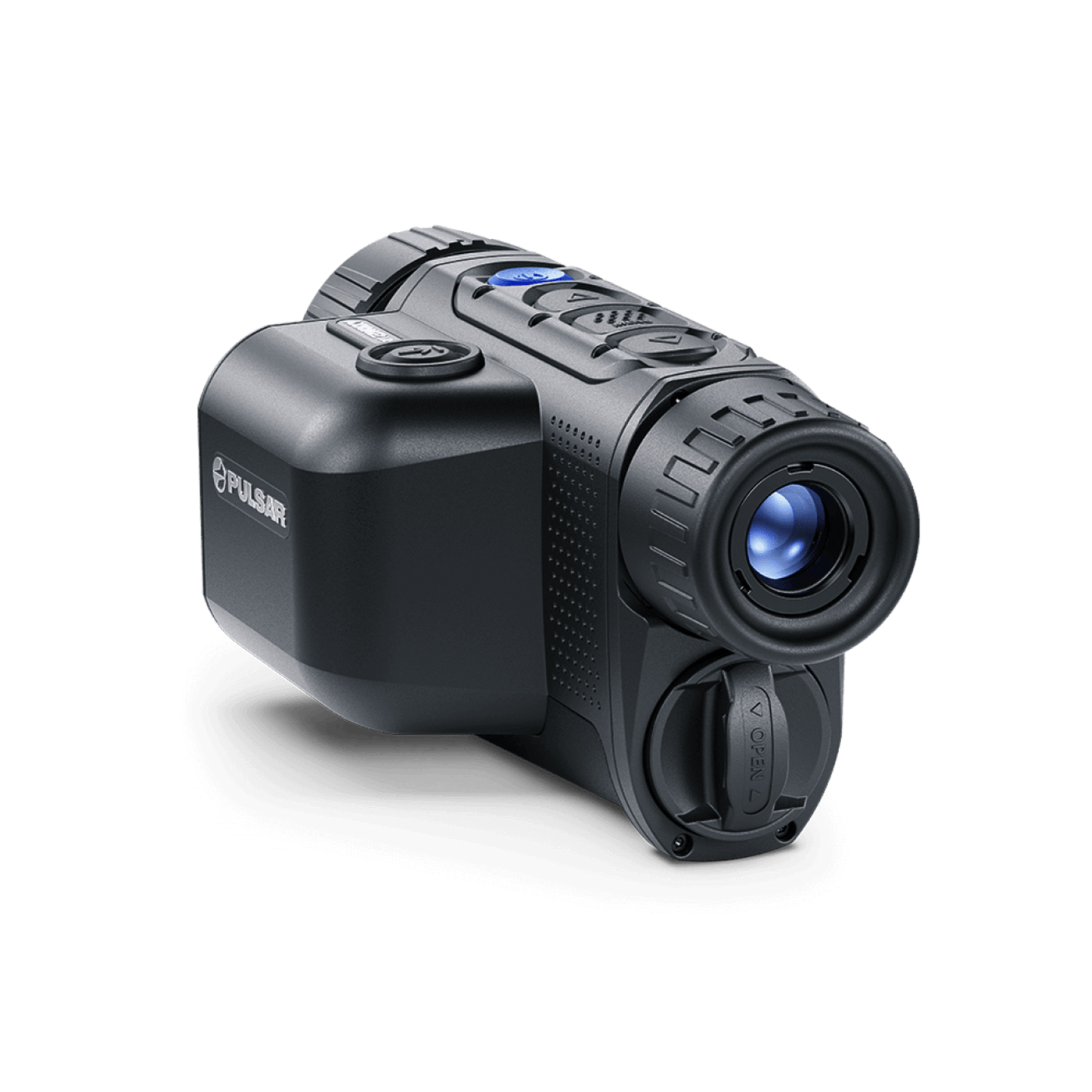

  • Pulsar Axion 2 XQ35 LRF PRO Handheld Thermal Monocular for Sale with Cape Thermal Rear Left View

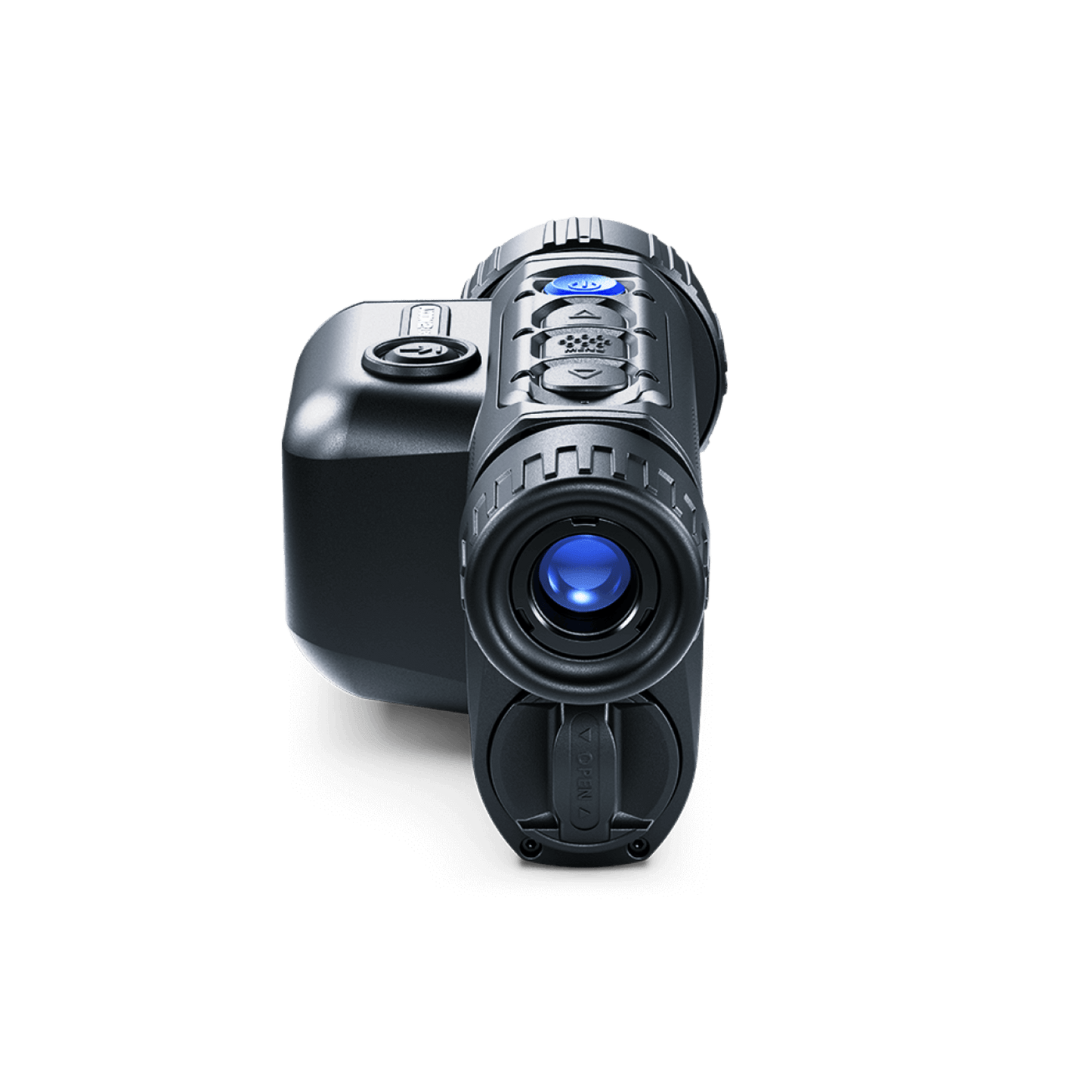

  • Pulsar Axion 2 XQ35 LRF PRO Handheld Thermal Monocular for Sale with Cape Thermal Rear View

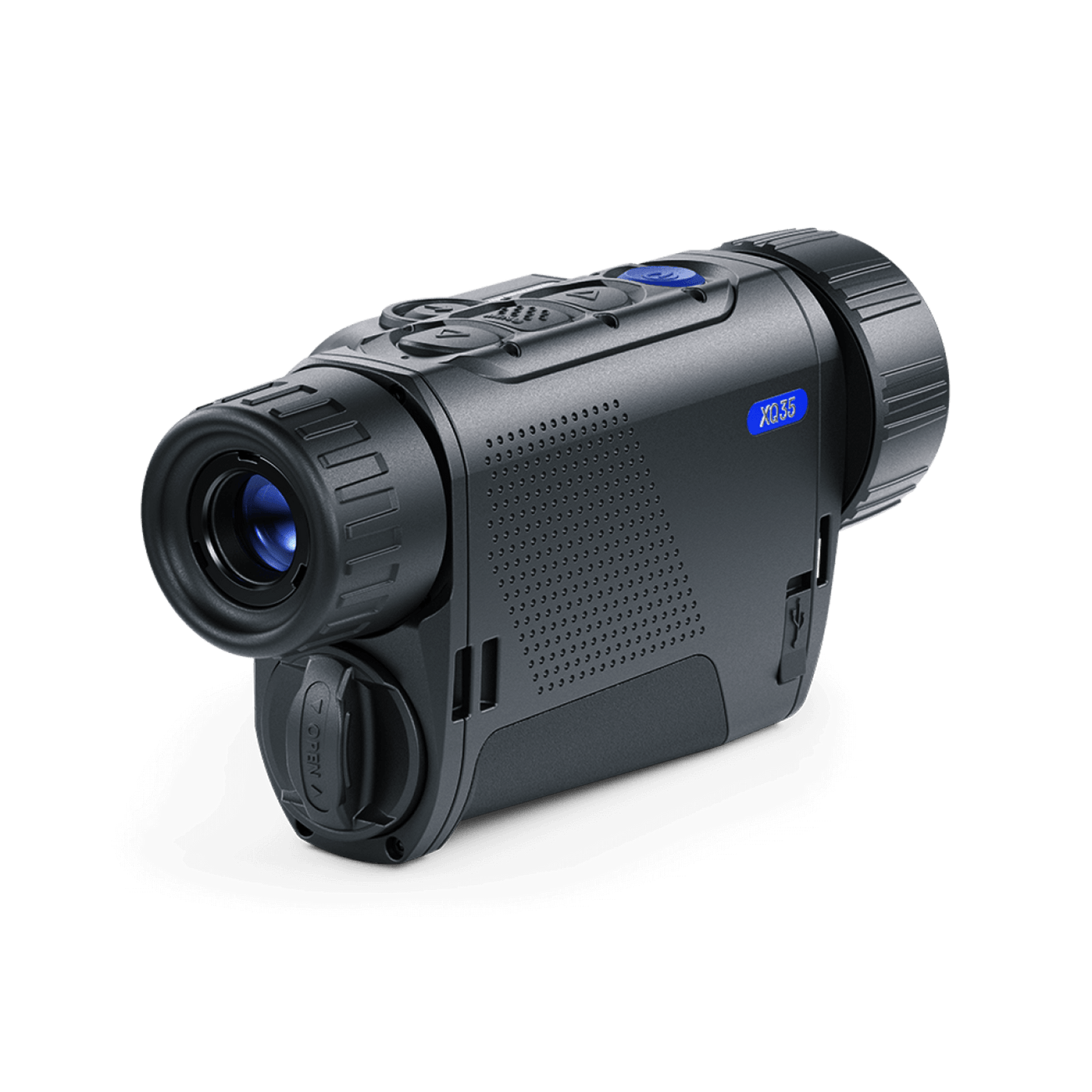

  • Pulsar Axion 2 XQ35 LRF PRO Handheld Thermal Monocular for Sale with Cape Thermal Rear Right View

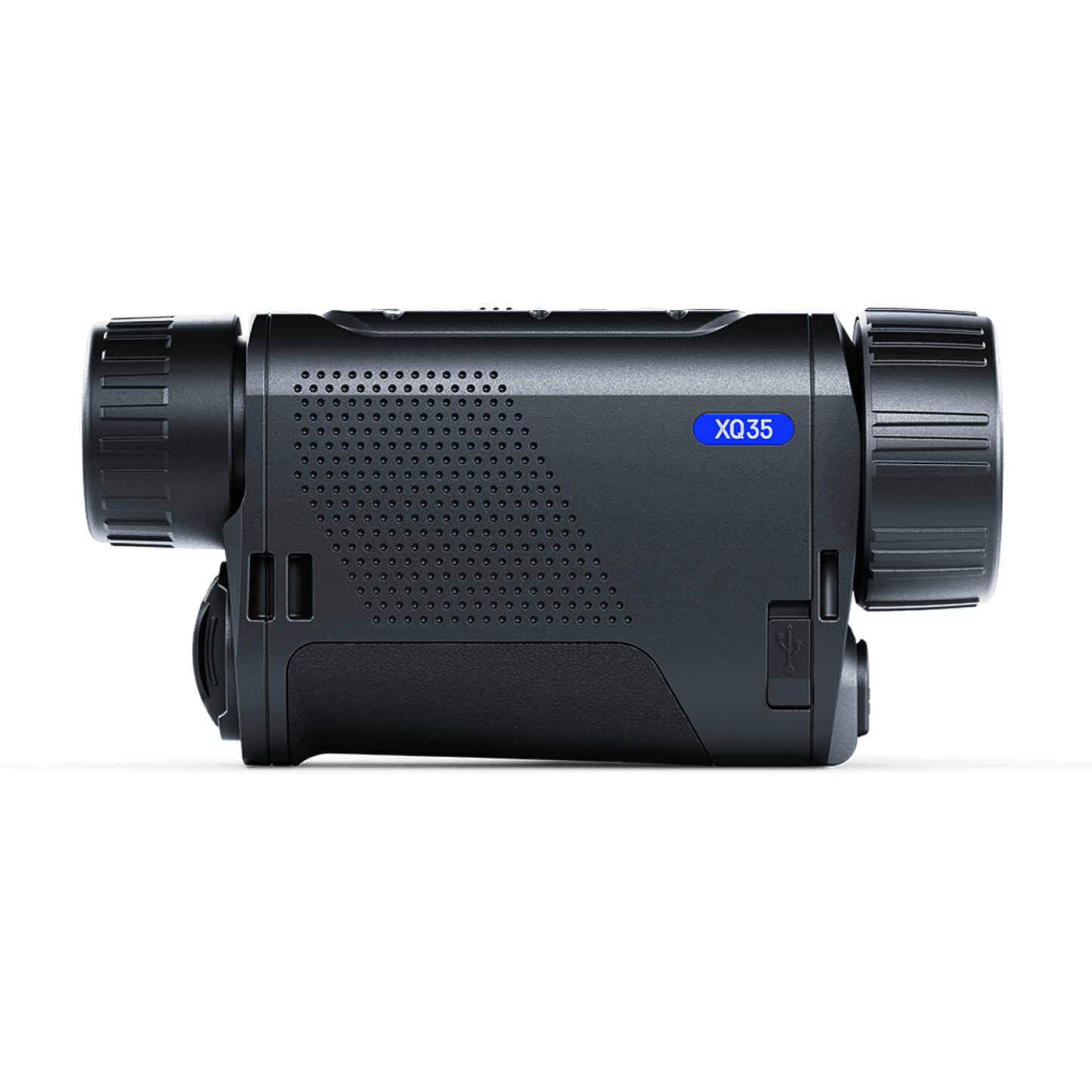

  • Pulsar Axion 2 XQ35 LRF PRO Handheld Thermal Monocular for Sale with Cape Thermal Right Side View

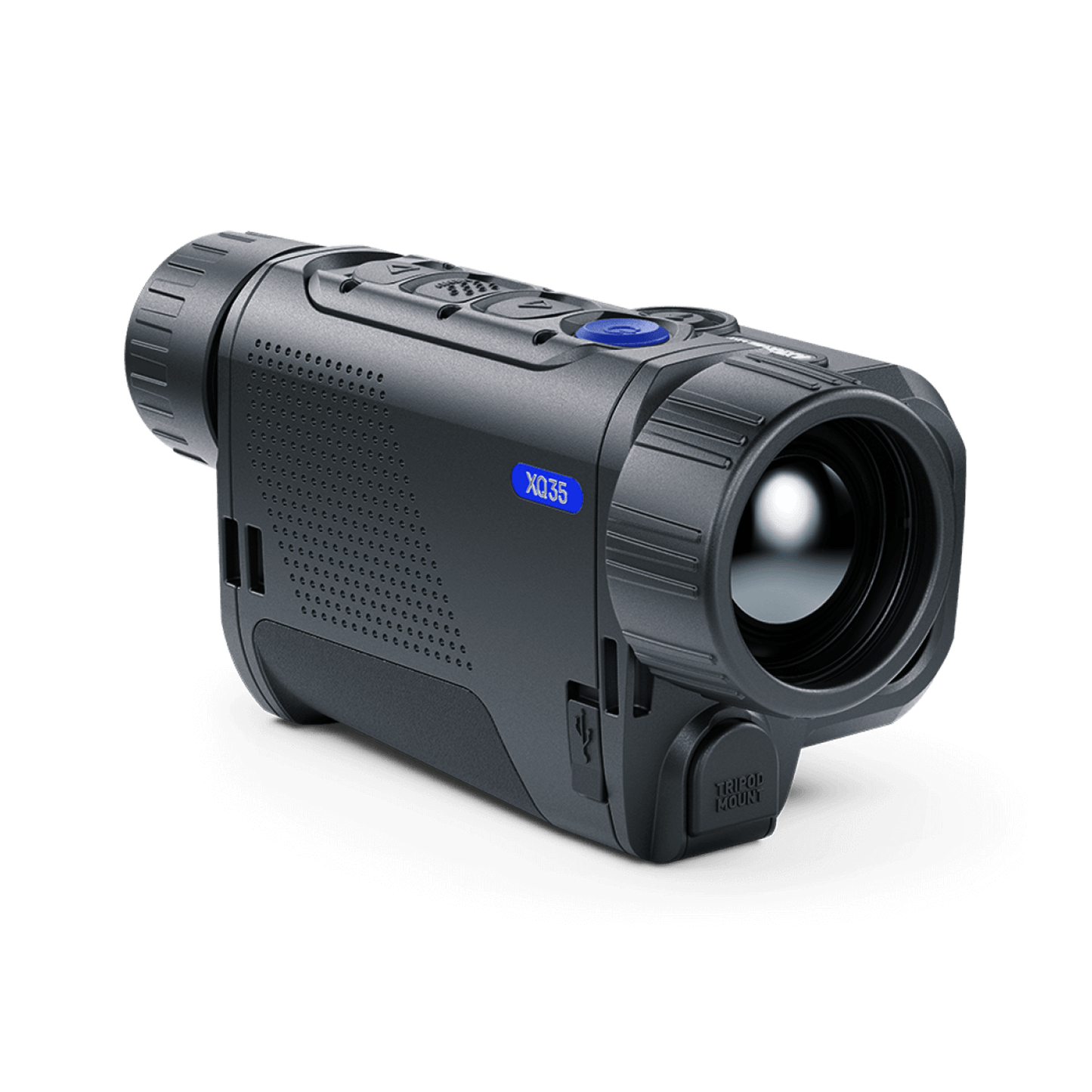

  • Pulsar Axion 2 XQ35 LRF PRO Handheld Thermal Monocular for Sale with Cape Thermal Front Right View
  • Pulsar Axion 2 XQ35 LRF PRO Handheld Thermal Monocular for Sale with Cape Thermal Front View
1 8

Pulsar Axion 2 LRF XQ35 PRO Thermal Imaging Monocular

Pulsar Axion 2 LRF XQ35 PRO Thermal Imaging Monocular

  • Thermal Resolution: 384x288px
  • Thermal Lens: 35mm/F1.0
  • Detection Distance: 1300m

  • Free Insured Shipping
  • Includes Product Lifetime Support
R 44,999.00 ZAR
R 44,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

The Pulsar Axion 2 LRF XQ35 PRO handheld thermal monocular offers a highly accurate built-in 905nm laser rangefinder. The Axion 2 range has been designed for regular use in difficult environments thanks to the high-quality reinforced magnesium alloy housing. This new and improved housing protects the internal thermal imaging components from shocks, drops, moisture, heat, and cold. The magnesium alloy housing helps minimize image noise by dissipating the heat from the internal electronics of the handheld thermal imager.

Thermal Imaging monocular key features:

  • 1300m detection range (average human-size target)*
  • 905nm laser rangefinder (Up to 1000m)
  • 384x288 thermal resolution
  • Built-in WiFi for Android and iOS streaming
  • 640x400 High Contrast frost resistant AMOLED Display
  • IPX7 ingress protection

Downloads:

View full details

Pulsar Axion 2 LRF XQ35 PRO Thermal Imaging Monocular Detection, Recognition, & Identification Ranges

Detection, recognition, and identification ranges are approximate and based on ideal conditions.

  • Thermal image of a group of pigs, likely Kunekune pigs, taken with a HikMicro Condor CQ50L Thermal Monocular. Their heat signatures are visible in shades of orange and yellow against a cool purple background.

    Bush Pig - 100cm

    Detection: 1350m

    Recognition: 300m
    Identification: 150m

  • Thermal image of a deer standing in a field, showcasing the detail and clarity of the Pulsar Axion 2 XQ35 Pro thermal monocular.

    Deer - 150cm

    Detection: 2000m

    Recognition: 500m
    Identification: 250m

  • HikMicro Condor CQ50L captures stunning thermal image of elephants drinking at a watering hole in the African savanna. The high-resolution thermal monocular reveals intricate details of their heat signatures, even in low-light conditions.

    Elephant - 300cm

    Detection: 4000m

    Recognition: 1000m
    Identification: 500m

1 3

Pulsar Axion 2 LRF XQ35 PRO Thermal Imaging Monocular Detailed Specifications

Thermal Module Specifications

Resolution: 384x288px

Lens: 35mm/F1.0

NETD: <40mK

Pixel Interval: 17μm

Response Waveband: N/A

Frame Rate: 50Hz

Zoom: 2 - 8 (x4 zoom)

Focus Mode: Focus Ring

Display

Screen: 640x400 Amoled

Field of View: 10.7°x8° / 18.2x13.7m (HxV) @ 100m

Palettes: White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, Violet

Laser Range Finder

Laser Safety Class: Class 1

LRF Wavelength: 905nm

Max Measurement Range: 1000m

Min Measurement Range: 1
Accuracy: ± 1

System Functions

Storage: 16Gb

Notable features: Wi-Fi (2.4 & 5Ghz)
Stream Vision Smartphone App
Records photos & videos
1/4" Tripod mount

Battery & Power

Battery Life: Up to 11h (4900mAh)

Power Supply: 5V, 9V (USB Type-C Power Delivery)

Battery Type: APS 5 Li-Ion Battery Pack

General

Operating Temperature: -25°C - 40°C

Ingress Protection: IPX7 Submersion Waterproof Rated (1 meter of water for up to 30 minutes)

Dimensions: 152x74x75mm (0.47kg)

SKU: 77502
