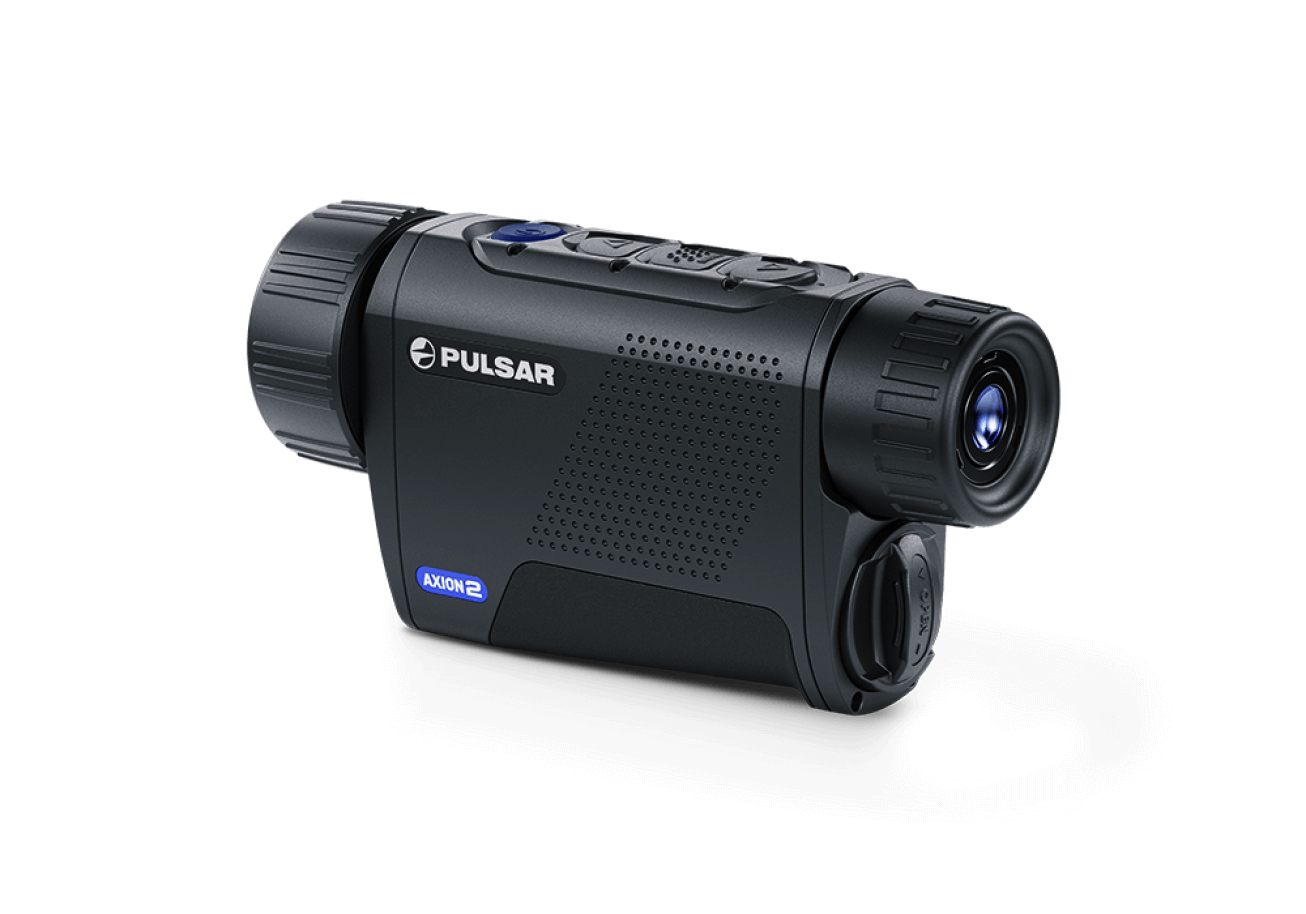

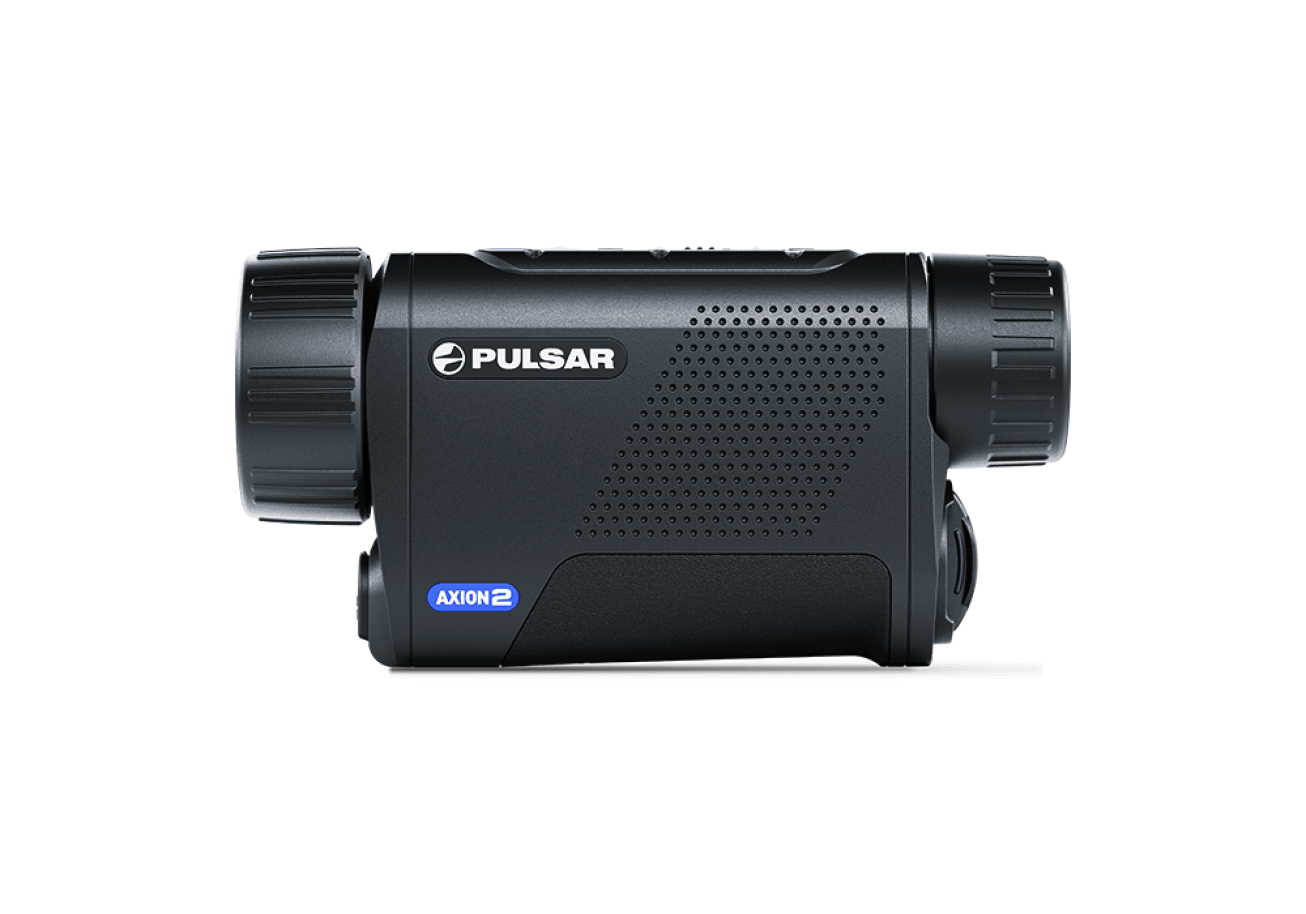

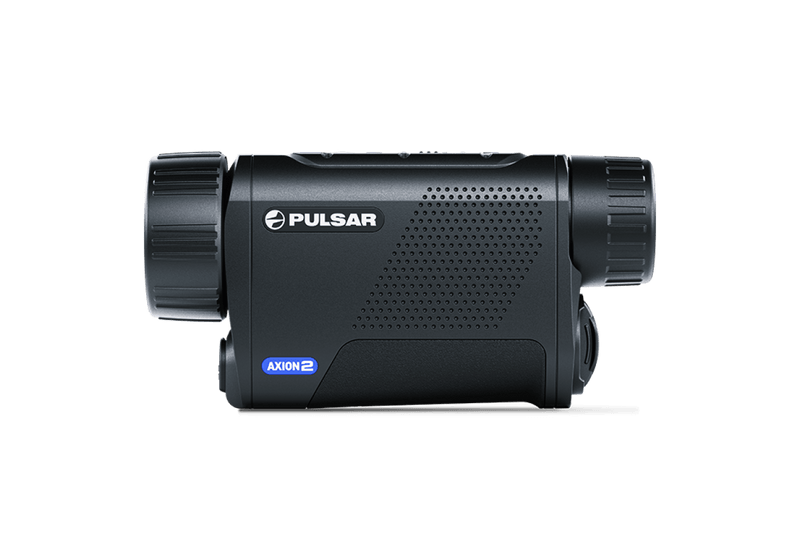

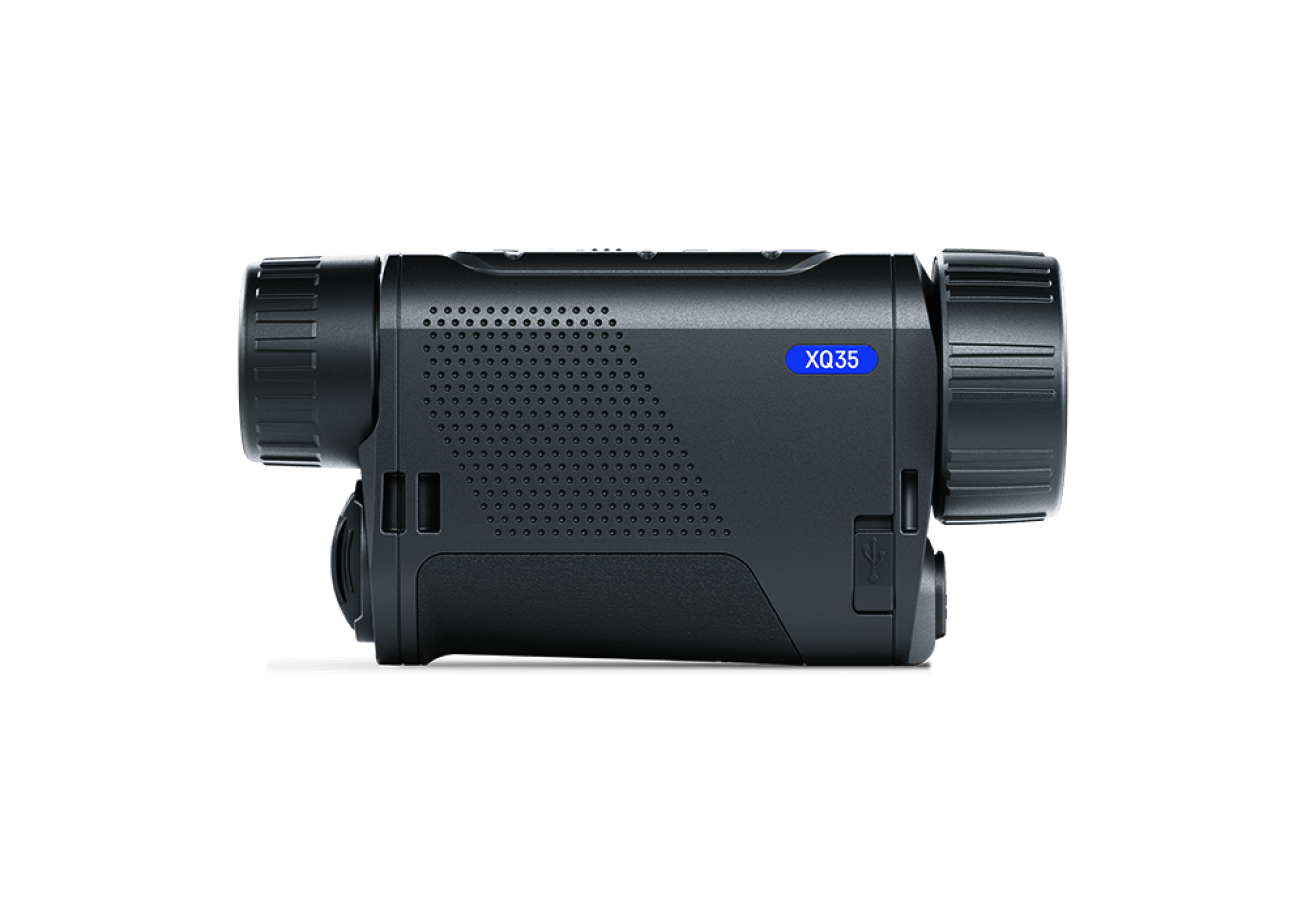

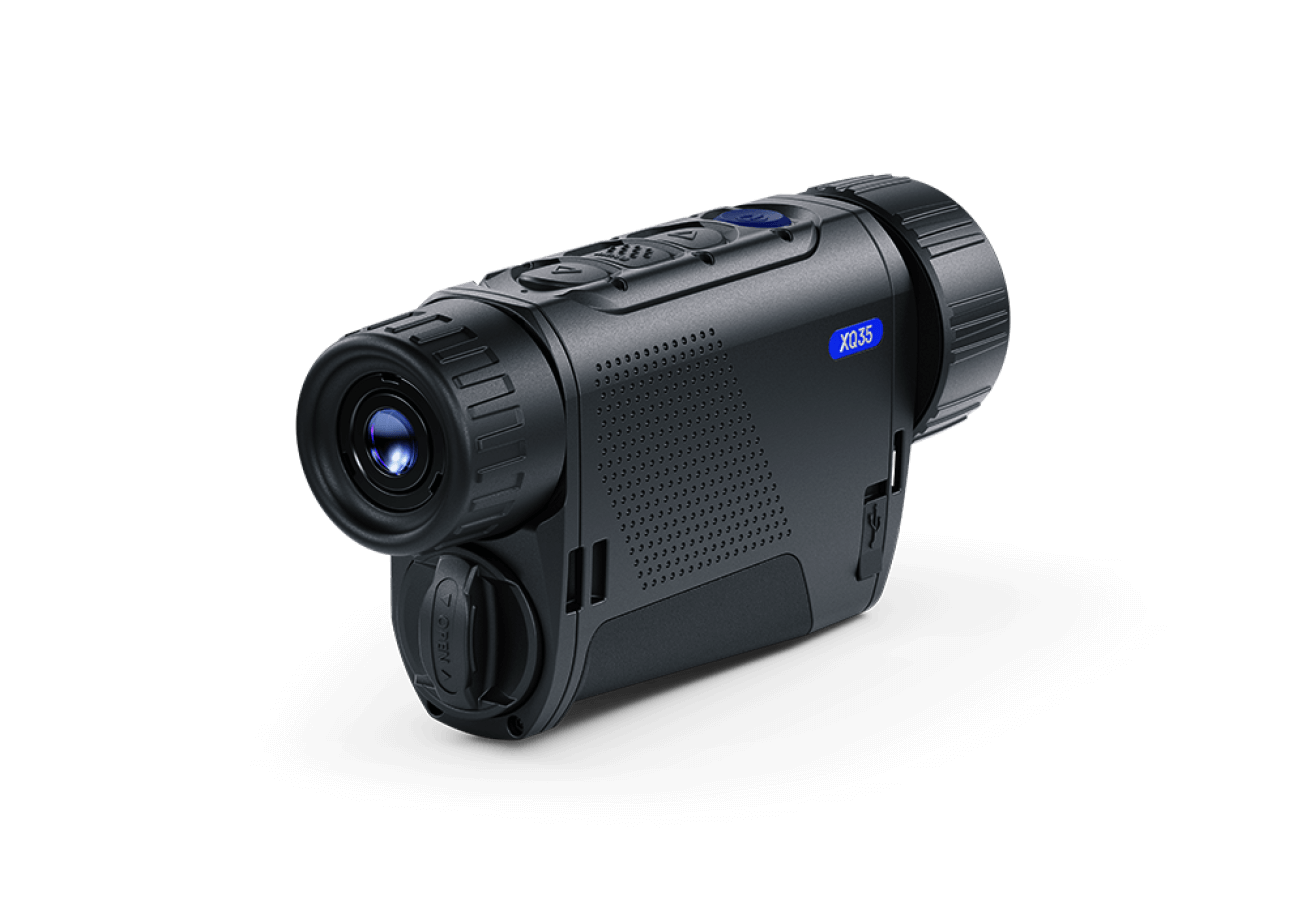

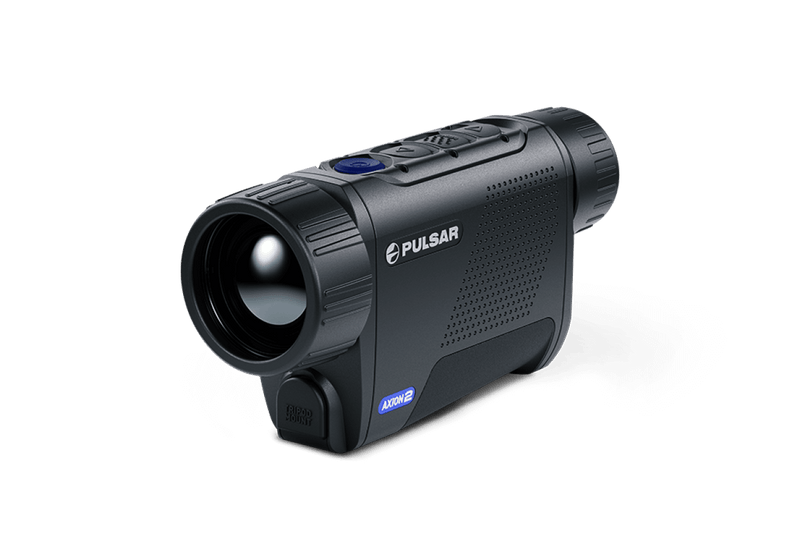

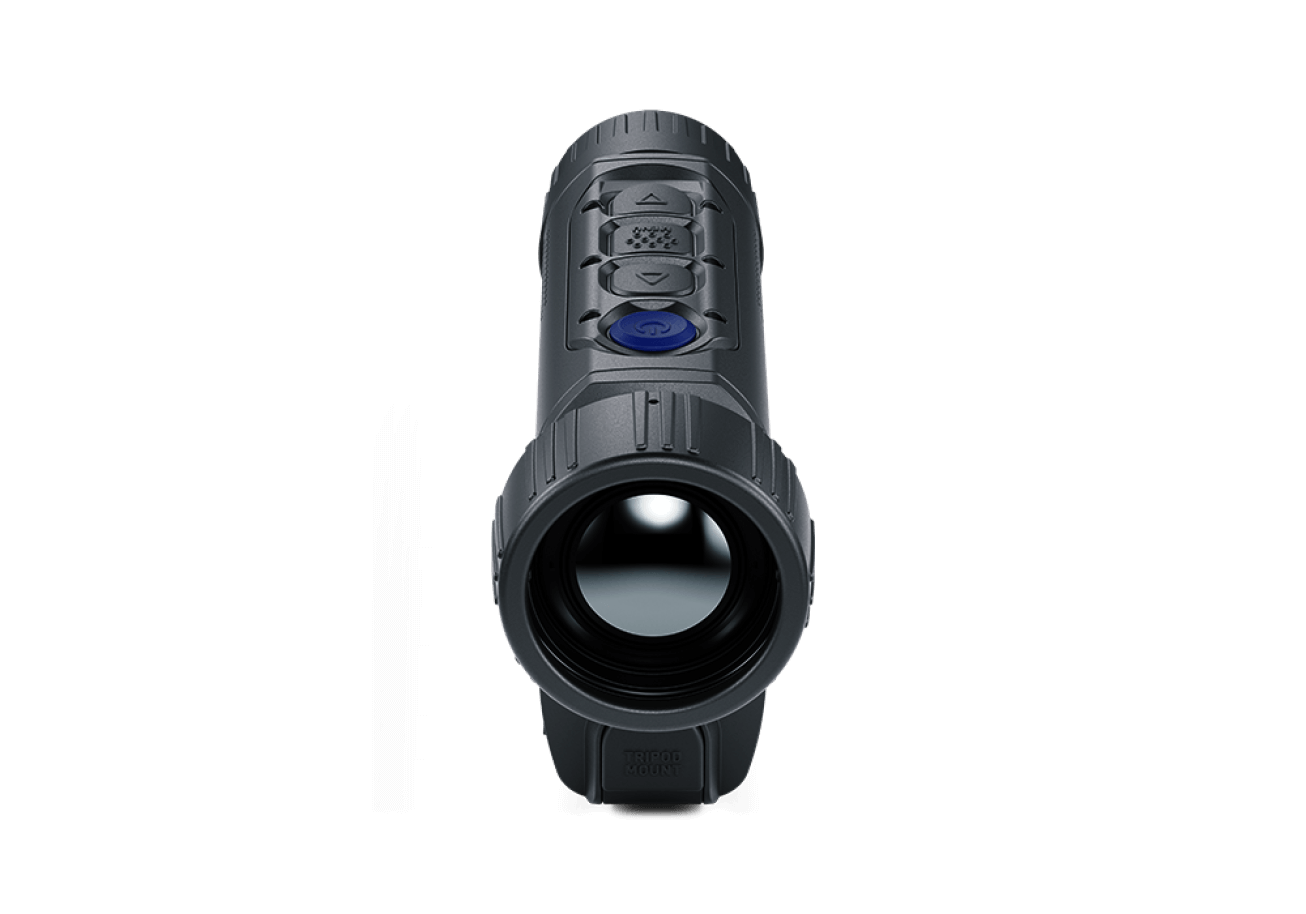

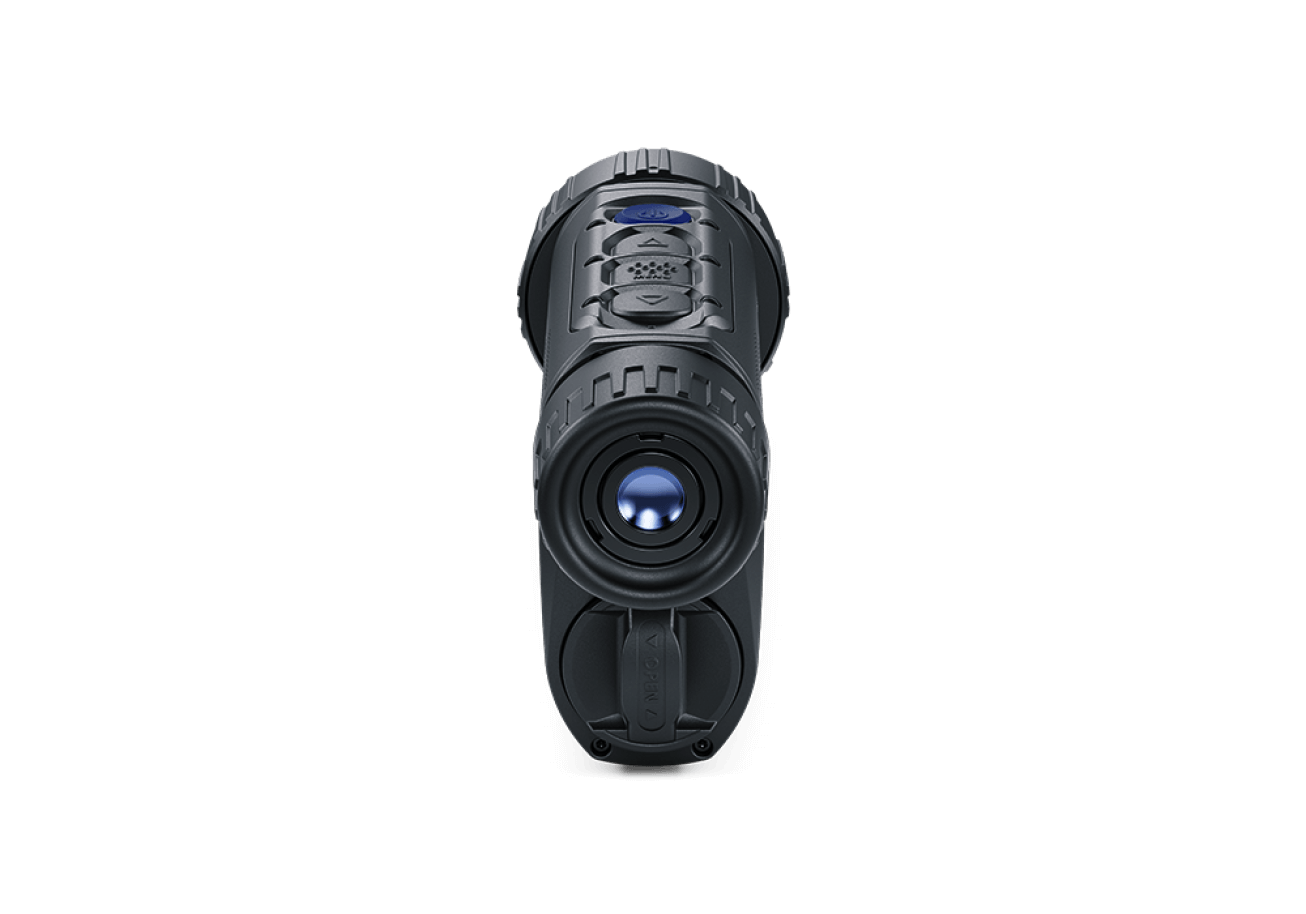

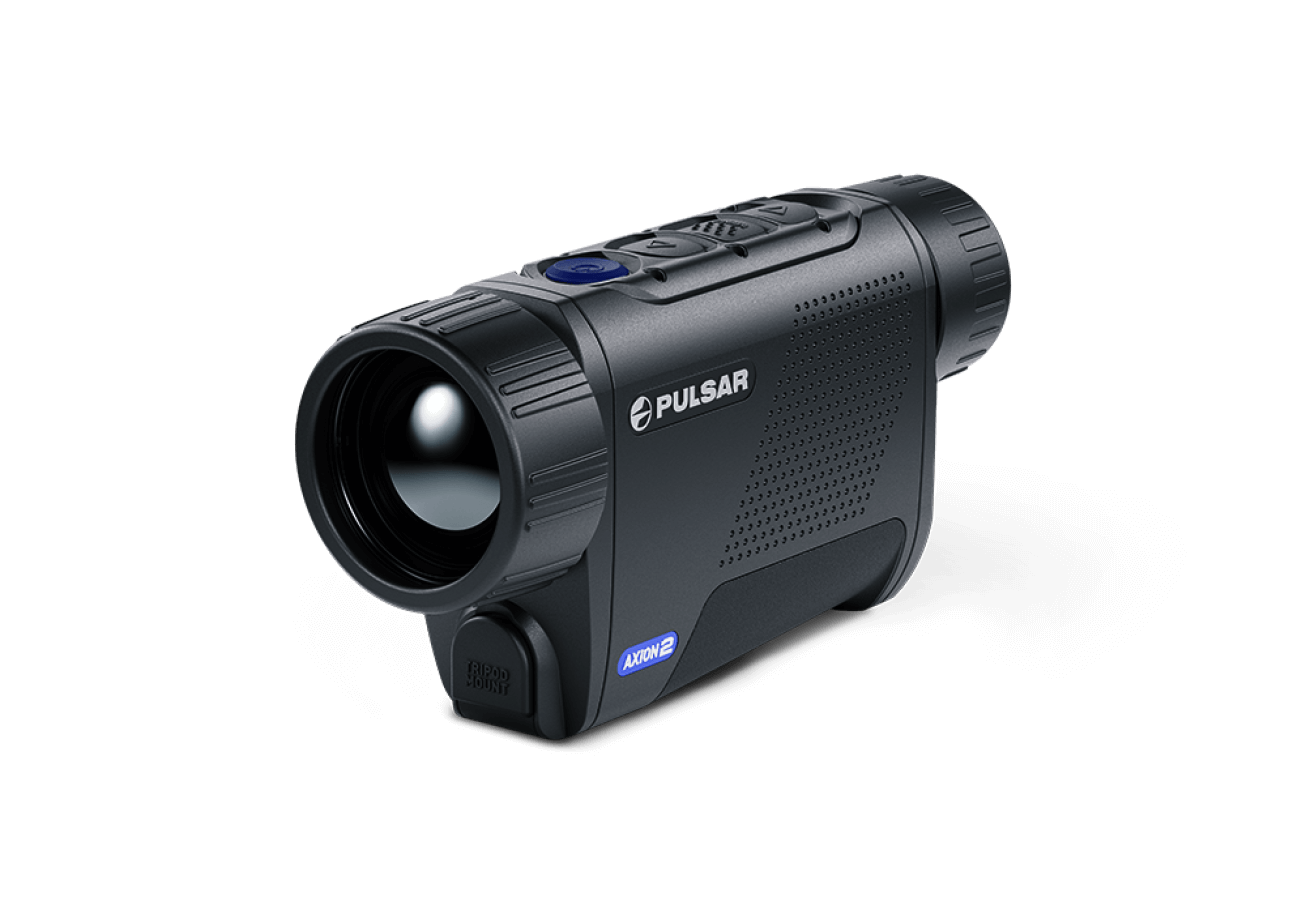

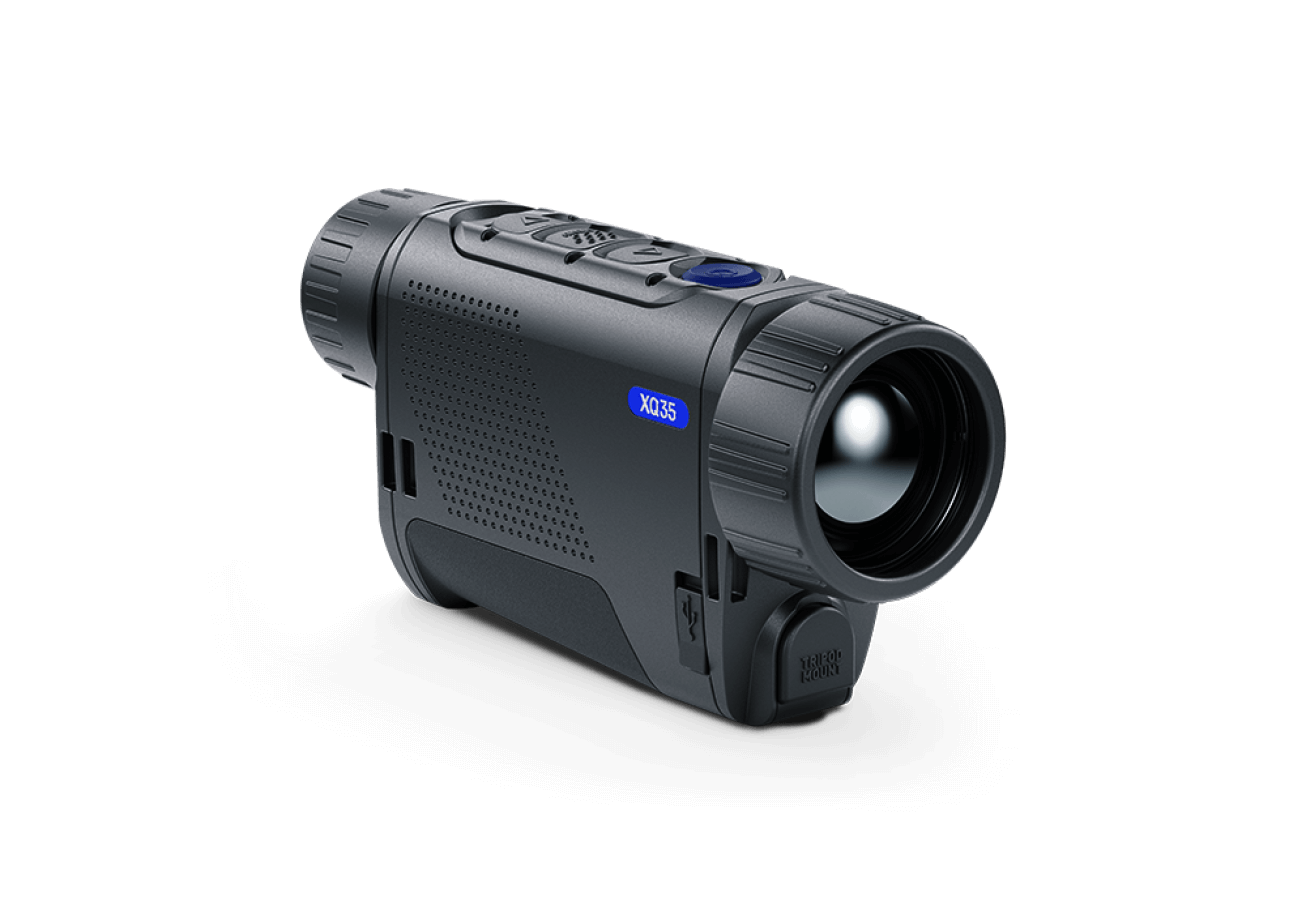

Pulsar Axion 2 XG35 Thermal Imaging Monocular

Pulsar Axion 2 XG35 Thermal Imaging Monocular

  • Thermal Resolution: 640x480px
  • Thermal Lens: 35m/F1.0
  • Detection Distance: 1750m

  • Free Insured Shipping
  • Includes Product Lifetime Support
Regular price R 59,999.00 ZAR
Regular price Sale price R 59,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

Boasting a large thermal resolution paired with a ultra-sensitive thermal detector, the Pulsar Axion 2 XG35 handheld thermal monocular offers everything you've come to expect from the Axion 2 range and more. This handheld thermal monocular has been designed for regular use in difficult environments. The high-quality reinforced magnesium alloy housing protects the internal thermal imaging components from shocks, drops, moisture, heat, and cold. The magnesium alloy housing also helps minimize image noise by dissipating the heat from the internal electronics of the handheld thermal imager.

Thermal Imaging monocular key features:

  • 1750m detection range (average human-size target)*
  • 640x480 thermal resolution
  • Built-in WiFi for Android and iOS streaming
  • 1024x768 High Contrast frost resistant AMOLED Display
  • IPX7 ingress protection

Downloads:

View full details

Pulsar Axion 2 XG35 Thermal Imaging Monocular Detection, Recognition, & Identification Ranges

Detection, recognition, and identification ranges are approximate and based on ideal conditions.

  • Thermal image of a group of pigs, likely Kunekune pigs, taken with a HikMicro Condor CQ50L Thermal Monocular. Their heat signatures are visible in shades of orange and yellow against a cool purple background.

    Bush Pig - 100cm

    Detection: 1750m

    Recognition: 450m
    Identification: 220m

  • Thermal image of a deer standing in a field, showcasing the detail and clarity of the Pulsar Axion 2 XQ35 Pro thermal monocular.

    Deer - 150cm

    Detection: 2900m

    Recognition: 700m
    Identification: 350m

  • HikMicro Condor CQ50L captures stunning thermal image of elephants drinking at a watering hole in the African savanna. The high-resolution thermal monocular reveals intricate details of their heat signatures, even in low-light conditions.

    Elephant - 300cm

    Detection: 5800m

    Recognition: 1400m
    Identification: 700m

1 of 3

Pulsar Axion 2 XG35 Thermal Imaging Monocular Detailed Specifications

Thermal Module Specifications

Resolution: 640x480px

Lens: 35m/F1.0

NETD: <40mK

Pixel Interval: 12μm

Response Waveband: N/A

Frame Rate: 50Hz

Zoom: 2.5 - 20 (x8 zoom)

Focus Mode: Focus Ring

Display

Screen: 1024x768 Amoled

Field of View: 12.5°x9.4 / 21.9°x16.4m (HxV) @ 100m

Palettes: White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, Violet

System Functions

Storage: 16Gb

Notable features: Wi-Fi (2.4 & 5Ghz)
Stream Vision Smartphone App
Records photos & videos
1/4" Tripod mount

Battery & Power

Battery Life: Up to 7h(4900mAh)

Power Supply: 5V, 9V (USB Type-C Power Delivery)

Battery Type: APS 5 Li-Ion Battery Pack

General

Operating Temperature: -25°C +40°C

Ingress Protection: IPX7 Submersion Waterproof Rated (1 meter of water for up to 30 minutes)

Dimensions: 152x50x74mm (0.38kg)

SKU: 77476
