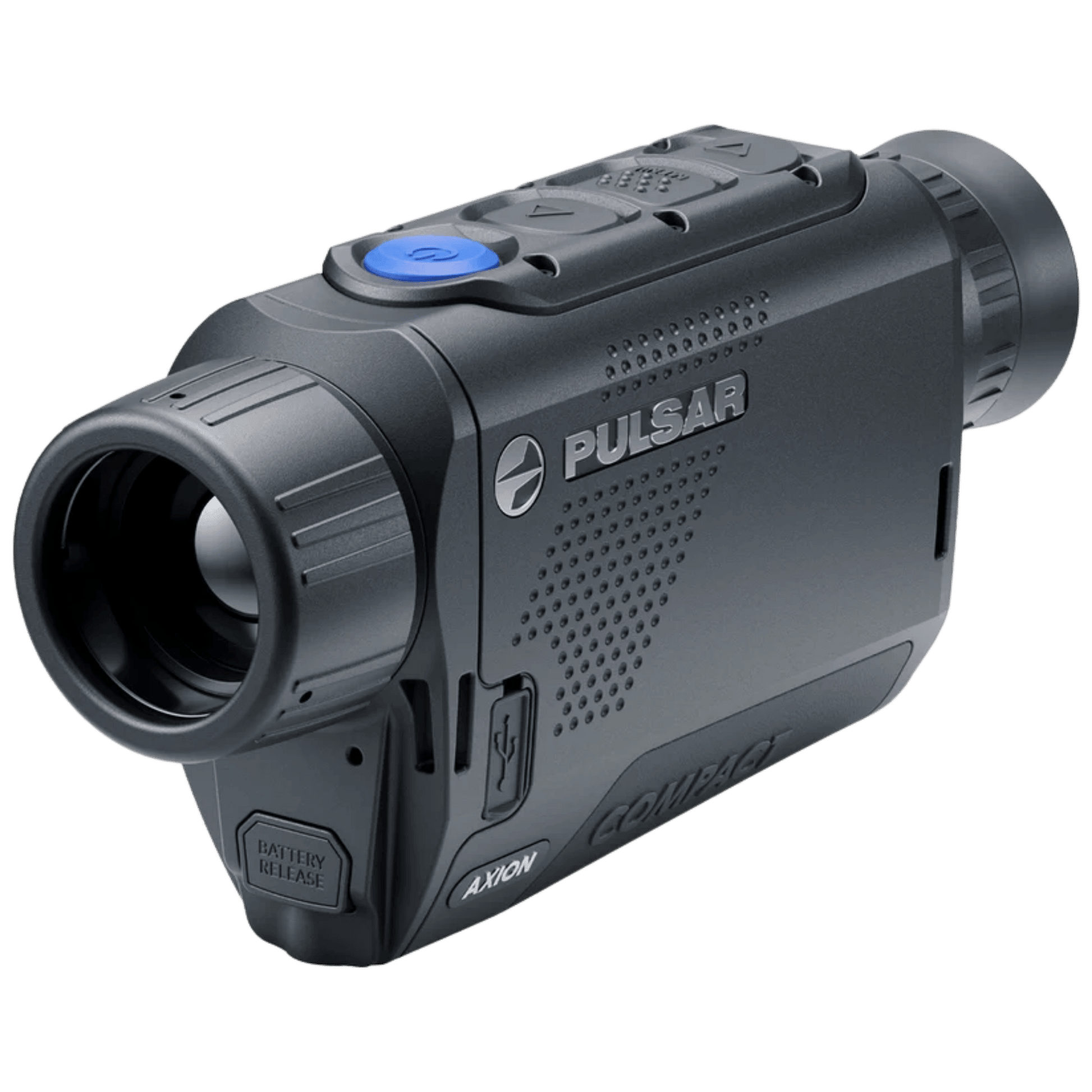

• Three-quarter front right perspective of the Pulsar Axion Compact XG30 thermal monocular highlighting the 30mm objective lens and compact housing.

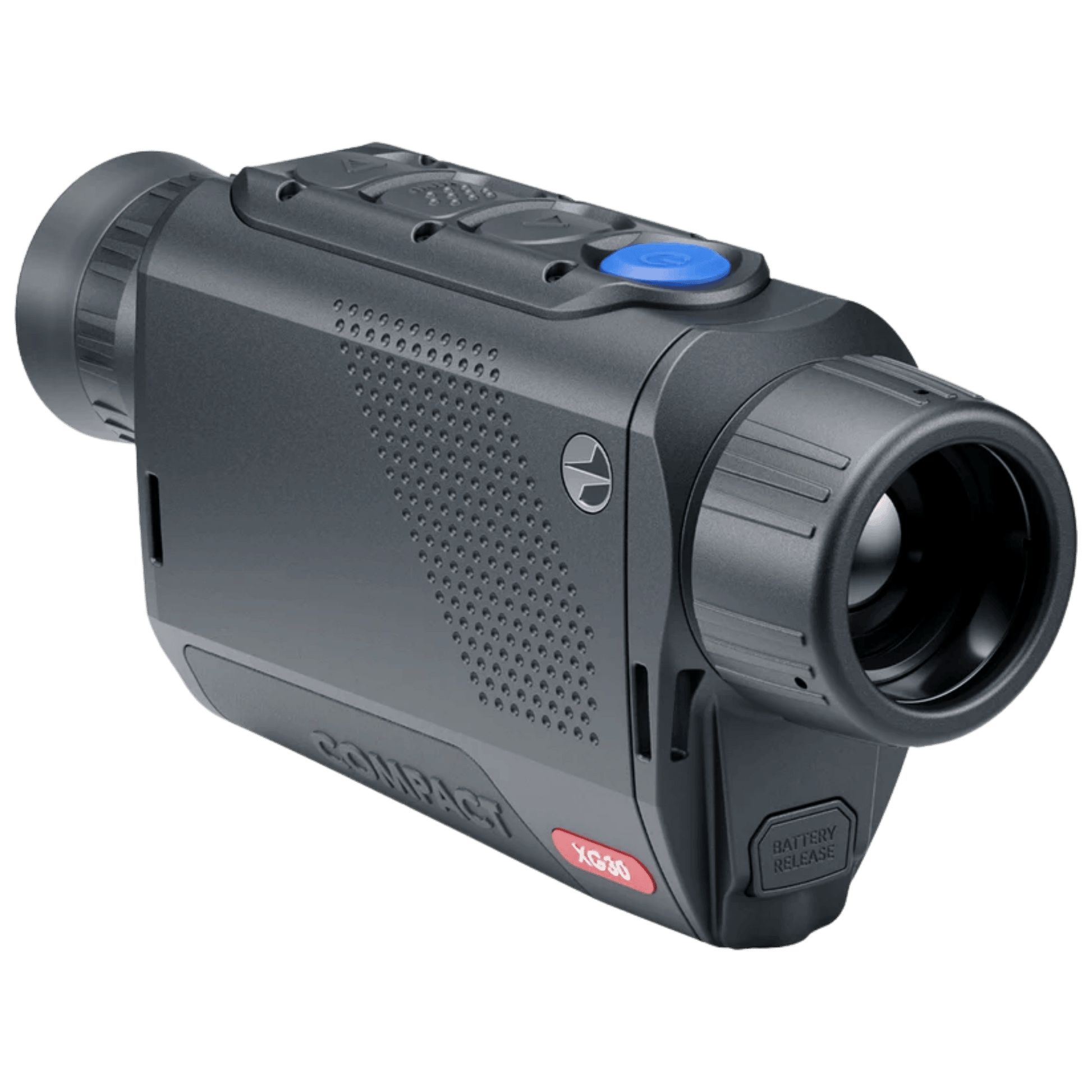

  • Front left angled view of the Pulsar Axion Compact XG30 thermal imaging monocular showing the front optic and ergonomic grip casing

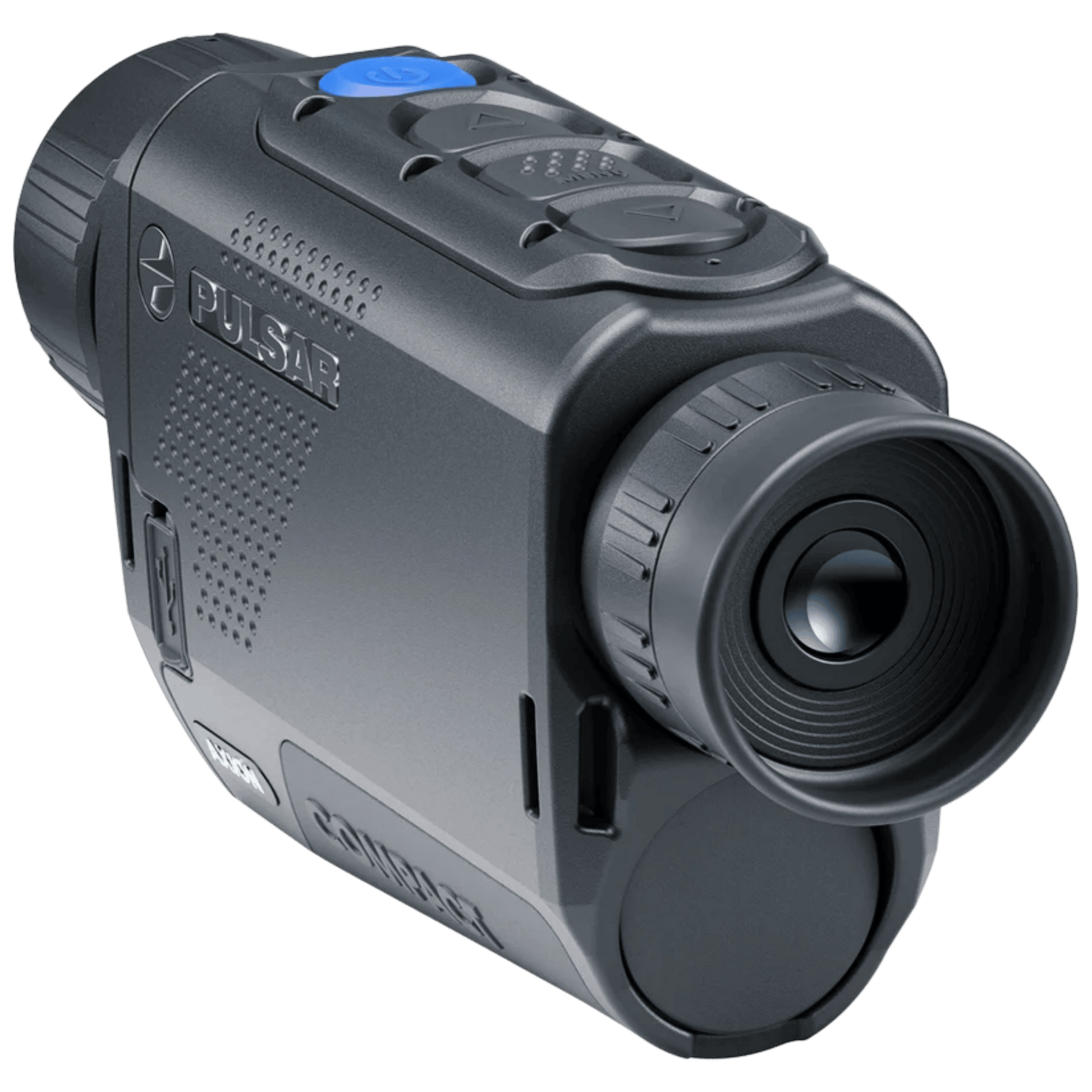

  • Rear left view of the Pulsar Axion Compact XG30 displaying the ocular eyepiece, diopter adjustment ring, and hand strap attachment point

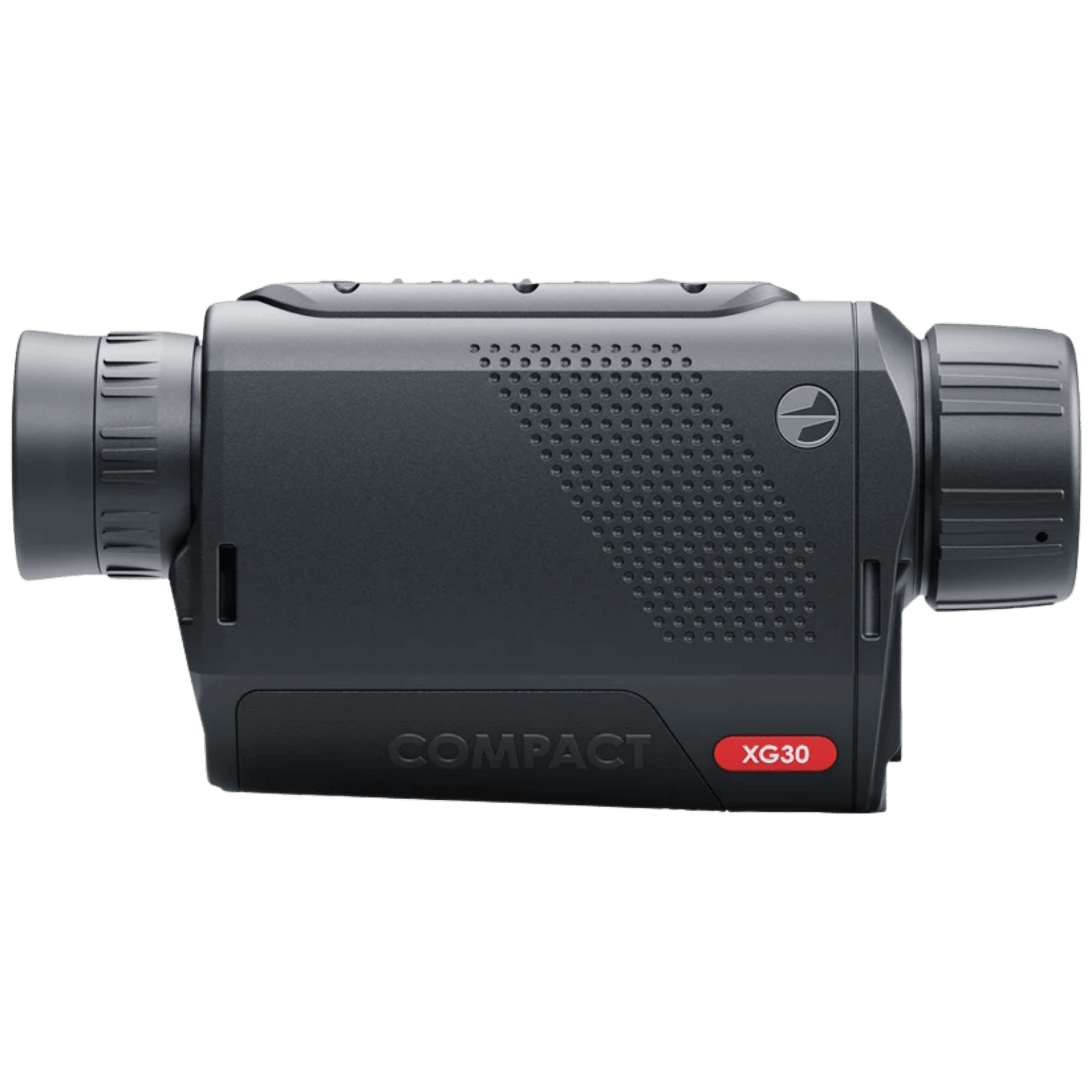

  • Side view of the Pulsar Axion Compact XG30 thermal monocular showing the ultra-compact magnesium alloy chassis and single-handed control buttons

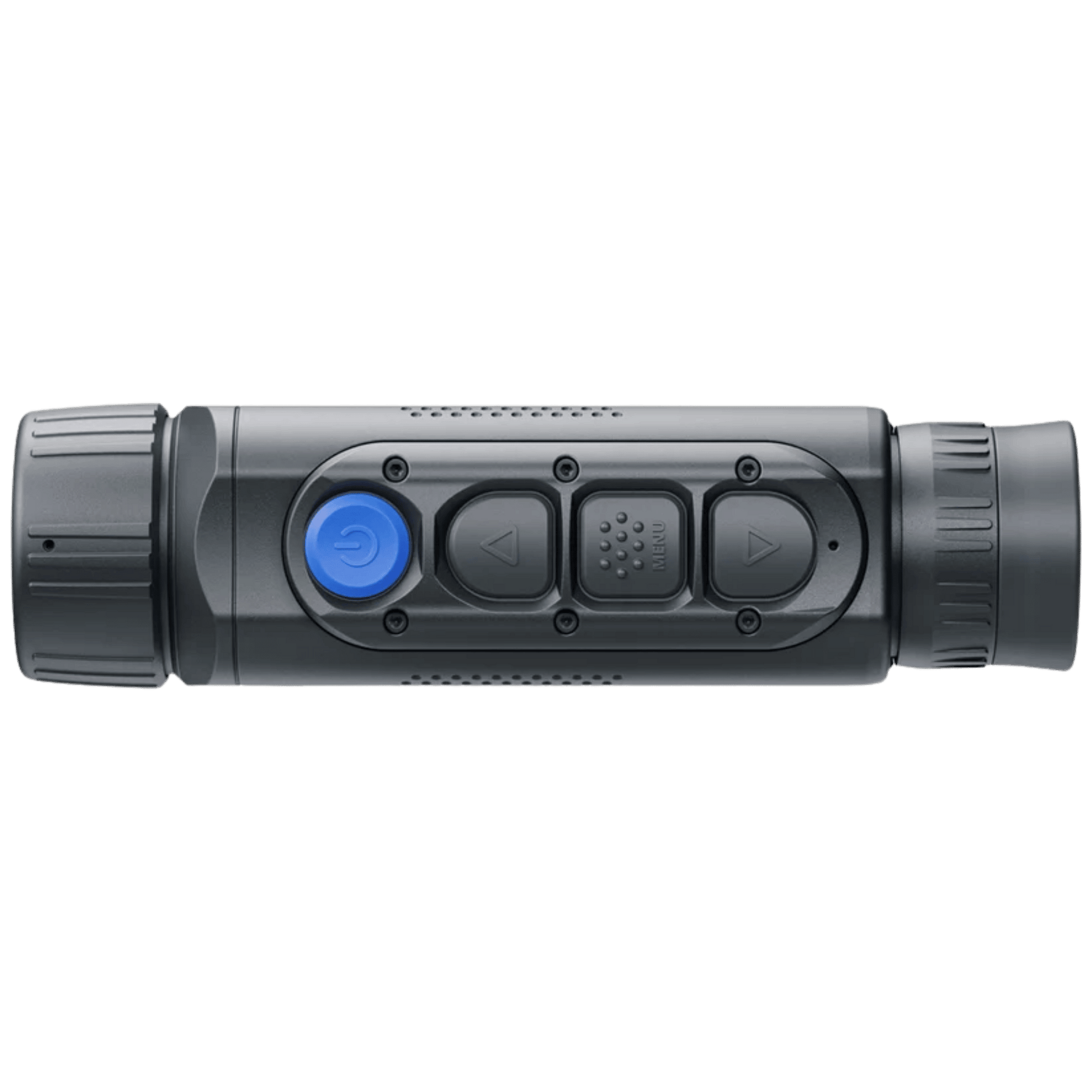

  • Elevated right-side top view of the Pulsar Axion Compact XG30 showing the top control button layout

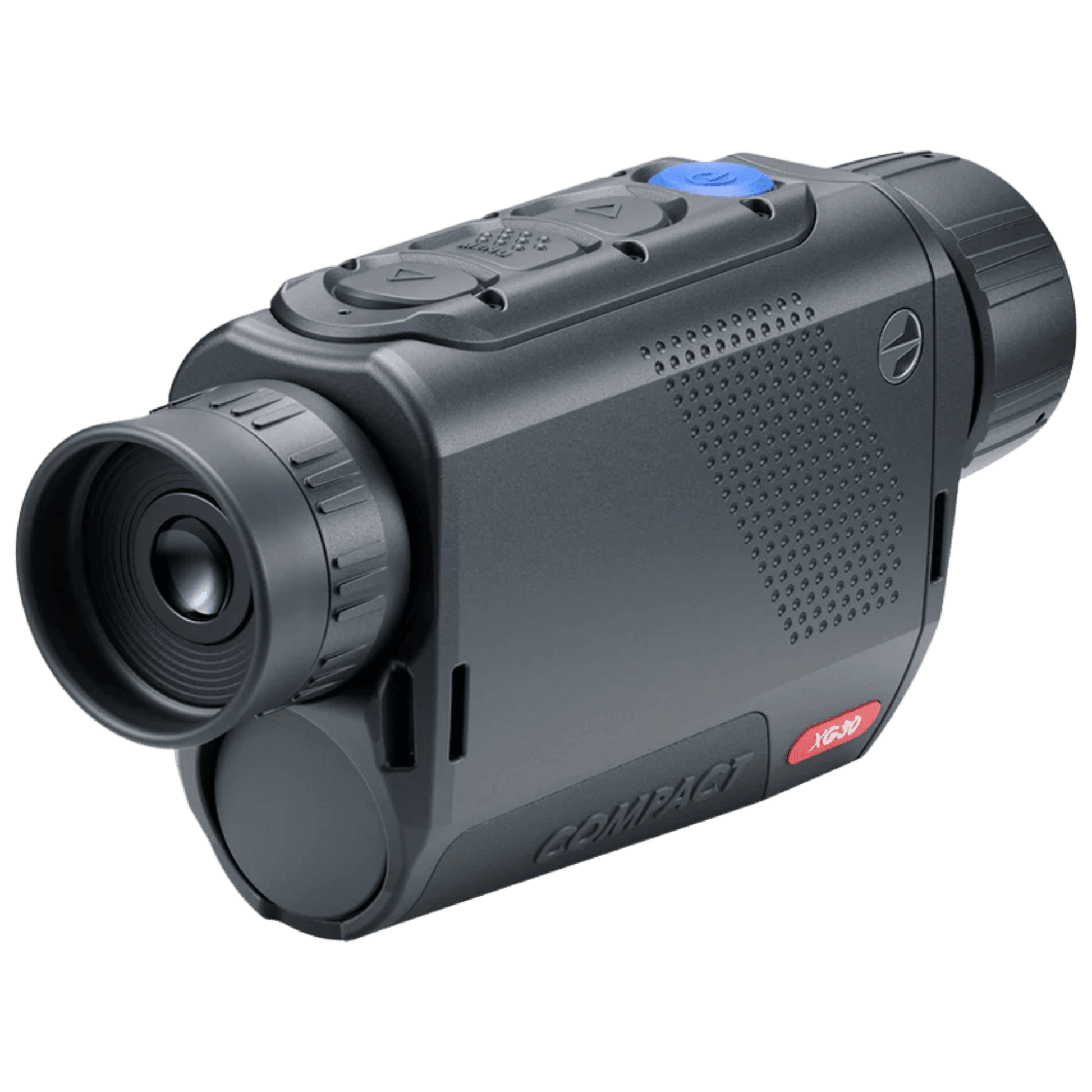

  • Rear right perspective of the Pulsar Axion Compact XG30 thermal monocular focusing on the eyepiece ocular lens and wrist strap mounting point
1 6

Pulsar Axion 2 Compact XG30 Thermal Imaging Monocular

  • Thermal Resolution: 640 x 480
  • Thermal Lens: 30mm
  • Pixel Interval: 12µm
  • NETD: < 25mK
  • Thermal FOV: 14.6×9.2°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 24,499.00
New Arrival
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Pulsar Axion 2 Compact XG30 Thermal Imaging Monocular.

SKU: 77508

Detection Range

Pig
Kudu
Elephant
1029mDetection
417mRecognition
208mIdentification
1544mDetection
625mRecognition
313mIdentification
3088mDetection
1250mRecognition
625mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Pulsar Axion Compact XG30 Key Features:

  • 640x480 Thermal Sensor: High-resolution uncooled microbolometer sensor with 12 um pixel pitch.
  • Sub-25mK System NETD: Superior thermal contrast detects subtle target detail in humid or cold environments.
  • 1300m Detection Range: Spots deer-sized targets at distances up to 1,300 meters.
  • AMOLED Display: High-definition 640x400 AMOLED display with 8 selectable color palettes.
  • Compact Ergonomics: Weighs only 310g with battery included, built for single-handed carrying.
  • Integrated Video & 64GB Storage: Capture photos and video footage stored directly on built-in flash memory.
  • Stream Vision 2 Integration: Connect via 2.4/5 GHz dual-band Wi-Fi for smartphone streaming and firmware updates.
  • Up to 7 Hours Runtime: Quick-change APS 3 Li-ion battery with support for 5V USB Type-C power banks.
  • IPX7 Waterproof Protection: Fully submersible waterproof rating built for extreme weather (-25°C to +40°C).
Product Overview

The Pulsar Axion Compact XG30 Thermal Imaging Monocular is an advanced, ultra-portable observation tool engineered for high-performance detection across daytime and nocturnal environments. Designed to operate reliably in severe weather conditions like heavy rain, fog, and smog, the Axion XG30 easily detects hidden targets through tall grass, dense brush, and thick foliage. Unlike traditional optical night-vision units that rely on external infrared illuminators, thermal monoculars process infrared radiation directly and remain immune to sudden bright light exposure

Axion XG30 Key Performance Capabilities

Sub-25mK Thermal Sensitivity & High Resolution

At the heart of the Axion Compact XG30 is an uncooled 640x480 microbolometer thermal sensor featuring a fine 12 μm pixel pitch. Combined with a fast 30mm F1.2 objective lens and a system NETD rating of under 25 mK, it captures rich thermal contrast and micro-temperature differences even during cold mornings or rainstorms. Observed images are displayed on a high-contrast 640x400 AMOLED screen with smooth 50Hz real-time rendering.

Extended Range and Precision Zoom

With a base optical magnification of 2x and smooth digital zooming up to 16x (or discrete steps of x1, x2, x4, and x8), the monocular provides flexible target recognition across varying distances. Target detection reaches up to 1,300 meters for deer-sized objects, supported by an expansive 14.6 x 9.2 degree field of view (25.6m x 16.0m at 100 meters distance).

Practical Field Features

Built-in Multimedia & Wireless Integration

The integrated video recorder records 960x600 high-resolution photos and video clips directly to 64GB of internal storage. Dual-band Wi-Fi (2.4 GHz and 5 GHz) allows real-time streaming, remote control, and cloud storage via the Stream Vision 2 App on Android and iOS devices.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeUncooled Microbolometer (European-made 12 um Lynred sensor)
Thermal Resolution640 x 480
Pixel Pitch12 µm
NETD< 25 mK
Thermal Lens30 mm
Focal Ratio (Aperture)F1.2
Field of View14.6×9.2
Magnification2x Base Optical Magnification (x1, x2, x4, x8 digital zoom; total 2x to 16x magnification range)
Min. Focusing Distance3 m
Focus ModeObjective Focus Ring
Frame Rate50 Hz
Spectral Range8 um to 14 um
Detection Range (1.7m Subject)1750 m
Optical & Night Vision
IR Wavelength8 um to 14 um spectral response
Precision, Optics & Lasers
Calibration Profiles3
Environmental CalibrationAutomatic, Semi-Automatic, Manual (Flat Field Correction / Calibration)
System & Display
Display Info640x400 AMOLED Display
Screen BrightnessYes
Screen ContrastYes
Digital Zoomx1, x2, x4, x8
Color Palettes8 Color Palettes, White Hot, Black Hot, Red Hot, Red Monochrome, Rainbow, Ultramarine, Violet, Sepia
Image EnhancementAdvanced Thermal Processing Algorithms & Smoothing Filter
Flat Field CorrectionYes (3 Calibration Modes: Automatic, Semi-Automatic, Manual)
Image Modes3 Sensitivity Amplification Levels (Normal, High, Ultra), User Mode
Eye Pupil4 mm (Exit Pupil Diameter)
Eye Relief14 mm
Diopter Range+4 / -5 D
Display FunctionsAMOLED Display (640x400), Display-Off Function, Picture-in-Picture (PiP), 8 Color Modes, Brightness & Contrast Controls
Defective Pixel CorrectionYes
Storage Capacity64 GB Internal Memory
Media Capacity64 GB Built-In Storage
Media Format.mp4 (Video), .jpg (Photo)
Recording CapabilitiesVideo Recording (960x600 resolution), Image Capture
Built-In MicrophoneYes
Battery TypeAPS 3 Li-Ion Battery Pack (3200 mAh, DC 3.7 V)
Battery LifeUp to 7 hours continuous runtime (at t=22°C)
Power Supply3.0 V – 4.2 V Operating Voltage, External 5 V USB Type-C power bank support
Power Saving FeaturesDisplay-Off Mode, Auto Power-Off
Power Consumption3.0 V – 4.2 V Operating Voltage
Battery Indicator HUDYes
Polarity ProtectionYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotYes (Dual-Band 2.4 GHz / 5 GHz, IEEE 802.11 b/g/n/ac)
Video StreamingYes (Real-time live video streaming to mobile device)
Video CompressionH.264
USB ConnectivityUSB Type-C (Power supply and data transfer)
Supported OSiOS, Android
Software & AnalysisStream Vision 2 App
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IPX7
Operating Temperature-25°C to +40°C
Storage Temperature-25°C to +40°C
Dimensions & Weight144mm x 41mm x 69mm
Tripod MountingYes (Standard 1/4 inch tripod mounting socket)
Safety CertificationsCE, UKCA, RoHS
EMC CertificationsCE, UKCA, FCC
Other Hardware FeaturesStadiametric Rangefinder
What's in the Box
Box ContentsAxion Compact XG30 Thermal Imager
APS 3 Rechargeable Battery Pack
Power Adapter
USB Type-C Cable with USB Type-A Adapter
Carrying Case
Hand Strap
QSG
Lens-Cleaning Cloth
Warranty Sheet
