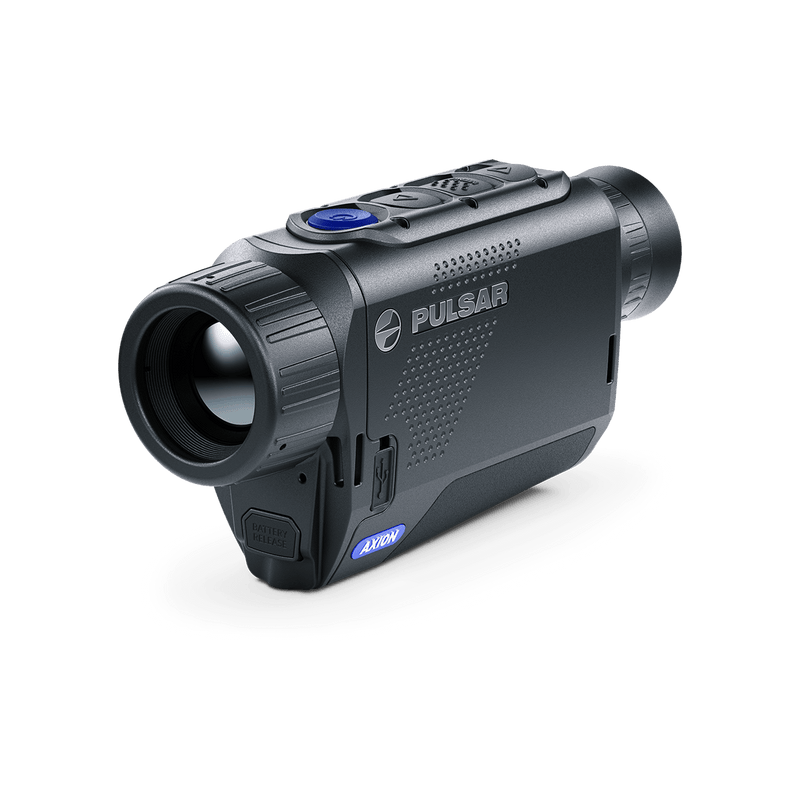

• Cape Thermal Pulsar Axion XM30F Handheld Thermal Monocular for Sale Front Left View

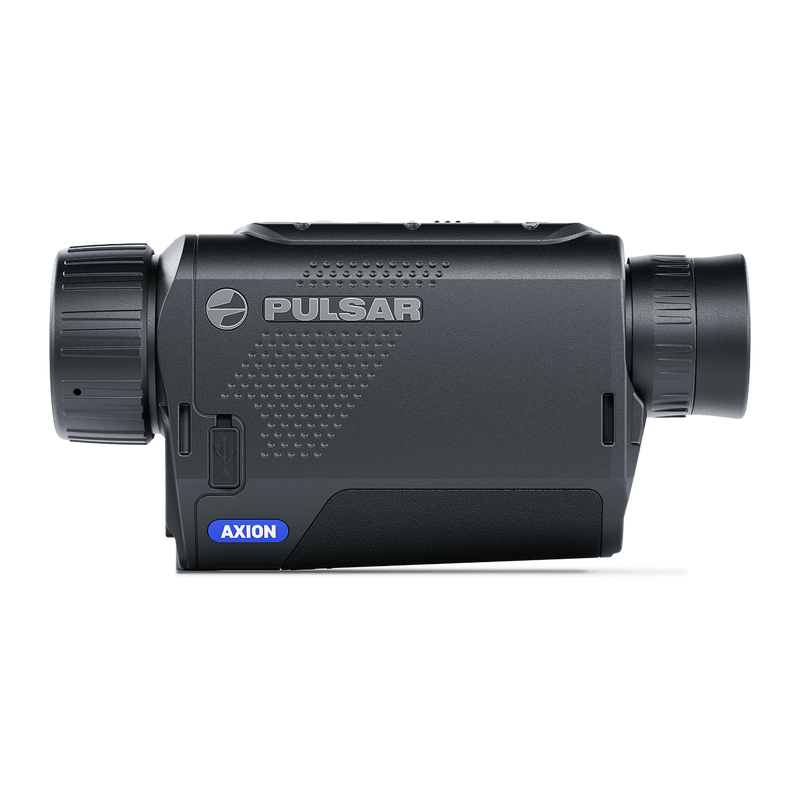

  • Cape Thermal Pulsar Axion XM30F Handheld Thermal Monocular for Sale Left Side View
  • Cape Thermal Pulsar Axion XM30F Handheld Thermal Monocular for Sale Rear Left View
  • Cape Thermal Pulsar Axion XM30F Handheld Thermal Monocular for Sale Rear View
  • Cape Thermal Pulsar Axion XM30F Handheld Thermal Monocular for Sale Rear Right View
  • Cape Thermal Pulsar Axion XM30F Handheld Thermal Monocular for Sale Right Side View
  • Cape Thermal Pulsar Axion XM30F Handheld Thermal Monocular for Sale Front Right View
  • Cape Thermal Pulsar Axion XM30F Handheld Thermal Monocular for Sale Front View
1 8

Pulsar Axion XM30F Thermal Imaging Monocular

Pulsar Axion XM30F Thermal Imaging Monocular

  • Thermal Resolution: 320x240px
  • Thermal Lens: 30mm/F1.2
  • Detection Distance: 1300m

  • Free Insured Shipping
  • Includes Product Lifetime Support
R 29,999.00 ZAR
R 29,999.00 ZAR
Sale Sold out
Shipping calculated at checkout.

The Pulsar Axion XM30F is a lightweight handheld thermal monocular. The rugged magnesium alloy housing has been designed with ergonomic, single-handed use in mind. This easy-to-grip handheld thermal imaging monocular is ideal for left or right-handed use thanks to the symmetrical button design on the upper panel.

Thermal Imaging monocular key features:

  • 1300m detection range (average human-size target)*
  • 320x240 thermal resolution
  • Built-in WiFi for Android and iOS streaming
  • 640x400 frost resistant AMOLED Display
  • IPX7 ingress protection

Downloads:

View full details

Pulsar Axion XM30F Thermal Imaging Monocular Detection, Recognition, & Identification Ranges

Detection, recognition, and identification ranges are approximate and based on ideal conditions.

  • Thermal image of a group of pigs, likely Kunekune pigs, taken with a HikMicro Condor CQ50L Thermal Monocular. Their heat signatures are visible in shades of orange and yellow against a cool purple background.

    Bush Pig - 100cm

    Detection: 1300m

    Recognition: 400m
    Identification: 150m

  • Thermal image of a deer standing in a field, showcasing the detail and clarity of the Pulsar Axion 2 XQ35 Pro thermal monocular.

    Deer - 150cm

    Detection: 2500m

    Recognition: 600m
    Identification: 300m

  • HikMicro Condor CQ50L captures stunning thermal image of elephants drinking at a watering hole in the African savanna. The high-resolution thermal monocular reveals intricate details of their heat signatures, even in low-light conditions.

    Elephant - 300cm

    Detection: 5000m

    Recognition: 1200m
    Identification: 600m

1 3

Pulsar Axion XM30F Thermal Imaging Monocular Detailed Specifications

Thermal Module Specifications

Resolution: 320x240px

Lens: 30mm/F1.2

NETD: <50 mK

Pixel Interval: 12µm

Response Waveband: N/A

Frame Rate: 50Hz

Zoom: 3 - 12 (x4 zoom)

Focus Mode: Focus Ring

Display

Screen: 640x400 Amoled

Field of View: 7.8°x5.9° / 13.7x10.3 (HxV) @ 100m

Palettes: White Hot, Black Hot, Red Hot, Rainbow, Ultramarine, Red Monochrome, Sepia, Violet

System Functions

Storage: 16Gb

Notable features: Wi-Fi (2.4 & 5Ghz)
Stream Vision Smartphone App
Records photos & videos
1/4" Tripod mount

Battery & Power

Battery Life: Up to 7h (3200mAh)

Power Supply: 5V, 9V (USB Type-C Power Delivery)

Battery Type: Li-Ion Battery Pack APS 3

General

Operating Temperature: -25°C +40°C

Ingress Protection: IPX7 Submersion Waterproof Rated (1 meter of water for up to 30 minutes)

Dimensions: 144x40x69mm (0.25kg)

SKU: 77473
