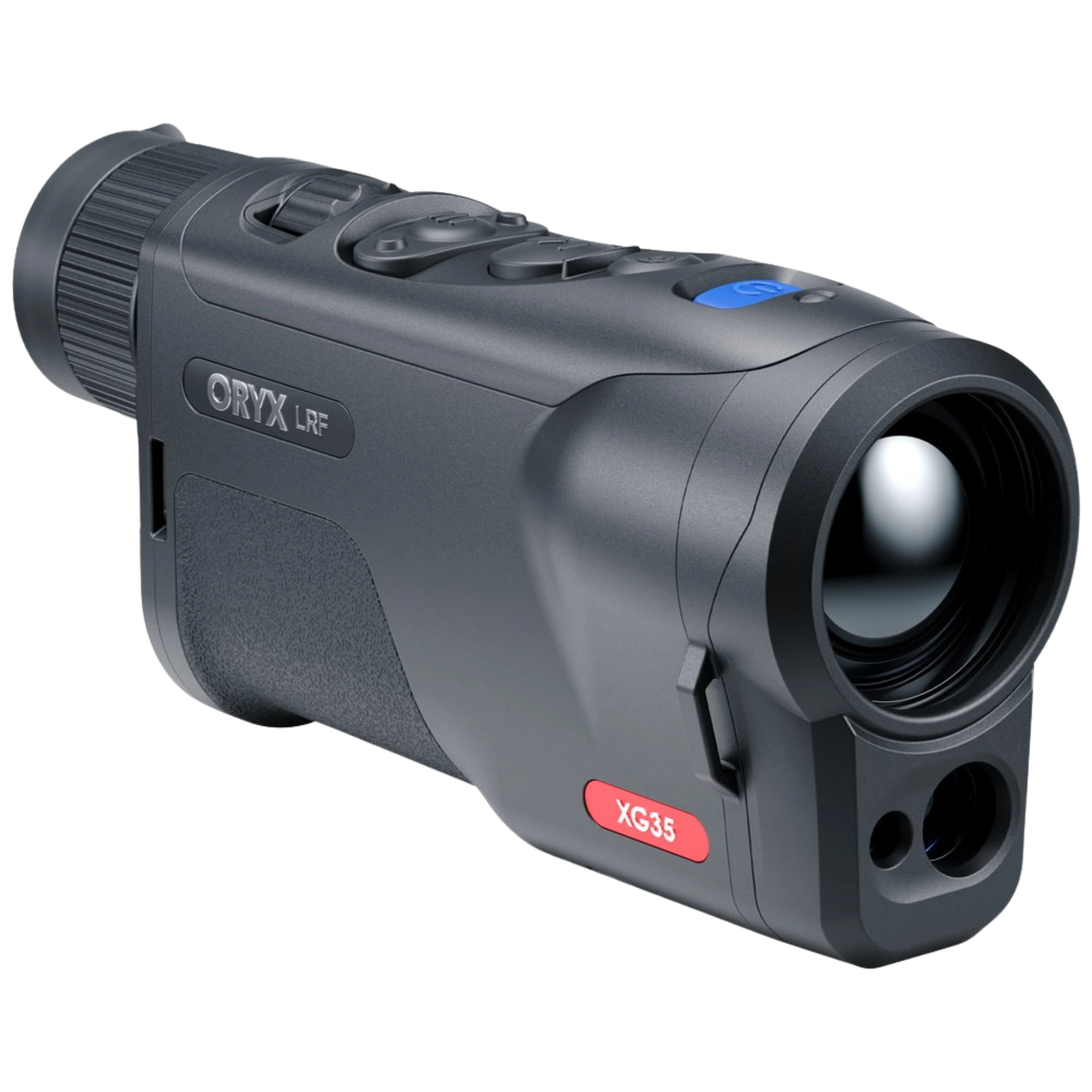

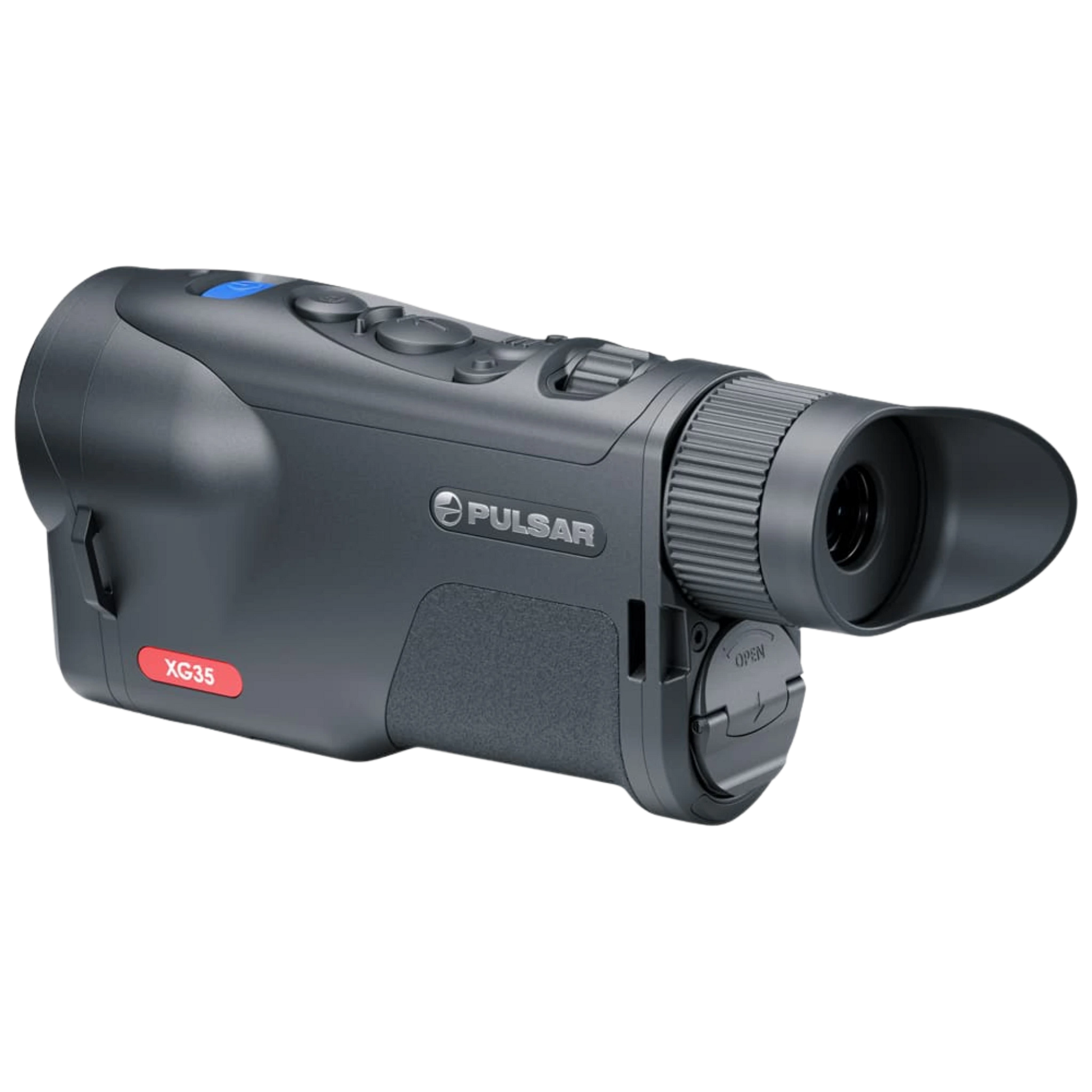

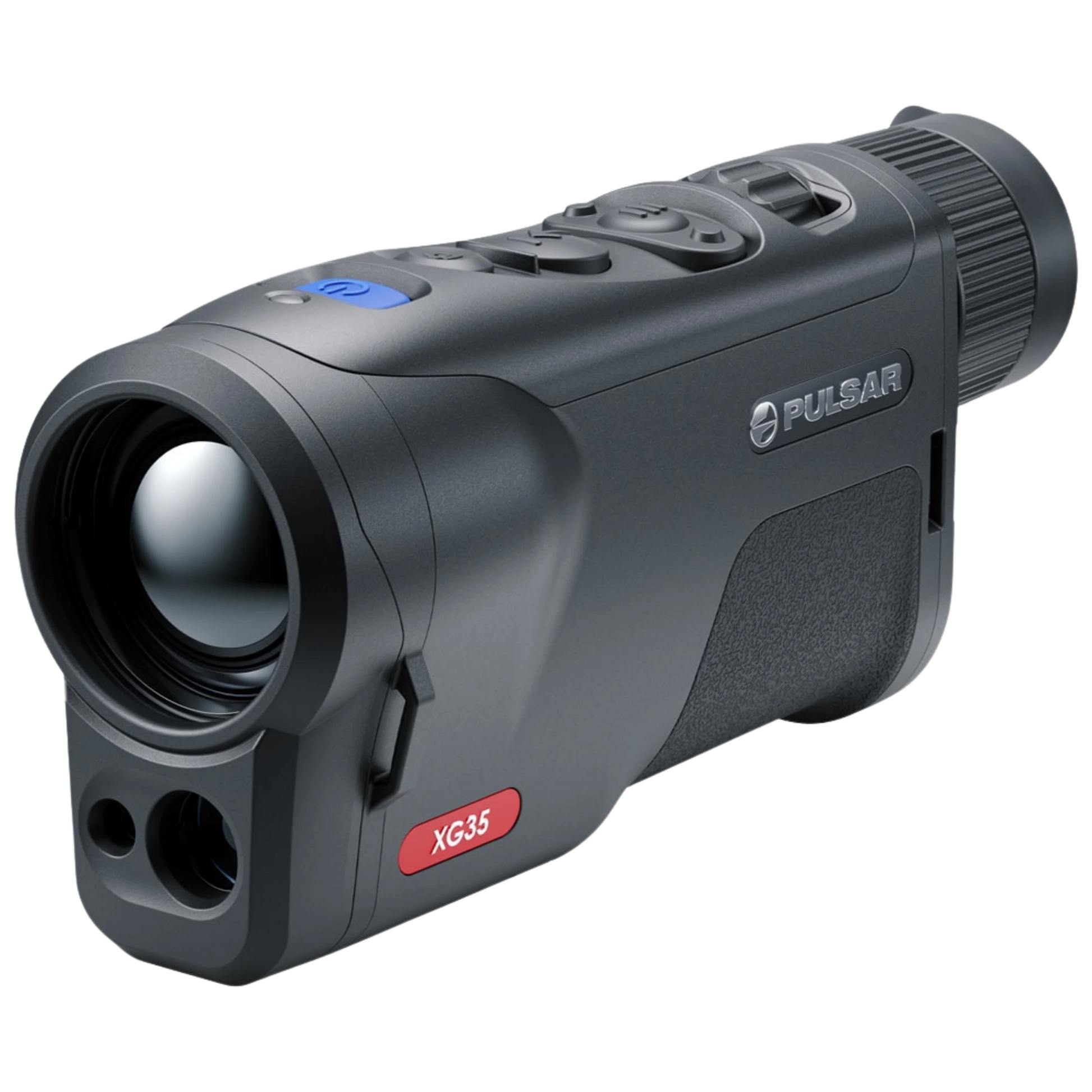

Pulsar Oryx LRF XG35 Thermal Monocular

  • Thermal Resolution: 640x480 px
  • Thermal Lens: 35mm
  • Pixel Interval: 12µm
  • NETD: < 20mK
  • Thermal FOV: 12.5×9.4 (21.9mx12.5m @100)°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

Sale price R 47,499.00 Regular price R 59,999.00
Sale
Including VAT • Includes Shipping

We accept

Visa Mastercard American Express Apple Pay Google Pay Capitec Pay
Flexible payments from R 11,874.75

Pay interest-free over 2-4 months with Stitch Pay Later

Pay Later

Split your purchase into flexible, interest-free
monthly instalments with Stitch Pay Later. Use your Stitch rewards to get cashback on your purchase.

  • Zero interest
  • Zero upfront fees
  • Full schedule shown upfront

How it works

  1. Choose Stitch Pay Later at checkout

    Add your purchase to cart and select Stitch Pay Later as your payment method

  2. Get a quick decision

    Verify your identity and we’ll run a credit and affordability check before approving your purchase

  3. Choose 3 or 4 instalments

    Pick the plan that works for your budget

  4. Check your schedule and confirm

    Instalments are collected automatically on the dates in your plan, so you always know what’s coming

Here’s how R 6 000 looks over 4 instalments

  1. 1st instalment R1 500
  2. 2nd instalment R1 500
  3. 3rd instalment R1 500
  4. 4th instalment R1 500
Total you pay R6 000 R0 interest

Illustrative example. Your exact amounts and payment dates are shown at checkout before you commit

What you’ll need

  • Be 18 or older
  • A South African ID
  • A debit or credit card
  • Not under debt review

Split has no interest or fees when you pay on time. A late fee may apply if you miss an instalment. All purchases are subject to a credit and affordability check, and each purchase is assessed separately.

More about Stitch Pay Later and FAQs

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Pulsar Oryx LRF XG35 Thermal Monocular.

SKU: 77504

Detection Range

Pig
Kudu
Elephant
1059mDetection
486mRecognition
243mIdentification
1588mDetection
729mRecognition
365mIdentification
3176mDetection
1458mRecognition
729mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Pulsar Oryx LRF XG35 Thermal Monocular Key Features:

• Extreme Sensitivity: System NETD <20mK detects tiny temperature differences for clear identification.• Integrated LRF: Built-in laser rangefinder measures distances up to 1500m accurately.• F35/1.0 Germanium Lens: High-aperture lens provides a detection range of up to 1800 meters.
• Dual Battery System: Combines internal and swappable batteries for 12 hours of runtime.• Stream Vision Ballistics: Connects to the mobile app to provide ballistic calculations.• Digital Image Stabilization: Enhances image sharpness and reduces motion blur caused by shaking hands.• Rugged Build: Magnesium alloy housing with IP67 waterproof rating for harsh environments



Product Overview

The Pulsar Oryx LRF XG35 is a compact, high-performance thermal monocular engineered for demanding professionals who require reliable, crystal-clear detection and extreme precision in the field.

High-Definition Imaging with <20mK Sensitivity

Built with a high-definition 640x480 @ 12µm thermal sensor, the Oryx features industry-leading system sensitivity of <20mK NETD. This ensures exceptional image quality and signal isolation, allowing the device to cut through challenging weather conditions like rain and fog to reveal subtle heat signatures.

Precision LRF and Ballistic Intelligence

What sets the Oryx apart is its powerful integrated Laser Rangefinder (LRF), capable of measuring distances up to 1500 meters with high accuracy. For unparalleled informed decision-making, the Oryx LRF connects via Bluetooth to the Stream Vision Ballistics App, allowing users to upload profiles and calculate accurate data in real-time.

Pulsar Oryx LRF XG35 Thermal Monocular Key Features:

• Extreme Sensitivity: System NETD <20mK detects tiny temperature differences for clear identification.
• Integrated LRF: Built-in laser rangefinder measures distances up to 1500m accurately.
• F35/1.0 Germanium Lens: High-aperture lens provides a detection range of up to 1800 meters.
• Dual Battery System: Combines internal and swappable batteries for 12 hours of runtime.
• Stream Vision Ballistics: Connects to the mobile app to provide ballistic calculations.
• Digital Image Stabilization: Enhances image sharpness and reduces motion blur caused by shaking hands.

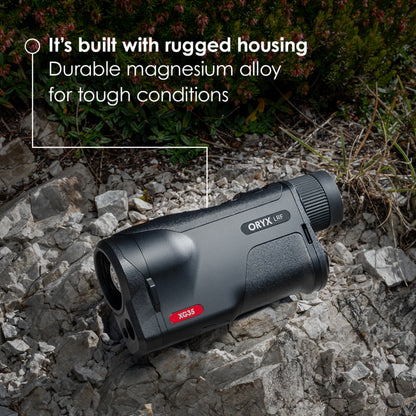

• Rugged Build: Magnesium alloy housing with IP67 waterproof rating for harsh environments

Pulsar Oryx LRF XG35 Official Product Page and Specifications
Pulsar Oryx LRF XG35 Official User Manual




Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled Microbolometer
Thermal Resolution 640x480
Pixel Pitch12 µm
NETD< 20 mK
Thermal Lens35 mm
Focal Ratio (Aperture)F1.0
Field of View12.5°×9.4° (21.9mx12.5m @100)
Magnification2.5 – 20
Frame Rate50 Hz
Detection Range (1.7m Subject)1800 m
System & Display
Screen BrightnessYes
Screen ContrastYes
Digital Zoom8x
Color PalettesWhite Hot, Black Hot, Green, Red Hot, Red Monochrome, Rainbow, Ultramarine, Violet, Sepia
Defective Pixel CorrectionYes
Storage Capacity64
Media Format.JPEG, .MP4
Recording CapabilitiesImage Capture, Video Recording, Audio Recording
Built-In MicrophoneYes
Battery Life12
Battery Indicator HUDYes
Connectivity & Software
Wi-Fi HotspotYes
USB ConnectivityType-C
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IPX7
Operating Temperature-25°C to +50°C
Dimensions & Weight179х52х77mm; <500g
What's in the Box
Box ContentsOryx LRF thermal imager
АPS 5 rechargeable battery
2 battery-locking covers
Power adapter
USB Type-C cable with USB Type-A adapter
Case
Hand strap
Quick start guide
Lens cloth
Warranty card
Clip
Hexagonal spanner
