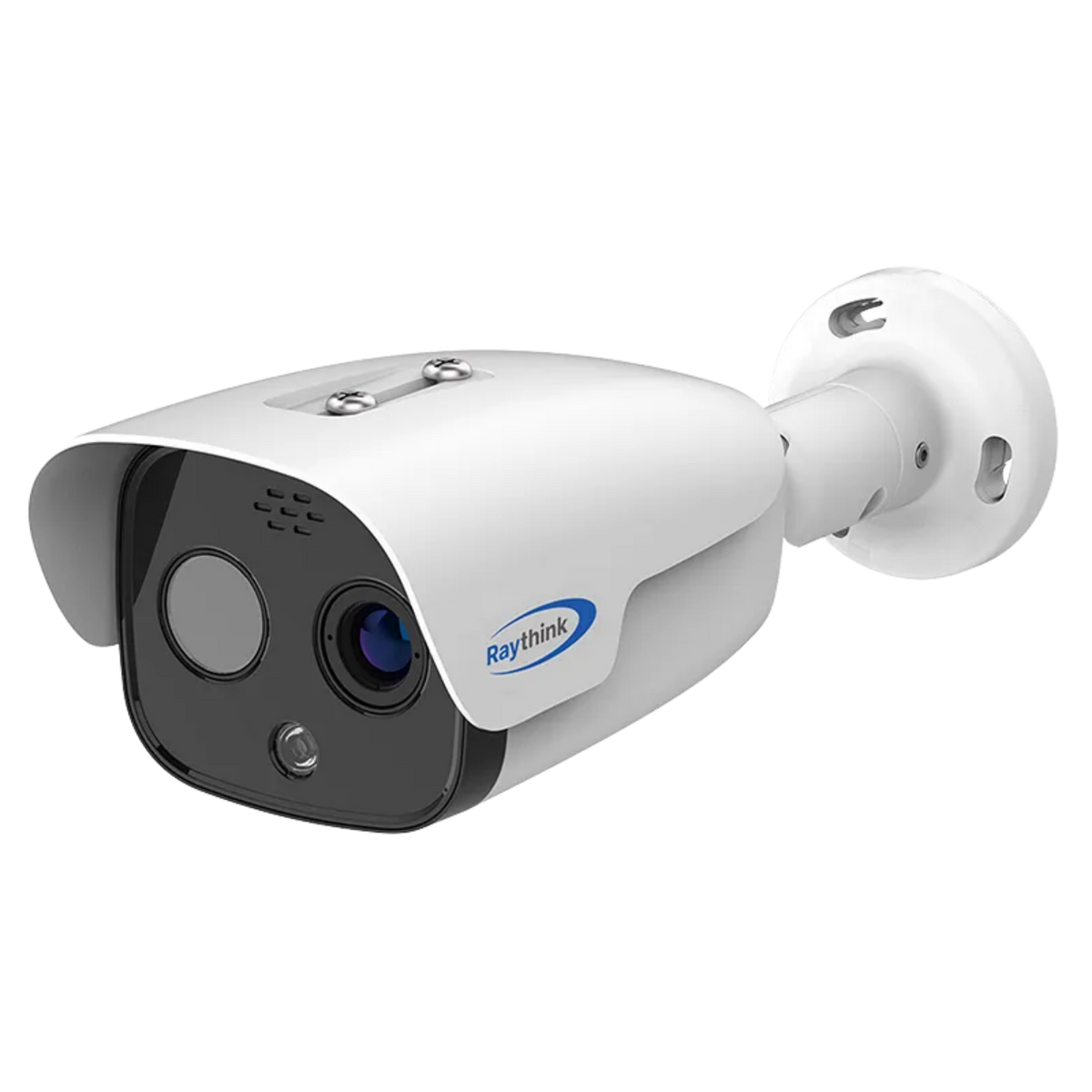

• Raythink FC435T-013A006FFL-B1 13mm Bi-Spectrum Thermal and 6mm 5MP Optical Bullet Camera
1 1

Raythink FC435T-013A006FFL-B1 Bi-Spectrum Thermal Bullet Camera (13mm Lens)

  • Thermal Resolution: 384 x 288
  • Thermal Lens: 13mm
  • Pixel Interval: 12µm
  • NETD: < 40mK
  • Thermal FOV: 20 × 15°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 53,999.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Raythink FC435T-013A006FFL-B1 Bi-Spectrum Thermal Bullet Camera (13mm Lens).

SKU: FC435T-013A006FFL-B1

Detection Range

Pig
Kudu
Elephant
324mDetection
181mRecognition
90mIdentification
485mDetection
271mRecognition
135mIdentification
971mDetection
542mRecognition
271mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

FC435T-013A006FFL-B1 Key Features:

  • High-Resolution 384×288 Thermal Core: Equipped with an uncooled 12µm VOx detector (NETD < 40mK @ 25°C, F#1.0) operating across the 8–14µm spectral range for high-contrast thermal imaging.
  • Long-Range 13mm Optics & 5MP Visible Stream: Combines a 13mm fixed thermal lens (20° × 15° FOV) with a 6mm 5MP optical sensor, Bi-Spectrum Image Fusion, Picture-in-Picture, and 40m IR night illumination.
  • AI Deep Learning Analytics: Features smart dual-spectrum VCA for human and vehicle classification, powering tripwire and perimeter intrusion alarms while suppressing false triggers.
  • Radiometric Temperature & Early Fire Detection: Real-time asset monitoring from -20°C to +550°C (±2°C or ±2% accuracy) across 4 measurement rules, paired with intelligent fire point detection.
  • Industrial IP66 Durability & Flexible I/O: Built in an IP66-rated weatherproof housing (-40°C to +70°C), supporting PoE+ (802.3at) or DC 12V, 2-way audio, 2× alarm in / 2× relay out, and up to 256GB MicroSD local storage.
Product Overview

The Raythink FC435T-013A006FFL-B1 is an industrial dual-spectrum IP bullet camera engineered for extended perimeter surveillance, substation asset tracking, and industrial fire prevention. Combining a high-sensitivity 384×288 12µm uncooled VOx thermal sensor with a crisp 5MP optical sensor, the 13mm optic narrows the field of view to concentrate pixel density at greater stand-off distances. It delivers uninterrupted 24/7 detection and alarm verification through total darkness, smoke, fog, and harsh weather conditions.

Optical Performance & Field of View:

  • Narrow 13mm Thermal Lens: Operates with a focused 20° (H) × 15° (V) field of view, extending spatial resolution and target recognition range down straight perimeter fences and wide boundary corridors.
  • Matched 6mm Optical Module: Paired with a 6mm 5MP visible light sensor and 40m IR night illumination, enabling real-time Bi-Spectrum Image Fusion and Picture-in-Picture (PiP) modes to overlay heat anomalies directly onto crisp visible video streams.

Smart AI Analytics & Event Linkage:

  • Dual-Spectrum Video Content Analysis (VCA): Deep-learning analytics power onboard Cross-Line (Tripwire) Detection and Intrusion Detection, filtering out nuisance false alarms caused by foliage movement, adverse weather, or small wildlife.
  • Dedicated Fire Detection: Specialized algorithms continuously analyze thermal points to identify smoldering, hot-spots, and fire points well before open flames or visible smoke emerge.
  • Radiometric Temperature Monitoring: Measures surface temperatures from -20°C to +550°C (accuracy ±2°C or ±2%) across 4 concurrent rules (full-frame, point, line, area).
  • Active Sound & Light Alarm Linkage: Automatically executes multi-tier responses upon violation or temperature exception, triggering snapshot capture, onboard recording, email alerts, physical relay outputs, and integrated sound and light alarms.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx, uncooled FPA detector (LWIR FPA)
Thermal Resolution384 x 288
Pixel Pitch12 µm
NETD< 40 mK
Thermal Lens13 mm
Focal Ratio (Aperture)F1.0
Field of View20 × 15
Focus ModeFixed Focus
Detection Range (1.7m Subject)550 m
Optical & Night Vision
Optical Sensor5MP 1/2.8" Progressive Scan CMOS
Thermography & Measurement
Measurement Range-20°C to +550°C
Temperature Accuracy±2°C or ±2%
System & Display
Color PalettesWhite Hot, Black Hot, Ironbow, Rainbow
Image ModesBi-Spectrum Image Fusion, Dual-Spectrum (thermal & visible)
Storage CapacityMicro SD card slot up to 256GB
Recording CapabilitiesSupports automated Video recording and Snapshot capture directly tied to alarm linkage actions
Power Consumption<8W
Connectivity & Software
Video CompressionH.265 / H.264
Supported OSWeb GUI access via modern browsers; VMS supports Windows
Multilingual SupportYes
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP66
Operating Temperature-40°C to +70°C (<95% RH)
Relative Humidity<95% RH
Dimensions & Weight319.5 × 121.5 × 103.6 mm
Safety CertificationsCE, ROHS, FIPS 140-3 Level 3
EMC CertificationsCE-EMC Test Report
