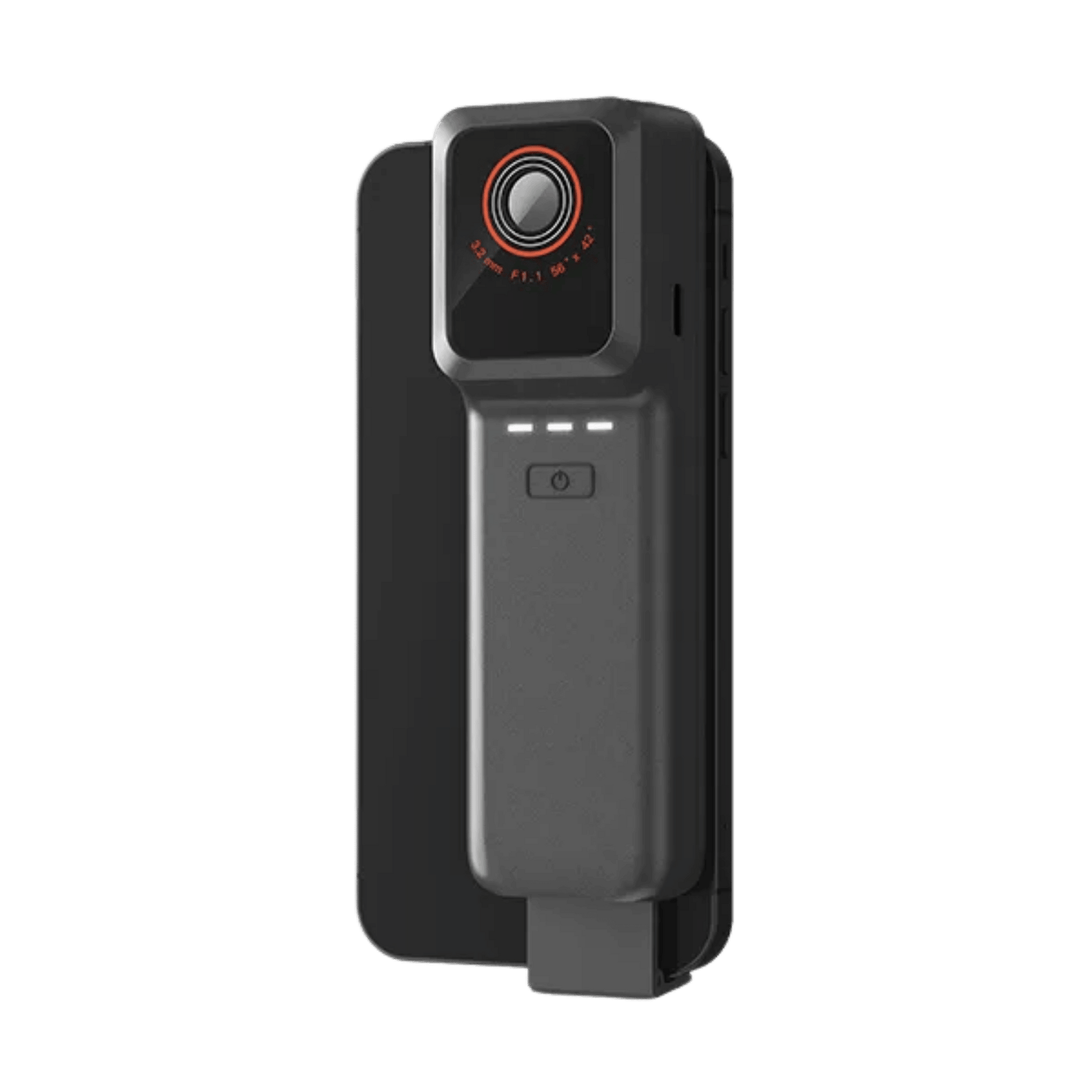

• Raythink IX2 AIR SE wireless thermal camera for smartphone integration, compact 256x192 industrial thermal imager with built-in battery and adjustable phone clip.

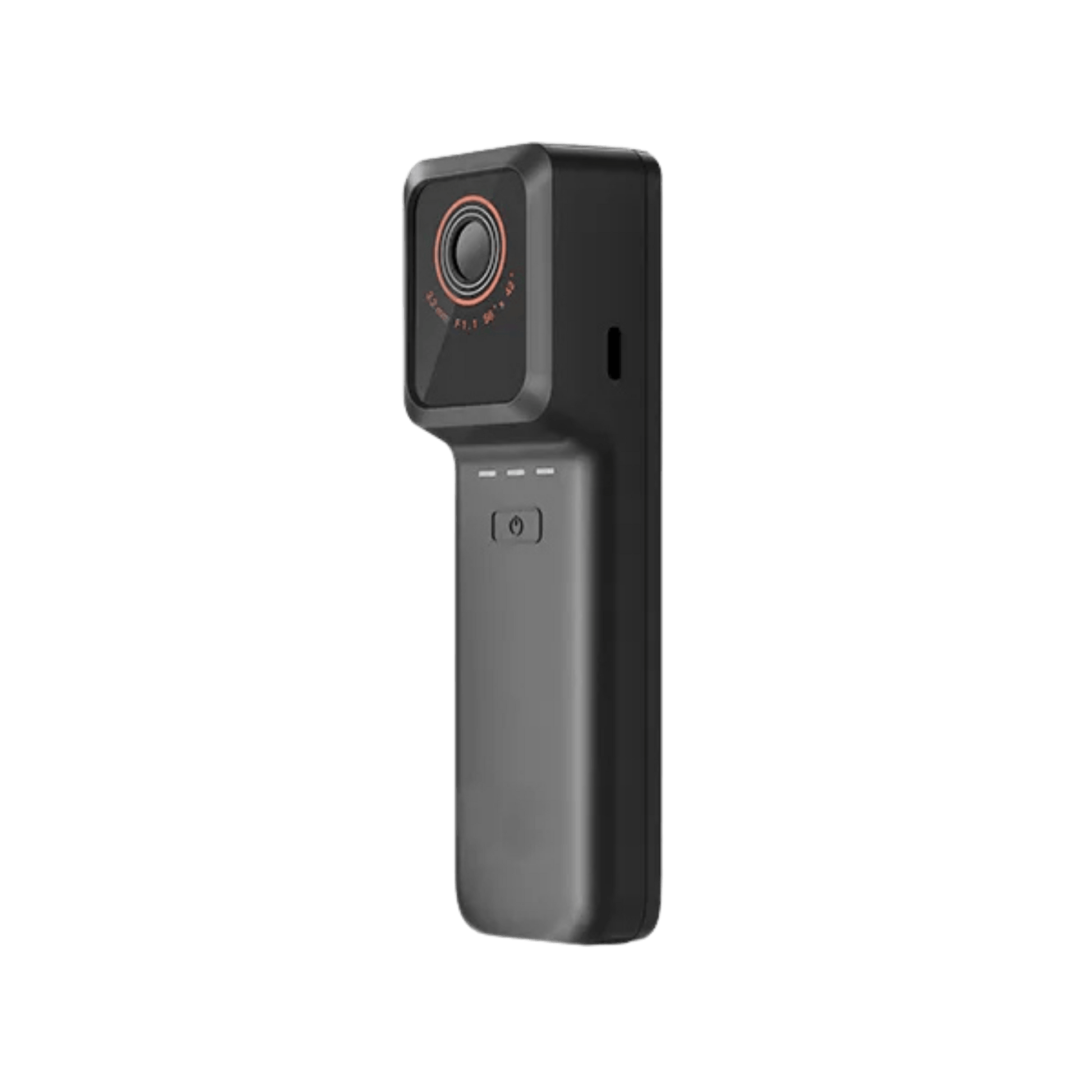

  • Raythink IX2 AIR SE wireless thermal camera being used for electrical inspection, showing real-time infrared heat map on a smartphone screen via Bluetooth connection.

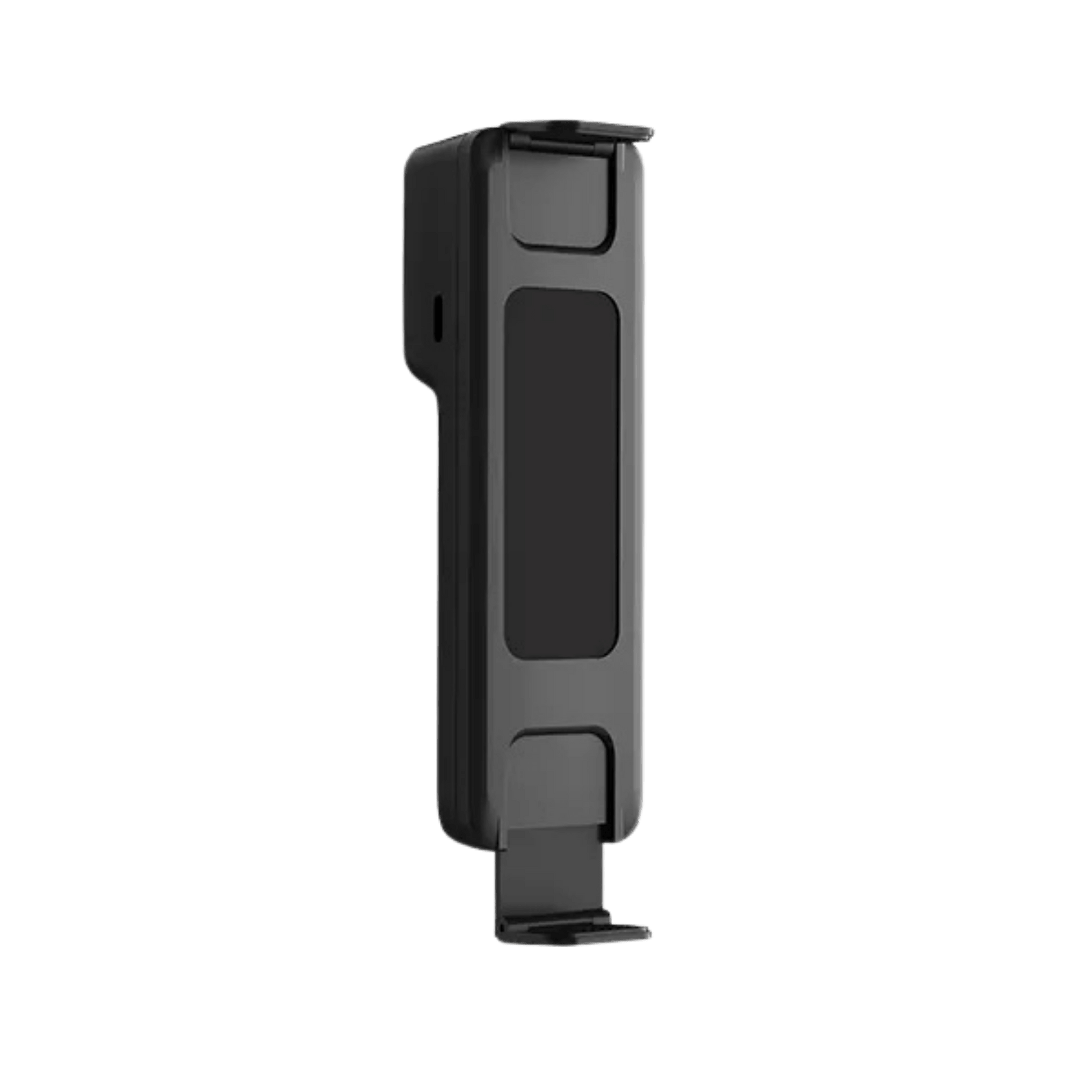

  • Rear left view of the Raythink IX2 AIR SE wireless thermal camera showing the adjustable smartphone mounting clip and rugged industrial housing for mobile thermography.

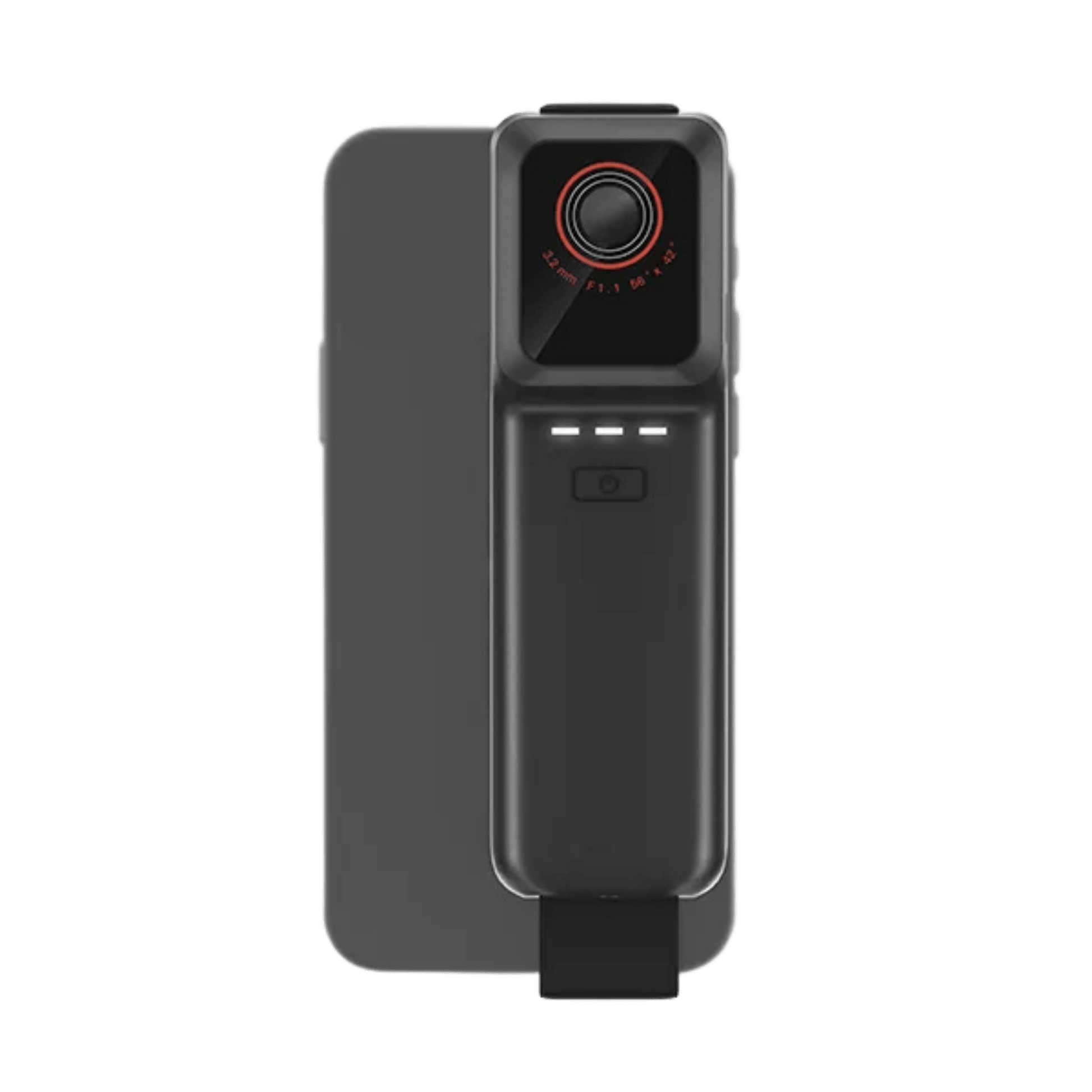

  • Front view of the Raythink IX2 AIR SE wireless thermal camera attached to a mobile phone, demonstrating the integrated smartphone clip and compact industrial thermography setup for real-time temperature analysis.
1 4

Raythink IX2 AIR SE Wireless Thermal Camera

  • Thermal Resolution: 256x192
  • Thermal Lens: 3.2mm
  • Pixel Interval: 12µm
  • NETD: < 40mK
  • Thermal FOV: 56 × 42°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 7,799.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Raythink IX2 AIR SE Wireless Thermal Camera.

SKU: N/A
Key Features & Highlights

Raythink IX2 AIR SE Key Features:

  • Wireless Versatility: Can be combined with a smartphone using the adjustable back clip or separated for remote viewing in hard-to-reach areas.
  • High-Sensitivity Sensor: Features a 12µm, 256X192 infrared detector with a thermal sensitivity (NETD) of ≤40mK for crisp, detailed imagery.
  • Industrial Temperature Range: Accurately measures temperatures from -20°C to +400°C, covering a vast array of industrial and domestic applications.
  • Rugged Field Readiness: Designed for harsh environments with an IP54 waterproof and dustproof rating and 2-meter drop protection.
  • Ultra-Lightweight Ergonomics: Weighing only 130g, the slim fuselage is easy to carry in a pocket and includes a standard threaded hole for tripod or extension pole mounting.
  • Extended Battery Performance: Equipped with an internal 1050mAh battery, providing 2 hours of continuous use without draining your smartphone's power.
  • Smart App Integration: Use the professional Raythink App for real-time analysis, capturing 25Hz thermal video, and performing OTA (Over-the-Air) firmware updates.
  • Advanced Analysis Tools: Supports point, line, and area temperature tracking with 7 distinct color palettes to optimize your view for different scenarios.
Product Overview

The Raythink IX2 AIR SE is a professional-grade, ultra-compact industrial thermal camera engineered to transform your smartphone into a high-performance thermography tool. Specifically designed for the modern technician, the Raythink IX2 AIR SE offers a unique wireless design that allows it to be used as a standalone remote sensor or clipped directly to the back of a mobile device. This thermal camera is the perfect solution for critical electrical inspections, HVAC leak detection, and power maintenance, where reaching tight or dangerous spaces is a daily requirement.

For professionals involved in home inspections and equipment inspection, the IX2 AIR SE delivers an impressive 256x192 thermal resolution powered by a high-sensitivity 12µm detector. This ensures that even the slightest thermal anomalies are visible, whether you are troubleshooting a radiant floor heating system or performing detailed circuit board repairing. By eliminating the physical connection usually required by smartphone dongles, the IX2 AIR SE removes the risk of damaging your phone's charging port while providing a low-latency image transmission of less than 300ms. This allows for real-time, fluid thermal video streaming directly to your device via high-speed Wi-Fi and Bluetooth connectivity.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeUncooled LWIR FPA (Vanadium Oxide)
Thermal Resolution256x192
Pixel Pitch12 µm
NETD< 40 mK
Thermal Lens3.2 mm
Focal Ratio (Aperture)F1.1
Field of View56° × 42
Magnification1x (Digital zoom via App)
Spatial Resolution3.75mrad (IFOV)
Min. Focusing Distance0.3m
Frame Rate25 Hz
Spectral Range7.5–14µm
Precision, Optics & Lasers
Measurement OverlaysYes (Points, Lines, and Frames)
Calibration Profiles4
Environmental CalibrationAuto/Manual Emissivity & Distance compensation
Shock Resistance25G (IEC60068-2-29)
Thermography & Measurement
Measurement Range-20°C to +400°C
Temperature Accuracy±2°C or ±2% (whichever is greater)
Measurement ModesCentral, Highest, and Lowest point tracking; 3 custom points/lines/frames
Level & Span ModeAuto Temperature Width Stretch
Distance to Spot Ratio3.75mrad (IFOV)
Alarm ConditionsHigh/Low Temperature Tracking
Alarm IndicationHigh/Low Temperature tracking via App
AnnotationsSupport for 3 custom points, 3 lines, and 3 frames
System & Display
Display InfoSmartphone Dependent (App supports 25Hz real-time stream)
Screen BrightnessSmartphone Adaptive
Screen ContrastApp-controlled
Digital Zoom1x, 2x, 4x (App-controlled)
Color Palettes7 (including Iron, Rainbow, White Hot, Black Hot)
Image EnhancementDigital Detail Enhancement (DDE)
Flat Field CorrectionAuto/Manual
Image ModesInfrared (SE Model only)
Display Functions7 Palettes, 4 Image Modes, Dual-spectrum Alignment
Defective Pixel CorrectionYes
Storage CapacitySmartphone Internal Memory
Media CapacitySmartphone Internal Storage (App-based)
Media FormatRadiometric JPEG (Images), Non-radiometric MP4 (Video)
Recording CapabilitiesApp-based Photo & Video Recording
Battery Type1050mAh Rechargeable Lithium
Battery Life2 Hours (1050mAh Internal Battery)
Power SupplyUSB Type-C Charging
Power ConsumptionLow consumption (approx. 2.5W during transmission)
Battery Indicator HUDYes
Overvoltage ProtectionYes
Connectivity & Software
Wi-Fi HotspotYes (Wireless Image Transmission)
BluetoothSupported
Video StreamingYes (Transmission delay < 300ms)
USB ConnectivityUSB Type-C
Supported OSiOS, Android
Software & AnalysisProfessional Raythink App (Real-time & Offline Analysis)
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP54
Drop Test Rating2
Operating Temperature-10°C to +50°C
Storage Temperature-20°C to +60°C
Relative Humidity10%–90% (non-condensing)
Dimensions & Weight93×56×31.5mm; 130g
Tripod MountingUNC 1/4-20 interface
Safety Certifications2G (IEC60068-2-6)
EMC CertificationsCE / RoHS / DGM / WEEE
Other Hardware FeaturesAdjustable phone clamp (131mm–172mm), OTA upgrade support
What's in the Box
Box ContentsIX2 AIR SE
Data Cable
Quick Start Guide
Quality Certificate
