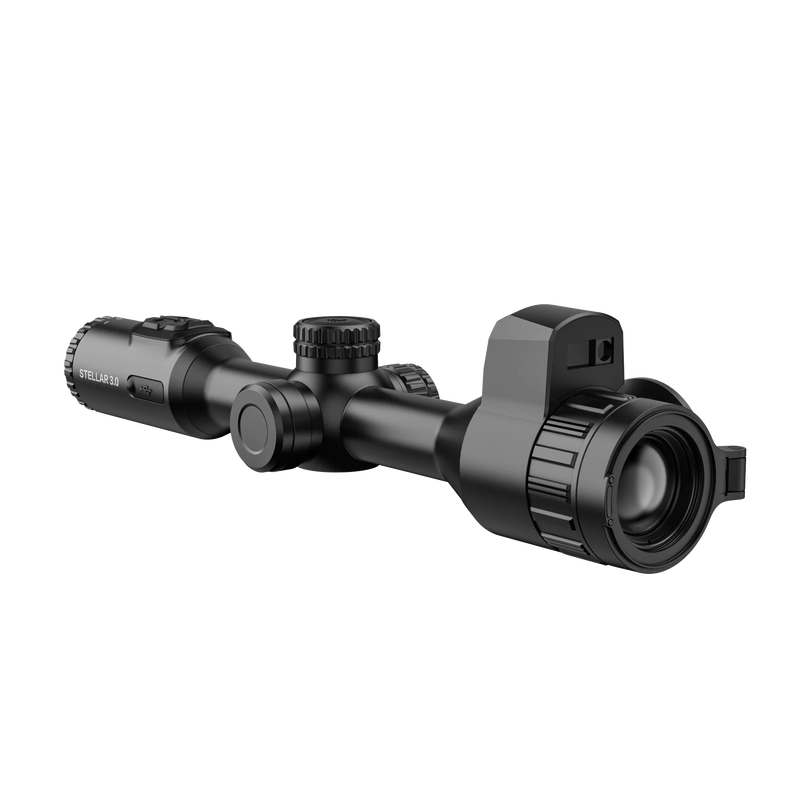

• Hikmicro STELLAR SH35L 3.0 thermal imaging riflescope, shown from the side at a slight angle. It is black with a large objective lens on the left and multiple dials and buttons for adjustments on the top and right. There is also a small protrusion on the top left side for battery installation.

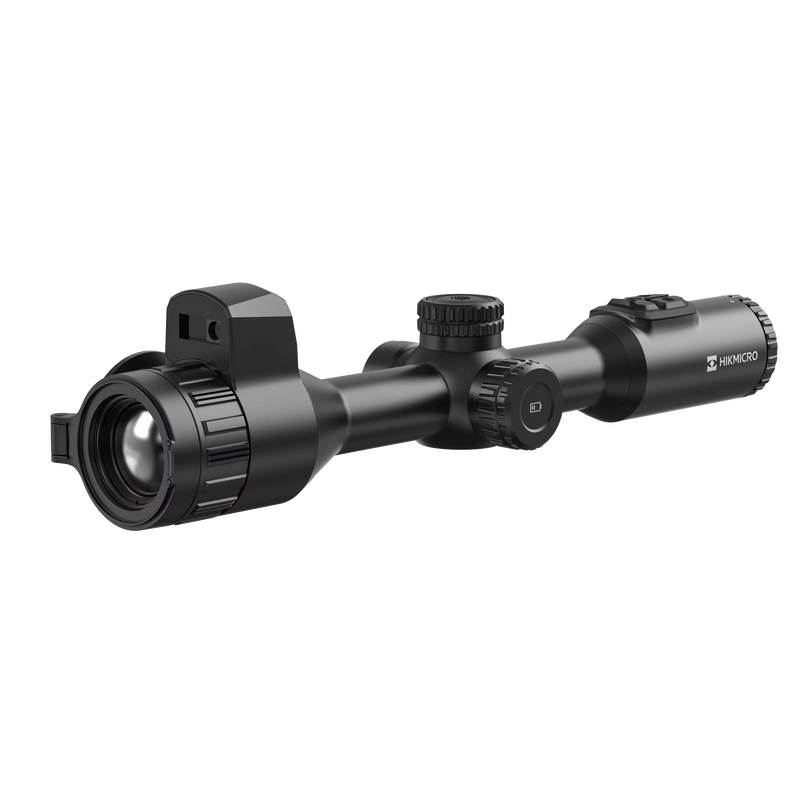

  • Hikmicro STELLAR SH35L 3.0 thermal imaging riflescope, shown from the left side. It is black with a large objective lens on the left and multiple dials and buttons for adjustments on the top and right. There is also a small protrusion on the top left side for battery.
  • Hikmicro STELLAR SH35L 3.0 thermal imaging riflescope, shown from the right side. It is black with a ocular lens on theleft and multiple dials and buttons for adjustments on the top and left. There is also a small protrusion on the top right side for the battery.
  • Hikmicro STELLAR SH35L 3.0 thermal imaging riflescope, shown from the top left side. It is black with a large objective lens on the right and multiple dials and buttons for adjustments on the top and left. There is also a small protrusion on the top right side for battery installation.
1 4

Hikmicro Stellar SH35L 3.0 - Thermal Imaging Tube Scope with LRF

  • Thermal Resolution: 388 x 284
  • Thermal Lens: 35mm
  • Pixel Interval: 12µm
  • NETD: < 15mK
  • Thermal FOV: 7.5 × 5.7/13.1 m × 10.0 m°
What do these specs mean?

Understanding Thermal Specs

Thermal Resolution

Think of this like a TV screen (e.g., 1280x1024). A higher number means more pixels. More pixels give you a sharper, more detailed image, allowing you to digitally zoom in much further before the image gets blurry or pixelated.

Thermal Lens

Similar to a camera lens, measured in millimeters (e.g., 50mm). A larger lens gathers more thermal energy and "sees" further, giving you a longer detection range. However, larger lenses typically result in a narrower field of view.

Pixel Interval (Pitch)

The physical distance between pixels on the sensor, measured in microns (e.g., 12µm). A smaller number means the pixels are packed tighter together, which produces a crisper image and extends your optical magnification without needing a massive lens.

NETD (Thermal Sensitivity)

Measures how tiny of a temperature difference the device can detect. Lower is better (e.g., < 15mK beats < 25mK). A lower NETD means you get a much clearer picture in terrible weather (rain, thick fog, high humidity) and superior contrast between the animal and its surroundings.

Thermal FOV (Field of View)

How wide of an area you can see at once. A wider FOV is excellent for scanning large areas quickly to spot movement. A narrower FOV usually means the device has higher magnification, perfect for identifying specific targets at long distances.

R 54,199.00
Including VAT • Includes Shipping

Stock Inquiry

Give us your details and we will contact you to confirm stock availability for Hikmicro Stellar SH35L 3.0 - Thermal Imaging Tube Scope with LRF.

SKU: SH35L 3.0

Detection Range

Pig
Kudu
Elephant
1059mDetection
486mRecognition
243mIdentification
1588mDetection
729mRecognition
365mIdentification
3176mDetection
1458mRecognition
729mIdentification

Understanding the Math

We believe in honest, real-world field specifications.

Detection ranges are calculated by taking the manufacturer's baseline testing and physically scaling it to the average height of the target animal.

Recognition & Identification are calculated using Johnson's Criteria—the military standard for thermal optics. By analyzing the physical properties of the camera's lens and sensor pitch, we calculate exactly when the target will take up enough pixels on your screen to be clearly identified.

Note: High humidity, thick coats, and environmental background temperatures will reduce these maximum optical distances in the field.
Key Features & Highlights

Stellar SH35L 3.0 Key Features:

  • Exceptional Image Clarity: Equipped with a 384x288 resolution thermal detector and an ultra-sensitive <15mK NETD, the SH35L 3.0 delivers crisp, detailed thermal images, allowing you to identify and target game with precision, even in complete darkness.
  • Extended Detection Range: Spot your target at remarkable distances with a detection range of up to 1800 meters.
  • Immersive Viewing Experience: The 1.03-inch OLED display boasts a 2560x2560 resolution, providing a crystal-clear, immersive viewing experience for enhanced situational awareness and reduced eye fatigue.
  • Uninterrupted Observation: HIKMICRO's Shutterless Image System (HSIS) ensures smooth, continuous thermal imaging without any distracting shutter-related interruptions.
  • Integrated Laser Rangefinder: Determine precise distances to your target with the built-in 1000m laser rangefinder, enabling accurate shot placement.
  • Advanced Ballistic Calculator: Take the guesswork out of long-range shooting. The integrated ballistic calculator provides accurate aiming solutions based on distance, angle, and environmental factors.
  • Rechargeable Battery: Enjoy extended operation with the convenience of a rechargeable battery system.
Product Overview

The HIKMICRO Stellar SH35L 3.0 is the ultimate entry point into professional-grade thermal tube optics. While it maintains the familiar feel and mounting height of a traditional day scope, its internal technology has been completely upgraded for the 3.0 generation.

Designed specifically for hunters who need high-sensitivity detection without the bulk of a dedicated digital unit, the SH35L 3.0 features a refined 384x288 thermal sensor and a world-leading sub-15mK NETD rating. This extreme sensitivity ensures that even in high-humidity or foggy conditions, you receive a crisp, high-contrast image that clearly separates the target from its environment.

Exceptional Clarity & Range

The Stellar SH35L 3.0 is built around a high-grade 35mm F1.0 lens, providing a balanced field of view that is perfect for both bushveld stalking and open-field hunting. With a massive 1800-meter detection range, you can identify heat signatures long before they become aware of your presence.

Integrated In-Lens Laser Rangefinder (LRF)

One of the most significant upgrades in the 3.0 series is the integrated 1000m LRF. Unlike traditional scopes that require a bulky external laser box, HIKMICRO has housed the rangefinder directly inside the objective lens. This preserves the scope’s balance and 30mm tube aesthetics. When used with the built-in Ballistic Calculator, the system provides real-time holdover data for precise, ethical shot placement at distance.

Seamless Shutterless Imaging (HSIS)

The SH35L 3.0 features the HIKMICRO Shutterless Image System (HSIS). Traditional thermal scopes often "freeze" for a split second to calibrate (NUC); HSIS uses an adaptive algorithm to calibrate the sensor invisibly. This ensures your view remains smooth and uninterrupted, so you never lose a moving target at the moment of truth.

Free Shipping

Full Transit Insurance. Your investment is protected.

5 Star Google Rating

Experience the Cape Thermal Difference.

24/7 Support

Talk to us anytime via Whatsapp or phone.

Authorized Partner

Official brand partner for all top brands.

Proven in the Field by Africa’s Top Observers

We don't just sell thermal gear; we specialize in it. The community relies on Cape Thermal for optics that endure the bush.

Swipe to read more →
★★★★★

"My experience with them was great. They they where professional. They inquired about my situation and use to specifically recommend a product. They helped all along the way from the purchase to install. Even following up afterwards to see if I was happy. Will definitely recommend. Huge shout-out to Keegan."

Nocpix Bolt L35R Thermal Scope
Purchased: Nocpix Bolt L35R Thermal Scope
Lourens K. Verified Buyer
★★★★★

"I received exceptional advice and service from Chris and Keegan from Cape Thermal!!!! I will strongly advise anyone to phone Cape Thermal 1st if they are in the market for thermal or nigt vision devices."

Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Purchased: Hikmicro Stellar SQ50L 3.0 - Thermal Imaging Scope with LRF
Hendri B. Verified Buyer
★★★★★

"I can only say: 10/10!!! The service was great, got the product I bought in time. I ordered the product online, no hassles at all. Good quality product as well. After sales is excellent, Keegan made sure we know how to use the product. I will definitely shop here again. I do recommend Cape Thermal as a good shopping shop."

Hikmicro Lynx Pro LE15S Thermal Monocular
Purchased: Hikmicro Lynx Pro LE15S Thermal Monocular
Isobel S. Verified Buyer
View our Google Reviews

Technical Specifications

While we strive for absolute accuracy, manufacturer specifications and hardware configurations are subject to change without prior notice. For mission-critical applications, we recommend consulting our team to verify current technical data.

Thermal Specifications
Sensor TypeVOx Uncooled Focal Plane Arrays
Thermal Resolution388 x 284
Pixel Pitch12 µm
NETD< 15 mK
Thermal Lens35 mm
Focal Ratio (Aperture)F1.0
Field of View7.5° × 5.7°/13.1 m × 10.0 m
Magnification4.2× to 24.2×
Frame Rate50 Hz
Detection Range (1.7m Subject)1800 m
Precision, Optics & Lasers
LRF Safety ClassClass 1
LRF Wavelength905 nm
LRF Max Range1000 m
LRF Min Range10 m
LRF Accuracy± 1
System & Display
Screen BrightnessYes
Screen ContrastYes
Digital Zoom4.2x
Color PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Eye Pupil6
Eye Relief45
Defective Pixel CorrectionYes
Storage Capacity64
Media Capacity64
Media Format.JPEG & .MP4
Recording CapabilitiesOn-board recording
Built-In MicrophoneYes
Battery TypeTwo rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
Power Consumption9
Battery Indicator HUDYes
Connectivity & Software
Wi-Fi HotspotYes
USB ConnectivityUSB Type-C
Multilingual SupportYes
Android AppDownload App
iOS AppDownload App
Physical & Environmental
Protection Level (IP Rating)IP67
Operating Temperature-30°C to 55°C
Dimensions & Weight410 mm × 85 mm × 69.4mm, 800g
What's in the Box
Box ContentsHikmicro Stellar Thermal Scope
Bag
Scope guard
Battery charger
2x batteries
Type-C cable
Lint free cloth
Quick start guide
