Thunder TH35C 3.0 - Thermal Imaging Clip-On
Thunder TH35C 3.0 - Thermal Imaging Clip-On
Thermal Resolution: 384 × 288
Thermal Lens: 35 mm, F1.0
Detection Distance: 1,800m
Free Insured Shipping
Includes Product Lifetime Support
Couldn't load pickup availability

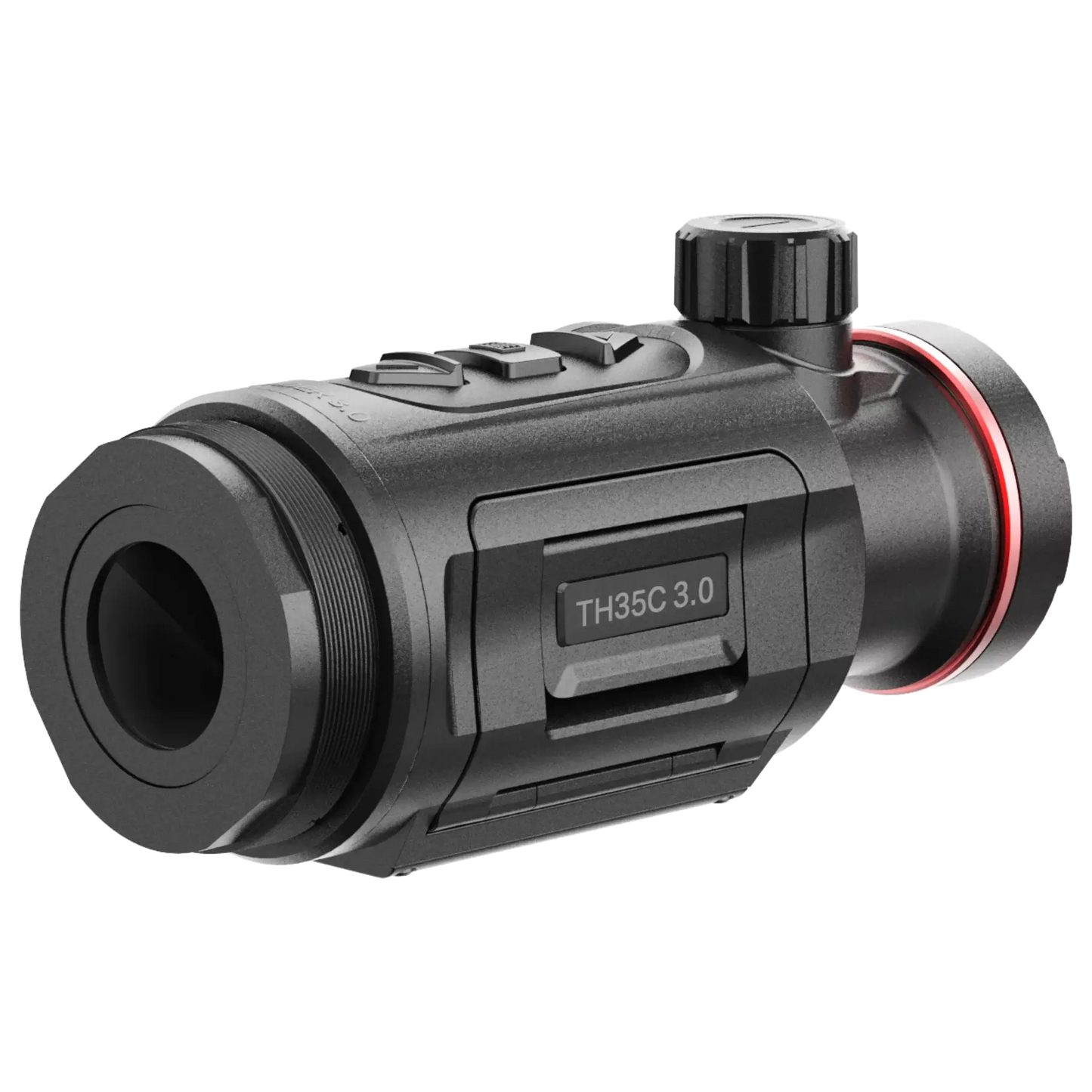

Introducing the HIKMICRO Thunder TH35C 3.0 Thermal Monocular, the first in a new series of high-performance thermal clip-on attachments. Engineered for precision and versatility, the TH35C 3.0 transforms your favorite day scope into a powerful thermal imaging system, ideal for:
- Pest control and varmint hunting: Detect and identify threats to your farm or property, day or night.
- Enhanced situational awareness: Navigate challenging environments and locate targets in complete darkness, fog, or smoke.
- Multiple mounting options: Easily attach to various scopes and platforms using clamping adaptors.
Experience Unmatched Clarity:
The TH35C 3.0 boasts an advanced thermal detector with exceptional sensitivity and Hikmicro's innovative Shutterless Image System (HSIS) for smooth, flicker-free imaging. A large 1920x1080 OLED display delivers crisp, detailed visuals, ensuring you never miss a critical detail.
Key Features:
- 384x288 resolution @ 12 μm thermal detector
- High sensitivity thermal module NETD < 15 mK
- 35 mm, F1.0 lens with a detection range up to 1,800 m
- 6-hour continuous operation with a rechargeable and replaceable Li-on battery
Thunder TH35C 3.0 - Thermal Imaging Clip-On Detection, Recognition, & Identification Ranges
Detection, recognition, and identification ranges are approximate and based on ideal conditions.
-
Bush Pig - 100cm
Detection: 1900m
Recognition: 450m
Identification: 200m -
Deer - 150cm
Detection: 2900m
Recognition: 700m
Identification: 350m -
Elephant - 300cm
Detection: 5500m
Recognition: 1400m
Identification: 700m
Thunder TH35C 3.0 - Thermal Imaging Clip-On Detailed Specifications
Thermal Module Specifications
Resolution: 384 × 288
Lens: 35 mm, F1.0
NETD: <15 mK (@25 °C, F# = 1.0)
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
Frame Rate: 50 Hz
Zoom: 1×
Focus Mode: Focus Knob
Display
Screen: 1,920 × 1,080, 0.49-inch, OLED
Field of View: (H × V), Degrees / m @ 100 m: 7.5° × 5.7°/13.2 m × 9.9 m
Palettes: Black Hot, White Hot, Red Hot, Fusion，Red monochrome, Green monochrome
Laser Range Finder
Laser Safety Class:
LRF Wavelength:
Max Measurement Range:
Min Measurement Range:
Accuracy:
System Functions
Storage: Built-in EMMC (64 GB)
Notable features:
Battery & Power
Battery Life: ≥6h (25 °C, with hotspot off)
Power Supply: 5 VDC, 2 A; Supports External Power Supply
Battery Type:
General
Operating Temperature: -30°C to + 55°C (-22°F to 131°F)
Ingress Protection: IP67
Dimensions: 143.4 mm × 67.5 mm × 72.9 mm
SKU: TH35C 3.0
Package Contents
