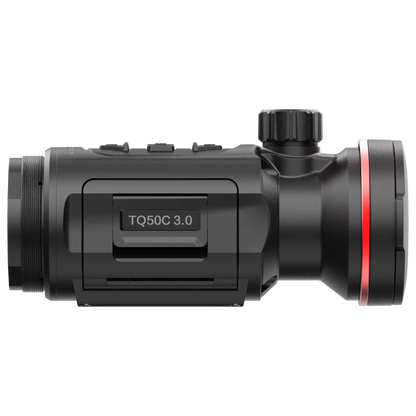

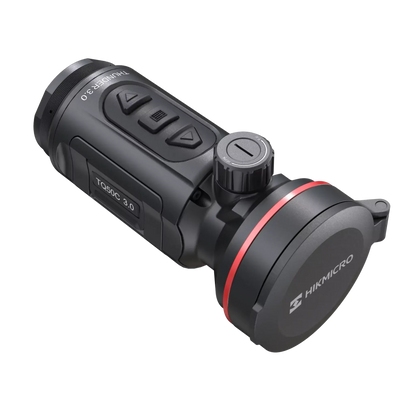

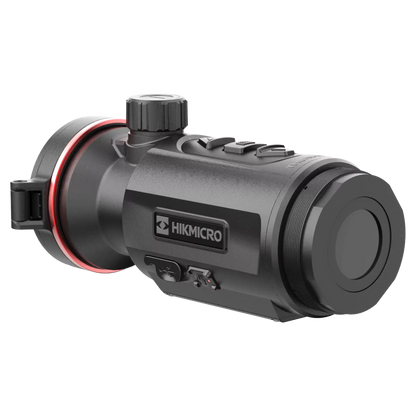

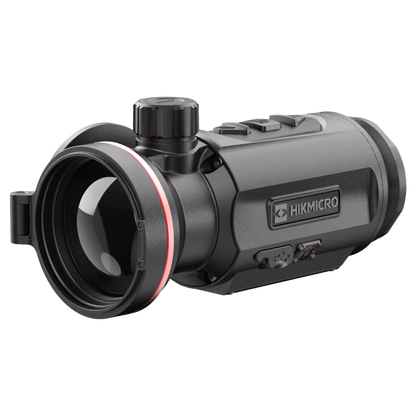

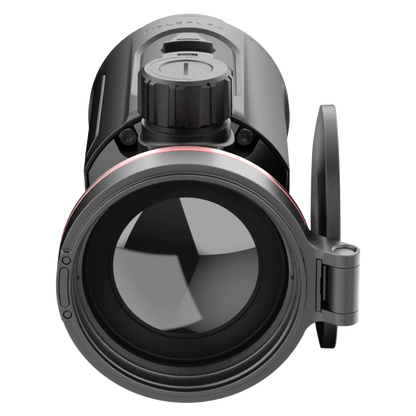

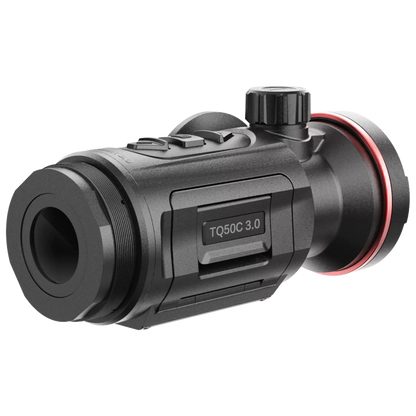

Thunder TQ50C 3.0 - Thermal Imaging Clip-on

Thunder TQ50C 3.0 - Thermal Imaging Clip-on

  • Thermal Resolution: 640 × 512
  • Thermal Lens: 50 mm, F1.0
  • Detection Distance: 2,600m

  • Free Insured Shipping
  • Includes Product Lifetime Support
Regular price R 68,389.00 ZAR
Regular price Sale price R 68,389.00 ZAR
Sale Sold out
Shipping calculated at checkout.

The HIKMICRO Thunder TQ50C 3.0 Thermal Imaging Clip-On, a premium addition to the new series of high-performance thermal clip-on attachments. Engineered for superior clarity and extended range, the TQ50C 3.0 transforms your favorite day scope into a powerful thermal imaging system. Ideal for:

  • Defending your farm: Safeguard your property, crops, and livestock from nocturnal predators like jackals and pigs.
  • Long-range detection: Identify threats at distances up to 2,600m with the powerful 50mm lens.
  • Uncompromised vision: Detect minute temperature differences for clear target identification in darkness, fog, or smoke.
  • Versatile mounting: Easily attach to various scopes and platforms using clamping adaptors.

Experience Unmatched Clarity:

The Thunder TQ50C 3.0 features an advanced thermal detector with exceptional sensitivity and Hikmicro's innovative Shutterless Image System (HSIS). HSIS ensures smooth, flicker-free imaging, eliminating the need for a physical shutter that can cause image freezing. This, combined with a large 1920x1080 OLED display, delivers crisp, detailed visuals, ensuring you never miss a critical detail.

Recommended Magnification of the Day Scope: 1-15x

Key Features:

  • 640x512 resolution @ 12 μm thermal detector
  • High sensitivity thermal module NETD < 15 mK
  • 50 mm, F1.0 lens with a detection range up to 2,600 m
  • 6-hour continuous operation with a rechargeable Li-on battery
View full details

Thunder TQ50C 3.0 - Thermal Imaging Clip-on Detection, Recognition, & Identification Ranges

Detection, recognition, and identification ranges are approximate and based on ideal conditions.

  • Thermal image of a group of pigs, likely Kunekune pigs, taken with a HikMicro Condor CQ50L Thermal Monocular. Their heat signatures are visible in shades of orange and yellow against a cool purple background.

    Bush Pig - 100cm

    Detection: 2500m

    Recognition: 650m
    Identification: 300m

  • Thermal image of a deer standing in a field, showcasing the detail and clarity of the Pulsar Axion 2 XQ35 Pro thermal monocular.

    Deer - 150cm

    Detection: 4000m

    Recognition: 1000m
    Identification: 500m

  • HikMicro Condor CQ50L captures stunning thermal image of elephants drinking at a watering hole in the African savanna. The high-resolution thermal monocular reveals intricate details of their heat signatures, even in low-light conditions.

    Elephant - 300cm

    Detection: 8000m

    Recognition: 2000m
    Identification: 1000m

1 of 3

Thunder TQ50C 3.0 - Thermal Imaging Clip-on Detailed Specifications

Thermal Module Specifications

Resolution: 640 × 512

Lens: 50 mm, F1.0

NETD: <15 mK (@ 25 °C, F# = 1.0)

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

Frame Rate: 50 Hz

Zoom: 1x

Focus Mode: Focus Knob

Display

Screen: 1,920 × 1,080, 0.49 inch, OLED

Field of View: (H × V), Degrees / m @ 100 m: 8.8 × 7.0 /15.4 m × 12.3 m

Palettes: Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome

Laser Range Finder

Laser Safety Class: N/A

LRF Wavelength: N/A

Max Measurement Range: N/A

Min Measurement Range: N/A
Accuracy:
N/A

System Functions

Storage: Built-in EMMC (64GB)

Notable features: Record Video: On-board Video Recording
Capture Snapshot: Yes
Virtual Reticle: Yes
Standby Mode: Yes
Hotspot: Yes
Hot Track: Yes
Reticle: No
Audio Recording: Yes
Recoil-activation Recording: Yes
Recoil: 1,000 g/0.4 ms
Local Album: Yes
Image Calibration: Yes
Zeroing Profiles: 5

Battery & Power

Battery Life: ≥6h (25 °C, with hotspot off)

Power Supply: 5 VDC, 2 A; Supports External Power Supply General

Battery Type: Replacable and Rechargeable Li-ion Battery Pack

General

Operating Temperature: -30°C to + 55°C (-22°F to 131°F

Ingress Protection: IP67

Dimensions: 149.4 mm × 76 mm × 74.6 mm

SKU: TQ50C 3.0

Package Contents

HIKMICRO Thunder TQ50C 3.0 Thermal Monocular
Battery x2
Battery Charger x1
Quick Start Guide x1
Non-dust Cloth x1
Type-C Cable x1
Wrench x1
Carry case x1
